Feature:

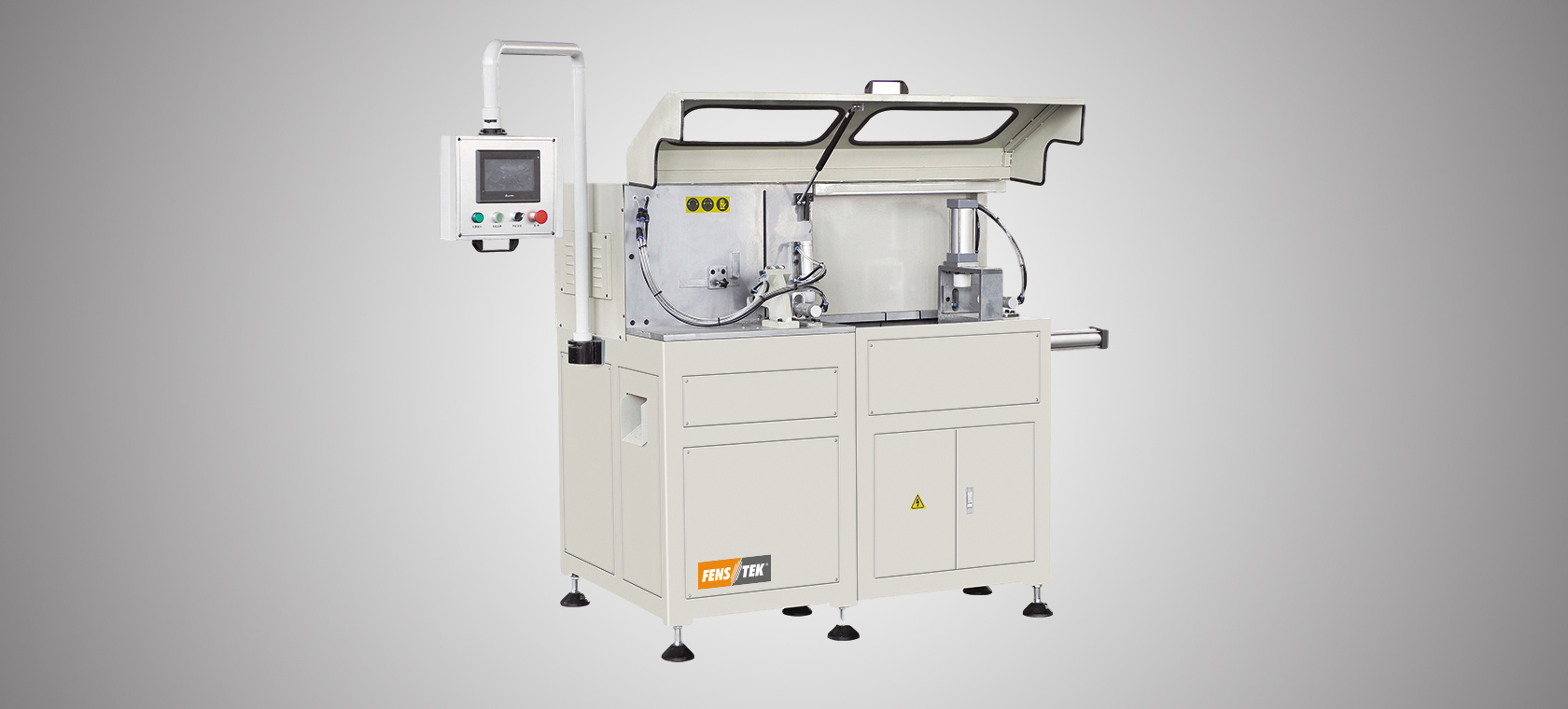

1.Frame Corner Cutting Machine CKS-500 is automatically cutting off Aluminum corner key
2.PLC controlled auto precise feeding. Suitable for massive production.
3.Imported carbide saw blade is of accurate processing and high efficiency.
4.High-power motor makes the cutting easily.
5.Linear bearing motion pair gave less resistance force and ensured high processing accuracy.
6.It has features of easy operation, reliable performance, advanced technique and convenient maintenance etc.

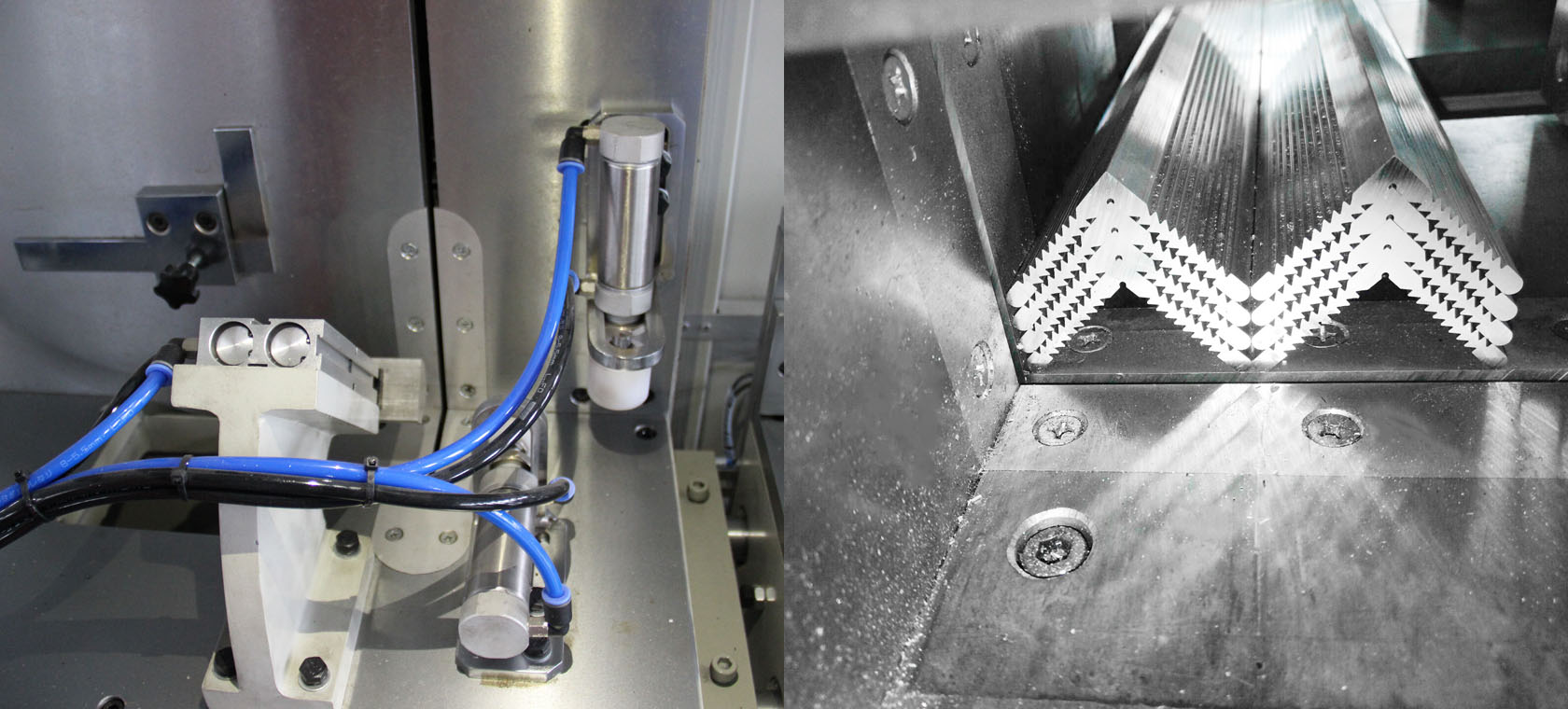

7.Special designed clamping device ensure stable positioning.
8.Easy adjustable cutting size.
9.Counting device. Easy operation. Auto saving cutting volume in case of power off.
Standard accessory: | |
• PLC | Omron |
• Saw blade | Wagen |
• Solenoid valve |
|
• Cylinder |
|
• Motor | Anhui Sanyang (Best Chinese Motor Brand) |
• Air Filter Device |
|
• Electrical Button and Switcher | Schneider |
• AC Contactor and Circuit Breaker | Schneider |
• Approach Switcher | Omron |
• Linear Bearing System | HIWIN |
• Magnetic Grid | M15 |
Main specification and technical parameter : | |
• Power supply | 3N~50Hz 380/220V or As Customer Specification |
• Cutting motor power | 3kw |
• Motor rotary speed | 2880r/min |
• Operation air pressure | 0.6～0.8MPa |
• Air consumption | 200L/min |
• Auto-feeding length | 5～580mm |
• Cutting length | No limit |
• Cutting speed | 0-3m/min |
• Blade specification | ø500×ø30×4.4X Z120 |
• Blade W x H | 140×140 mm |
• Cutting surface plane | ≤0.10mm |
• Cutting surface verticality | 0.1mm |
• Cutting surface roughness | Ra12.5μm |
• Contour dimension | 5670 mm×1770mm×1840mm(L×W×H) |
• Weight | 500kg |
