DSD550*4200

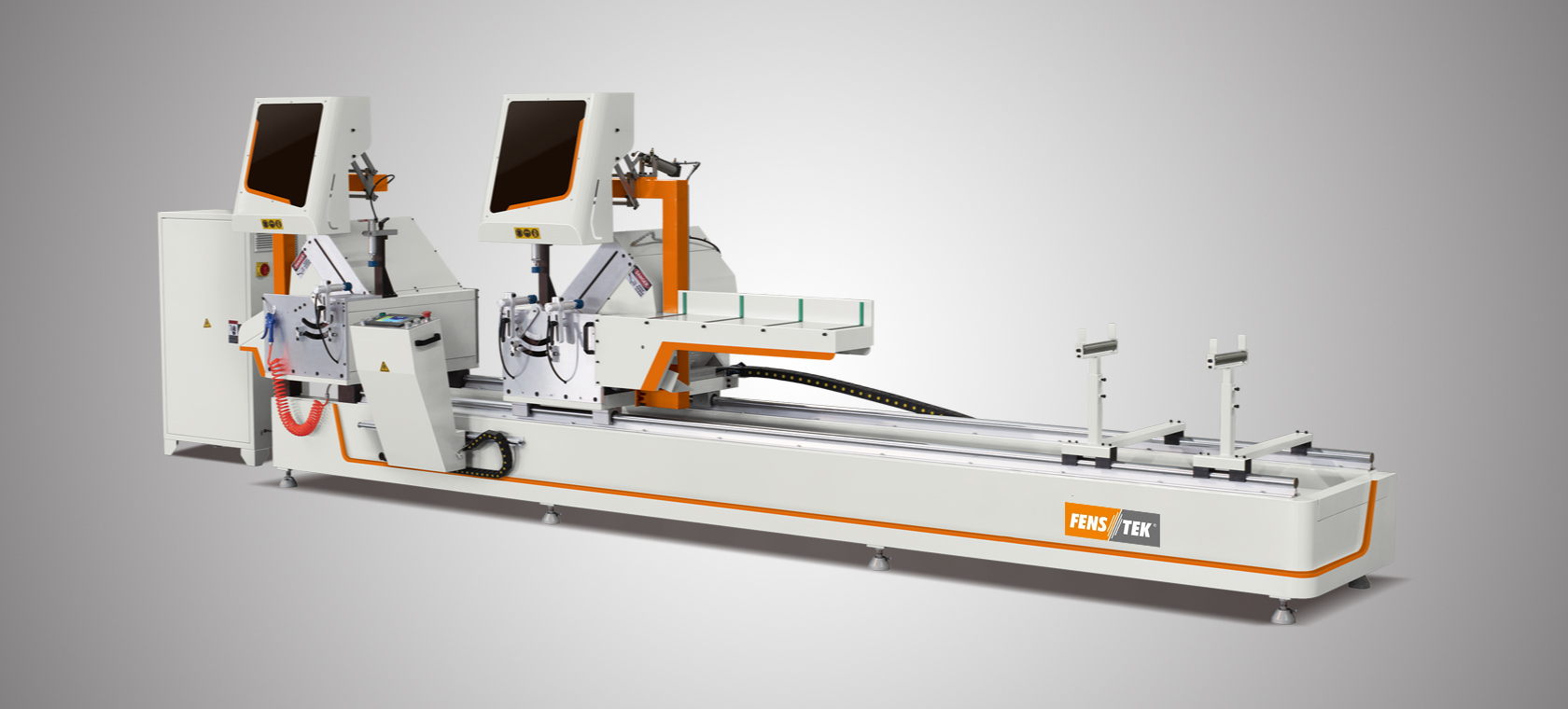

Aluminum Window Digital Display Double Head Saw

Features:
1. Unique swing arm feeding system assure high quality cutting result.

2. Auto -45°~ 90°cutting change

3. Auto safety cover for safety operation.

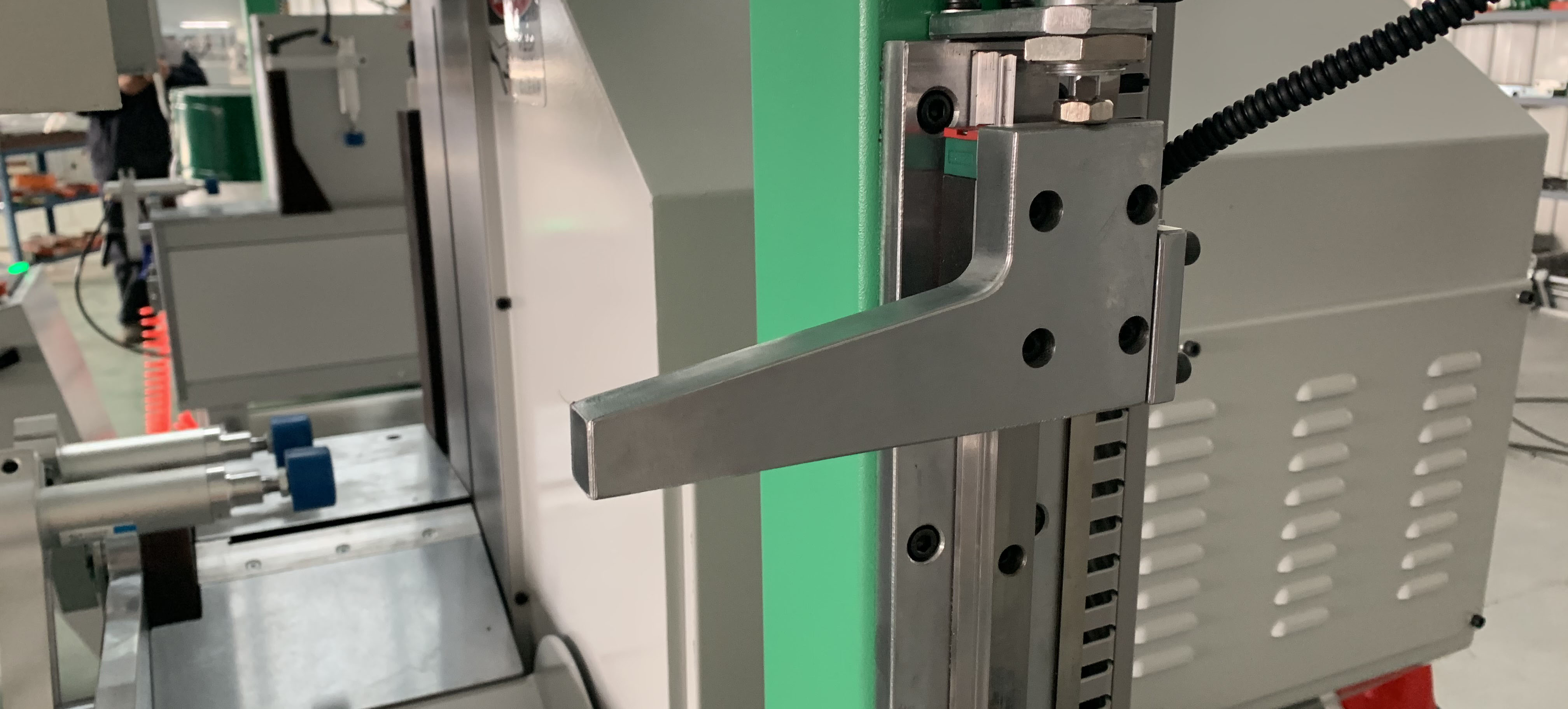

4. Imported linear guiding pair ensured steady processing accuracy.

5. Saw blade rotates smoothly due to high accuracy spindle.

6. Hydraulic feeding systems ensure precise and stable feeding.

7. Carbide saw blade is of accurate processing and high efficiency.

8. Two heads can work together or single, when together work, one time can cut off the required length and angle cut can be cut at one time work together or single, when together work, one time can cut off the required length and angle cut can be cut at one time

Main accessory

Saw blade

 Wagen

Solenoid valve

 AirTAC(Taiwan)

Cylinder

 AirTAC(Taiwan)

Motor

 Anhui Sanyang   (Best Chinese Motor Brand)

Air Filter Device

 AirTAC(Taiwan)

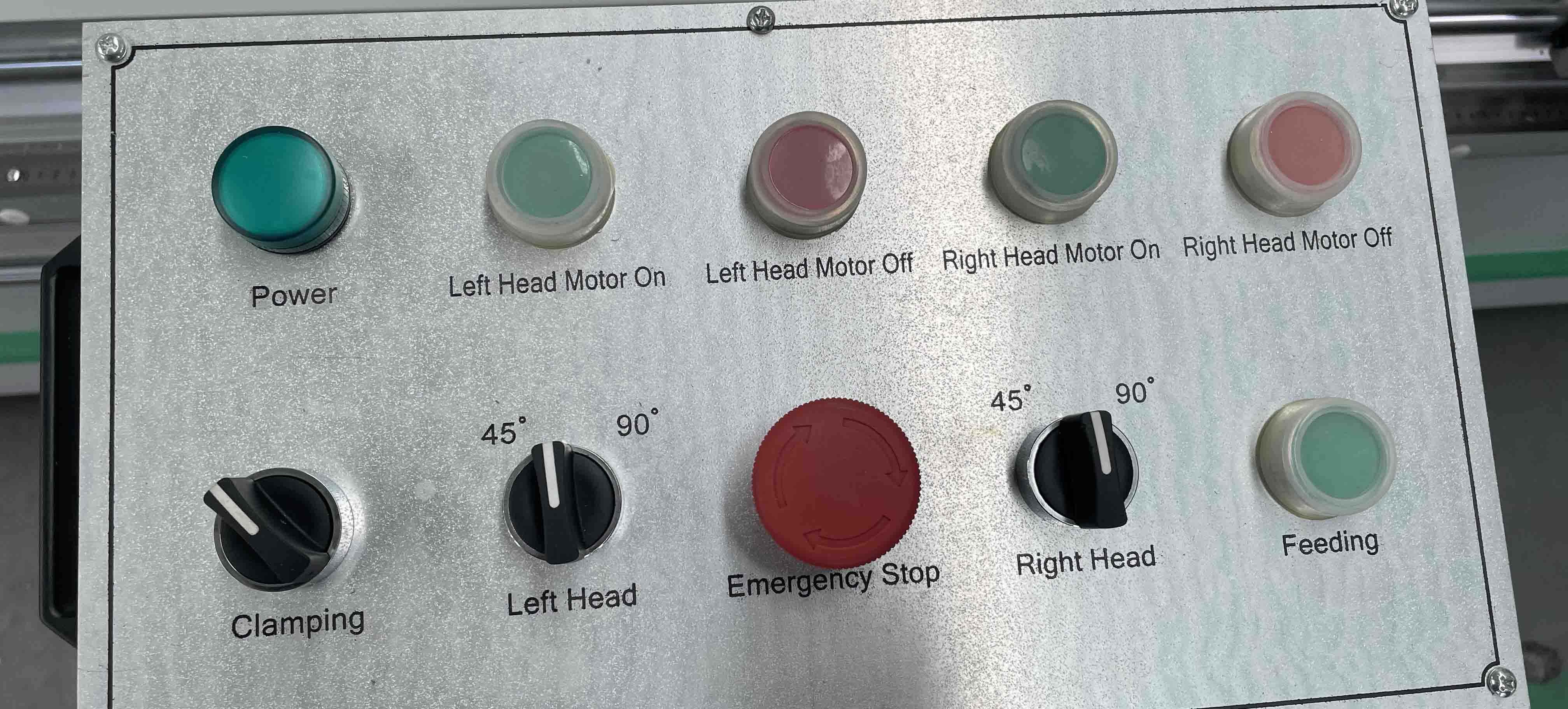

Electrical Button and Switcher

 Schneider

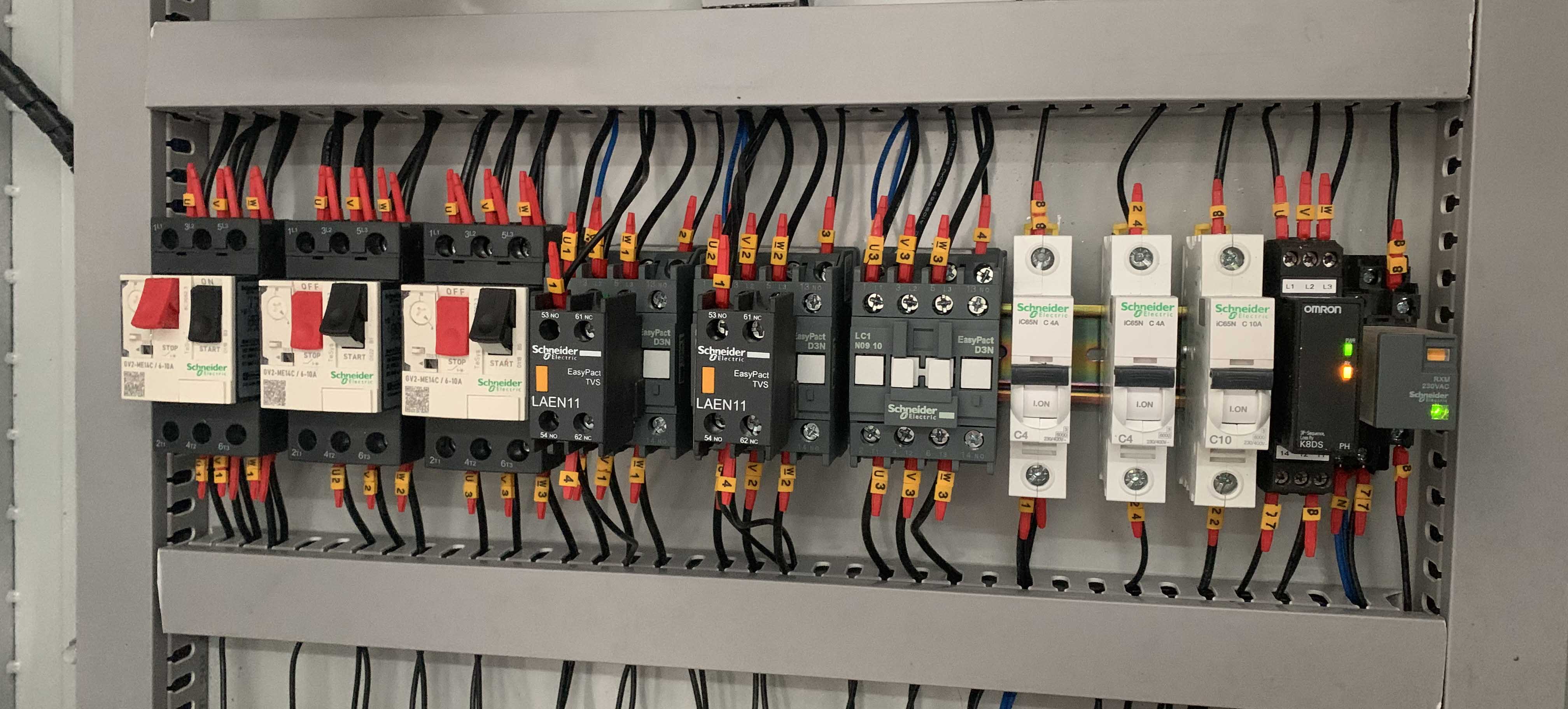

AC Contactor and Circuit Breaker

 Schneider

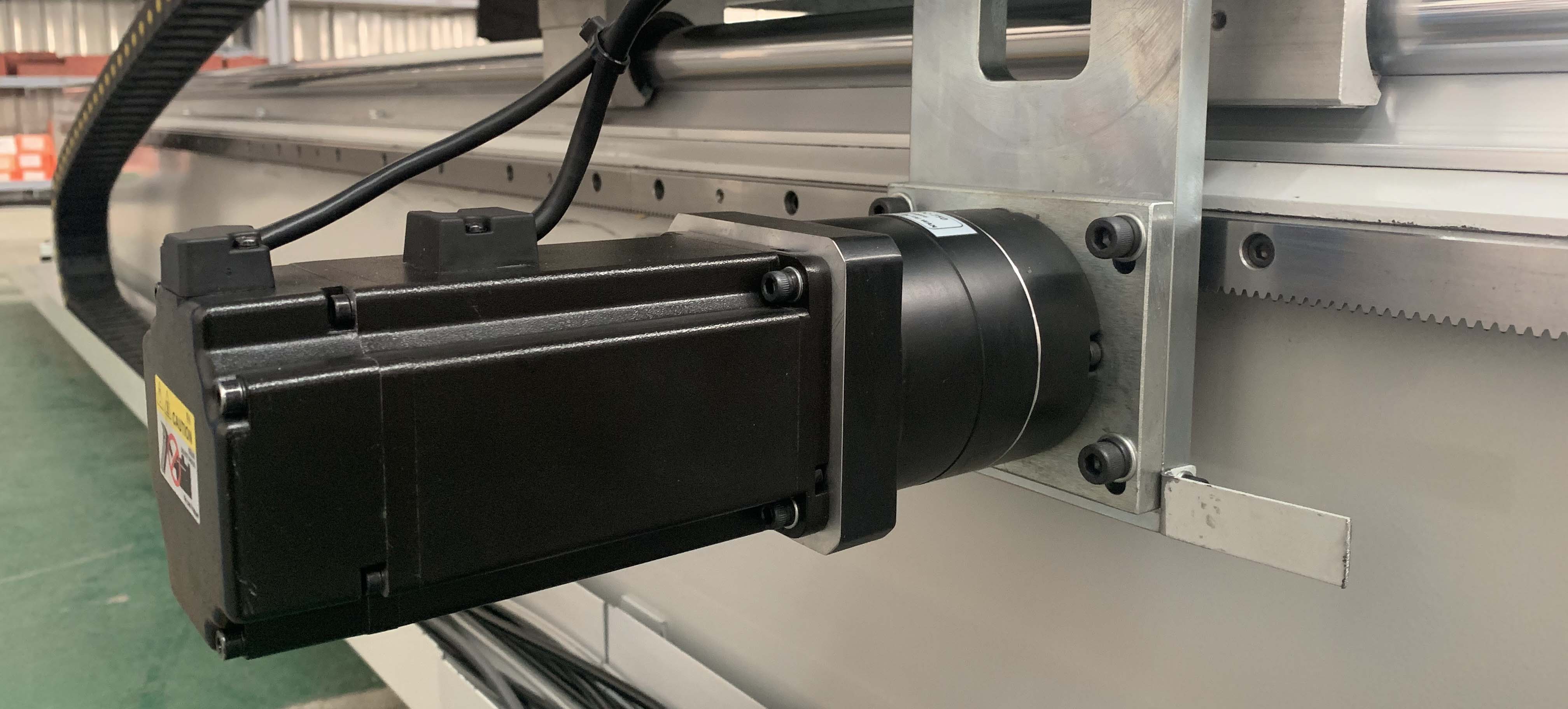

Servo Motor

 Schneider

Approach Switcher

Turck


Parameter

Power supply

 3N~50Hz 380/220V or As Customer Specification

Saw-head motor

 2×2.2KW

Operation air   pressure

 0.50.8MPa

Cutting motor   rotary speed

2800r/min

Blade   specification

ø550×ø30×4.4×120T

Cutting Range

170*170mm at   90°

150*150mm at   45°

Cutting length

410-4200mm 90°

Cutting angle

-45°~90°

Repeat   locating length tolerance

±0.2mm
