UC600

Aluminum Window Single Head Cutting Saw

Features:

1. This aluminum single head cutting saw mainly used for aluminium and upvc profile cutting, saw blade up-cut feeding type.

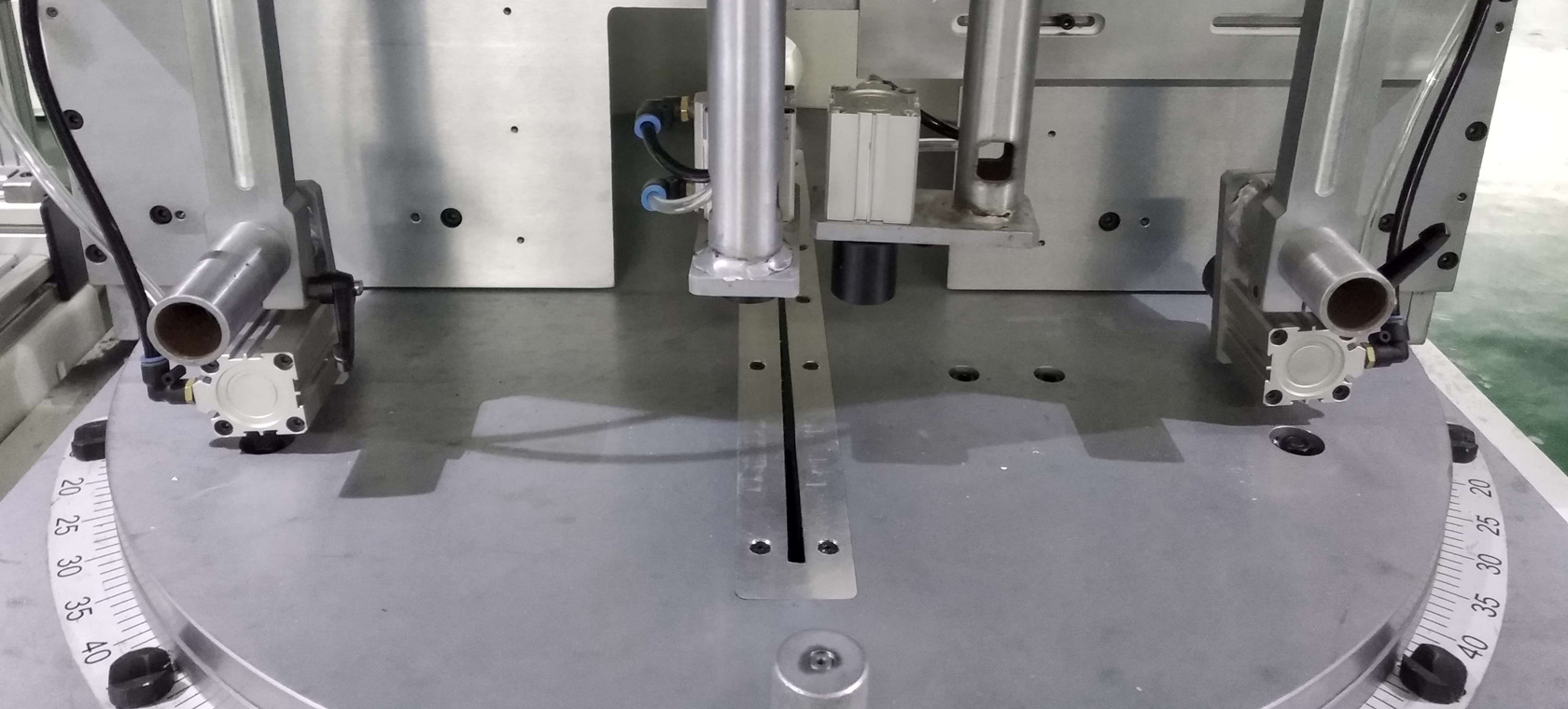

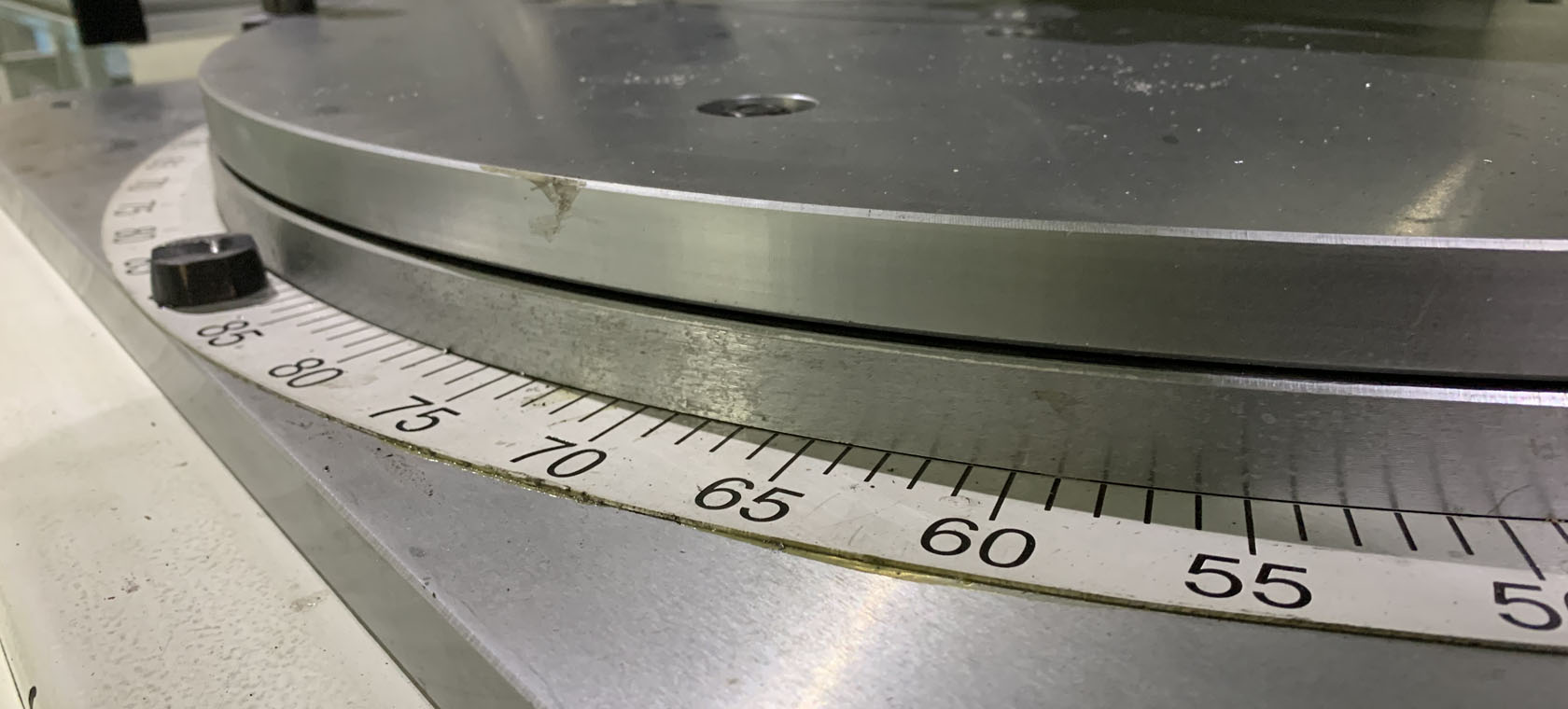

2. Super big worktable; convenient for +45°/-45°,+/-15°,+/-90° cutting.

3. The feeding guide adopts high precision linear bearing system.

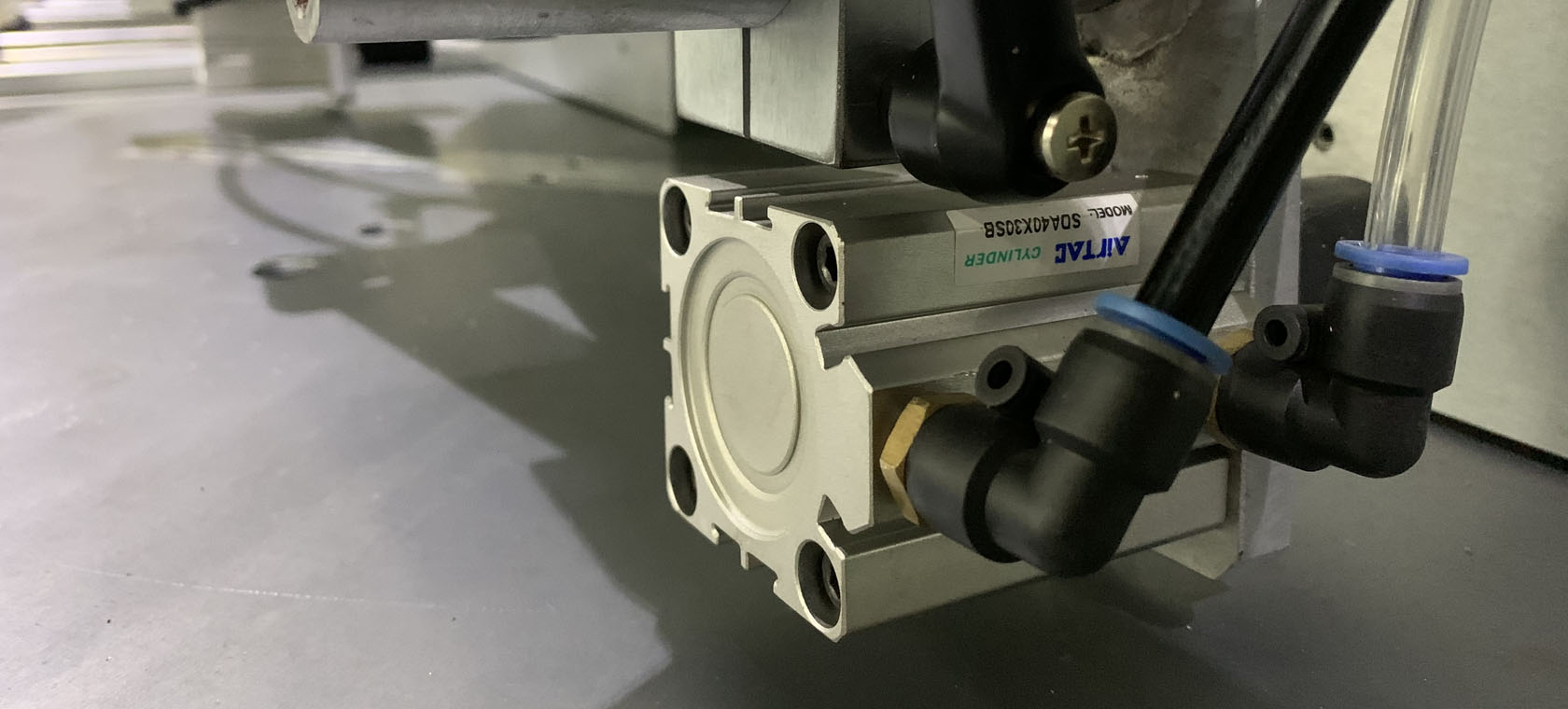

4. Adopt Hydro-pneumatic cylinder damping cylinder for stable feeding

5. Flexible and convenient operation.

6. Reasonable design for safeguard machine cover to ensure security.

7. The entire machine adopts high quality imported electrical and pneumatic parts and

components; can pass UL,CSA,CE certificate. The security of entire machine could each

the top international standard.

8. High stability and reliability

 Parameters

 Air Pressure

 0.5Mpa-0.8Mpa

 Air Consumption

 30L/min

 Input Voltage

 33N~50HZ 380V or customized

 Input Power

 4.5KW

 Motor Rotary Speed

 2800r/min

 Saw Blade Specification

 φ600mmx4mmx30mm

 Max.Cutting Width

 45°max 250mm;90° max 330mm

 Max. Cutting Height

 195mm

 Overall Dimension

 9030X1500X1300mm(including two side support   frames)

 Weight

 500Kg
