ADSSE

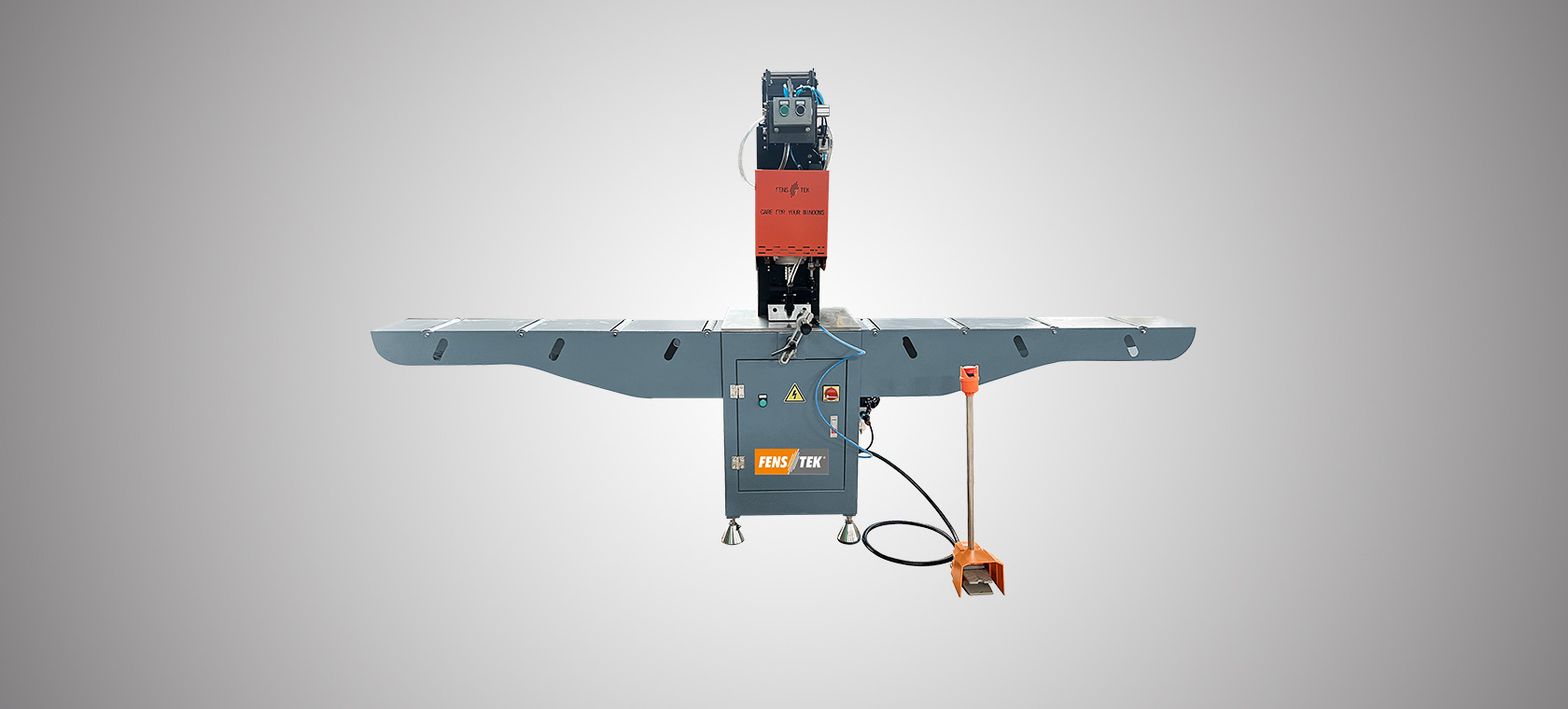

Auto Screw Driver Machine for UPVC Window

Features:

1. Auto Screw Driver Machine is a stationary Screwdriver. Advancing Unit with integrated Screw Feeder to insert screws into wood, plastics or metal, e. g. to fix the reinforcement in UPVC profiles.

2. Automatic: Integrated screw feeding system and automatic start of the hopper movement when operating.

3. Flexible Production: Work piece height (screwing level) can vary between 35 and 95 mm above the base plate.

4. High Efficiency: Screw driving cycle time to insert one self-drilling screw (3,9 x 19mm) for reinforcement fixing approx. 2 seconds.

5. Stable: Feed capacity 30 or 80 screws per minute depending on dimension of screw

Main accessory

Machinery is complete made in Germany.

Parameter


Air pressure

6 ~ 10 bar

Man. torque

5,8 Nm

SCREWDRIVER   BITS

Phillips,   Pozidriv ,Torx

SCREW   DIMENSIONS

Head diameter:6,3-8,1 mm ; head style selectable.

Shaft diameter:

3,5-4,2 mm

Screw length:  15-40 mm

15-40 mm
