DJJ06

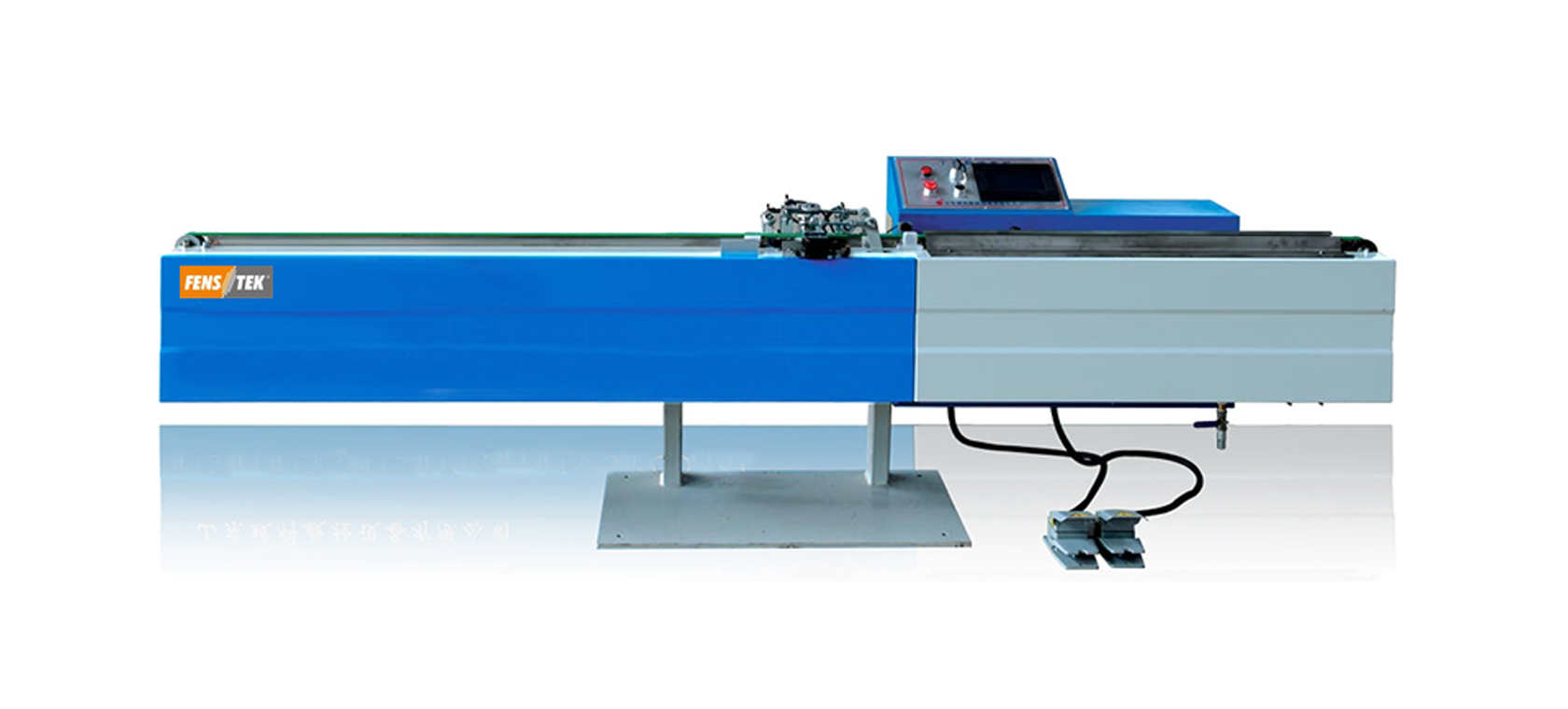

Butyl Extruding Machine

Features:
1. Booster pump imported from Germany, has the advantages of sensitive pressure regulator, small pressure fluctuation, stable and high quality glue, and aluminum adjustment convenient and accurate, etc.
2.Adopts PLC control system with touch screen interface.
3.Adjust the distance between two glue nozzle by automatic hydraulic cylinder, fast and convenient.
4. Can glue round spacer.
5. Five gear frequency control.
6. The glue tanker diameter 200mm, length 450mm, is suitable for all kinds of butyl.
7. 24 hour timer switch, saving warm-up time, improve work efficiency.This machine adopts stainless steel hairline board, which has neat and beautiful appearance.

Parameter

Air Pressure

  0.60.8(MPa)

Space between two nozzle

  4 30 mm

Input Voltage

  380V 50Hz or customer specification.

Gluing pressure

  16 19 Mpa

Input Power

2.24 Kw

Gluing temperature

 130 160 degrees C

Belt transfer speed

  0 35 m/min

Overall Dimension

  3000 x 630 x 960 mm

Weight

  600 kgs

Main accessory

•  Solenoid valve

Airtac

• Cylinder

Airtac

• Air Filter Device

Airtac

• Electrical Button and Switcher

Delixi

• AC Contactor and Circuit Breaker

 Delixi

 Approach Switcher

Delixi
