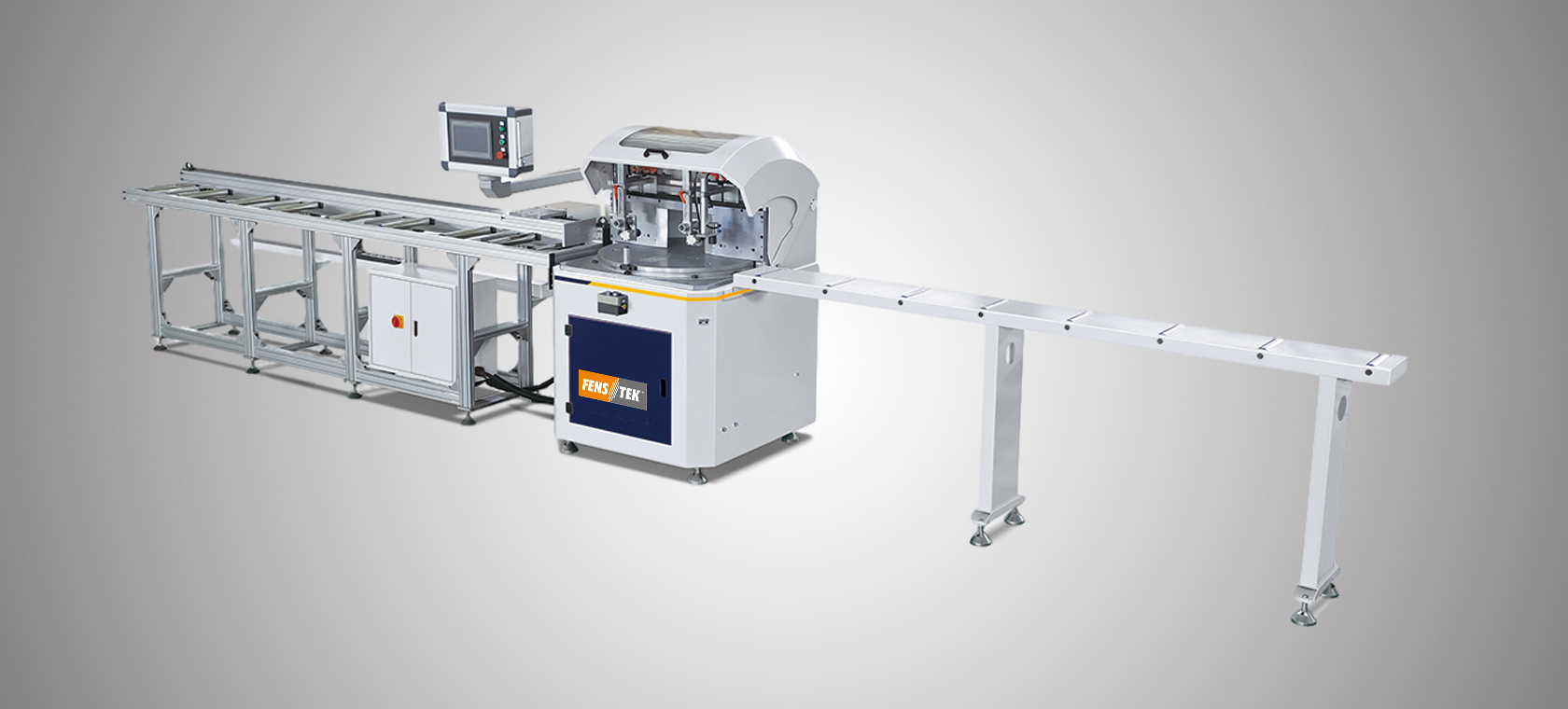

LJZA-CNC-600

Industry aluminum CNC Free angle cutting saw

Features:

1. Industry aluminum CNC Free angle cutting saw is For aluminium profile cutting, saw blade up-cut feeding type.

2. Super big worktable; convenient for +45°/-45°,+/-15°,+/-90° cutting.

3. The feeding guide adopts high precision linear bearing system.

4. Adopt Hydro-pneumatic cylinder damping cylinder for stable feeding.

5. Flexible and convenient operation.

6. Reasonable design for safeguard machine cover to ensure security.

7. The entire machine adopts high quality imported electrical and pneumatic parts and

components; The security of entire machine could each the top international standard.

8. High stability and reliability

 Main accessory


Low-voltage apparatus

Schneider(French brand)

Button switch

Siemens(German brand)

Electromagnetic valve

AirTAC(Taiwan brand)

Motor

DELI(Chinese brand)

Saw blade

WAGEN(Japanese brand)

Air cylinder

AirTAC(Taiwan brand)

Air tube

ASHUN(Taiwan brand)

 Parameters


Air Pressure

0.5Mpa-0.8Mpa

Air Consumption

40L/min

Input Voltage

33N~50HZ 380V or customized

Input Power

4.5KW

Motor Rotary Speed

2800r/min

Saw Blade Specification

φ600mmx4.6mmx30mm

Max.Cutting Width

45°max 250mm;90° max 330mm

Max. Cutting Height

195mm

Overall Dimension

6600X1500X1300mm

(including the side support frames)

Weight

500Kg
