Lock Hole Milling Machine For PVC Window Machine, China Factory Price, FENSTEK

NLHM100

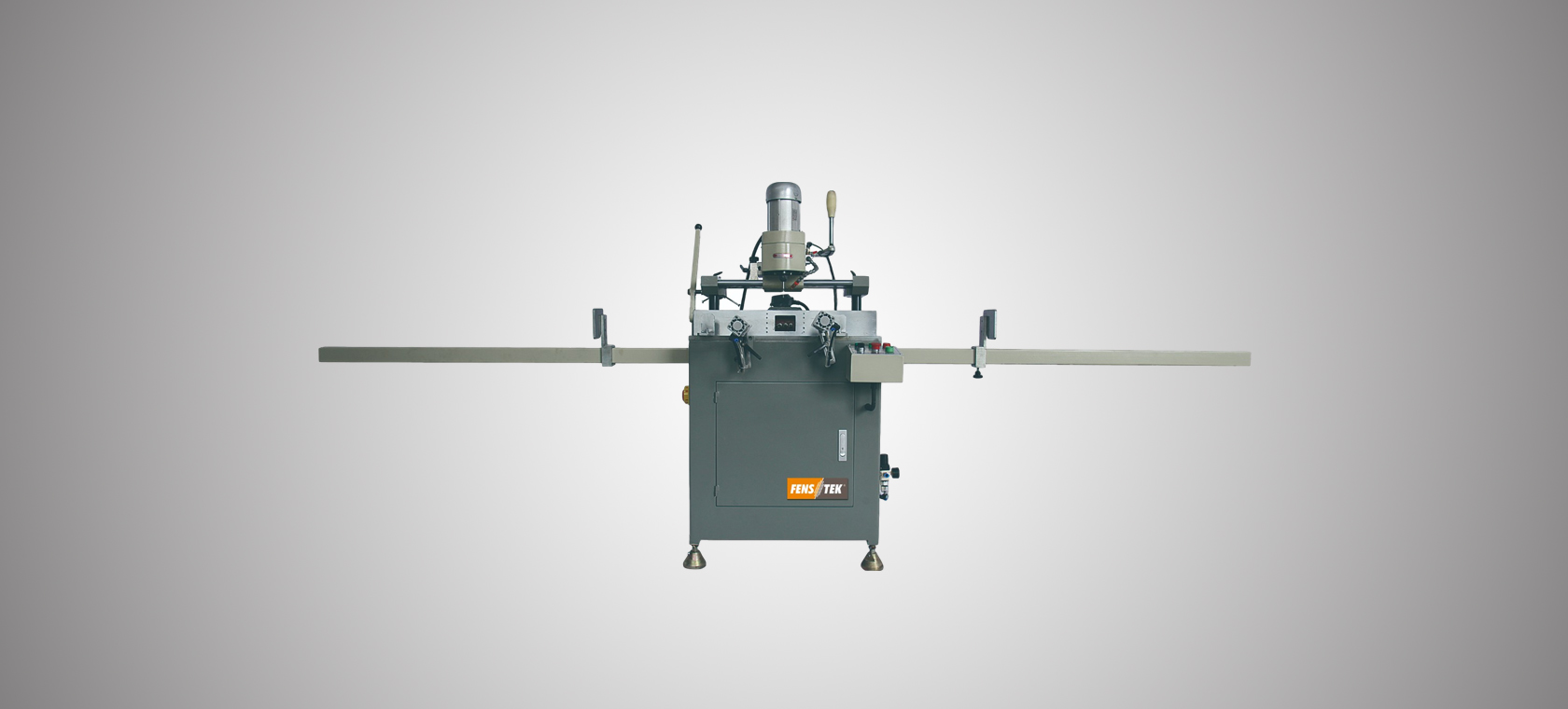

Lock Hole Milling Machine For PVC Window Machine

Feature:

1. The lock hole drill system opposite to operator, easy operation.

2. Hydro-pneumatic actuator cylinder feeding device of the drill system to reduce labor intensity.

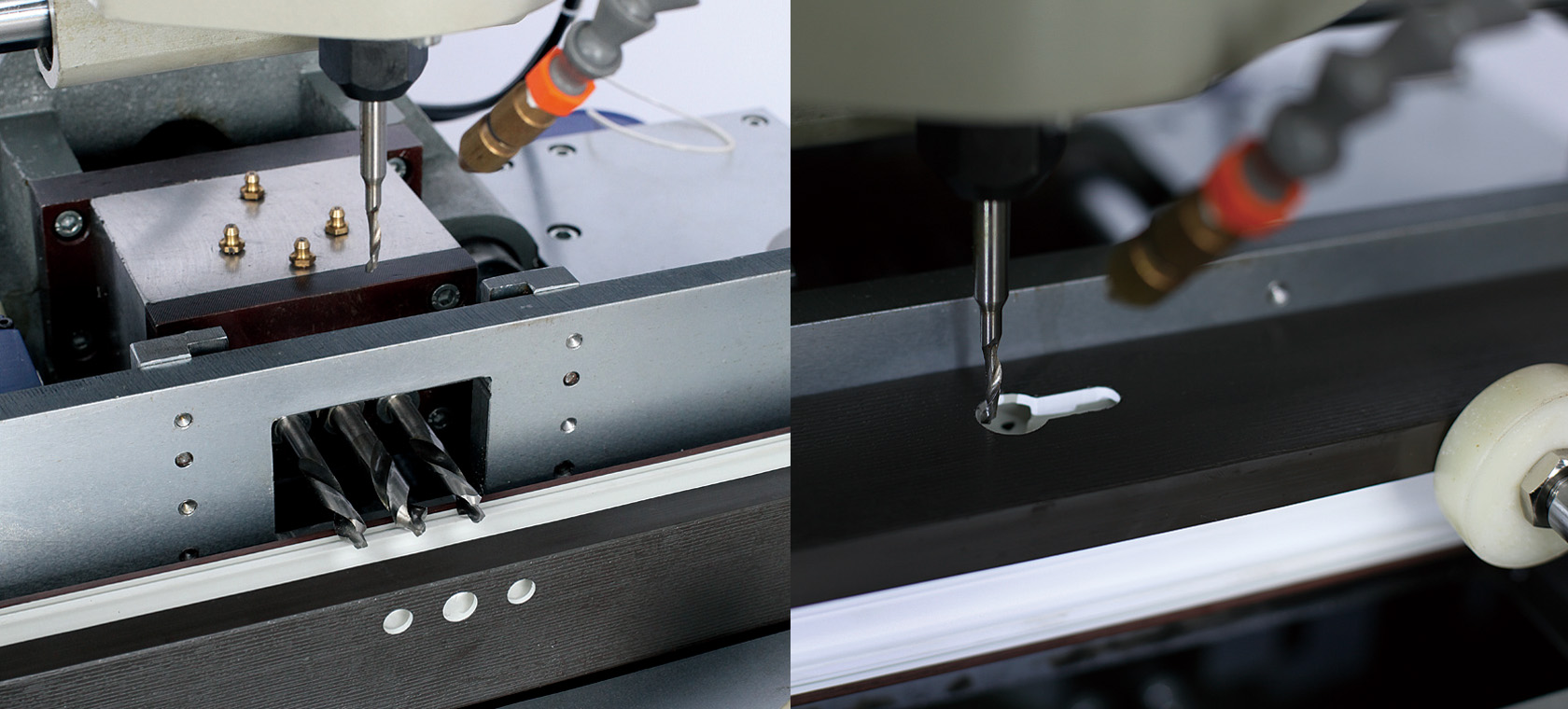

3. Auto milling handle hole, Euro groove slot and various hole or slot milling for processing the UPVC window profile.

4. Mechanical memory turret for quick positioning.

5. Routing to stops or universal template in 1:1 ratio.

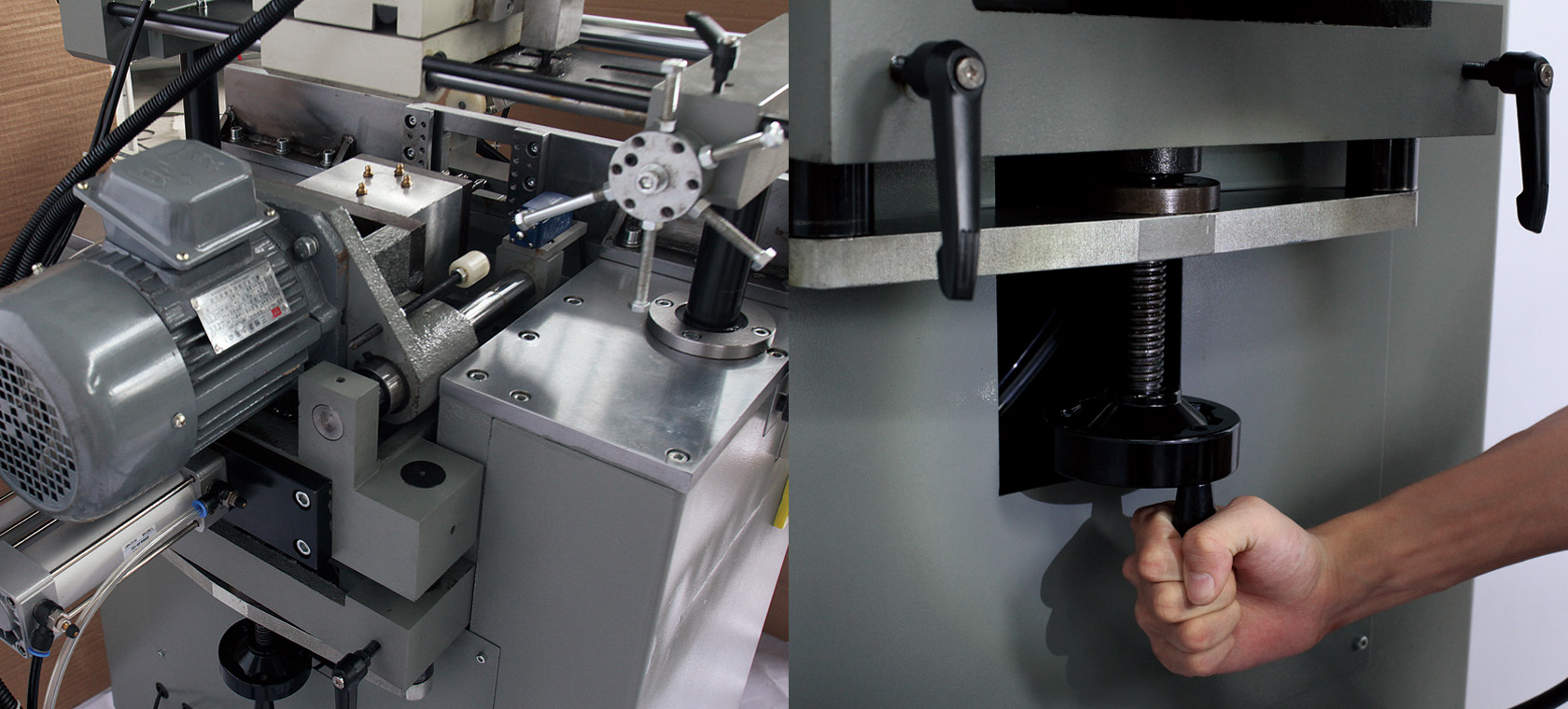

7. Handle wheel for easy adjusting milling height. Friendly using design.

8. Equipped with standard hole template. Plain template is standard equipped for special design.

9. Self-Centering bar.

Parameter
Operation Air Pressure	0.5～0.8(MPa)
Air Consumption	30L/min
Input Voltage	380V/50Hz or Customer specification
Main-Shaft Revolution	11200/910(r/min)
Input Power	1.85(kW)）
Cutter Diameter	φ5φ8(mm)
Copy Milling Range	90×290（mm）

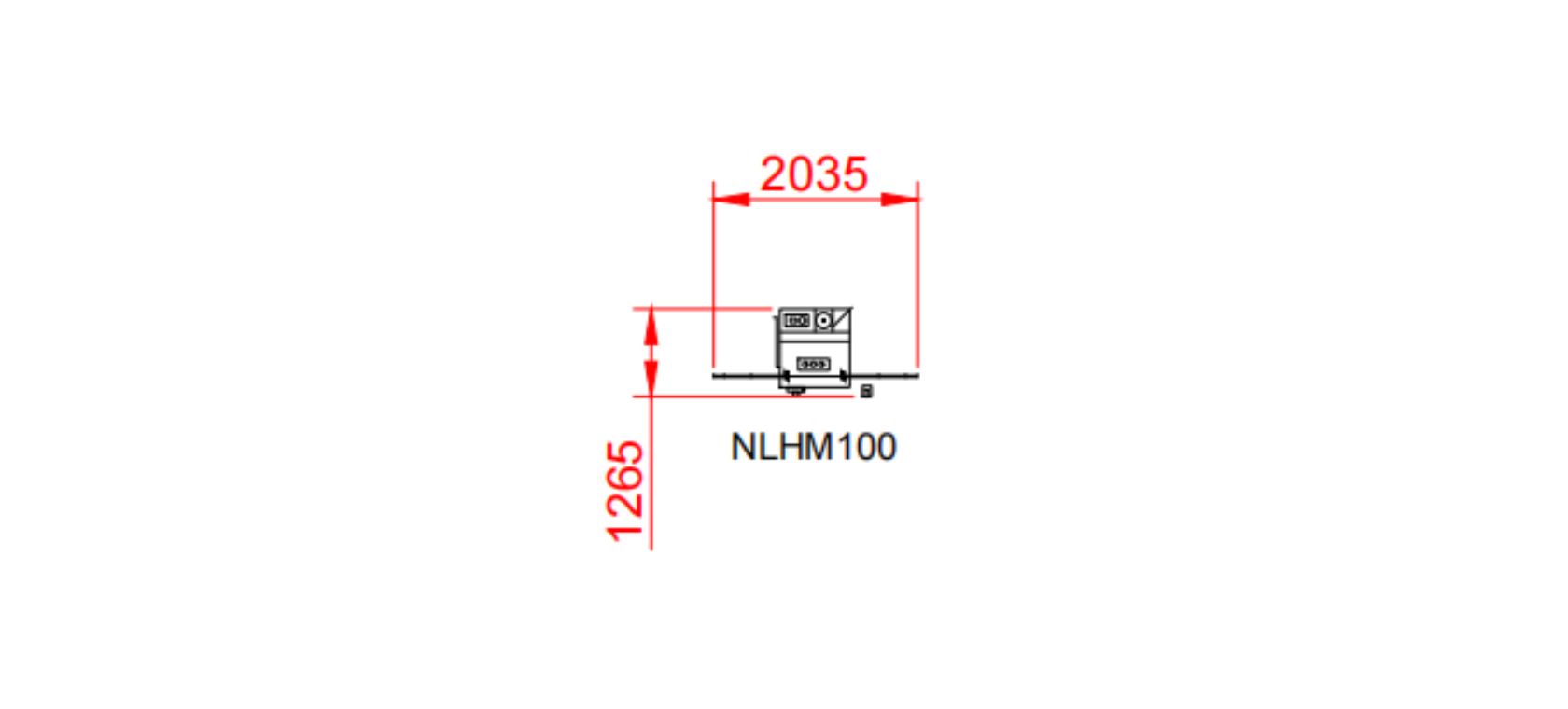

Overall Dimension	1000×1130×1500(mm)
Machine Weight	300（kg

Main accessory
Solenoid valve	Germany FESTO
Cylinder	JPC(FESTO Joint Venture Brand)
Motor	Anhui Sanyang
Air Filter Device	STNC
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Swiss CONTRINEX or Japan Omron
