TEM200

Twin Head End Milling Machine For PVC Window Processing

Feature:

1. End milling machine TEM200 is used for milling the transom and door frames in UPVC and aluminum profile.

2. Two motors are connected with two shafts directly.

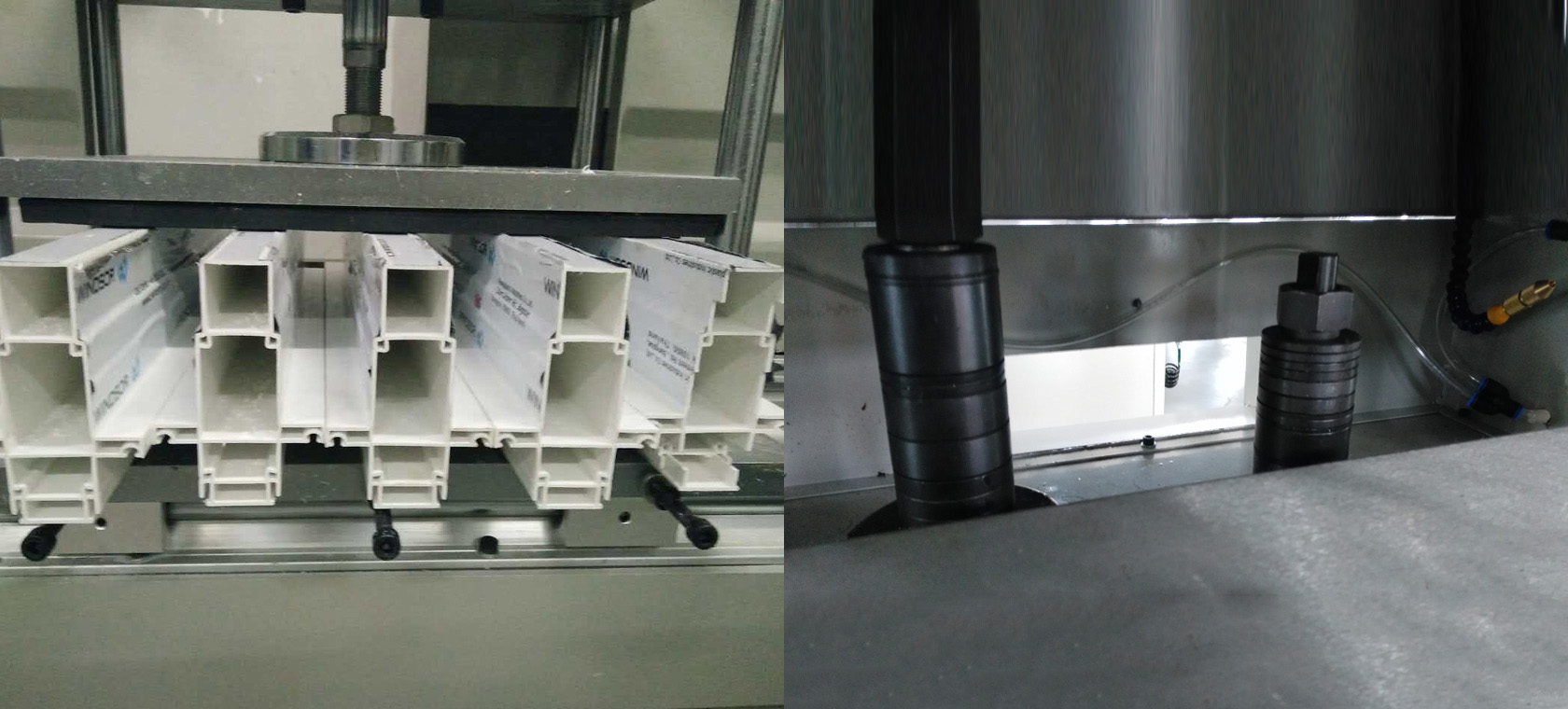

3. Milling several pcs profile in one cycle.

4. Milling cutter up and down adjustment as well as left and right adjustment for various section of profile .

5. Big diameter for milling cutter, high cutting speed.

6. Cutter spindle connected by shaft coupling, cutter working precision does not effect motor spindle running precision .

Main accessory
Solenoid Valve	Airtac
Cylinder	Airtac
Motor	Anhui Sanyang
Air Filter Device	Airtac
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Swiss CONTRINEX or Japan Omron

Parameter
Operation Air Pressure	0.5～0.8(MPa)
Air Consumption	10L/min
Input Voltage	380V/50Hz or Customer specification
Main-Shaft Revolution	2800(r/min)
Input Power	4.4kw
Spindle diameter	32mm
Milling cutter diameter	160-220mm
Working table feeding travel	0 - 1050mm
Working table size	530×320mm
Motor adjustment travel	0 - 85mm
Tenoning maximum size	40mm
Overall Dimension	1250 920 1650 mm)
Machine Weight	450kg
