ASD-6000

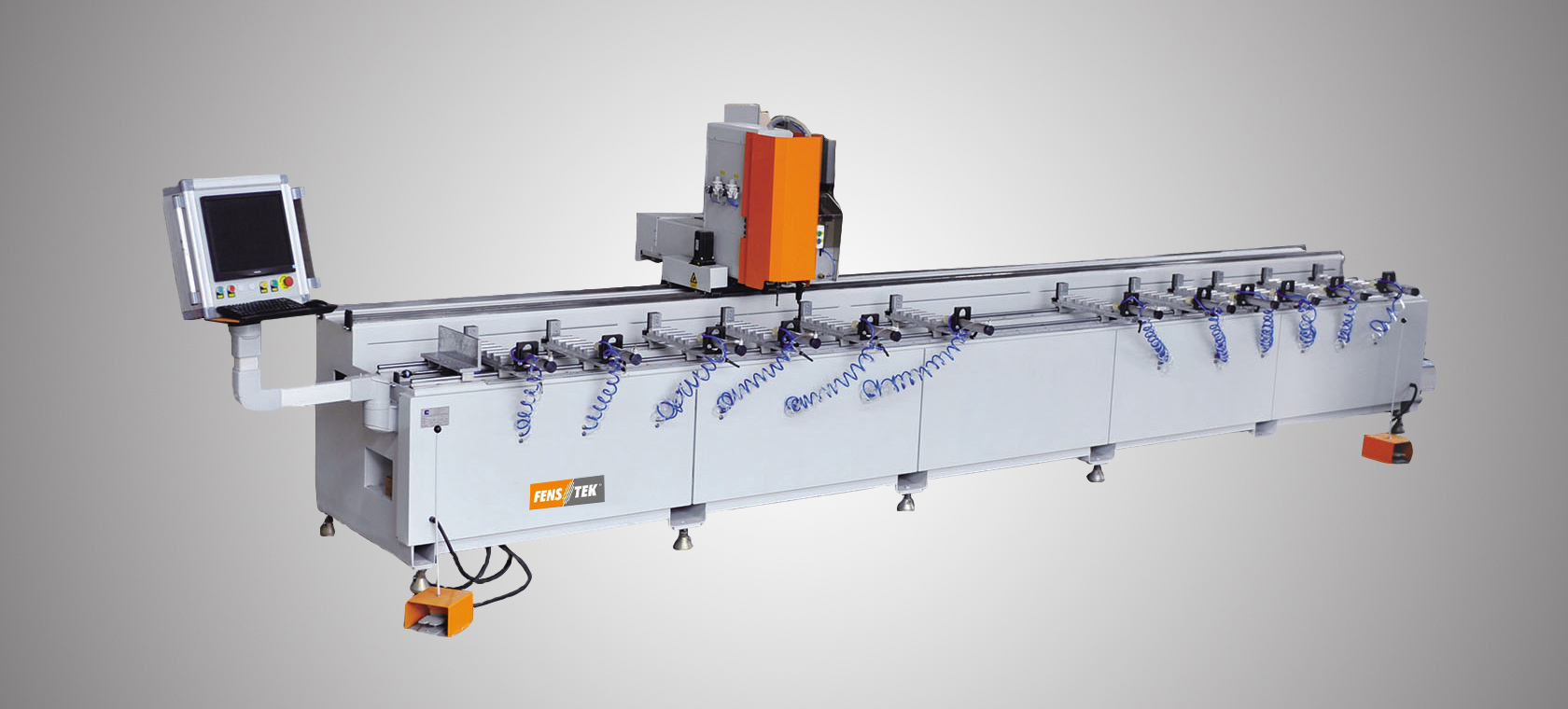

UPVC Window CNC Screwing Drilling Machine

Features:

1. This auto screw driver machine mainly used for inserting screws to mental profile to fix the reinforcement in upvc profile, and drilling installed holes.

2. Inserting and drilling in one machine. The screw spacing and mounting hole position are evenly distributed automatically

3. Machine head is imported from Germany POWERSURT. High reliability.

4. Imported rack and pinion drive, fast speed and high precision.

5. Two separate working areas, each work area can be placed 4 pcs as client requirement, and the discharge is not stopped.

6. Schneider controlling system based on the windows 7 system. It can be linked with ERP software to data sharing and communication.

7. light curtain can be included as client requirement.

8. Fixture will be probably required as client requirement.

Parameter


Input Voltage

380V  50HZ

Air Consumption

0.6-0.8(double air)

Power

4kw

Processing Range

6000mm

Double Work Table

3000mm*2

Screw Drive Range

6000*370*125mm

Drilling Range

6000*370mm(height can be adjust according to drilling blade length)
