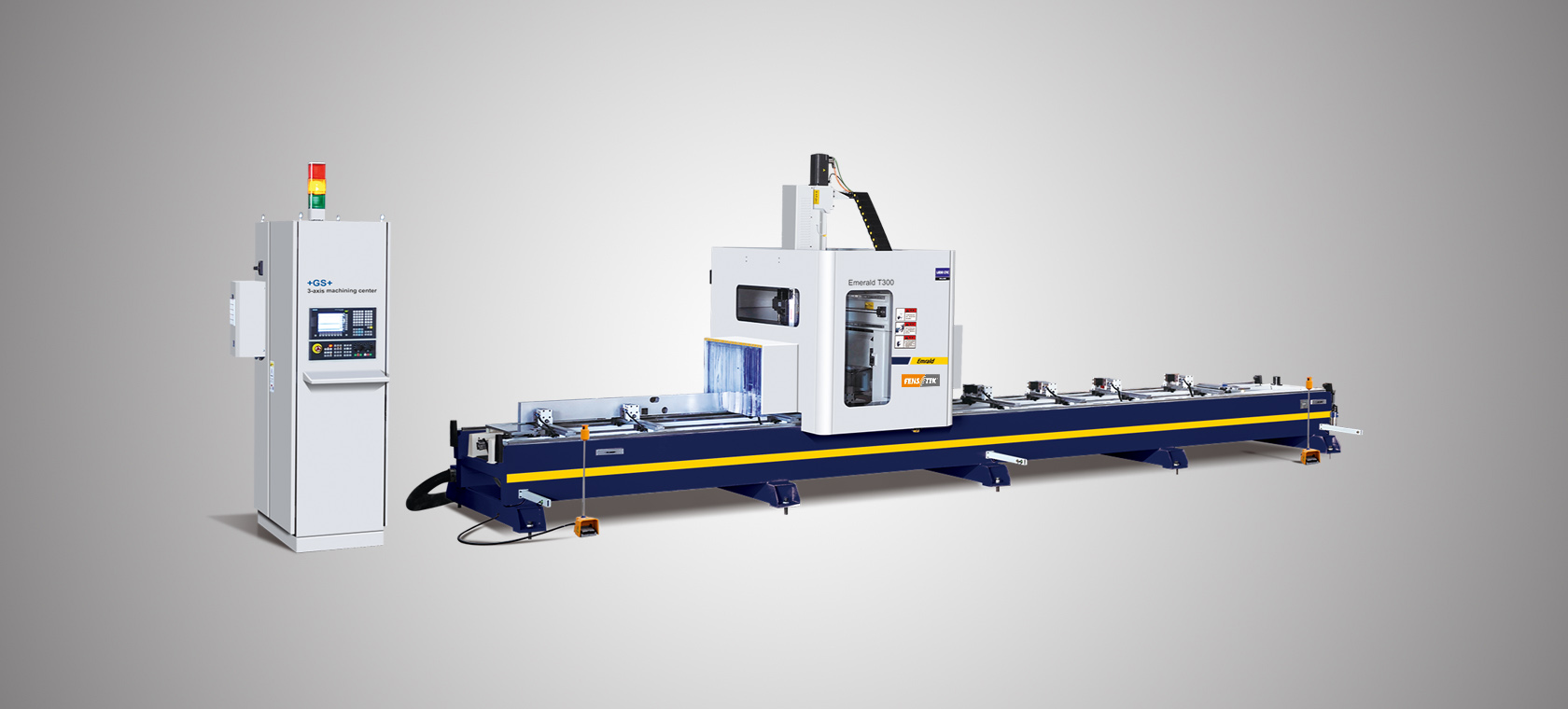

Emerald T300

Aluminium Facade Three-axis Machining Center

Features:

1. Aluminum Window Door Fabrication Machine Emerald T300 is advanced industrial CNC 3-axis profile machining systems.

2. Suitable for aluminium profile and other light alloys, as well as UPVC profile processing.

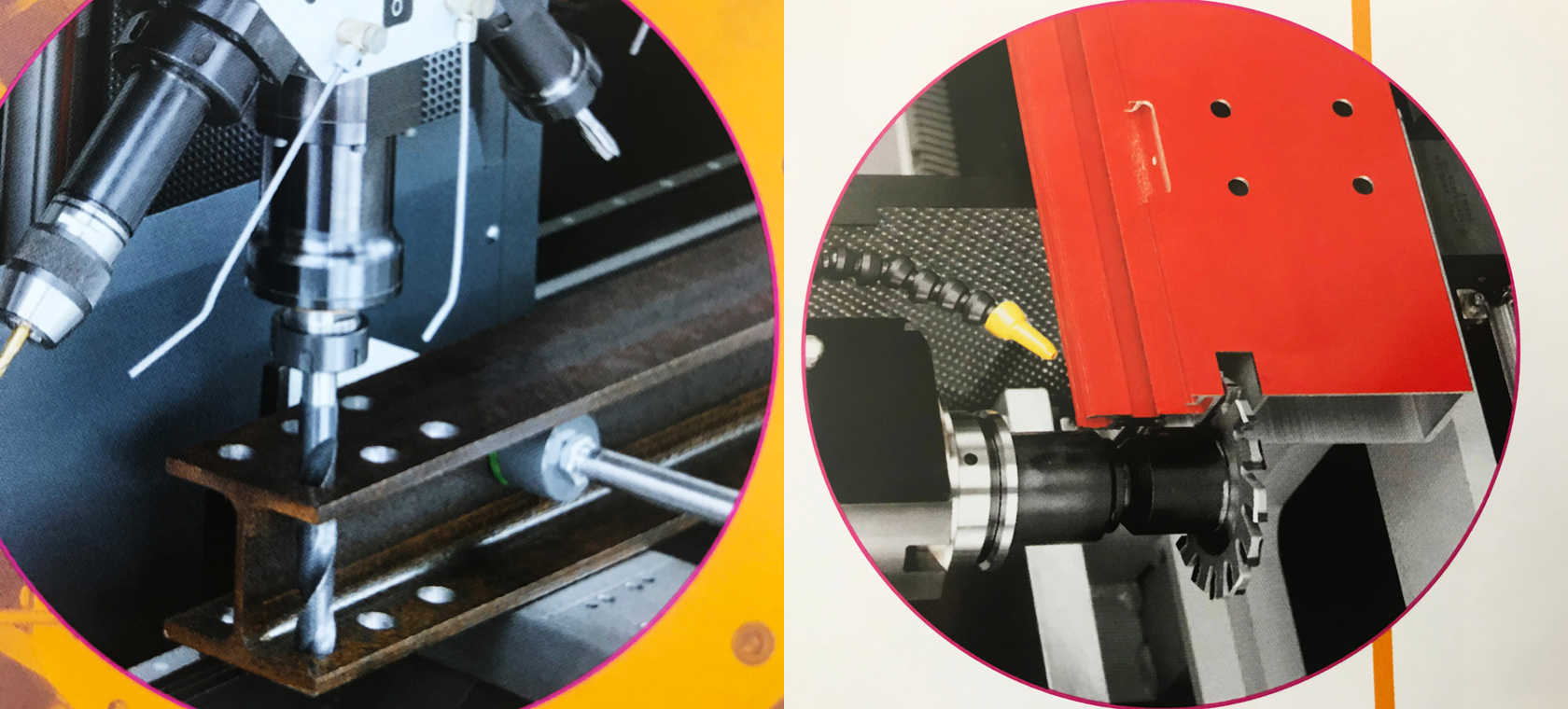

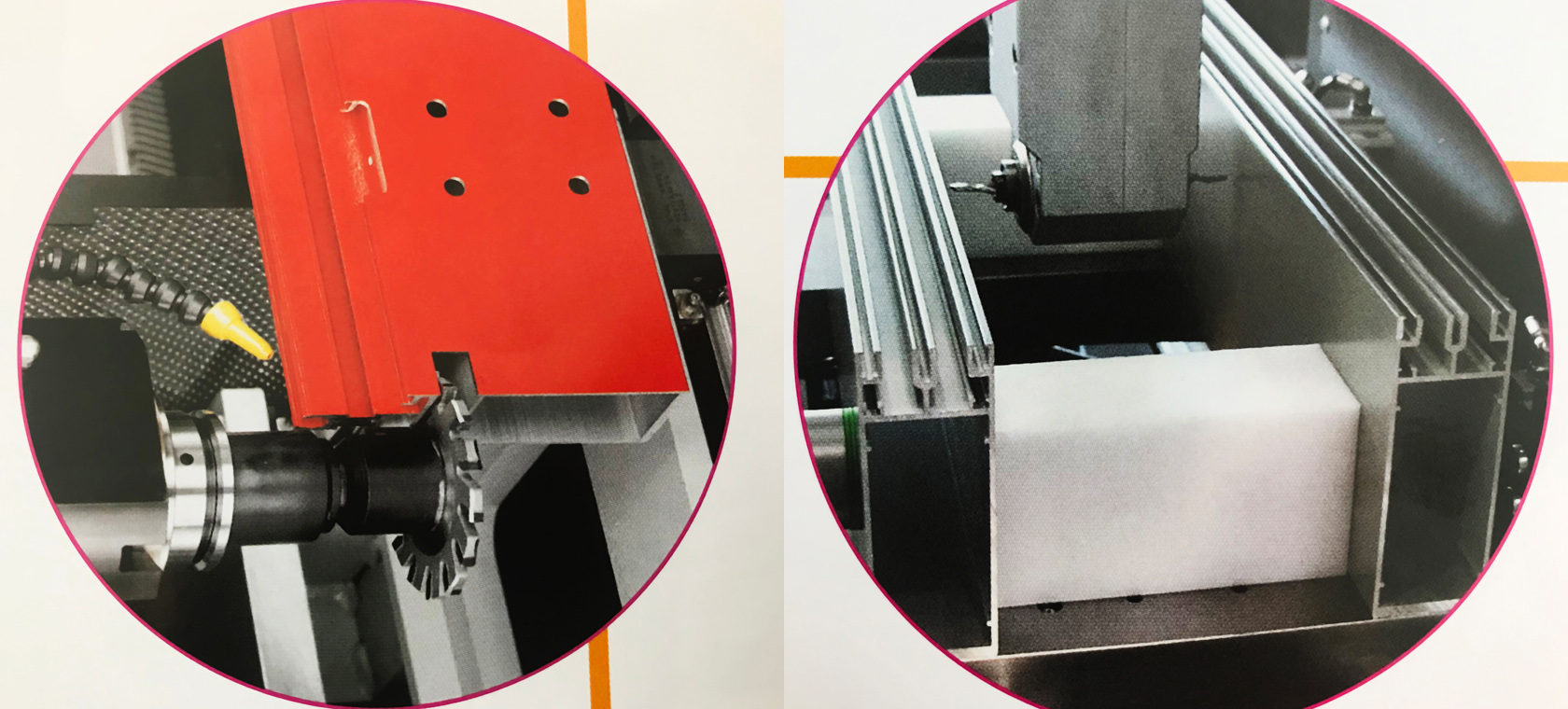

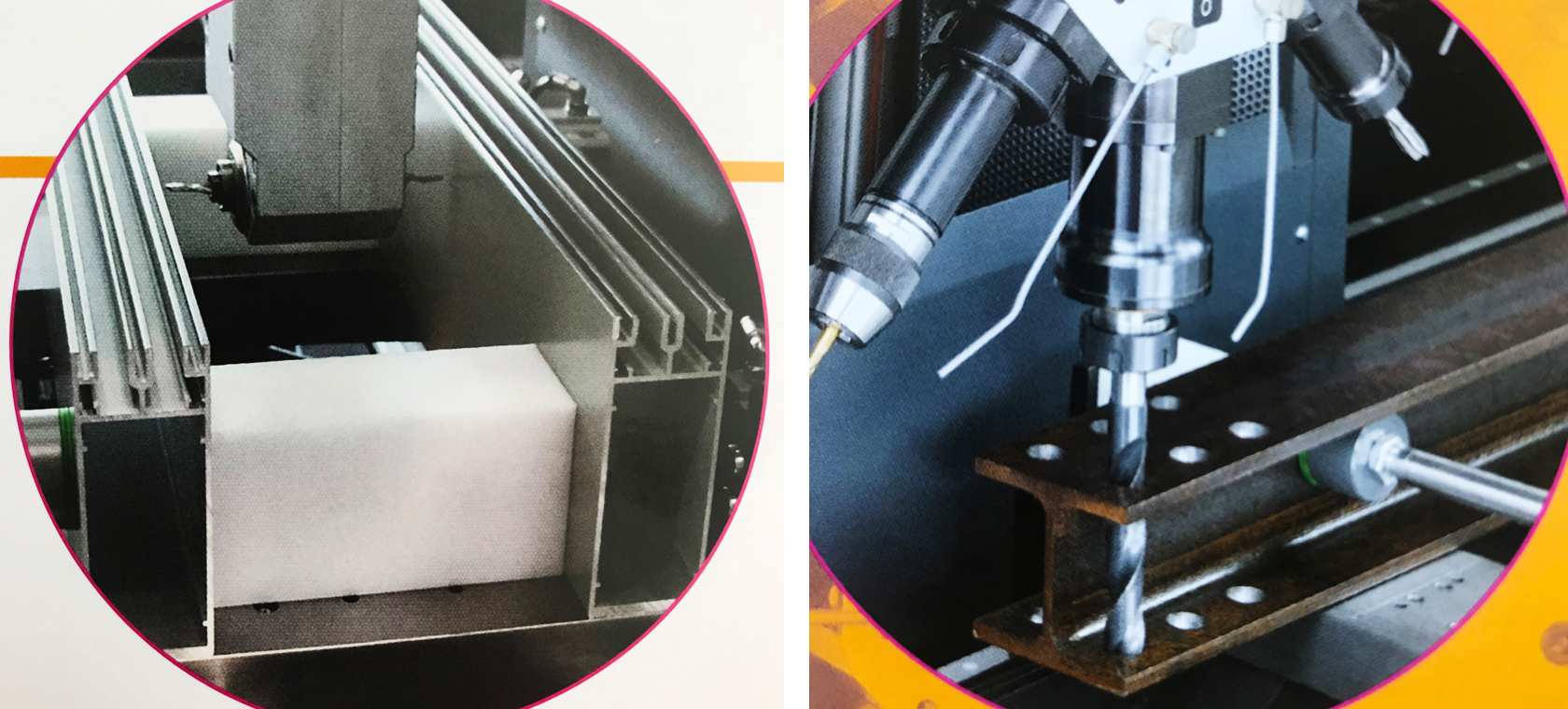

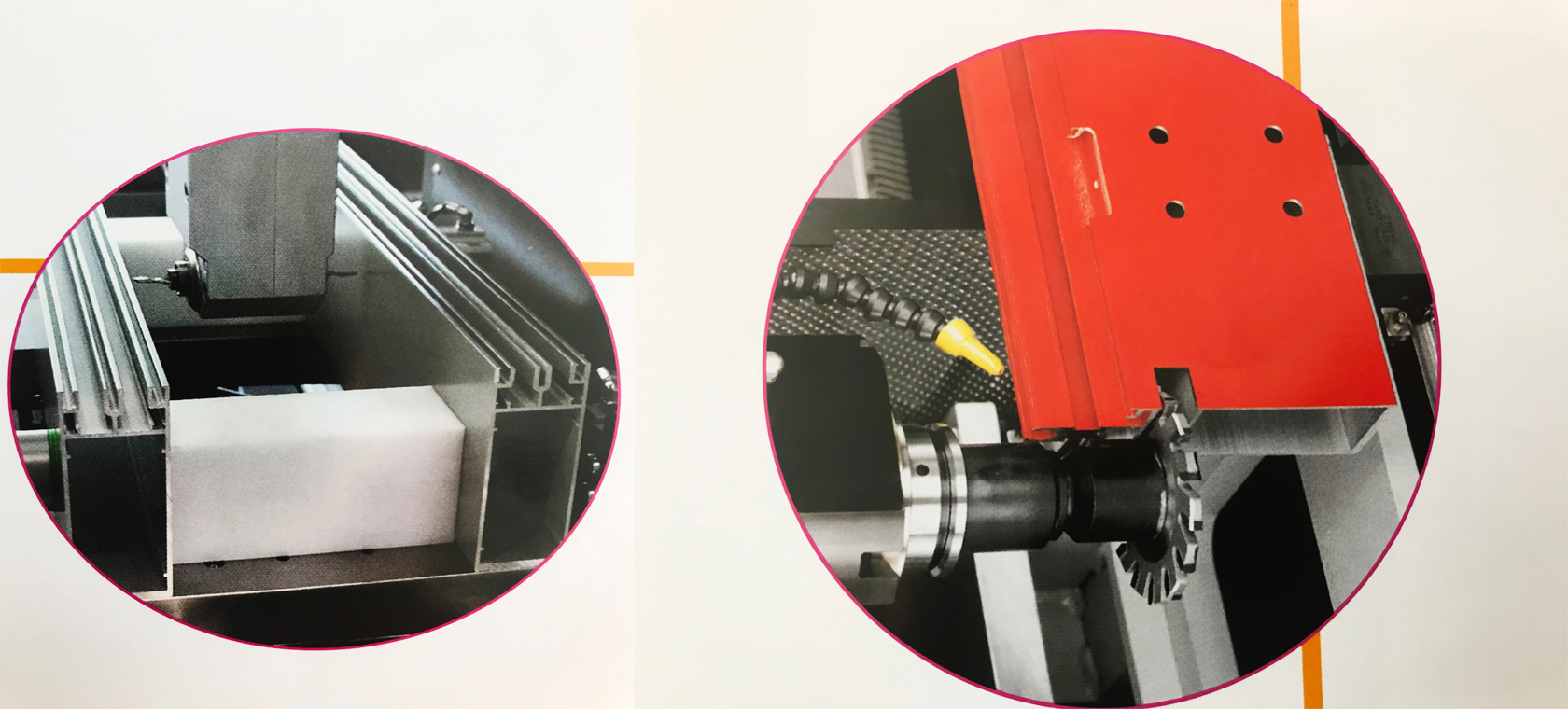

3. The machine completes milling, drilling, tapping, grooving, steel drilling and other multi-functional precisely in one time, the profile was conveyed by the precise stationary avoid profile damage.

4. Adopts imported high precision linear guide ways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing in high precision.

5. High-quality imported automatic tool change based on automatic travel magazine, minimum the tool change time and rotation noise, maximum stability, precision, and cutting ability.

6. Magazine is equipped with 6 tool positions, adjustable pneumatic special fixture to ensure efficient processing.

7. Double working area for two kinds of profile loading, milling one after another, interactive feeding, non-interference.

8. Multiple safety protection structure to ensure operator safety.

9. Operation system based on the window environment. Friendly interface and remote control for quick trouble shooting.

10. USB Connection, CAD input or writing by hand on the computer. Online with ERP software, can realize scanning code and automatic processing.

11. Gantry Type structure. High strength welding structure, heat aging and annealing processing, guarantee high rigidity and high stability.

12. UPS & AC is included for protecting operation system.

Optional:
Optional length: 4 meters, 8 meters, 10 meters or customized

Main accessory


CNC system

 PA (Germany)

Servo motor

 YASIKAWA(Japanese)

Reducer

 APEX(Taiwan)

Spindle

 HSD(Italian)

Square rail

 HIWIN(Taiwan)

Ball screw

 PMI(Taiwan)

Rack

 APEX(Taiwan)

Electric button and switcher

 Schneider(French)

Air cylinder

 AirTAC(Taiwan)


Technical parameters


Air consumption

60L/min

Input power

13KW

X-axis feed rate

0~60m/min

Z-axis feed rate

0~30m/min

Processing range (standard clamp device)

7000X500X300mm

Tool magazine

6 tool positions

Dia of blade

Ø80~Ø150mm

Positioning accuracy

±0.03mm

Machine Size

9000x1800x2150mm

Air pressure

0.5-0.8Mpa

Power Specification

3N~50HZ 380V or customized

Y-axis feed rate

0~30m/min

Spindle speed/power

0-24000r/7.5kw

Processing range (special clamp device)

7000X800X300mm

Cutting tool installation length

135mm

Clamp station

8

Repeat positioning accuracy

±0.02mm

Cutting surface roughness

Ra12.5µm

Machinery Weight

4300kg
