Features:

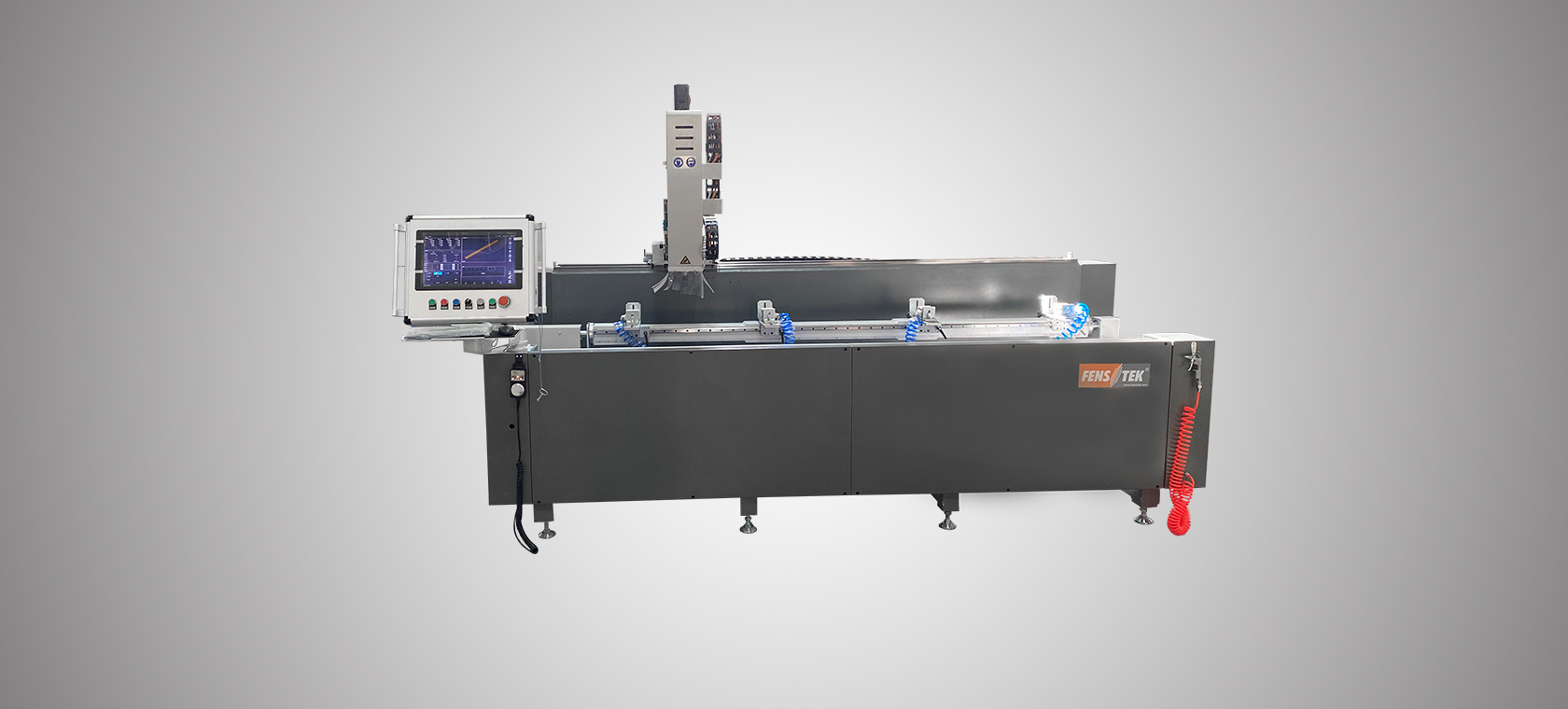

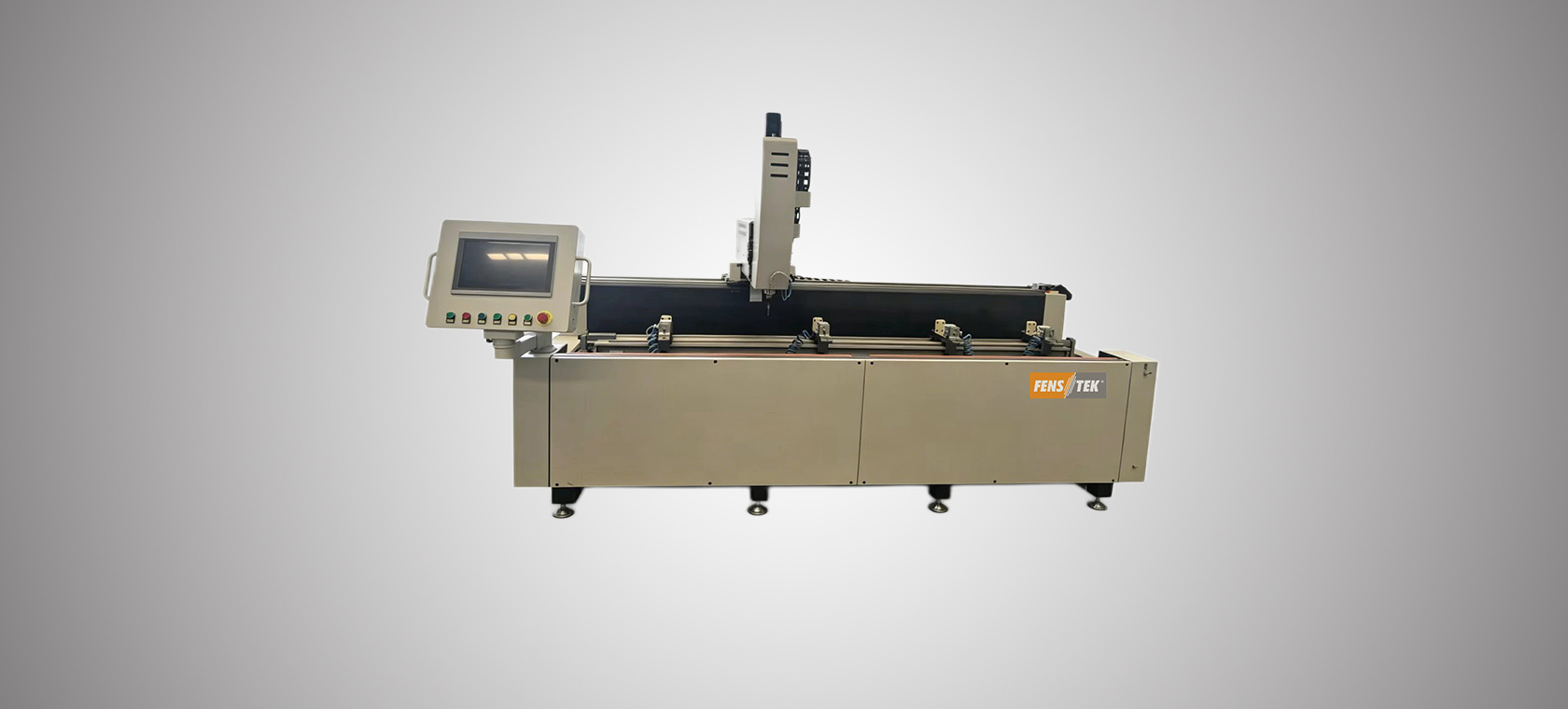

1. Advanced industrial CNC 3-axis profile machining systems.
2. Suitable for Aluminum, PVC, and other light metal material processing;

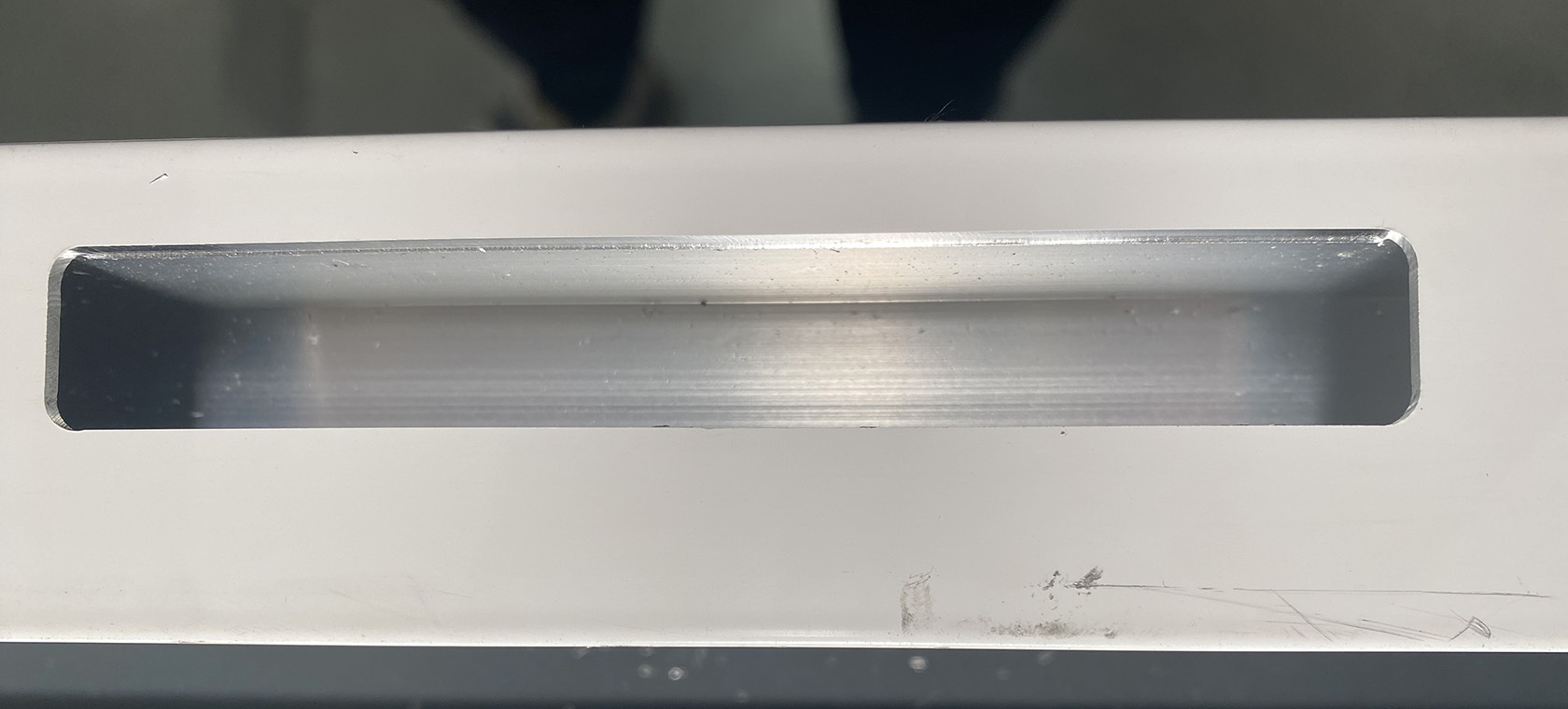

3.The machine completes milling, drilling, grooving and other multi-functional precisely in one time.
4. Worktable with pneumatic positioning -90°/0°/+90° .Optional 45 degree milling function is available.
5. Adopts high precision ball screws to ensure smooth motion, positioning and processing in high precision.
6. The operating platform of the system: Linux platform.English, Chinese, Thai, Korean and Vietnamese language are available.
7. The latest version of the system: 4-core 4G memory, fast & smooth operation.
8. Additional one meter Support table for special long profile processing.
9.400mm height safety cover for safety operation.
Main accessory | |

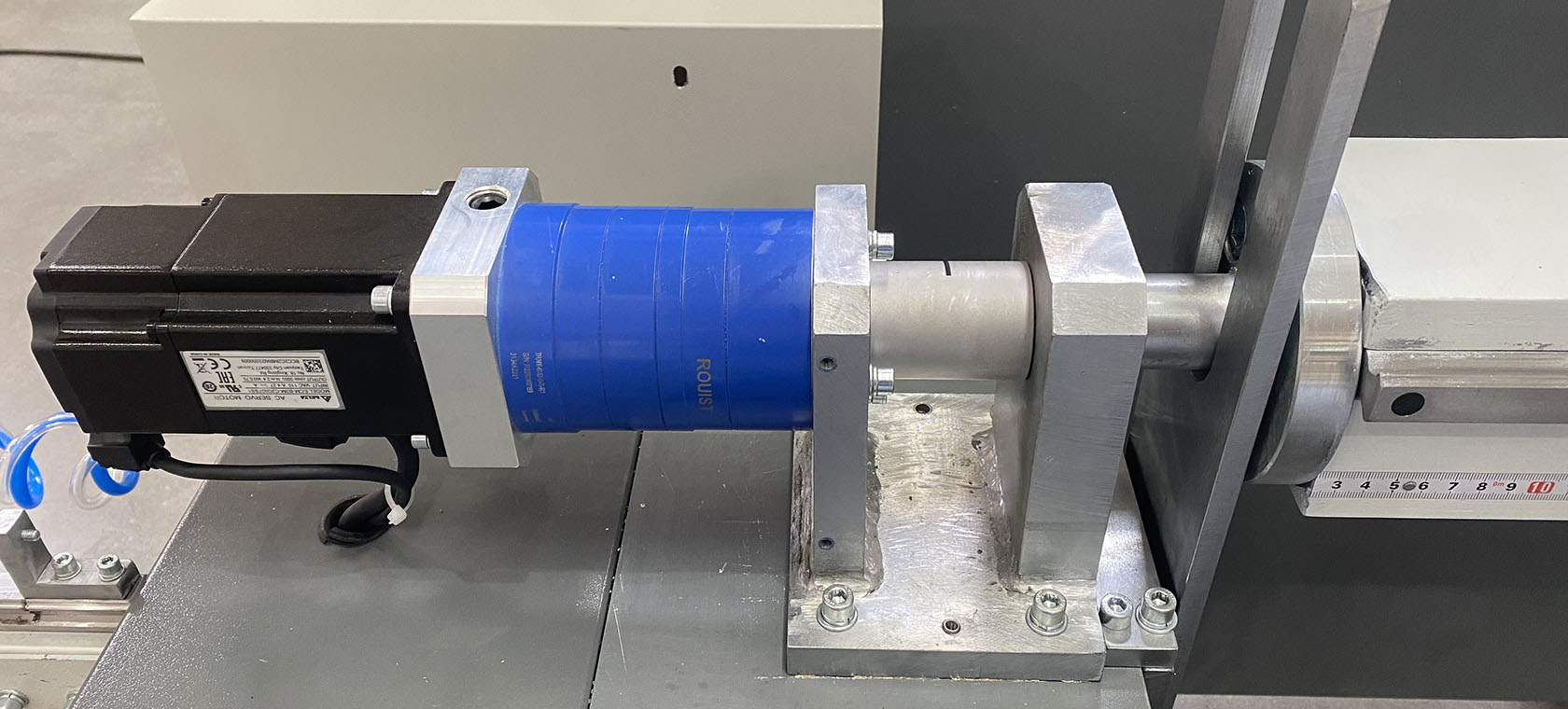

Servo Motor: | Delta (Taiwan) |
Servo Driver: | Delta (Taiwan) |
Switching Mode Power Supply : | Delta / Schneider |
Low voltage electrical apparatus | Schneider |
Cable | Shielding / high flexibility |
Spindle motor: | JST ER32Collet |
Frequency converter: | Delta) |

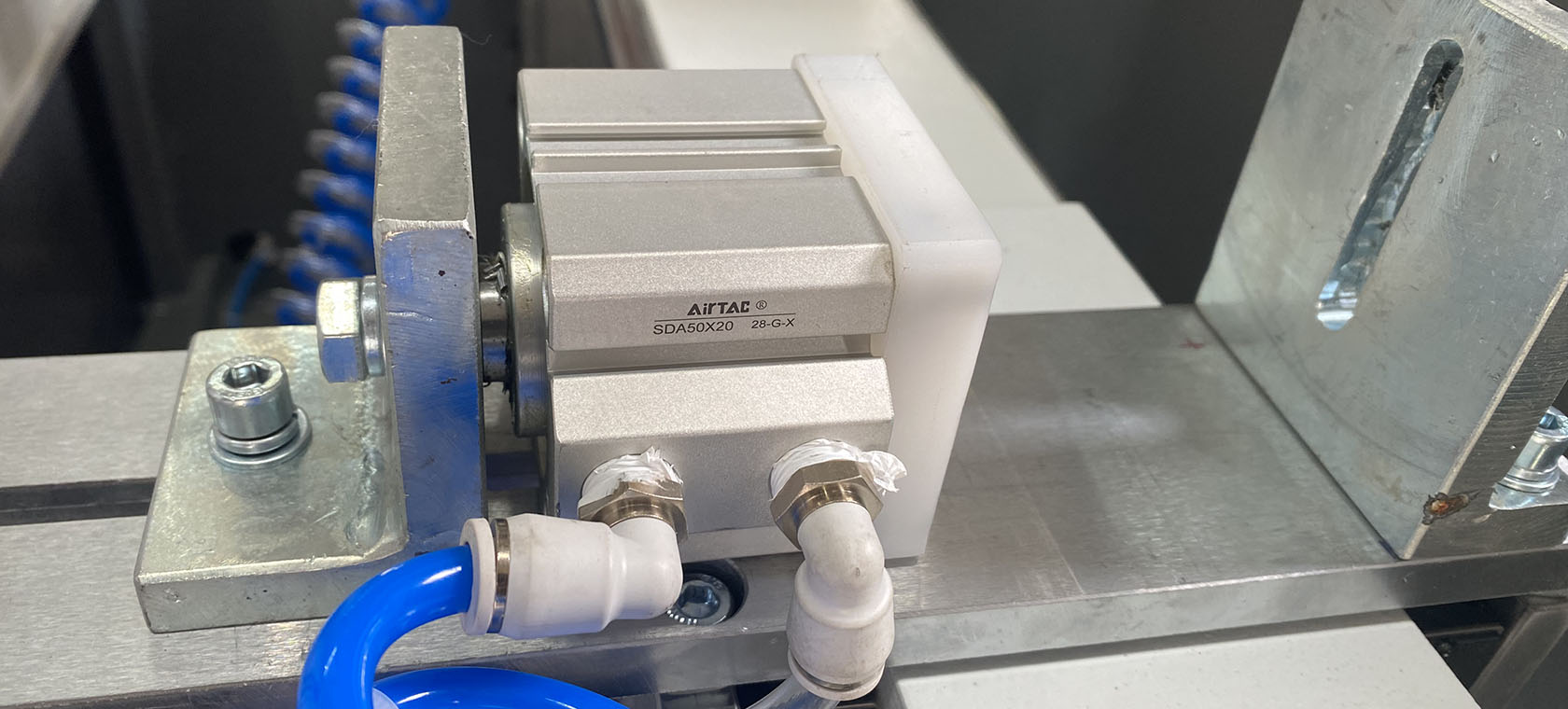

Cylinder: | AirTAC(Taiwan ) |
Screw: | 2010-2015-2510-2505 |
Bearing : | Humanistic / Shanghai |
Protective curtain : | Spindle motor milling protection |
Lifting shield : | Equipment front / second protection |
Parameters | |
X-axis Traveling | 2500mm |
X-axis feed rate | 0~30/min |
Y-axis traveling | 390mm |
Y-axis feed rate | 0~30m/min |
Z-axis traveling | 290mm |
Z-axis feed rate | 0~30m/min |
Processing range(+90) | 110*110mm |
Processing range(-90) | 110*110mm |
Processing range(0 degree ) | 170*120mm |
Rotated angle | Inside and outside 90° |
Spindle Power | 3.5kW |
Power Specification | 380V50HZ or customized |
Working Pressure | 0.6～0.8MPa |
Spindle Speed | 8000~18000rpm |
Air consumption | 100L/min |
Machinery Weight | 1600kg |
Total Power of Machine | 5kW |

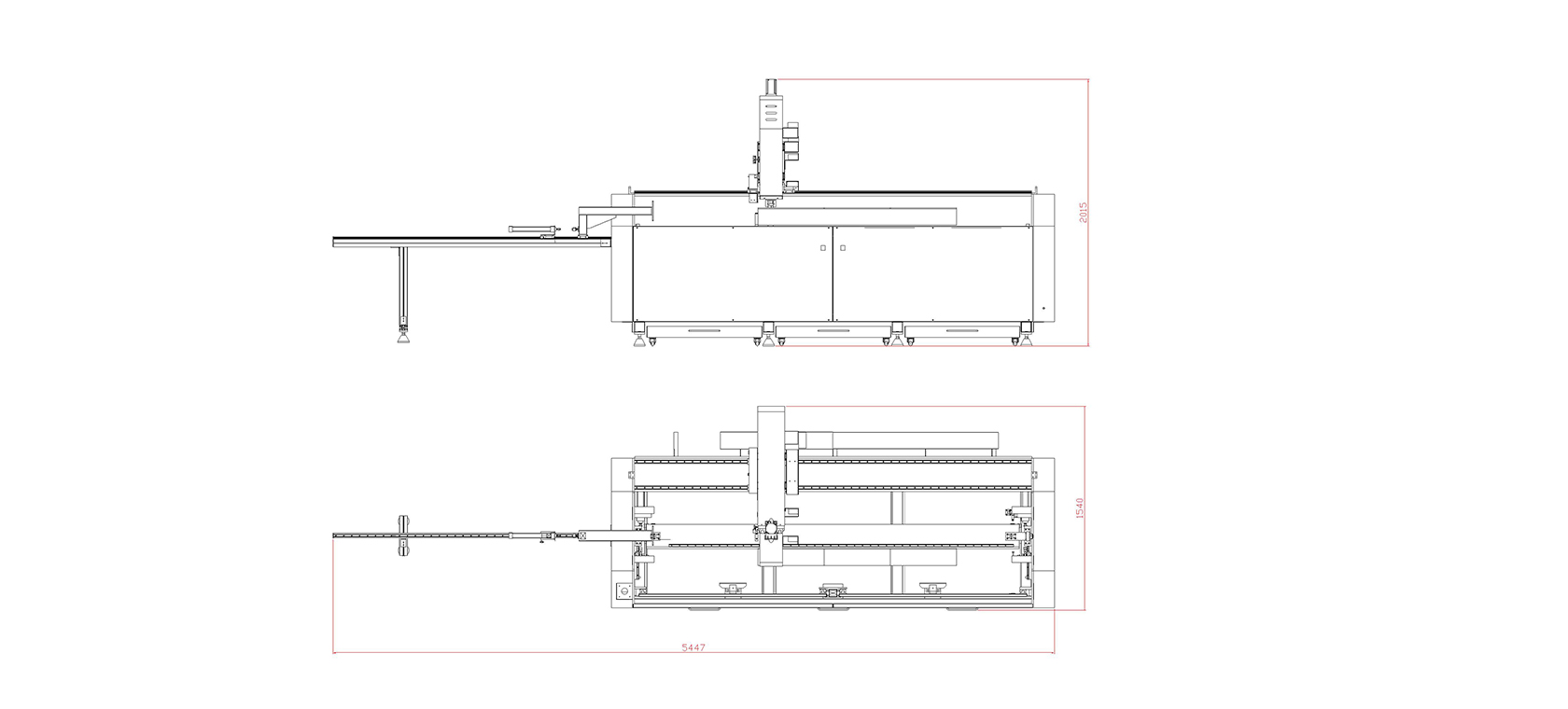

Machine Size | 2600×1500×1950mm |
