MHD7

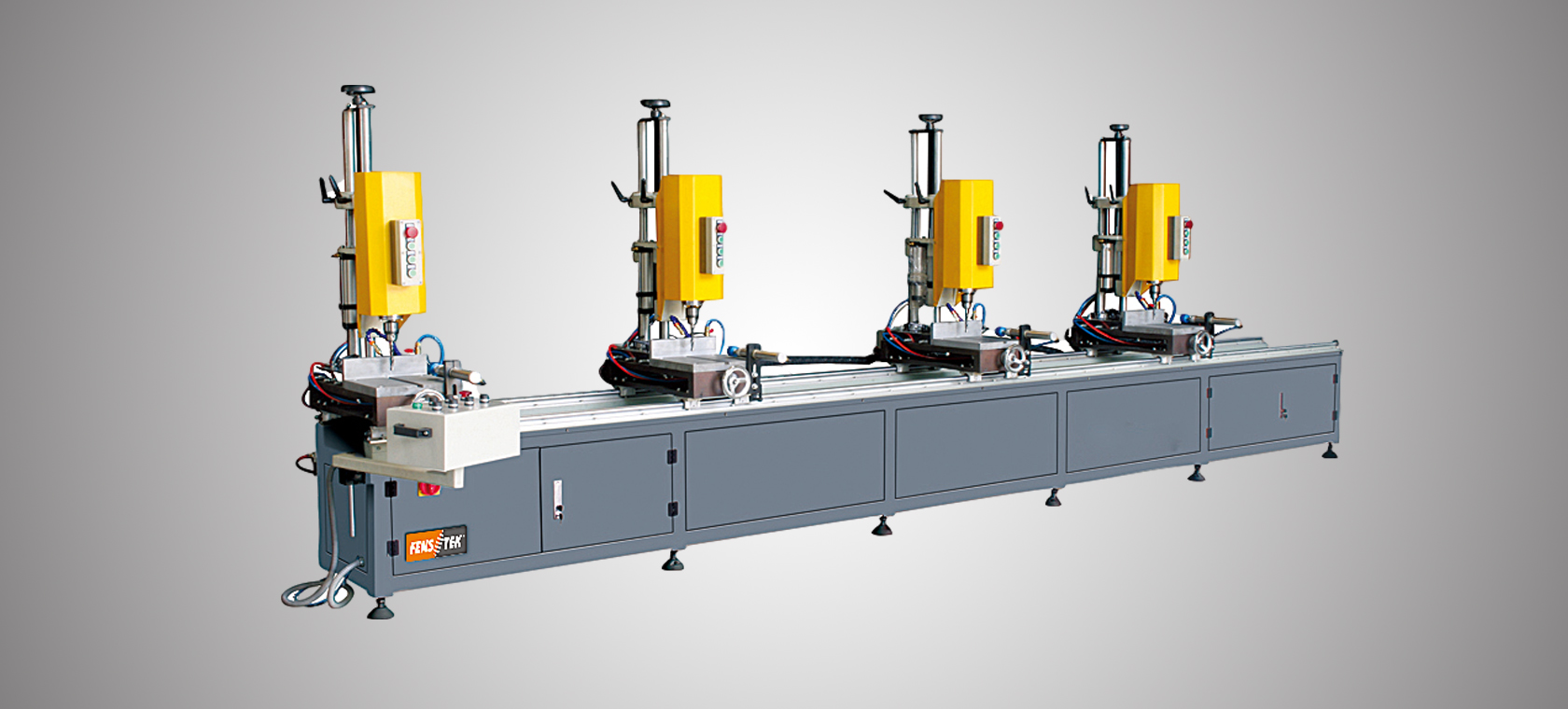

Aluminium Window & Door Multi-head Drilling Machine

Features:

1. Drilling Machine MHD7 is used for drilling holes on aluminium alloy window & doors and curtain wall profiles, especially for long profile and mass production.

2. Suitable for profiles with a section not exceeding 200*200mm, the processing length can reach 6000mm.

3. Equipped with seven sets of drilling heads to meet the simultaneous processing of multiple groups of holes.

4. Feed adopts cylinder and damping cylinder, with fast-forward and work-forward function.

5. Using Omron control system, can achieve single head machining, and the linkage of arbitrary machine heads.

6. The machine head can be manually adjusted in the X, Y, Z axis direction, and equipped with a dividing ruler, the adjustment is simple and convenient. The Z-axis is guided by a linear slider, and the load carrying capacity, guiding precision, and service life are increased several times.

7. Adopting spindle motor with collet chuck, the tool clamping force is increased, the operation is more stable, the drilling force is large, and the drilling effect is better

Main Accessory


linear guide rail

HIWIN(Taiwan brand)

Pneumatic component

AirTAC(Taiwan brand)

Cylinder

 Air TAC(Taiwan)

Electrical Button and Switcher

Schneider(French)

Air tube

ASHUN(Taiwan brand)

Control system

OMRON(Japanese brand)

Electrical button and switcher

Schneider(French brand)


Parameter:




Power supply

3N~50Hz 380V or customized

Power

10.5kw

Air pressure

0.5~0.8Mpa

Air consumption

50L/min

Motor power

7*1.5kw

Motor speed

3000r/min

Max. drilling hole diameter

16mm

Max. distance between two drilling holes

6000mm

Min. distance between each group holes

300mm

Power unit quantity

6

Max. moving distance of drilling head at fore-and-aft direction

120mm

Drilling head feed stroke

125mm

Power head moving distance at vertical direction

100mm

Worktable size (length * width)

300*300mm

Maximum cross section size of machining profile

200*200mm

Dimension(L*W*H)

6500*1300*1700mm

Weight

1300kg
