Features:

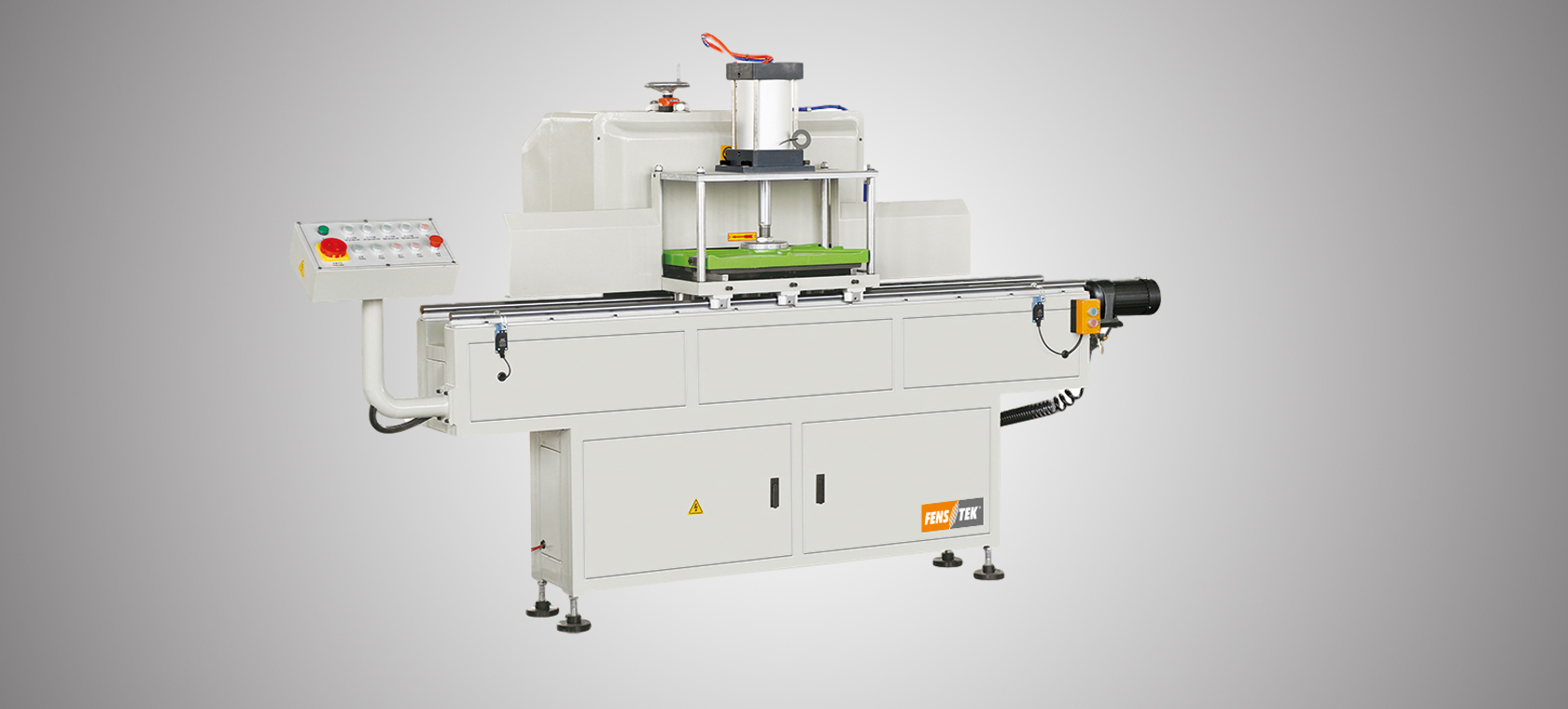

1.Used for processing aluminum profile end with massive milling.
2.Universal cutter, no need special milling cutter for different profile. Saving cost and cutter replacing time.
3.Super precision main shaft insured accurate and steady processing
4.Hydraulic Feeding device ensure stable feeding..
5.Convenient tool adjustment meets different processing requirements.
Main accessory: | |
• Solenoid Valve | AirTAC(Taiwan) |
• Cylinder | AirTAC(Taiwan) |
• Motor | Anhui Sanyang |
• Air Filter Device: | AirTAC(Taiwan) |
• Electrical Button and Switcher | Schneider |
• AC Contactor and Circuit Breaker | Schneider |
• Approach Switcher | TURCK or Swiss CONTRINEX or Japan Omron |
Parameter | |
Power supply | 380V 50HZ |
Motor power | 2.2×3KW |
Cutting motor rotary speed | 2800r /min |
Operation air pressure | 0.5-0.8MPa |
Main spindle diameter | Ø 32mm |
Diameter of the milling cutter | Ø250mm |
Journey of the worktable | 0~1050mm |
Worktable dimension | 530×320mm |
Motor adjustable journey | 0-85 mm |
Max processing tenon size | 40 mm |
Contour dimension | 2425×1510×1655 mm(L×W×H) |
Cutting surface roughness | Ra12.5µm |
Weight | 450kg |
