UC600-E

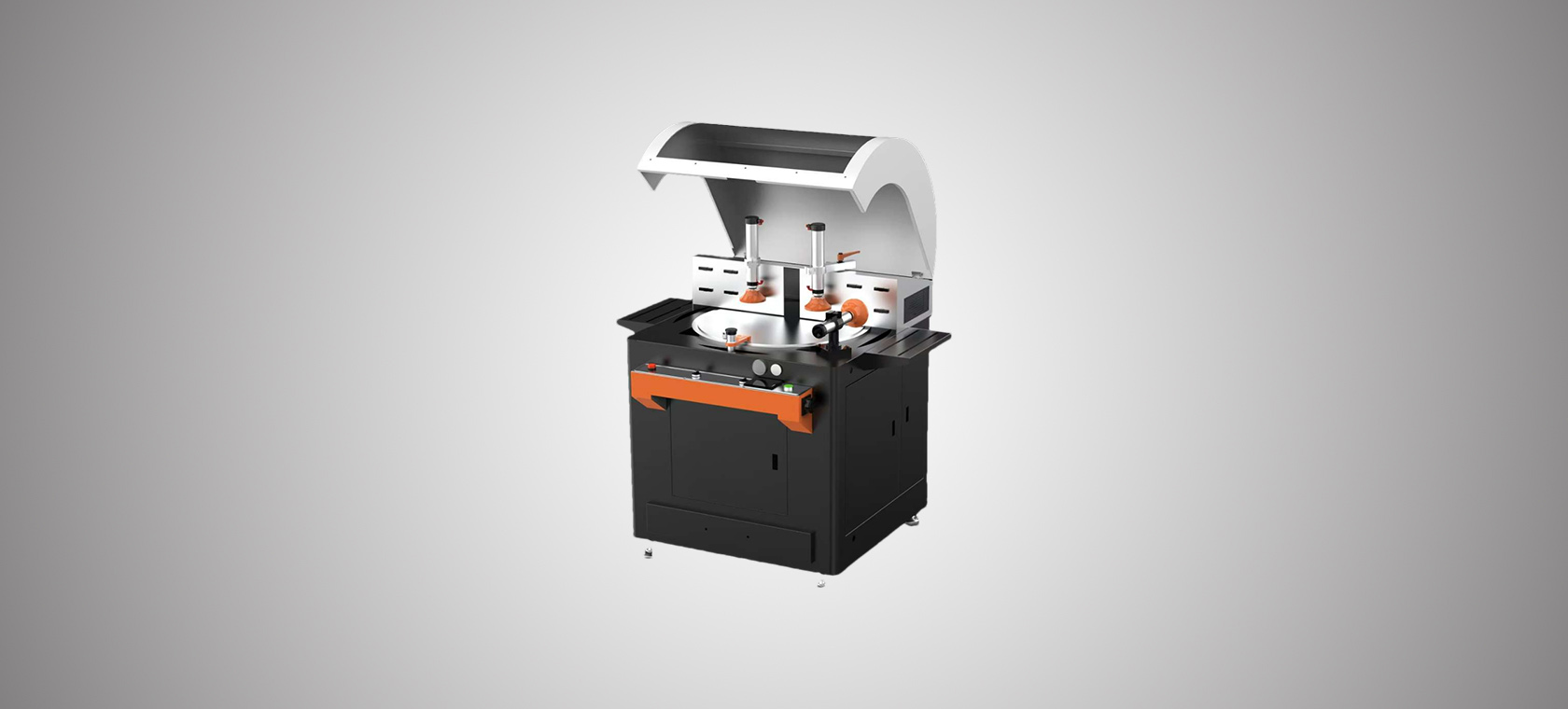

Aluminum Single Head Arbitrary Angle Cutting Saw

Features:

1.For aluminum and upvc profile cutting, saw blade up-cut feeding type.

2.Super big worktable; convenient for any angle cutting.

3.Cutting height max215mm, cutting width 45 degree 180mm, 90 degree max200mm.

4.Circuit component: Schneider. Pneumatic component: AirTac

5.The feeding guide adopts high precision linear bearing system.

6.Adopt Hydro-pneumatic cylinder damping cylinder for stable feeding

7.Flexible and convenient operation.

8.Reasonable design for safeguard machine cover to ensure security.

9.The entire machine adopts high quality imported electrical and pneumatic parts and components; can pass UL,CSA,CE certificate. The security of entire machine could each the top international standard.

10.High stability and reliability

 Parameter

 Air Pressure

 0.5Mpa-0.8Mpa

 Input Voltage

 33N~50HZ 380V or customized

 Input Power

 3.3 KW Spindle Motor, can customized

 Motor Rotary Speed

 2850r/min

 Saw Blade Specification

 φ600mmx4mmx30mm*144

 Max. Cutting Height

 195mm

 Overall Dimension

 1200x1200x1950mm

 Weight

 650Kg
