Features:

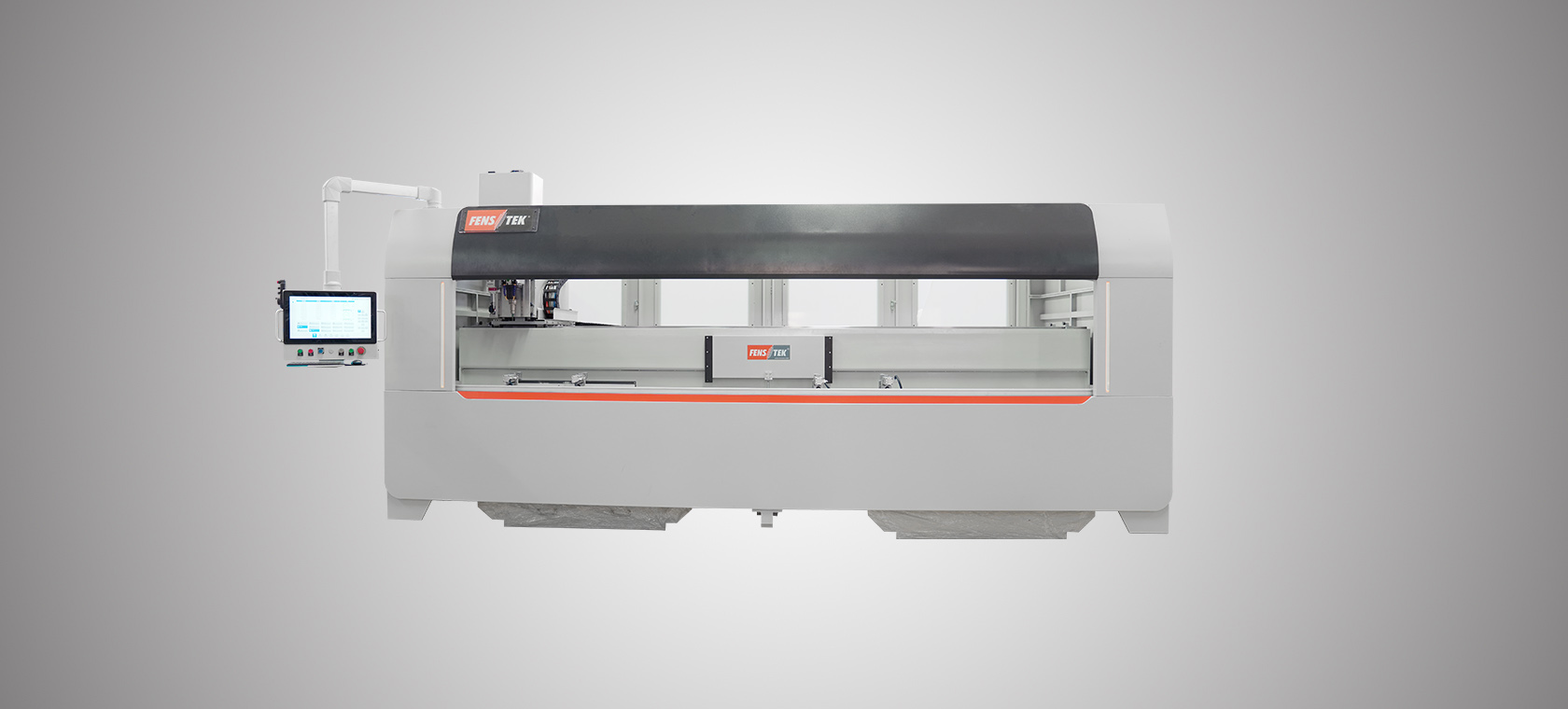

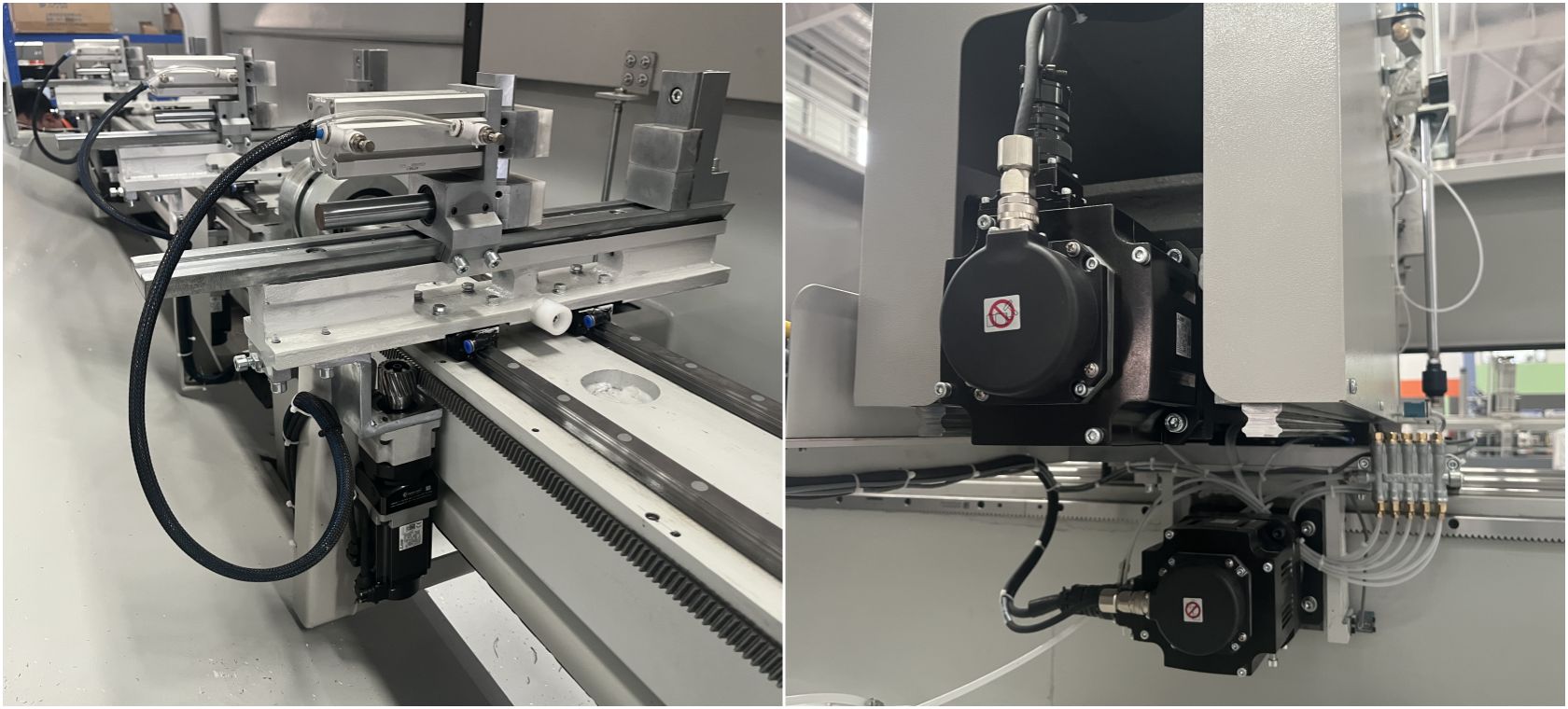

1.Advanced cnc machining center with servo turning table and 4 servo clamps.

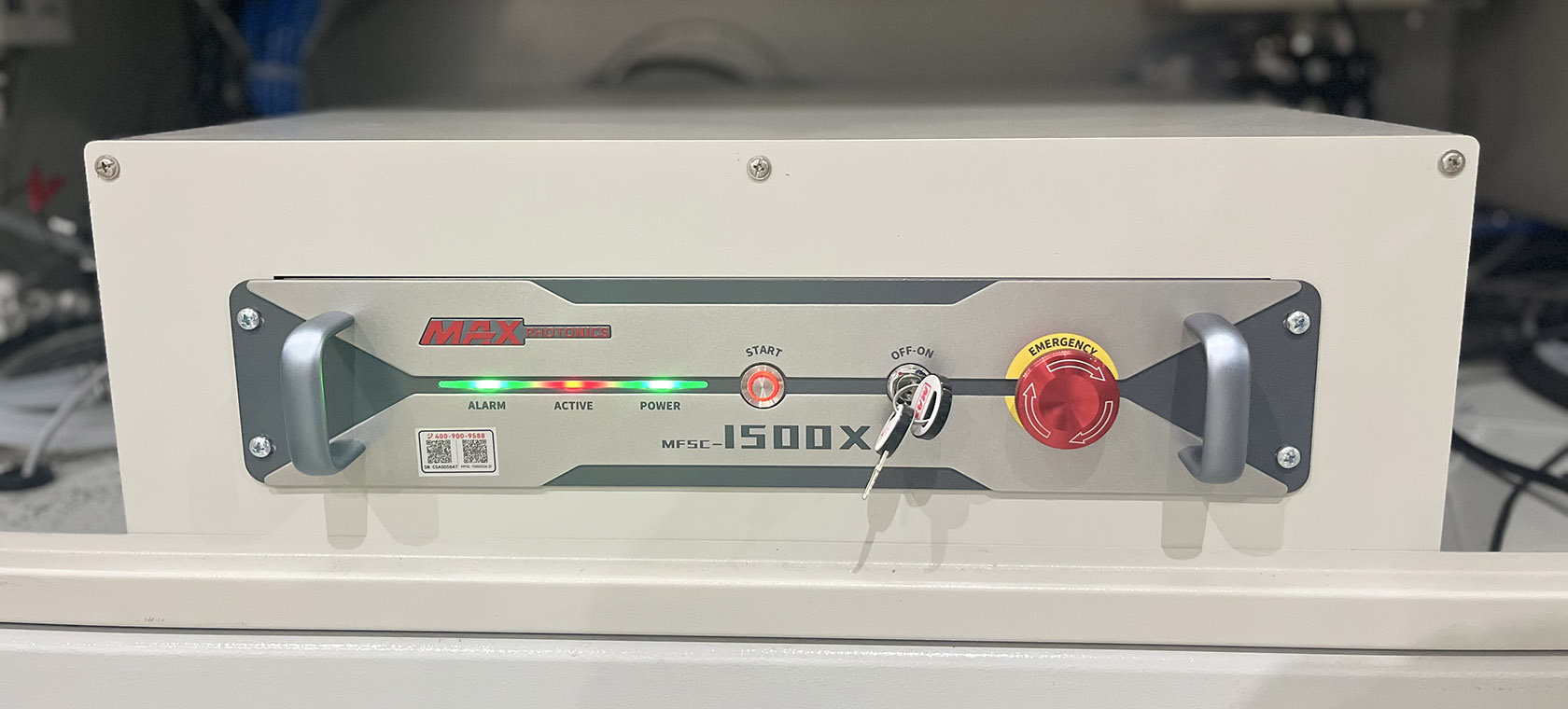

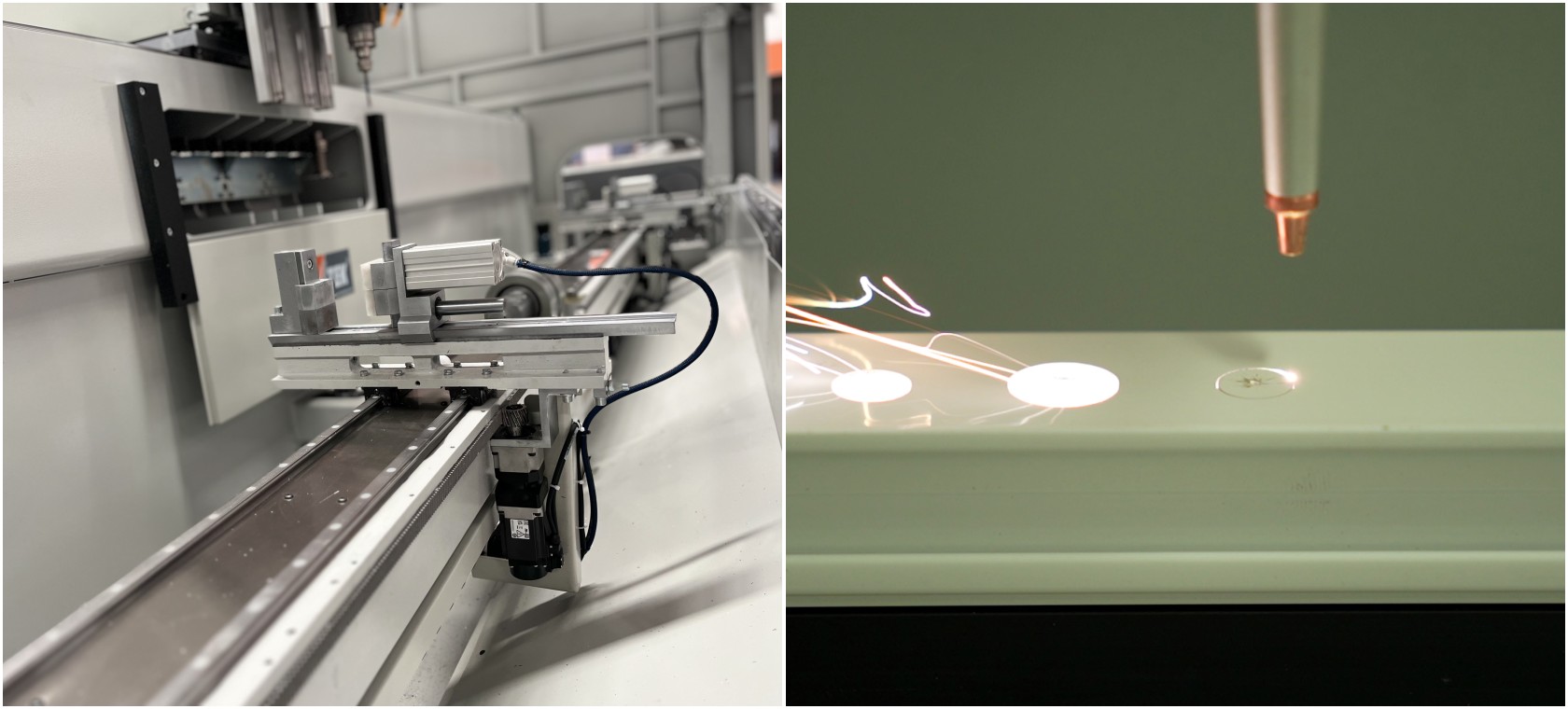

2. Suitable for aluminum profile (up to 3mm thickness) and steel profiles (up to 2mm thickness) processing with super fast speed (5m/min) and efficiency thanks laser technology. High pressure air compressor (1.6Mpa) and cooling station are included.
3. The machine completes milling, drilling, chamfering, grooving, and other multi-functional precisely in one time.

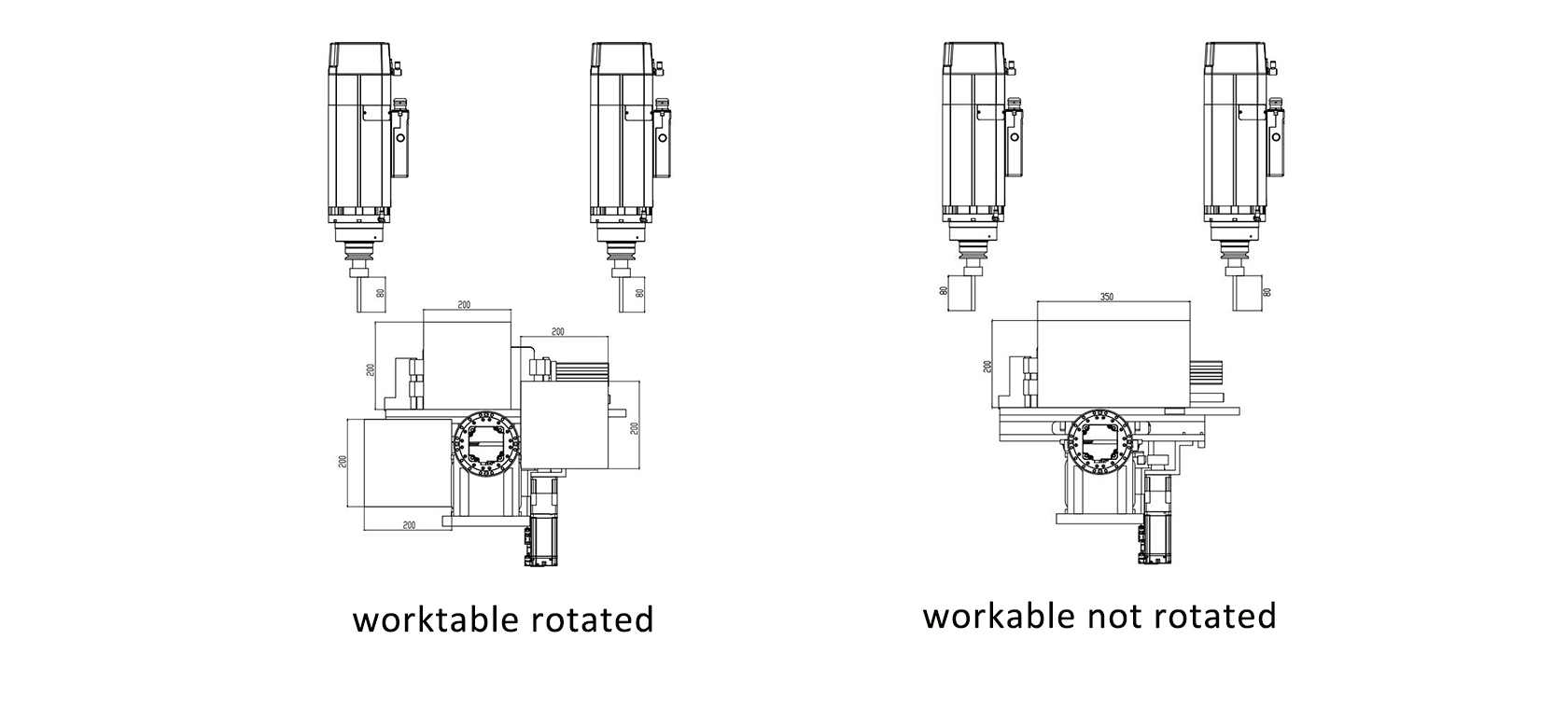

4. Worktable will be positioned from +90° to -90° variable angle.
5. Auto lift up safety cover assures operator safety.

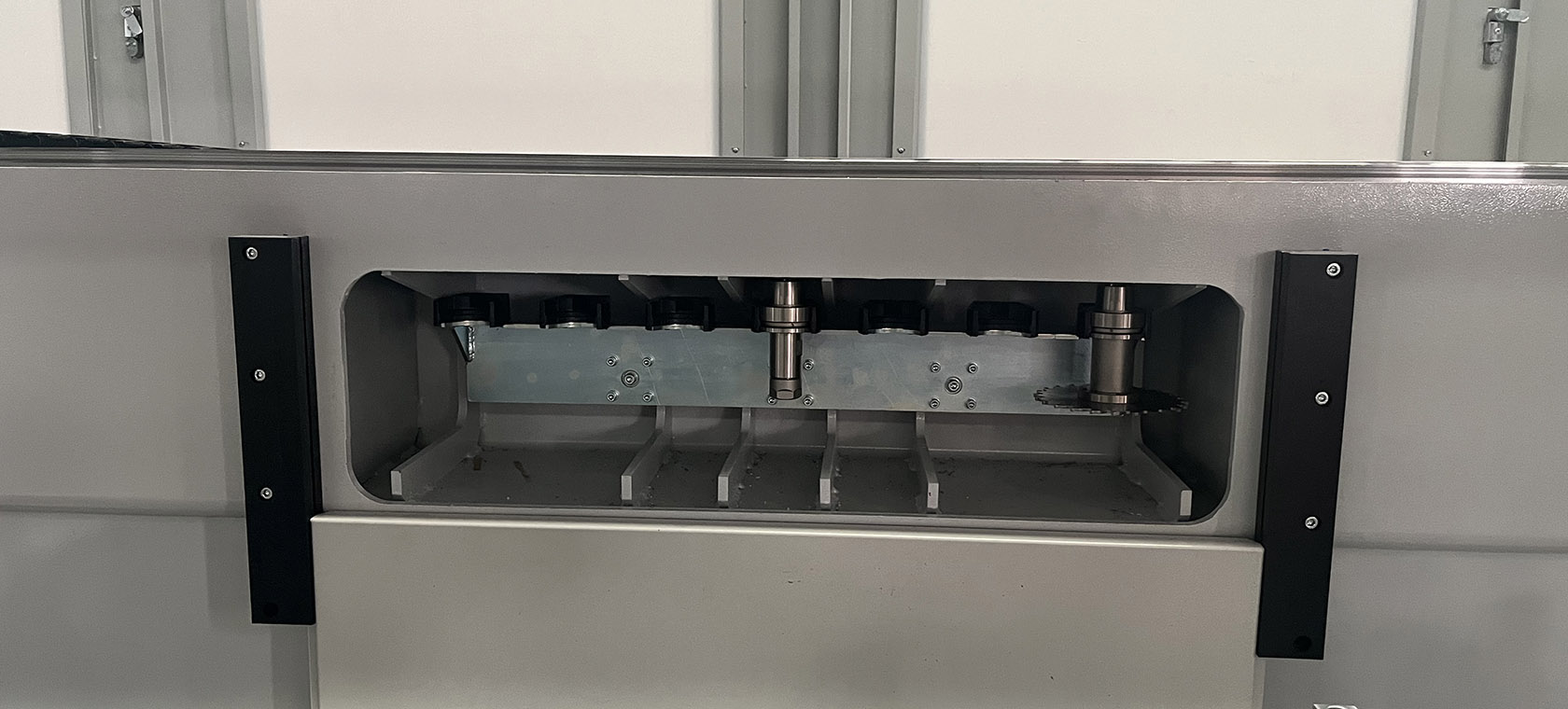

6. Automatic tool change: standard equipped with hidden 6-position tool magazine, standard equipped with 3 tool holders.

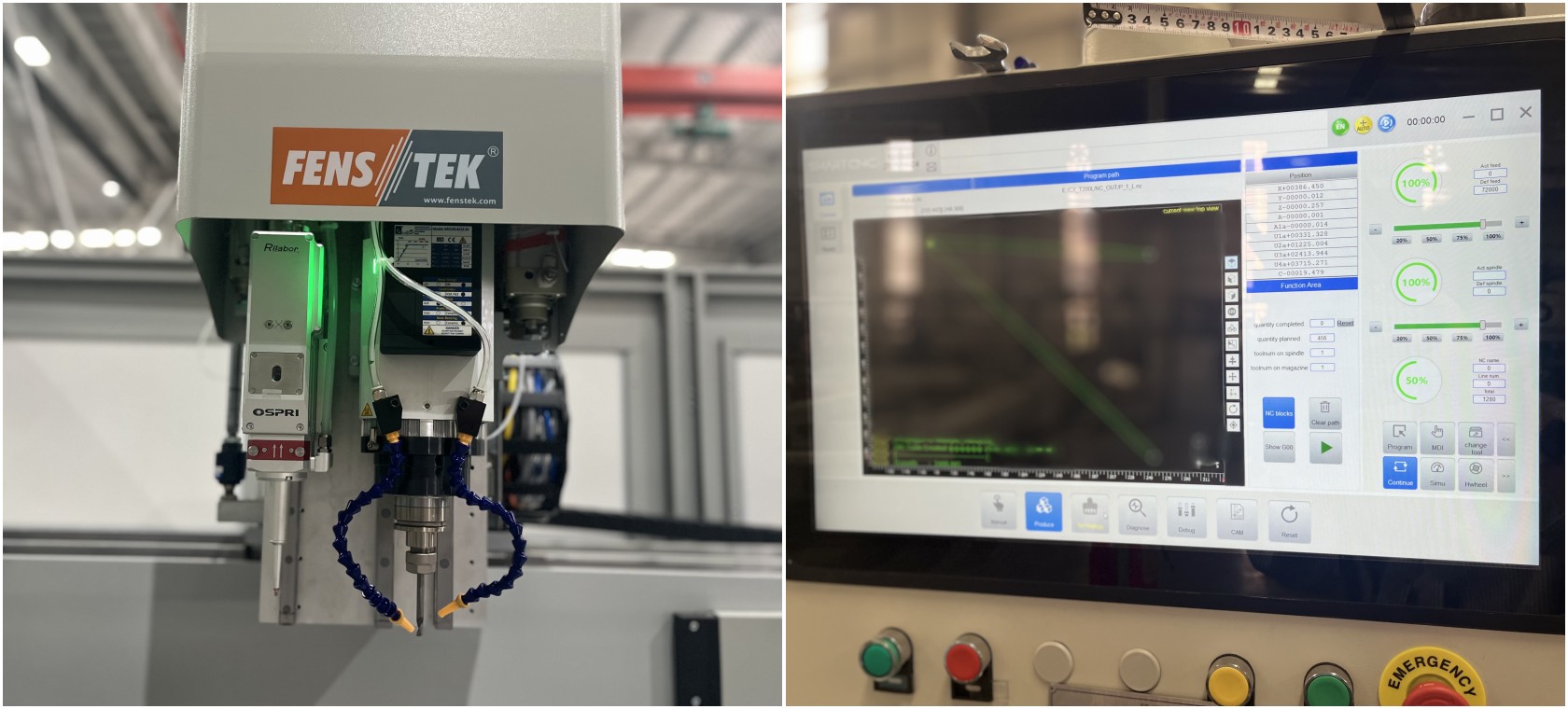

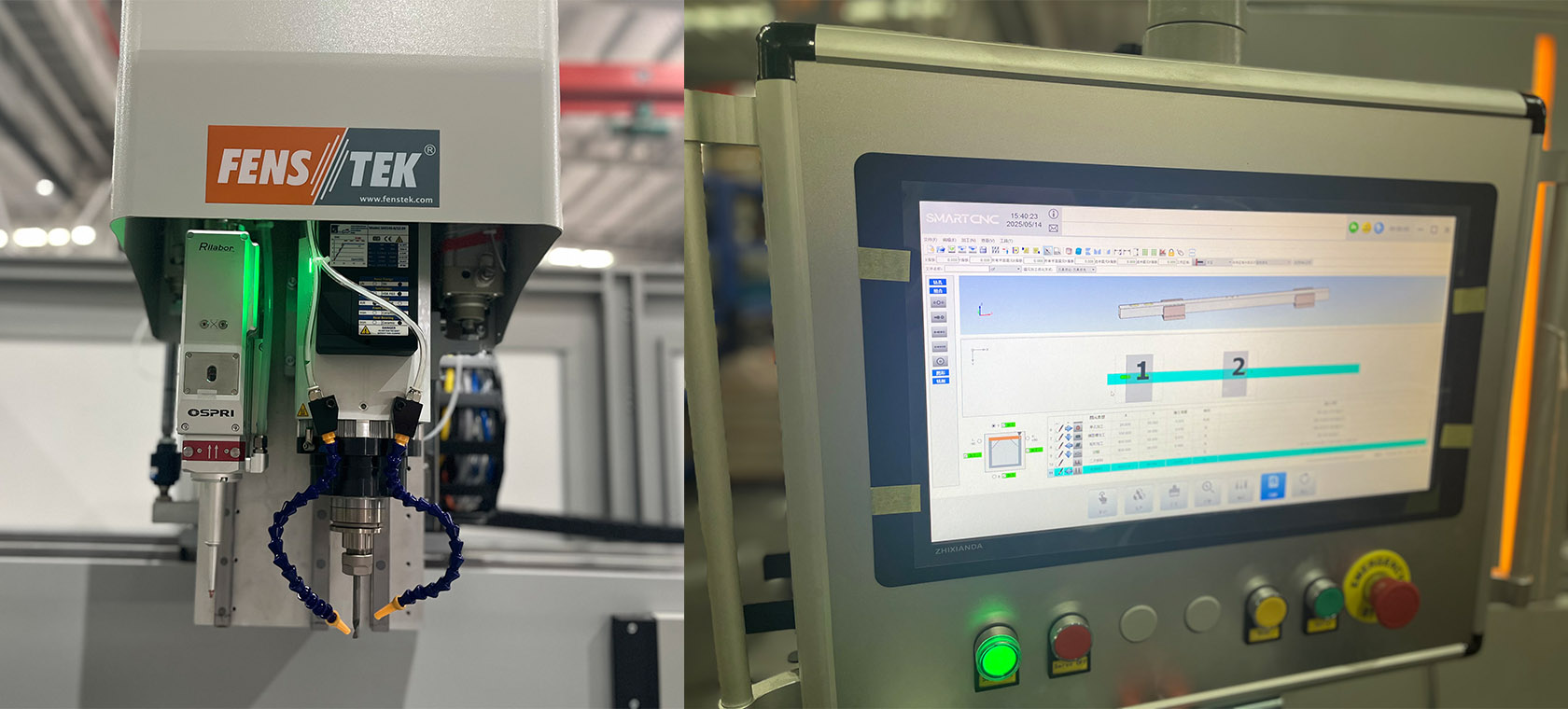

7. Operation in Windows environment Industrial PC with monitor. Friendly machine interface with user-friendly operation.
8. Online with ERP software, can realize scanning code and automatic processing.
9. Adopting Italian electrical spindle 9 kw(working system of motor S6) with high torque assures high processing quality.
10. Double-layer shock absorber fixture: It is convenient for processing of heterotypic profile and reduces vibration and noise.
11. Standard equipped with guide rail and ball screw automatic lubrication device to extend the service life of the whole machine.
12. Chip bin is standardly included.
13. Extra-long profile can be loaded in the machine.
Parameter: | |||
Power supply | 3N~50HZ 380V or customized | Z-axis speed | Max 30m/min |
Power | 27KW | Processing profile height | 140mm |
Air pressure | 0.5-0.8Mpa | Processing profile width | 140mm |
Air consumption | 50L/min | Processing profile length | 3000mm |
Spindle power | 9.0kw | Tool number | 6 pieces(optional) |

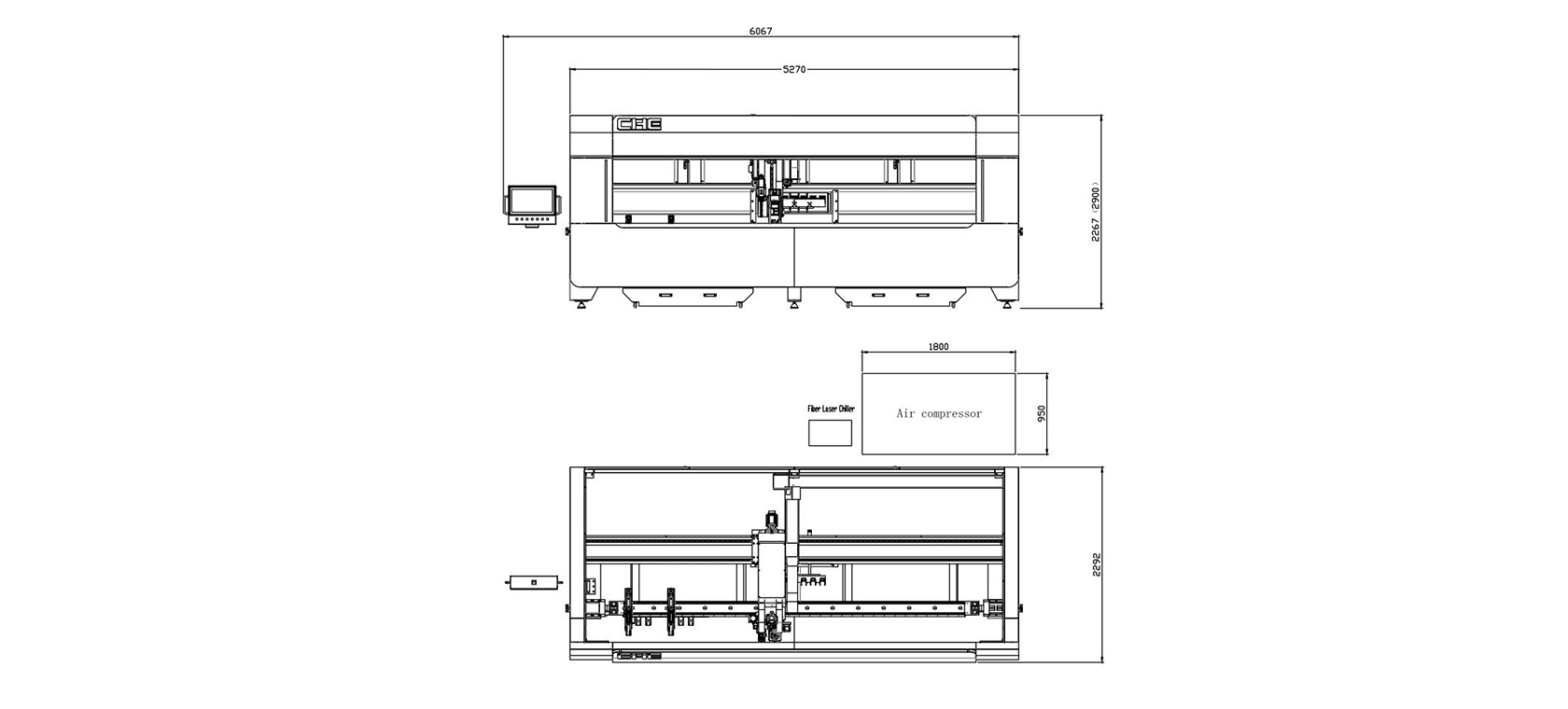

X-axis speed | Max 97.5m/min | Dimension (length×width×height) | 4300×2200×2000mm |
Y-axis speed | Max 30m/min | Weight | 3000kg |
Main Accessory | |
CNC system | PA (German brand) |

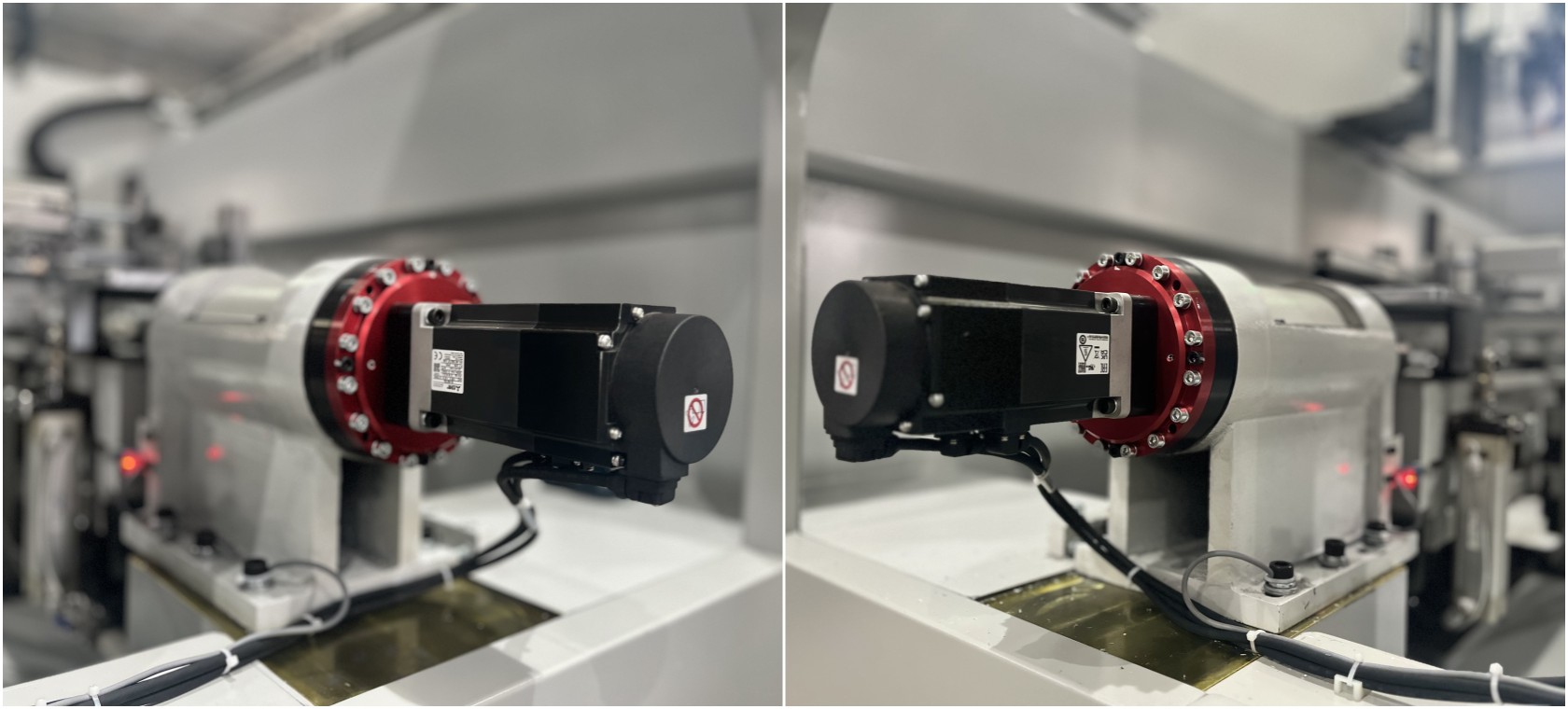

Servo motor | Mitshubishi (Japanese brand) |
Reducer | APEX(Taiwan brand) |
Spindle | HSD (Italian brand) |
Square rail | HIWIN (Taiwan brand) |
Ball screw | PMI (Taiwan brand) |
Rack | APEX (Taiwan brand) |
Electrical button and switcher | Schneider (French brand) |
Air cylinder | AirTAC (Taiwan brand) |
Electrical spindle | Olispeed (Italian brand) |
Electromagnetic valve | AirTAC (Taiwan brand) |
Low-voltage apparatus | Schneider (French brand) |
Connecting terminals | Weidmüller (German brand) |
Air tube | ASHUN (Taiwan brand) |
