CCM160

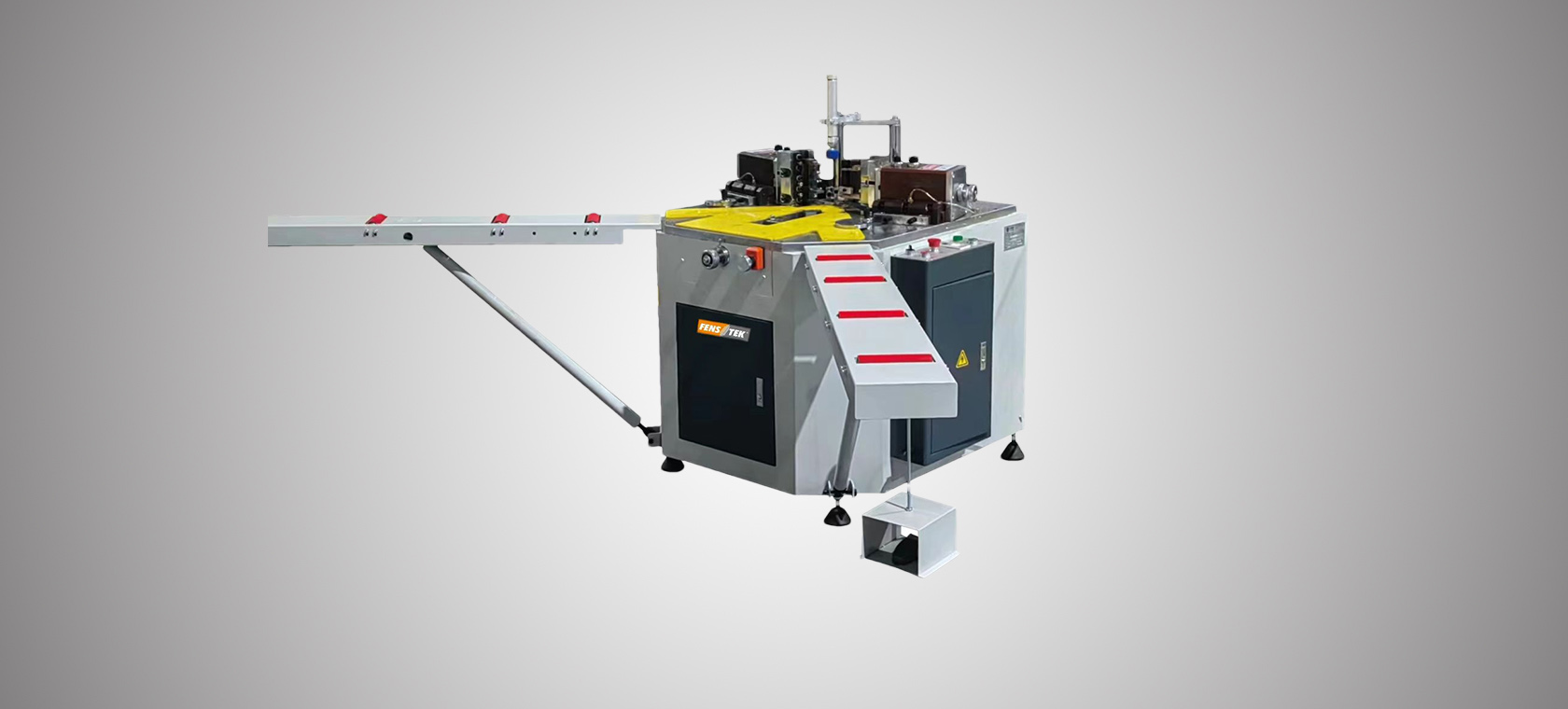

Aluminum Window Corner Crimping Machine

Features:

(1) Aluminum window corner crimping machine is used for high efficient assembly of aluminium window and door.

(2) It is driven by air pressure, the action is faster and more stable, and there is no noise, no pollution, safe and reliable.

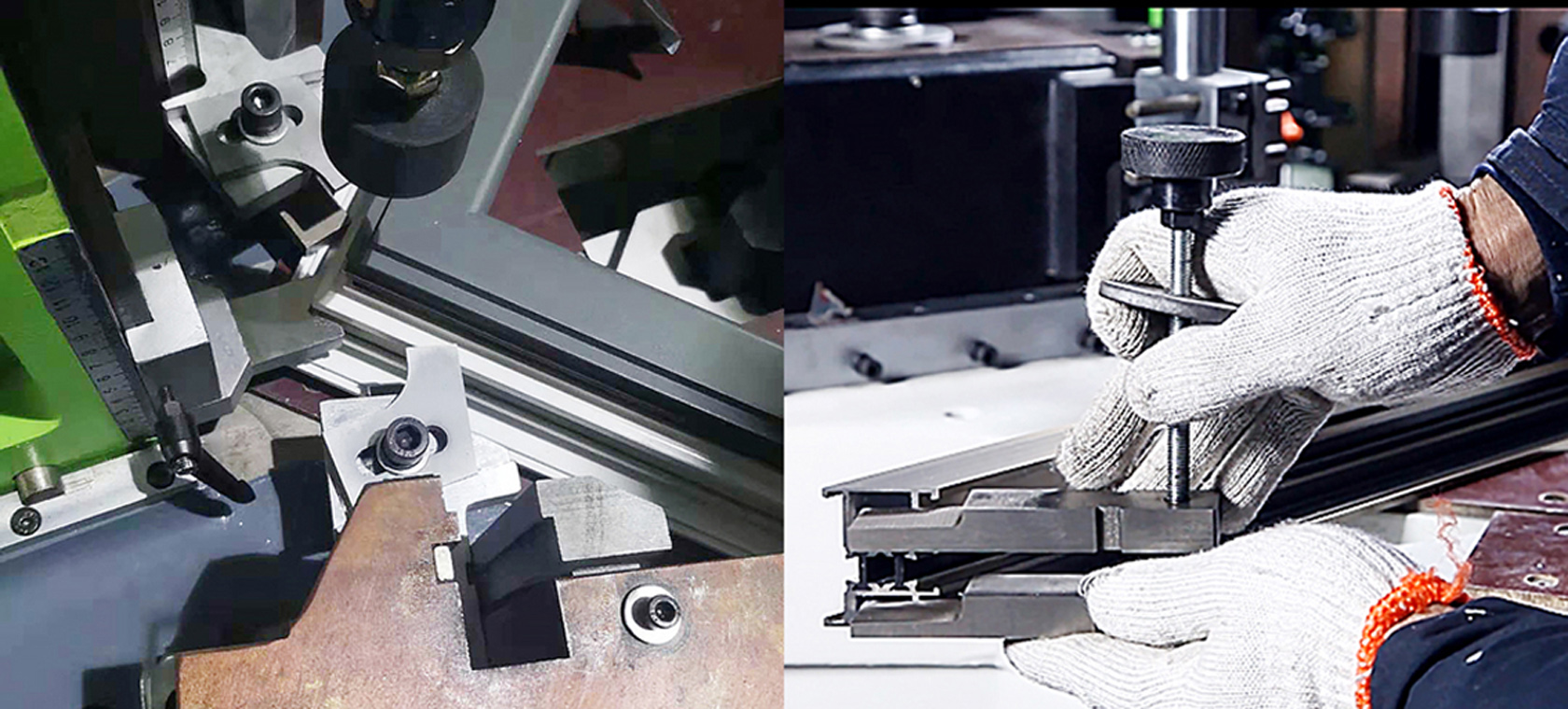

(3) Fast cutter locking device, adjust tool up and down (magnet type) faster.

(4) Corner crimping height 160 mm, five seconds one corner.

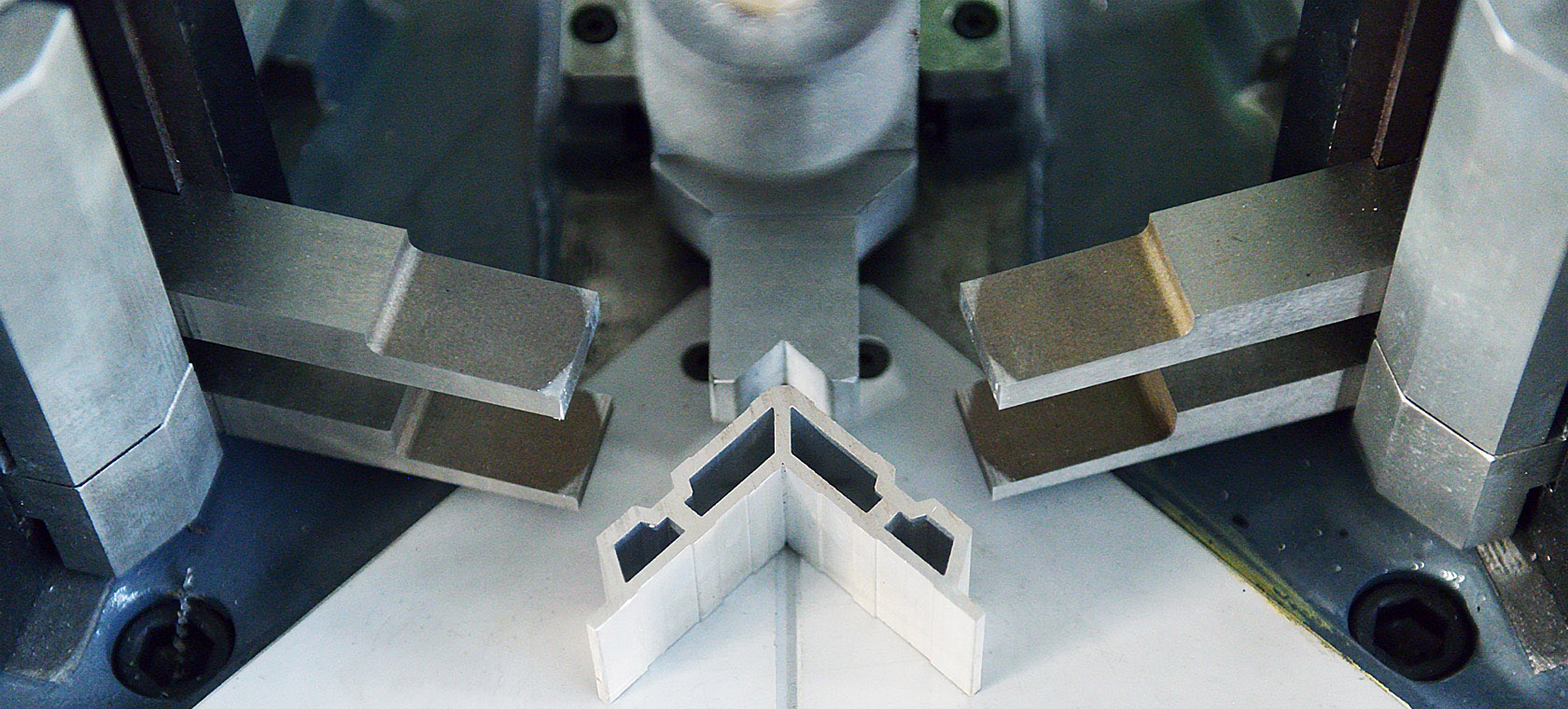

(5) The left and right corner crimping cutter can be adjusted separately, have good synchronism and high quality of corner crimping.

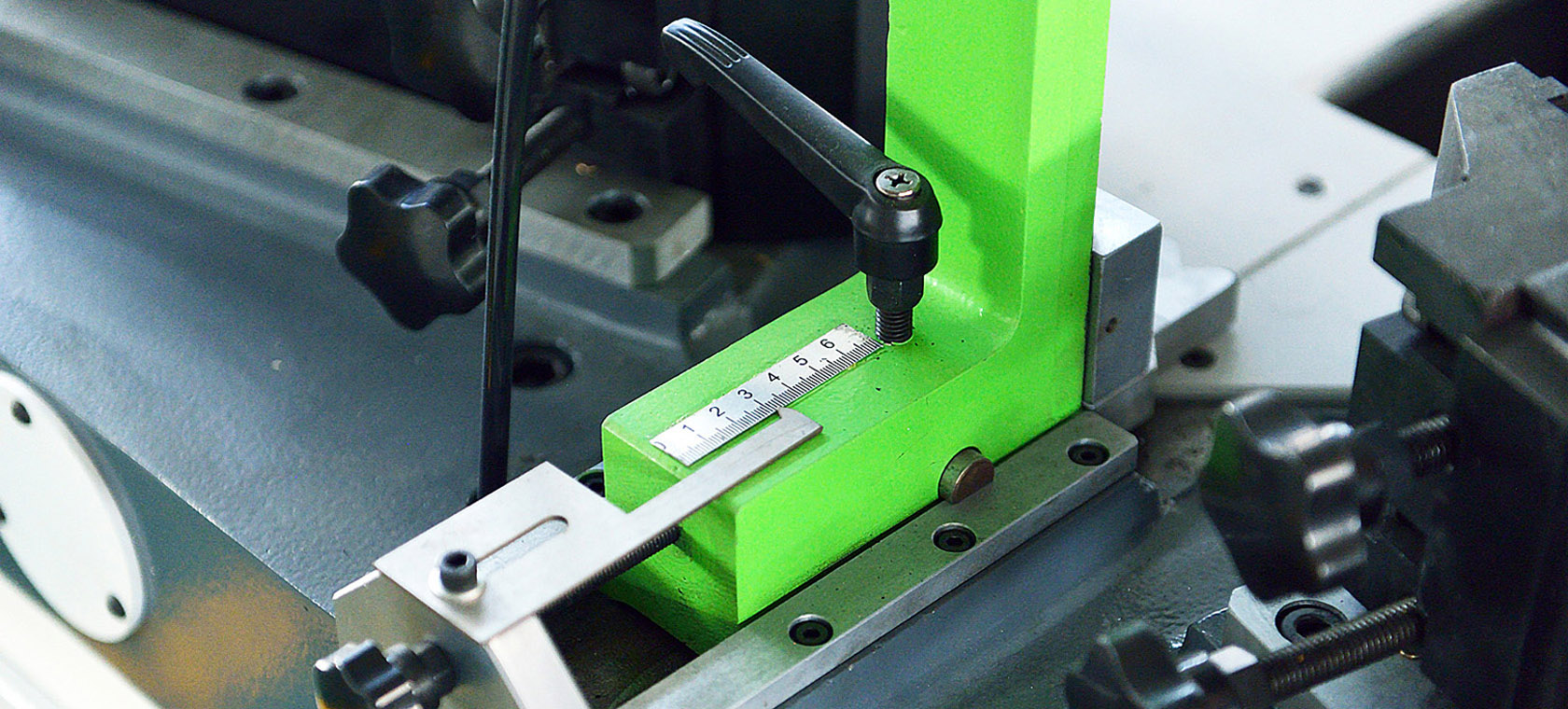

(6) Kinds of assistant position system suit for different window dimension
.
(7) More energy saving and environmental protection, the total electricity consumption is less than 100W, greatly reducing the cost of use.

 Main accessory


 Electric Relay

 Schneider(French brand)

 Electrical Button and Switcher

 Schneider(French brand)

 Low-voltage Apparatus

 Schneider(French brand)

 Connecting Terminals

 Weidmüller(German   brand)

 Electromagnetic Valve

 AirTAC(Taiwan brand)

 Air Cylinder

 AirTAC(Taiwan brand)

 Parameter


 Power Supply

 220V 50Hz or customized

 Adjustable Range of the Corner Crimping Head

 70mm

 Air Pressure

 0.6-0.8MPa

 Internal Positioning Corner Stroke

 130mm

 Air Consumption

 120L/min

 Corner Crimping Tool Stroke

 0-20mm

 Processing Profile Height

 160mm

 Dimensions

 1100 * 1000 * 1300 (mm)

 Total Corner Crimping Pressure

 40KN

 Weight

 500kg
