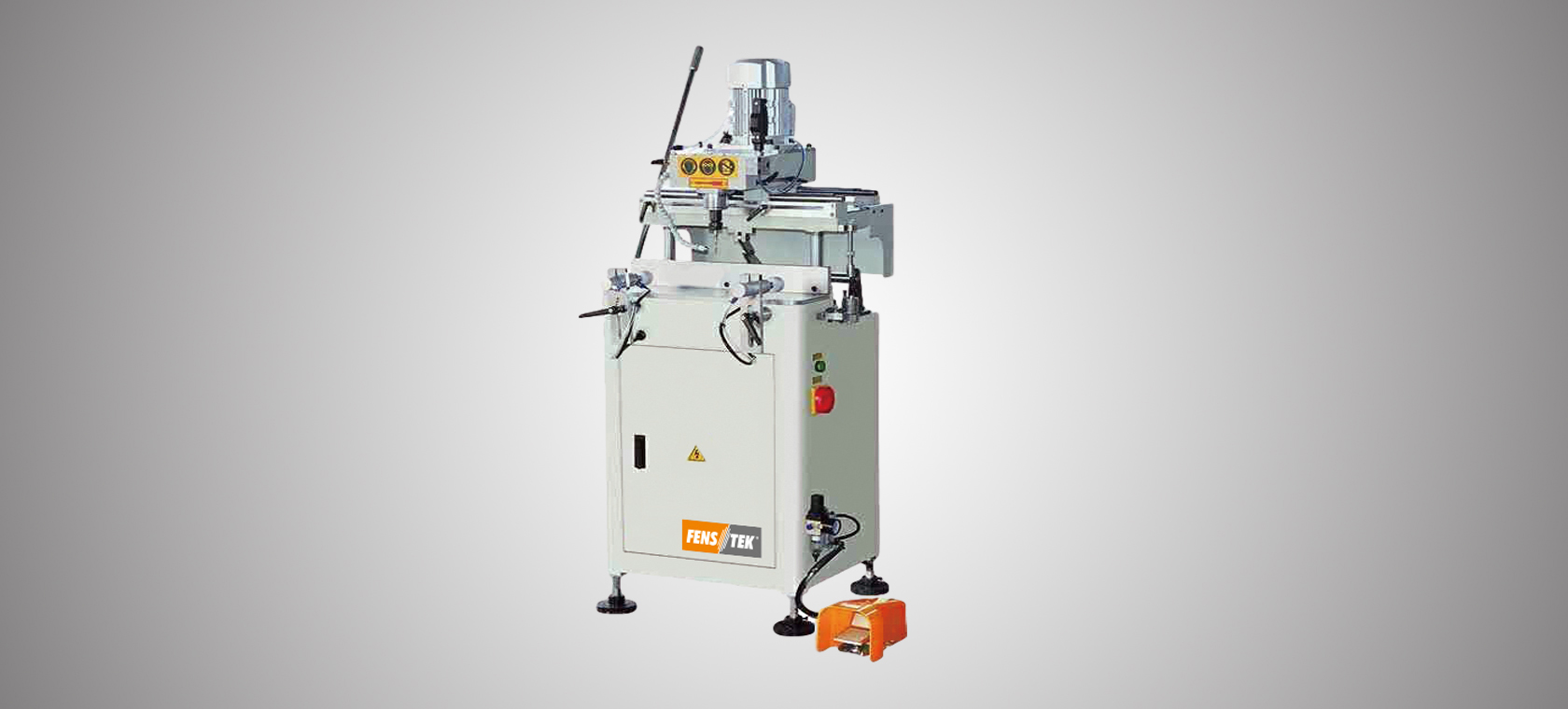

CR350

Aluminum Windows & Doors Copy Router

Features:

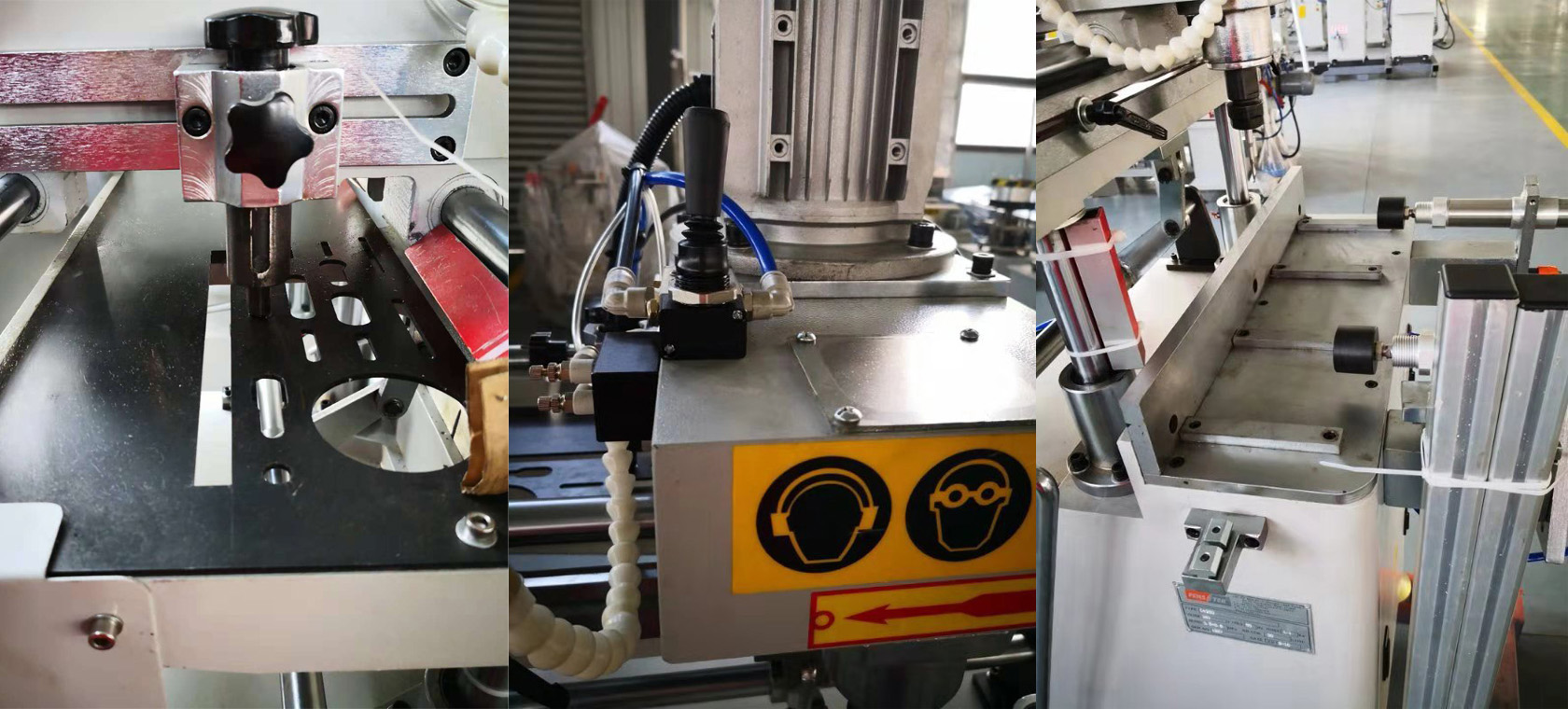

1. Single Copy-Routing Milling Machine CR350 is processing routing slot for locking bolt and key hole or various hole of PVC and Aluminium profile.

2. Copy routing 1:1 ratio, for easy transfer of the routing pattern from a template to the profile.

3. Length and width of the shape can be adjustable through the turret on the machinery.

4. Pneumatic horizontal clamping.

5. Standard equipped with one template. Customer specified template can be produced.

Main accessory


Solenoid valve

AirTAC(Taiwan)

Cylinder

AirTAC(Taiwan)

 Motor

Anhui Sanyang

Air Filter Device

AirTAC(Taiwan)

Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider

Approach Switcher

Swiss CONTRINEX or Japan Omrons


Parameter


Air Pressure

0.5~0.8(MPa)

Air Consumption

3(L/min)

Input Voltage

380V/50Hz

Main-shaft Revolution

11200(r/min)

Input Power

0.75(kW)

Cutter Diameter

5- 6 (mm)

Overall Dimension

870×700×1500(mm)

Weight:

220(kg)
