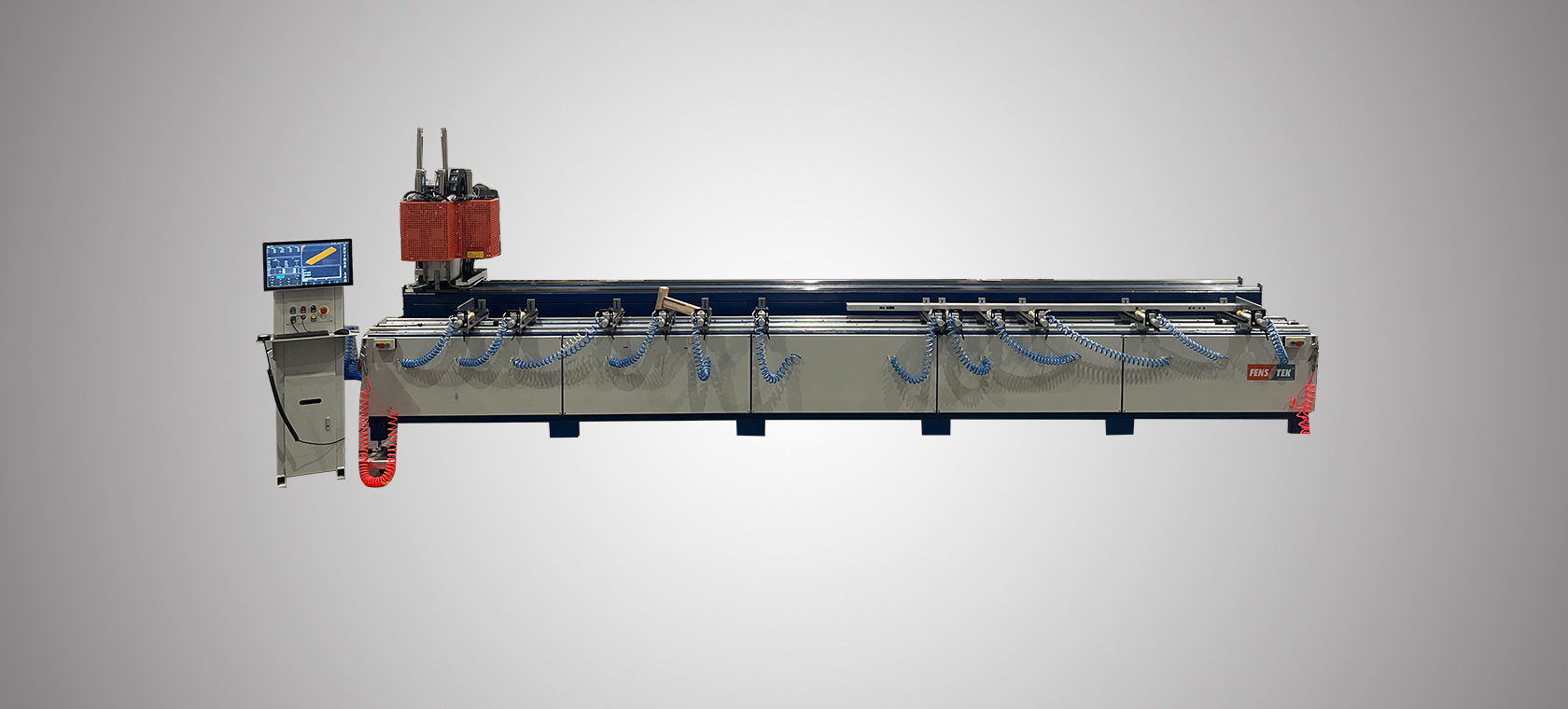

1. Advanced industrial CNC 3-axis profile machining systems, friendly machine interface with use-friendly operation.
2. Suitable for aluminum, aluminum / wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing.

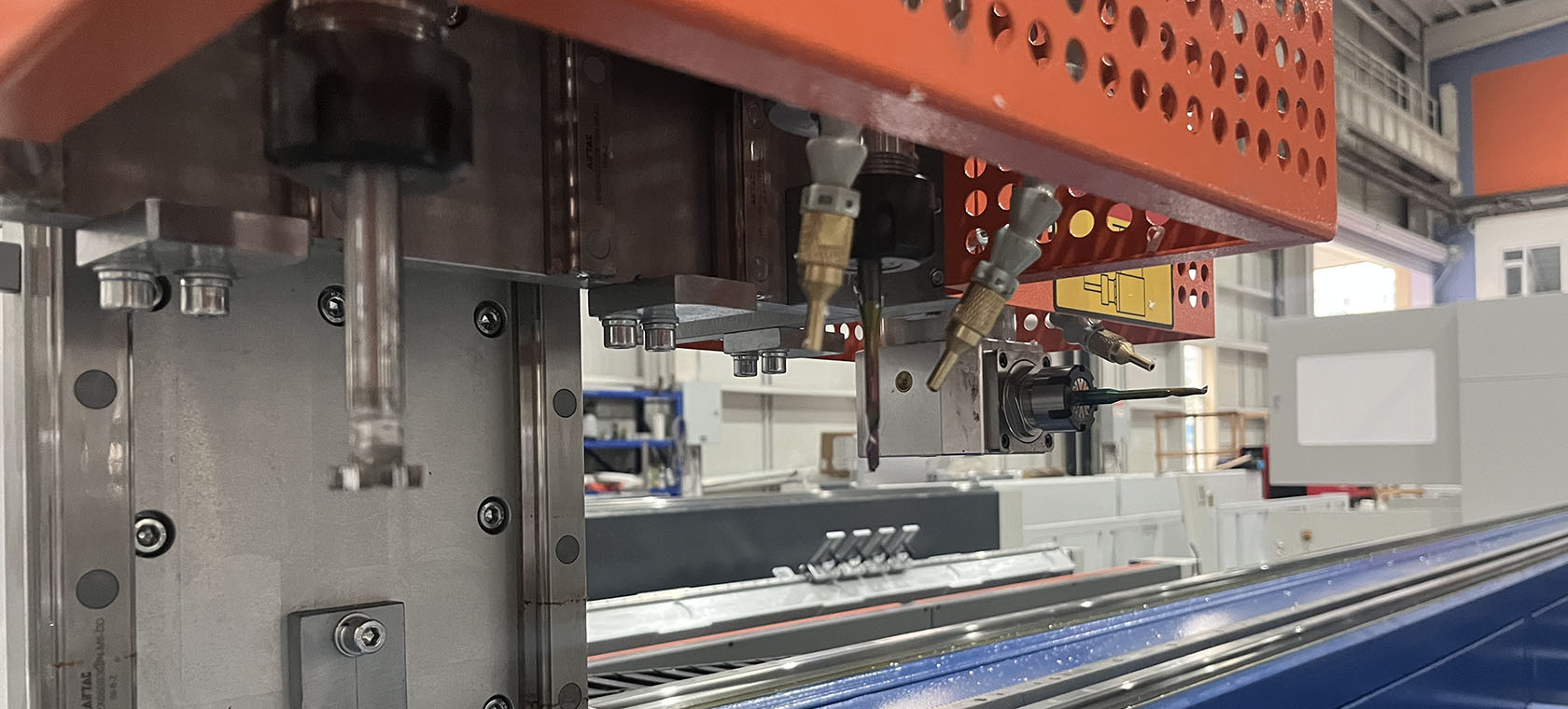

3. The machine completes milling, drilling, tapping, chamfering, grooving and other multi-functional precisely in one time, the profile was conveyed by the precise stationary avoid profile damage.

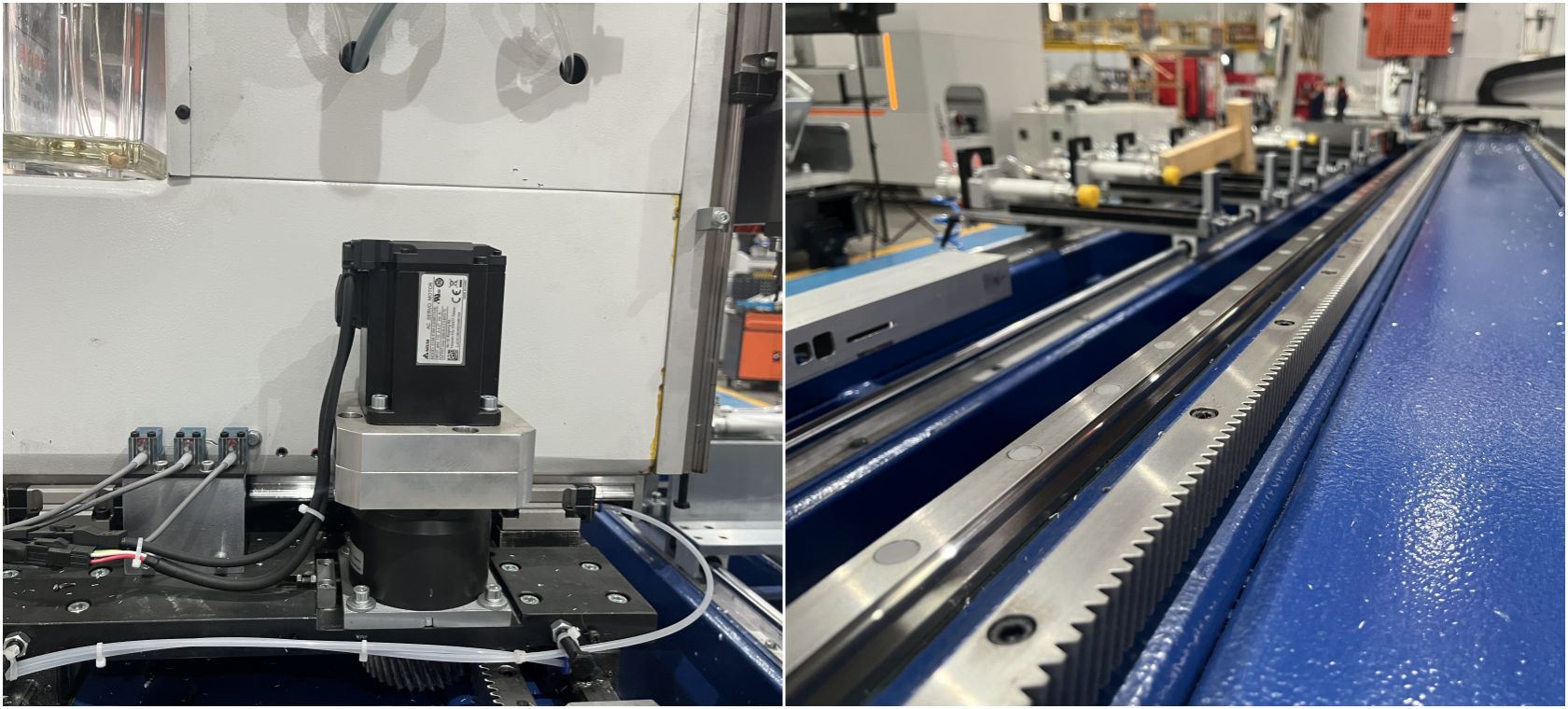

4. Adopts imported high precision linear guide ways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing in high precision
5. High-quality imported automatic tool change based on automatic travel magazine, minimum the tool change time and rotation noise, maximum stability ,precision, and cutting ability

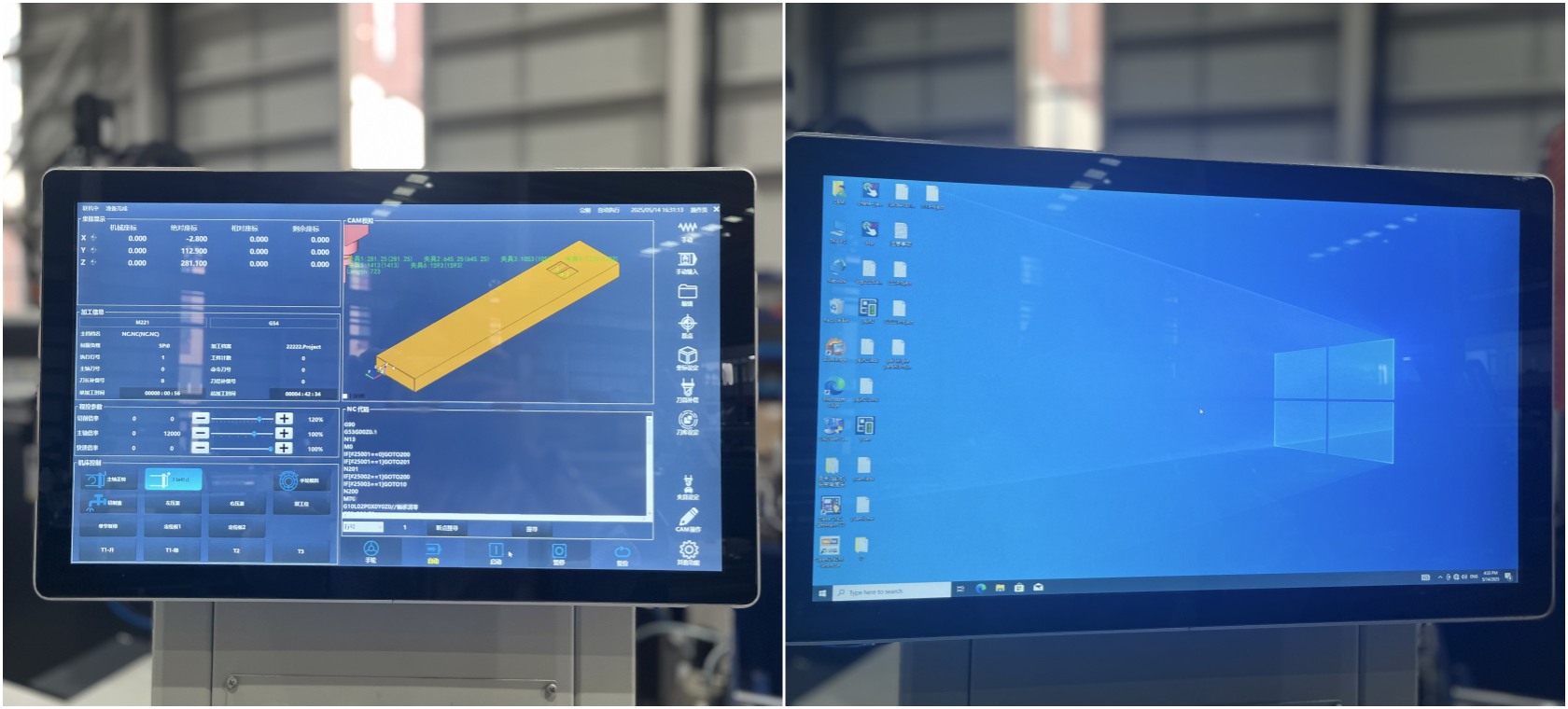

6. Multiple safety protection structure to ensure operator safety, Industrial PC control 2.5 D operation with 19’’ color monitor.
7. RJ 45 10/100Mbit network as the standard
8. USB Connection, CAD input data, or writing by hand on the computer
9. High strength welding structure, heat aging and annealing processing, guarantee high rigidity and high stability
10. UPS protection systems.

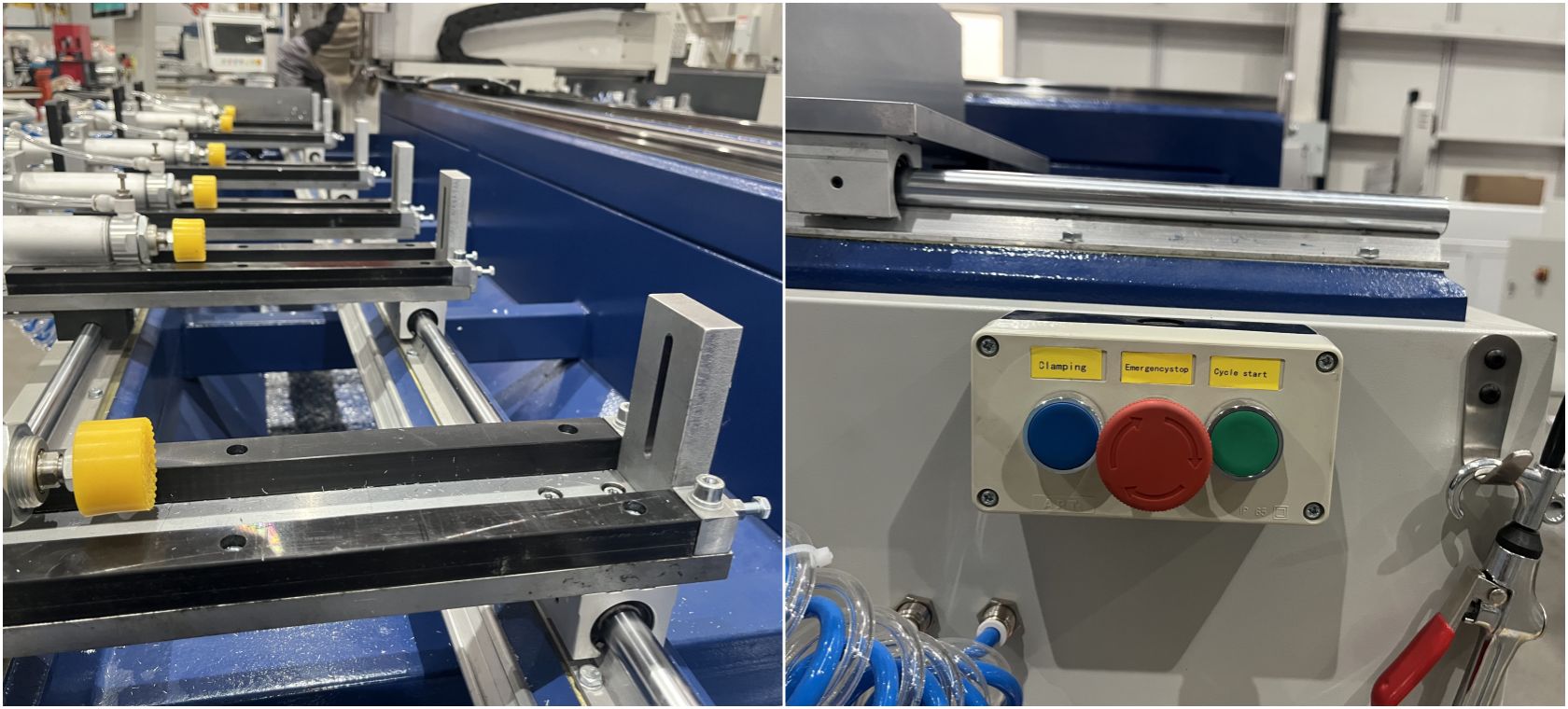

11. Widened and enlarged clamping fixture, maximum processing size 400×120mm, suitable for processing large profiles.
12. Maximum processing length up to 6000mm, supports dual-zone operation for higher efficiency.
