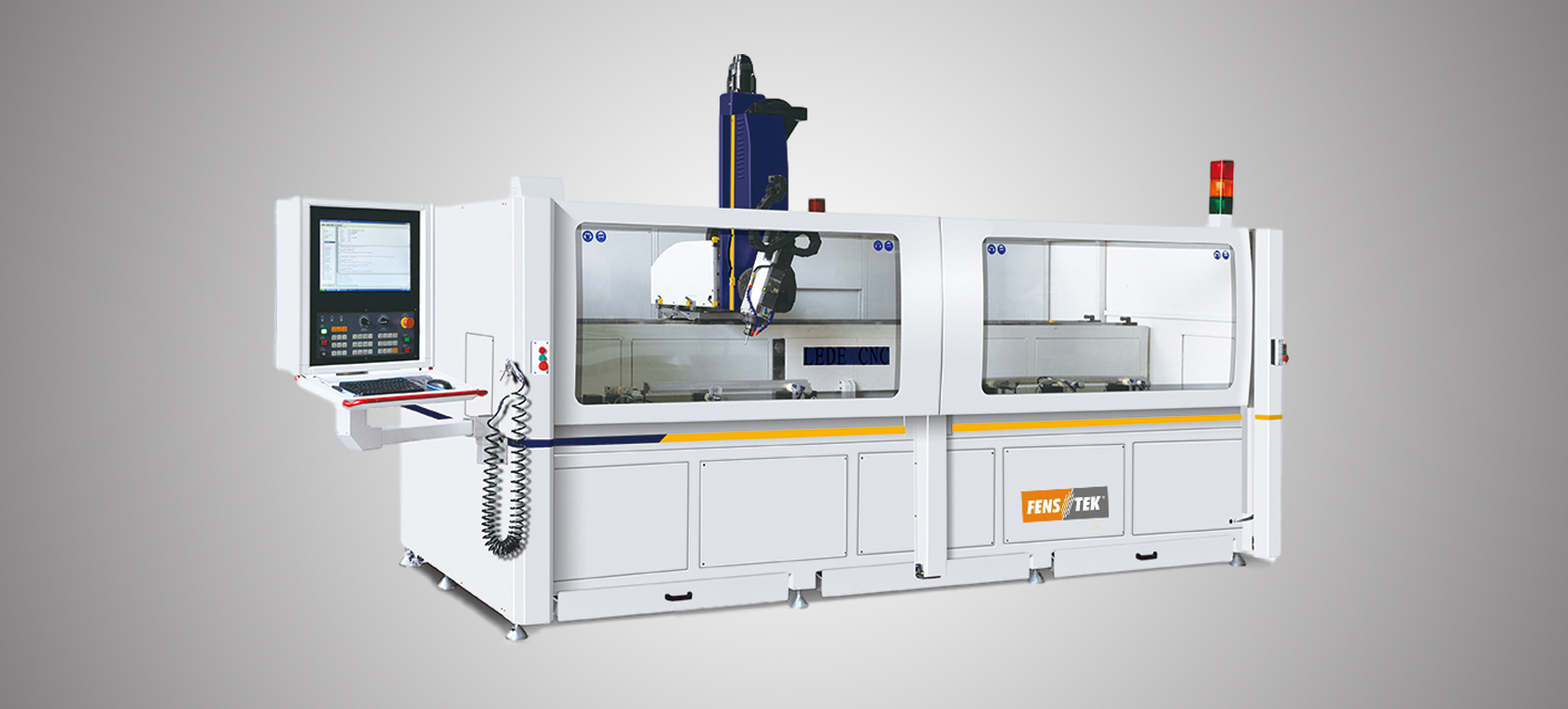

LWZ-D4

CNC Four-axis Machining Center

Feature:

1. CNC Four-axis Machining Center Suitable for CNC machining of all kinds of aluminium, copper, PVC profiles, plates and other parts, and machining of car bumper, skylight slide rails, luggage rack and other auto parts, it can achieve to once clamp the workpiece, automatically complete the milling, drilling, tapping(flexibly) and other multi-process processing.

2. Adopts imported Italy high speed electrical spindle, have stable performance and high reliability.

3. Has good processing expansibility, adopts double positioning structure.

4. Adopts high performance numerical control system, it has a good user interface, and is easy for operators to use.

5. Imported servo motor, ball screw and linear slide rail ensure the processing accuracy.

6. working positions tool magazine, high degree of automation, automatic tools change, greatly improve the processing efficiency. (optional)

7. When process the workpiece with length 1500mm, it can be divided into two processing areas, which greatly improves the work efficiency; When the length is more than 2000mm, it will be one single work area.

8. Adopts fully enclosed protective cover and the bottom is equipped with chip collecting plate, so as to avoid the pollution to the work environment caused by flying chips, meanwhile, reduce the noise caused by processing and create a good working environment.

9. High security and semi-closed structure effectively avoid the damage to operators caused by tool burst occurred during processing.

10. The bed is heat treated to prevent stress deformation, the main structural parts use welded structure.

11. Moving column is optional, the stroke of Y/Z axis is 500mm(casting bed is optional).

12. B axis ± 90 °

 Main accessory


 CNC system

 PA (German brand)

 Servo motor

 YASKAWA(Japanese brand)

 Reducer

 APEX(Taiwan brand)

 Electrical spindle

 HSD(Italian brand)

 Square rail

 HIWIN(Taiwan brand)

 Rack

 APEX(Taiwan brand)

 Ball screw

 PMI (Taiwan brand)

 Machining tool

 WEMARO(German brand)

 Electromagnetic valve

 AirTAC(Taiwan brand)

 Electrical button switcher

 Schneider(French brand)

 Low-voltage apparatus

 Schneider(French brand)

 Connecting terminals

 Weidmüller(German brand)

 Air cylinder

 AirTAC(Taiwan brand)









  Parameters


 Stroke


 X-axis range

 3500mm (customizable)

 Y-axis range

 300mm

 Z-axis range

 350mm

 Spindle


 Spindle max.speed

 24000r/m(16000r/m)

 Spindle power

 9kw

 Taper hole of spindle

 HSK-63F(ISO)

 Tool magazine


 Tool magazine type

 Alignment type

 Tool magazine capacity

 6

 Lubrication cooling system


 Lubrication system

 Self-lubrication

 Cooling system

 Micro atomization cooling/ Water spray cooling

 Moving speed


 X-axis moving speed

 0-60m/min

 Y/Z axis moving speed

  0-30m/min

 Precision


 X axis positioning accuracy

 ±0.03mm

 Y/Z axis positioning accuracy

 ±0.02mm

 Repeated positioning accuracy

 ±0.01mm

 Mechanical specifications


 Voltage

 380V/50HZ

 Air pressure

 0.5-0.8Mpa

 Area

 4500-2200mm

 Bed load-bearing

 1000kg/m

 Weight

 3000kg
