CNC Glazing Bead Saw Machine Center, China Factory Price, FENSTEK

GBCC2000

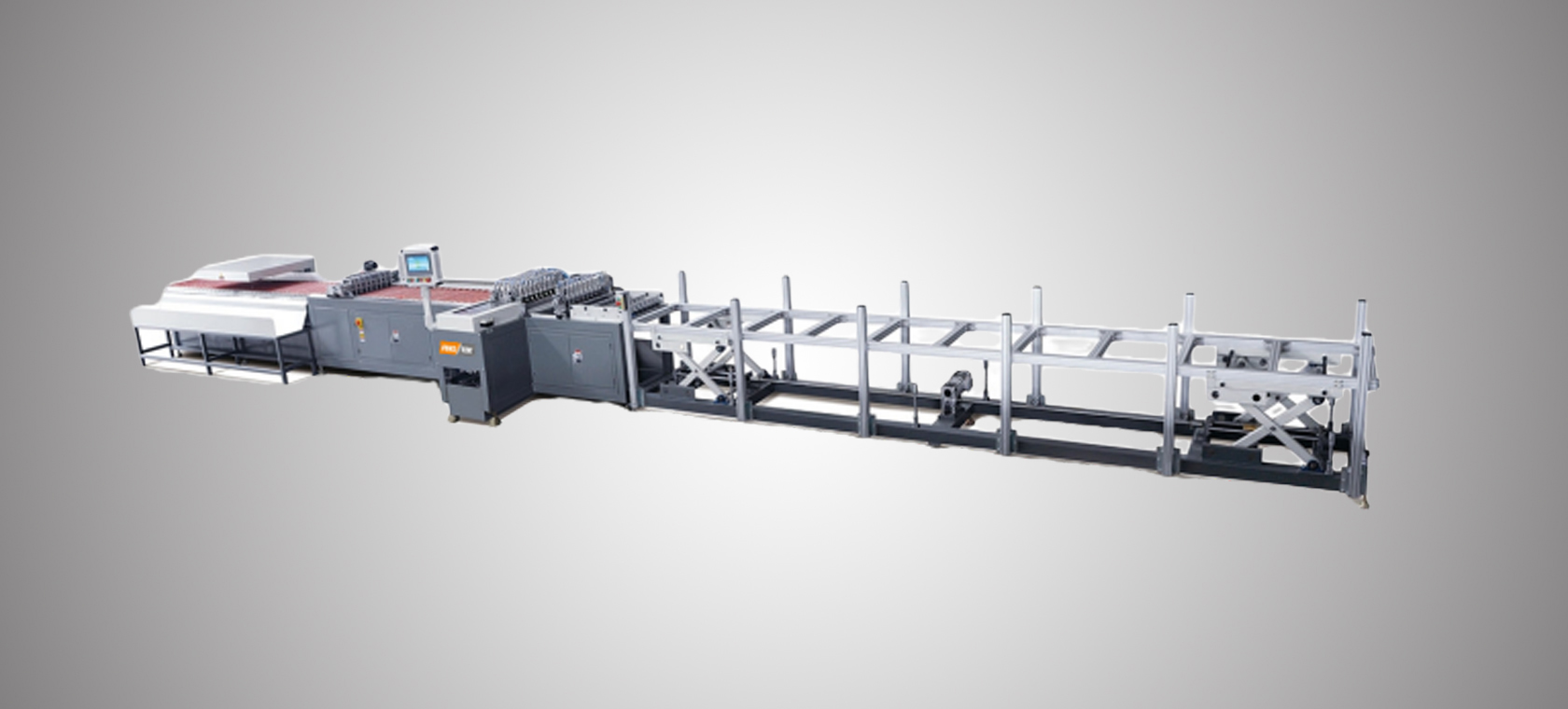

CNC Glazing Bead Saw Machine Center

Features:

1.For plastic doors and windows glass bar 45° cutting and foot part removal

2.Eight strips cut once, high efficiency

3.The feed adopts square rail motion pair with high precision

4.Equipped with lifting feeding table, bar storage ahead of time, save intermediate handling bar, save personnel, manpower.

5.Discharge servo control, can be different length of strip area discharge.

Main accessory:
Saw blade	Japan UNIKEN
Solenoid valve	Airtac
Cylinder	Airtac
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	Airtac
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Swiss CONTRINEX or Japan Omron
Linear bearing system	Linear (South Korean brand)

Parameter
Air Pressure	0.5～0.8(MPa)
Air Consumption	30(L/min)
Input Voltage	380V50Hz or customer specification
Input Power	4.5(Kw)
Saw Rotary Speed	2645(r/min)
Max Cutting Height	30(mm)
Max Cutting Width	25(mm)
Overall Dimension	300～3000mm
Weight	1500(kg)
