LF-A

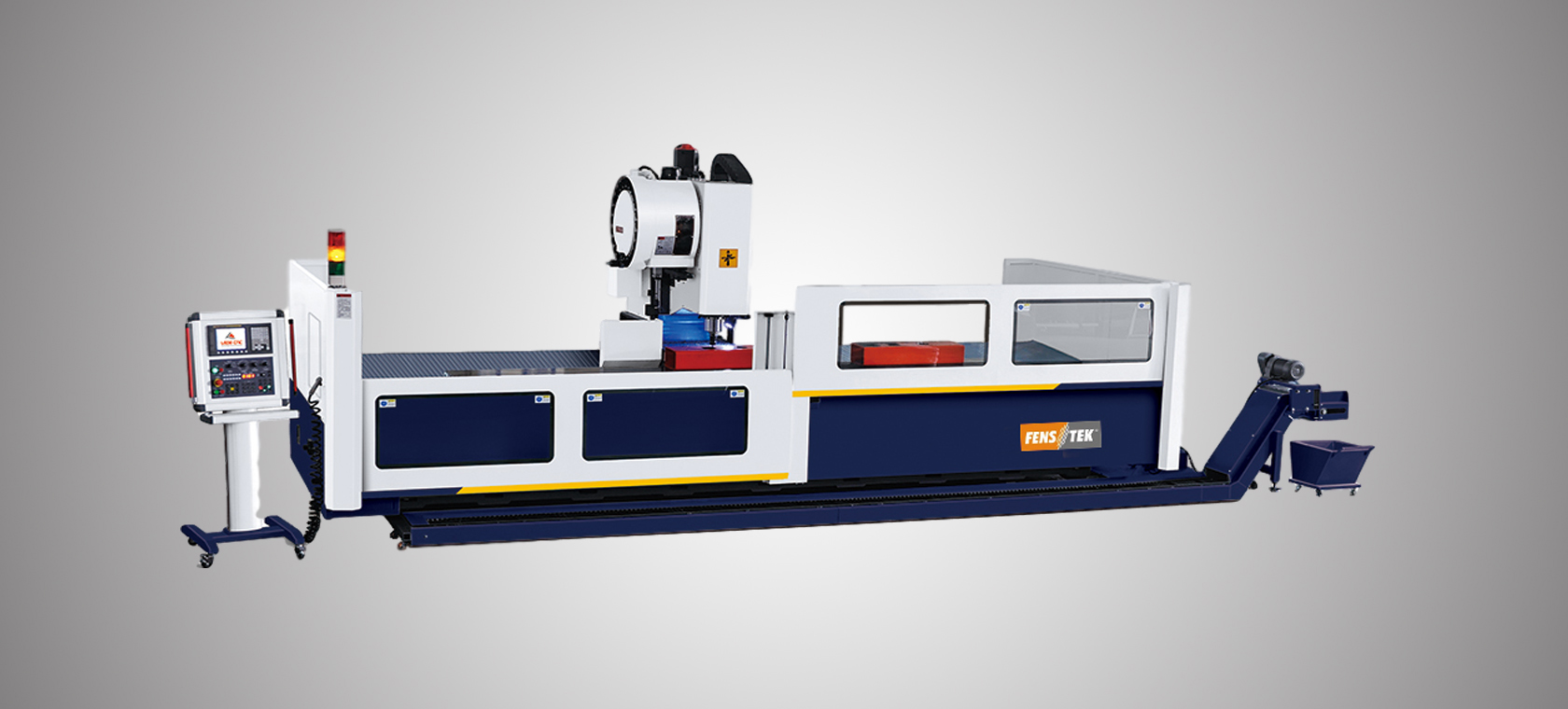

Complex Machining Center Series

Feature:

1. This series of lathe bed are made of high strength cast iron material, adopt resin sand technology, and two times aging treatment to eliminate stress.

2. Industry Aluminium Machining Center lF-A Suitable for the processing of various kinds of parts such as long steel, cast iron, aluminium, copper, PVC, industrial profiles and so on, it can achieve to once clamp the workpiece, and automatically complete the milling, drilling, tapping and other multi-process processing.

3. Adopts imported well-known brands and easy to operate high-end CNC control system, Germany's Siemens or Japan’s Fanuc.

4. Adopts high-quality imported servo motor, ball screw, linear guide, bearings and other components, so as to ensure that the equipment has a high processing accuracy; it has high stability and reliability, the machine tool is supported by multiple points, has higher stability. The feeding movement is pre-stretched to ensure the stability of the machining accuracy.

5. BT40 mechanical spindle, increases the rigidity during heavy cutting.

6. Adopts quantitative timing central centralized automatic feeding lubrication, so as to ensure the stability of the machine tool accuracy.

7. Additionally equipped with protective shield and automatic chip removal machine, ensure the safety of the operator and the environmental hygiene.
8. Adopts T type cast worktable. Customized special fixture is optional. The fourth axis is optional.

9. Adopts imported Renishaw interferometer detection, to compensate the accuracy of the machine.

10. Equipped with sliding door, the upper and lower protective doors are optional.

 Main accessory


CNC control system

FANUC (Japan brand)

Spindle

Royal(Taiwan brand)

Lead screw

PMI(Taiwan brand)

Lead rail

Rexroth(German brand)

Tool magazine

POJU(Taiwan brand)

Electric elements

Schneider(France brand)

Pneumatic component

AirTAC(Taiwan brand)





 Parameters


Stroke


X-axis range

2500mm/4500mm/6500mm(customizable)

Y-axis range

550mm

Z-axis range

510mm

Spindle


Spindle max.speed

12000r/m

Spindle power

7.5kw/11kw

Taper hole of spindle

BT40

Distance from spindle to worktable

minimum 120mm, maximum 670mm

Tool magazine(Optional: disc type tool magazine 16, 20position)


Tool magazine type

Disc type

Tool magazine capacity

24

Lubrication cooling system


Lubrication system

Self-lubrication

Cooling system

Micro atomization cooling/ Water spray cooling

Moving speed


X-axis moving speed

0-40m/min

Y/Z axis moving speed

0-30m/min

Precision


X axis positioning accuracy

±0.03mm

Y/Z axis positioning accuracy

±0.02mm

Repeated positioning accuracy

±0.01mm/300

Mechanical specifications


Voltage

380V/50HZ

Air pressure

0.5-0.8Mpa

Area

8700-11000*3000mm

Bed load-bearing

500kg/m

Weight

11000kg-24000kg
