Barite 150F

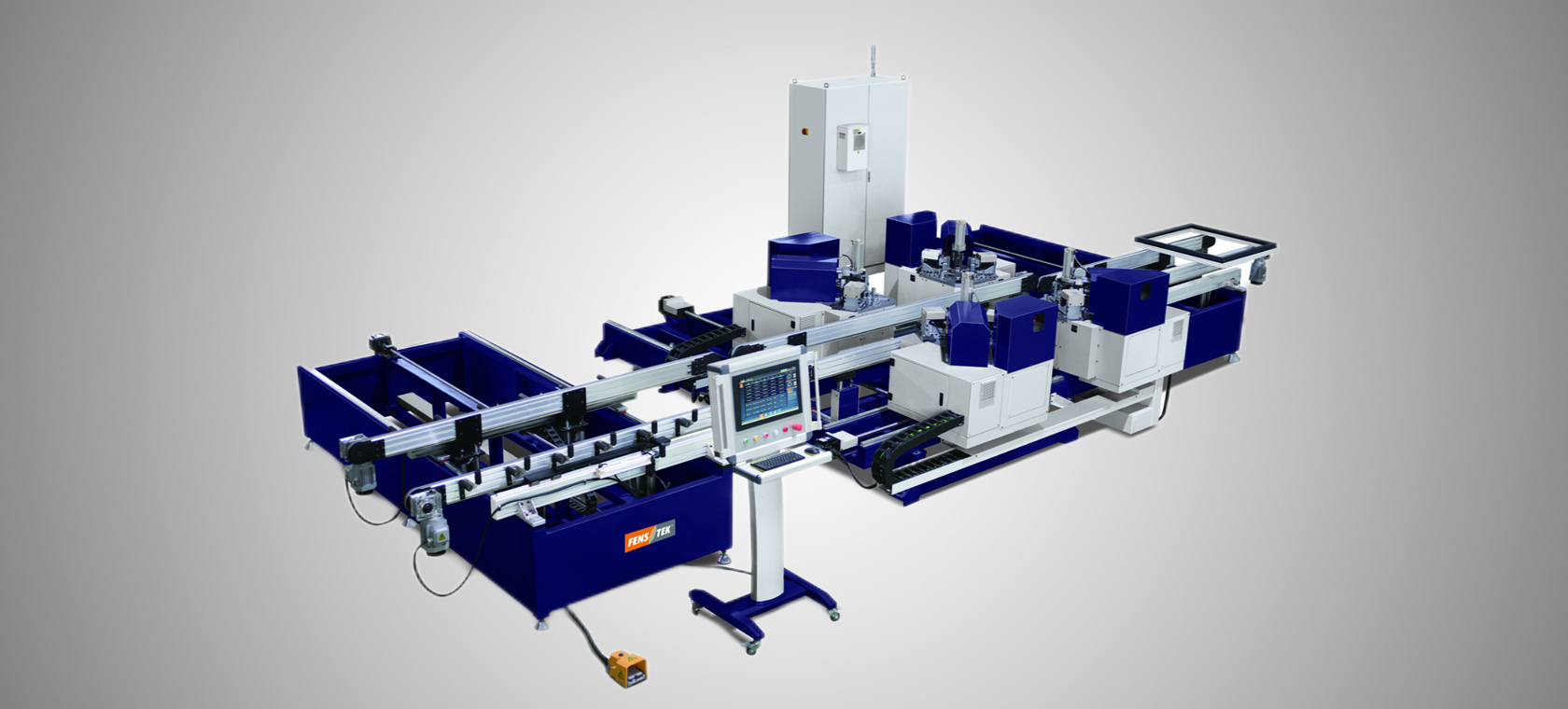

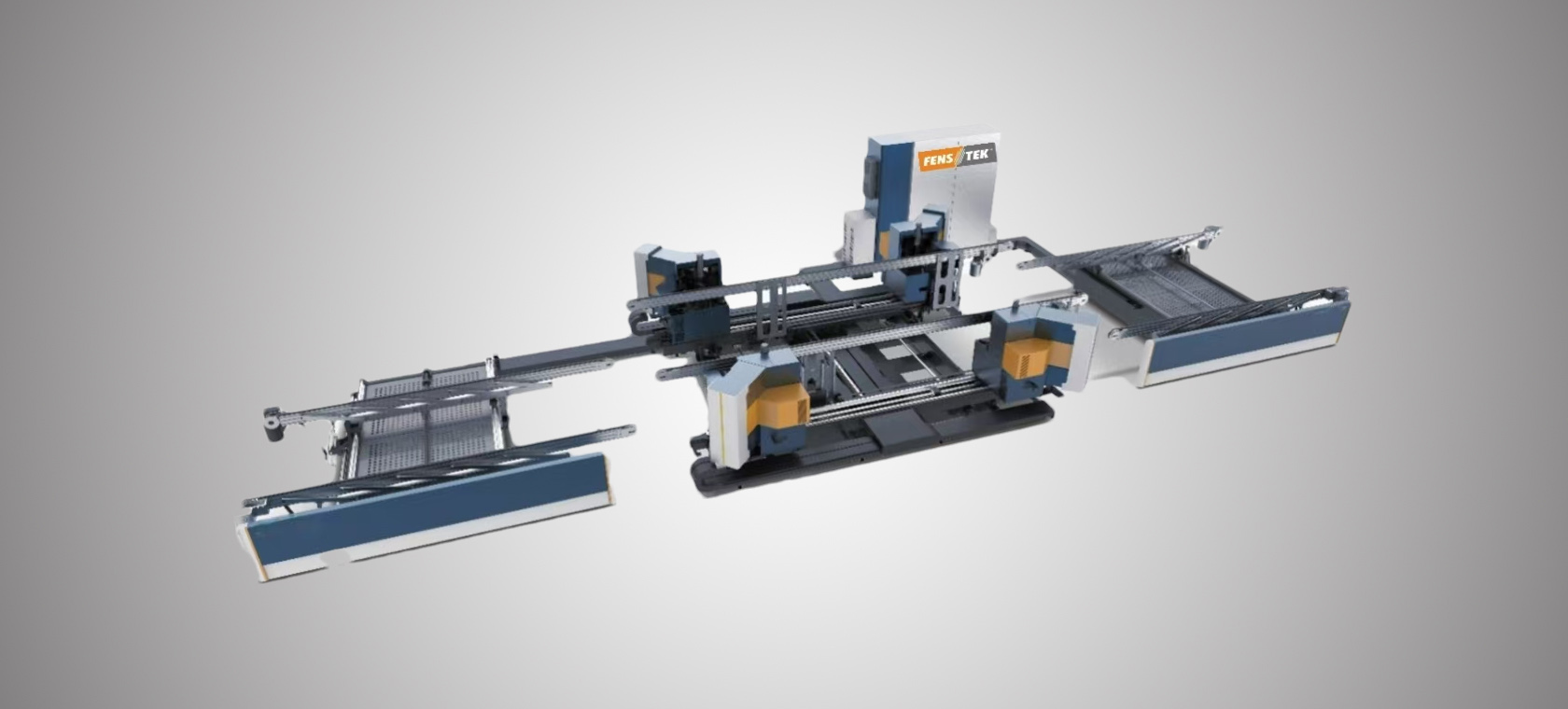

Corner Crimping Production Line

Features:

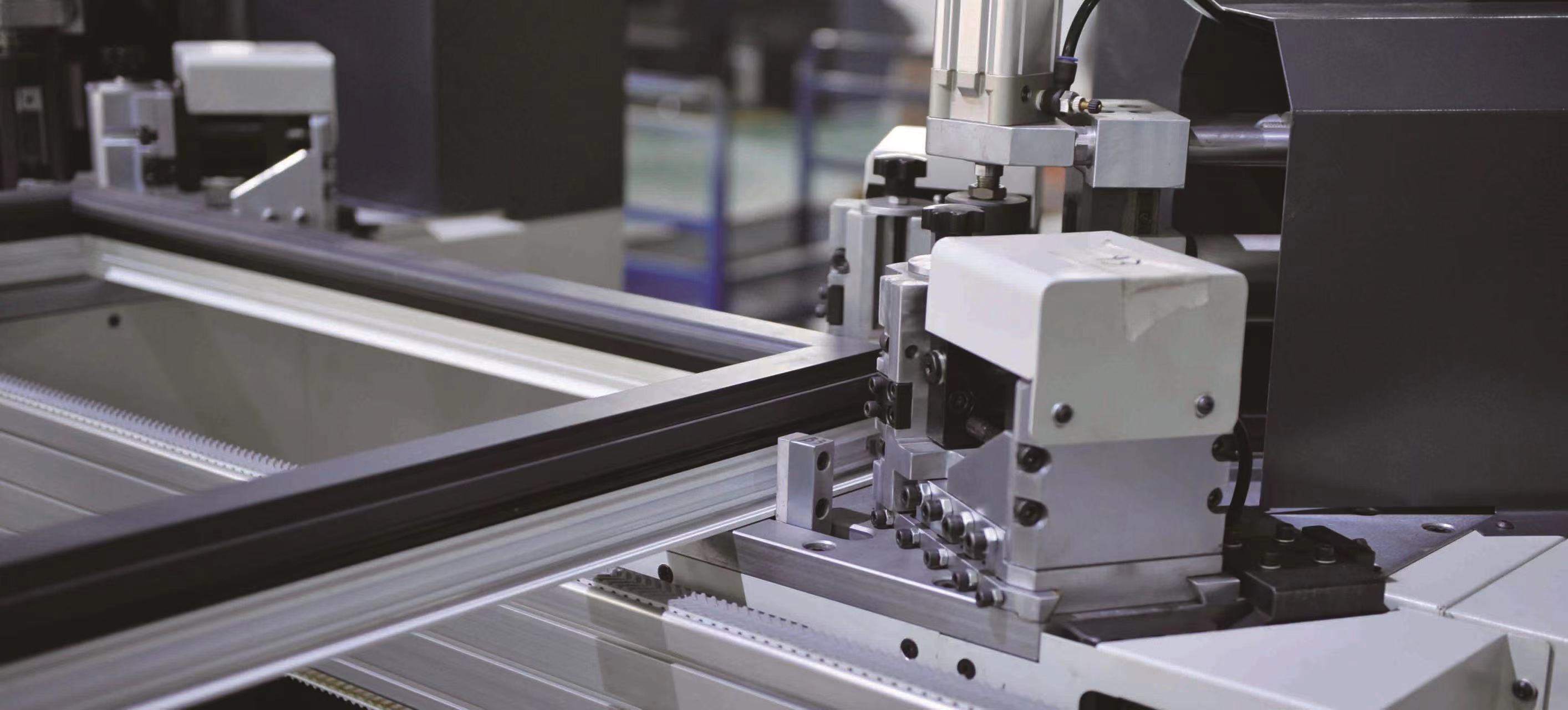

1. Aluminum door and window intelligent mass production corner crimping line, which can complete the corner key type riveting connection of four corners of the door and window at a time.

2. Professional corner crimping result for aluminum doors and Windows

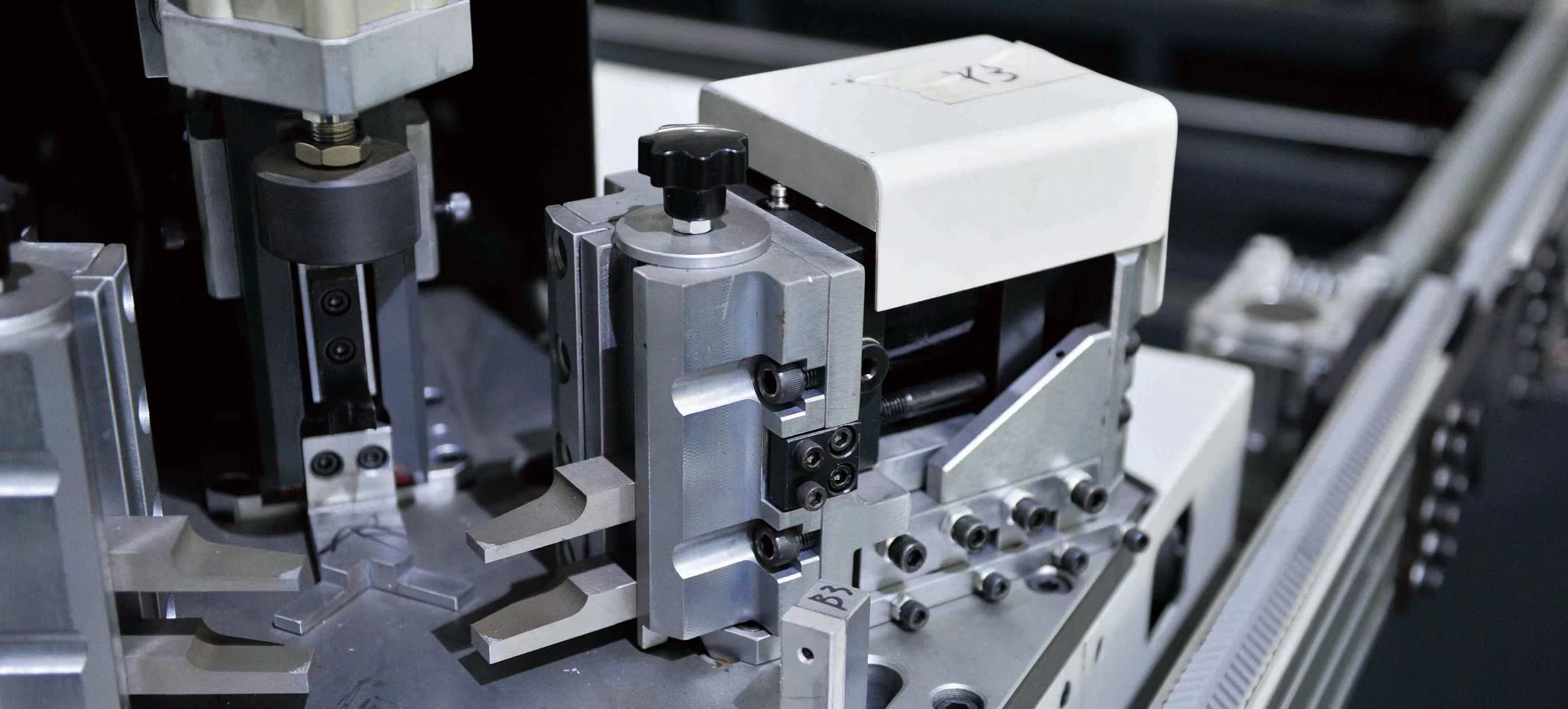

3. High efficiency: perfect crimping result without adjusting crimping knife

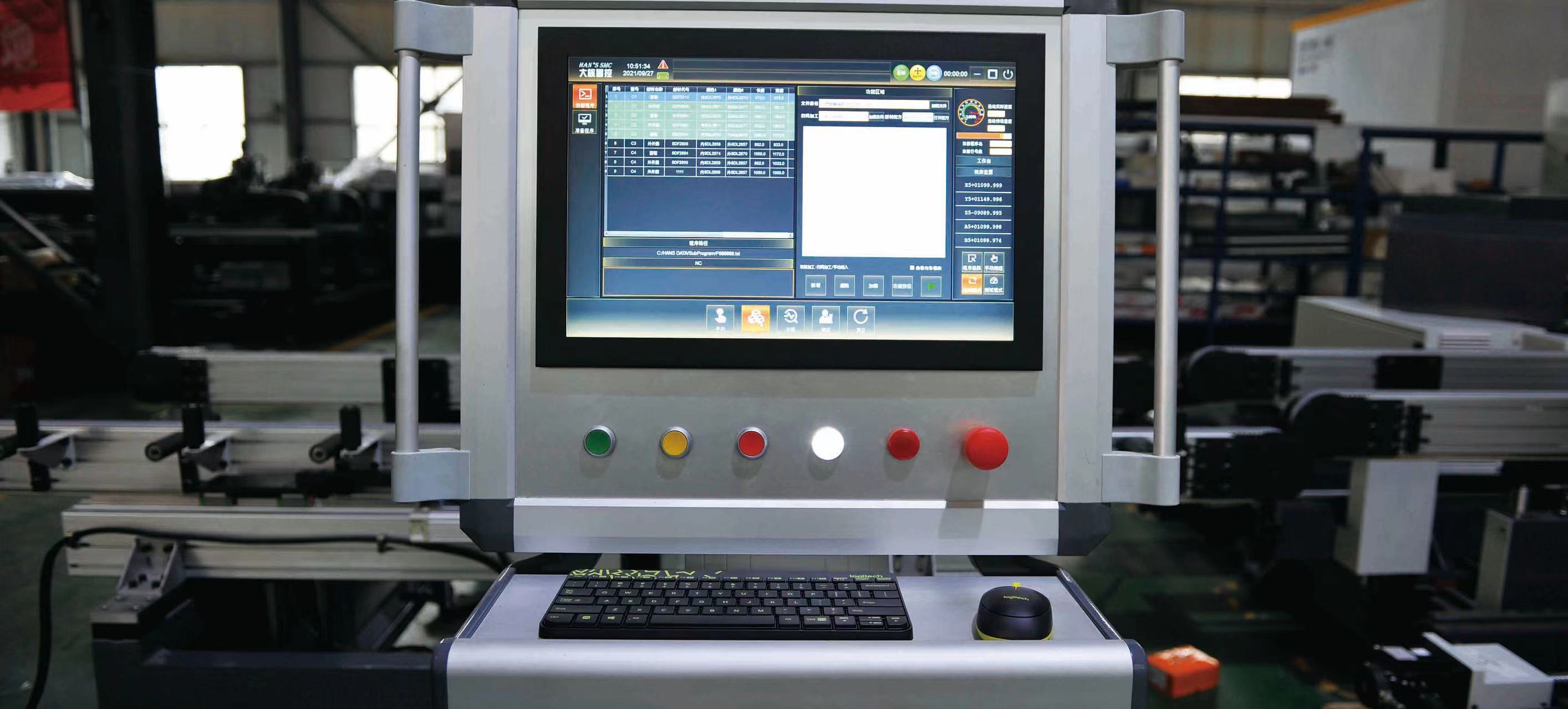

4. Smart operation: scan the code processing, all positions are automatically adjusted by the servo mechanism

5. Large range: crimping height 150 mm; window size up to 1800x3000 mm

6. High quality: flat corner crimping result, no dislocation

7. High automation: the corner crimping process does not require personnel participation, 25 servo axes in total to ensure the window automatically output, reduce operators and reduce cost;

8. More environmental protection: the angular power source of the unit is compressed air to avoid environmental pollution by the hydraulic system;

Parameter

Power supply

380V 50/60Hz

Corner combining height

Max 150mm

Total combining pressure

0.6-0.8Mpa

Crimping cylinder stroke

Max 10mm

Power

18 KW

Air consumption

20L/min

The max size of the window

1800x3000mm

The min size of the window

about 480×700 mm

Accessory

Controller system

PA (Germany)

Servo motor

Mitsubishi (Japan)

Bearing

NSK(Japan )

Transmission wire rod

PMI (China Taiwan)

Linear guide rail

Hiwin (China Taiwan)

Air pressure parts

Airtac(China Taiwan)

Electrical parts

Schneider (France)

Total power switch

Schneider(France)
