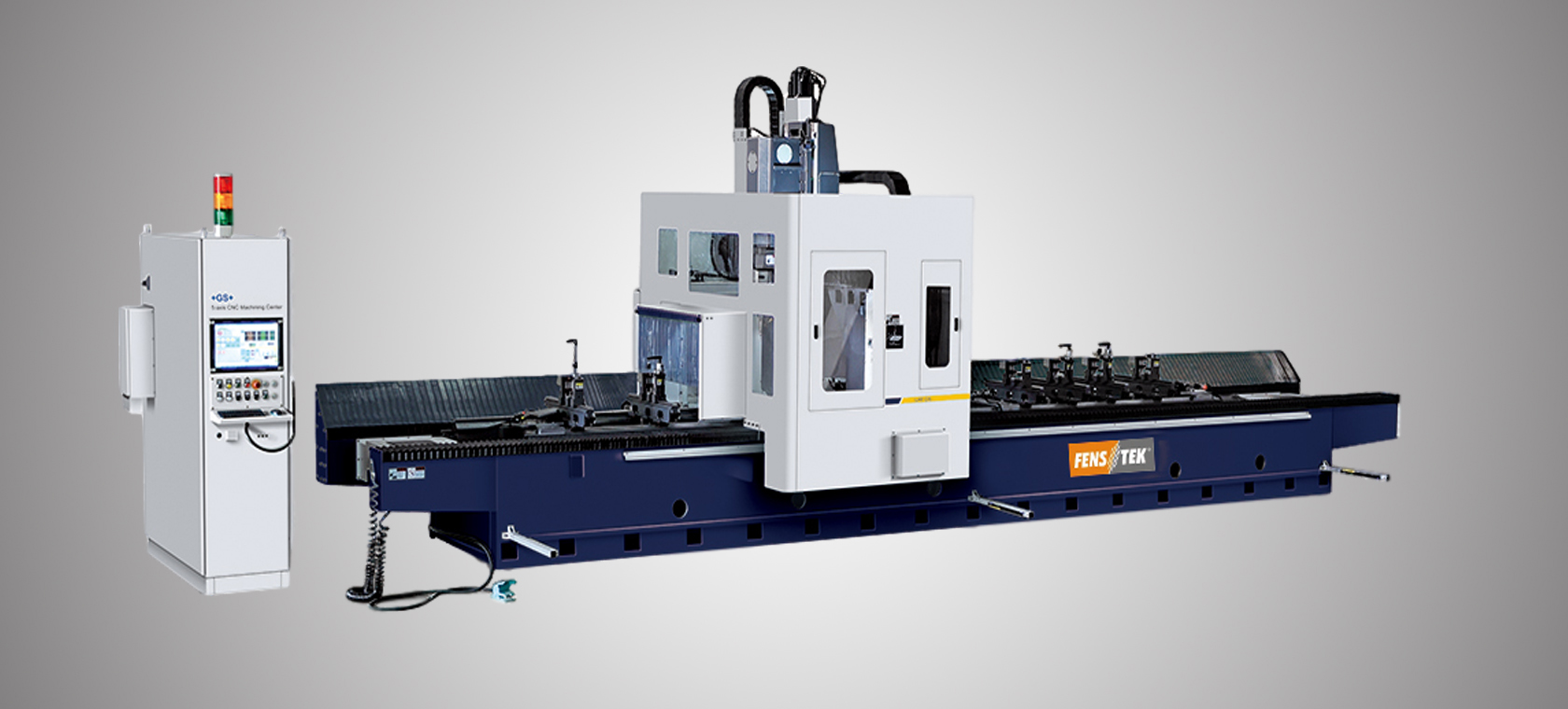

LHW-D5

Five-axis Gantry Machining Center Series

Feature:

1. Five Axis Gantry Machining Center LHW-D5 Adopts moving beam and moving column gantry frame structure, the movement is more stable, improves the machining rigidity of machine tools.

2. Suitable for processing of all kinds of aluminium, copper, PVC, industrial profiles and other complex parts, it can achieve to once clamp the workpiece, automatically complete the milling, drilling, tapping (flexible) and other multi-process processing.

3. Adopts imported well-known brands and easy to operate high-end CNC control system, Germany Siemens or Italy’s OSAI.

4. Adopts high-quality imported servo motor, ball screw, linear guide, bearings and other components, so as to ensure that the equipment has a high processing accuracy. High stability and reliability. The feeding movement is pre-stretched to ensure the stability of the machining accuracy.

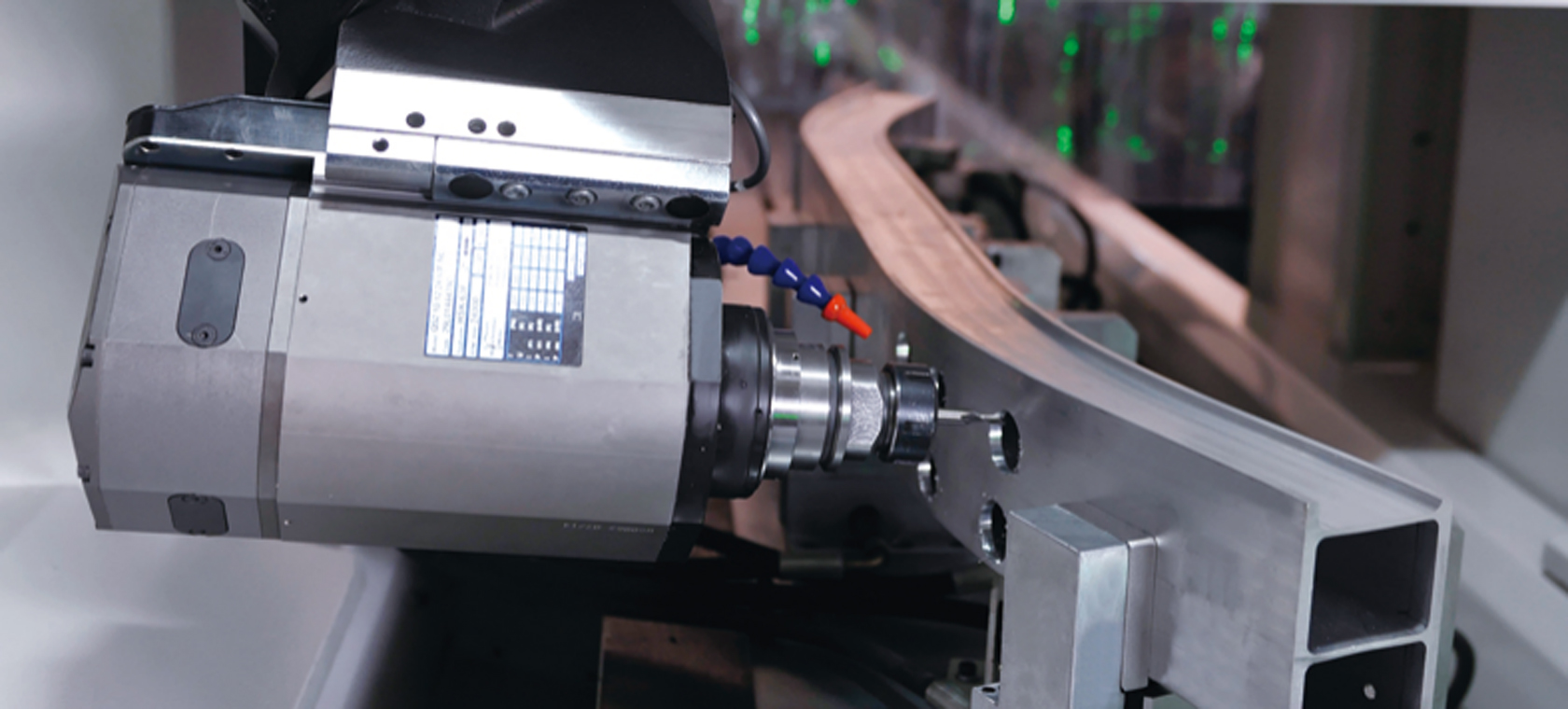

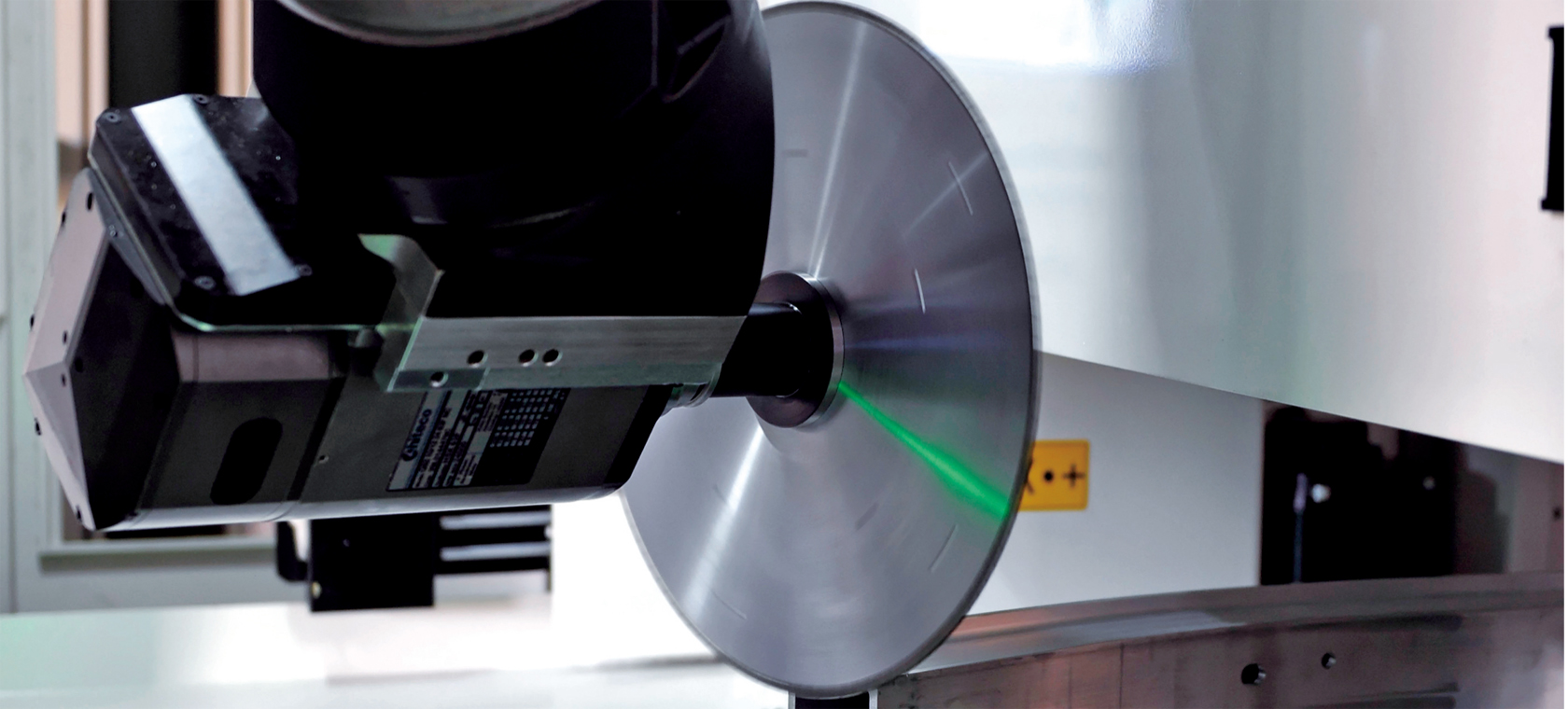

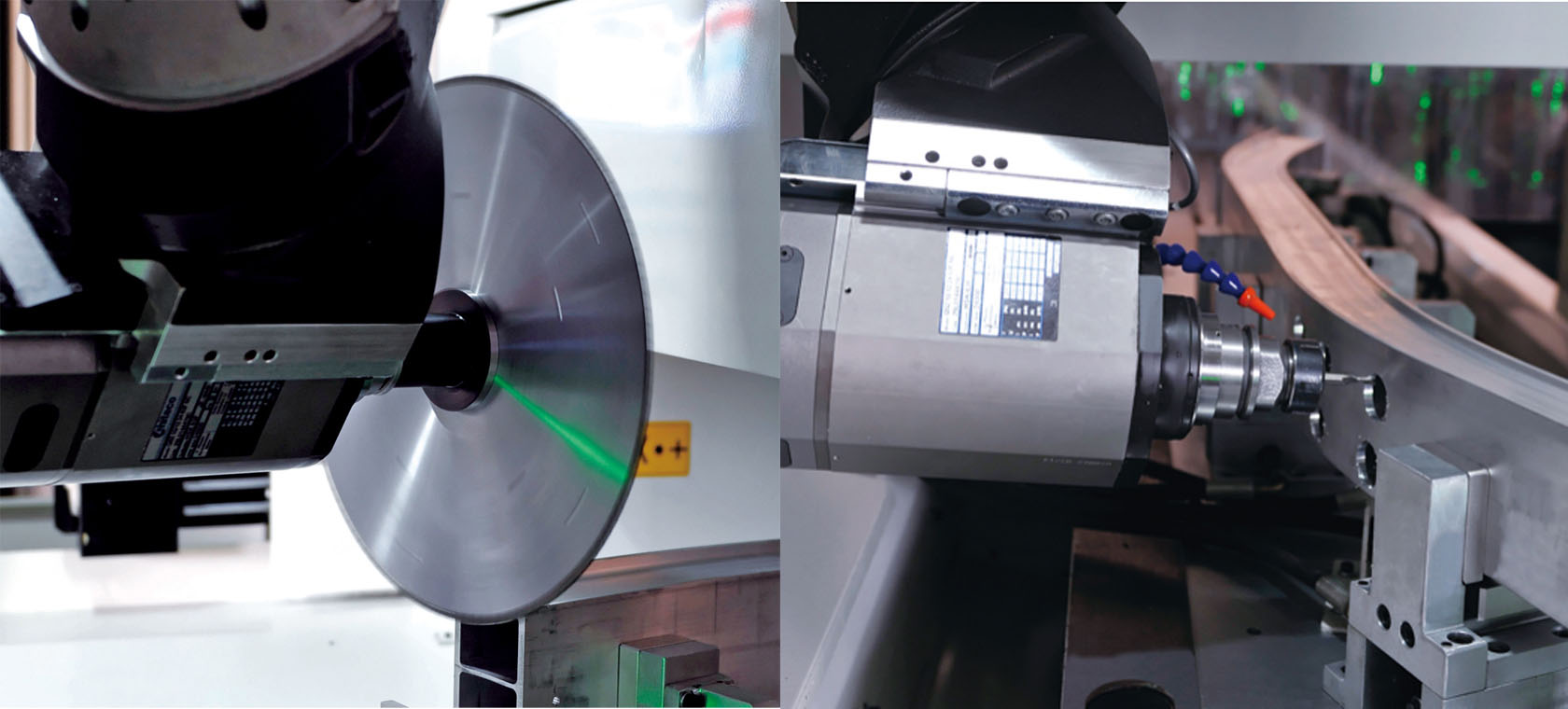

5. Adopts imported five-axis milling head, can complete the processing at any angle in all surfaces except the bottom. Carrousel type tool magazine, automatic tool change.

6. Adopts quantitative timing central centralized automatic feeding lubrication, so as to ensure the stability of the machine tool accuracy.

7. Adopts pneumatic clamping worktable, improving the loading and unloading speed. Optional T-type worktable.

8. Adopts imported Renishaw interferometer detection, so as to compensate the accuracy of the machine.

9. Adopts safety protection function to ensure the safety.

10. Adopts welding bed.

11. Optional gray iron casting bed and two times aging treatments to ensure the rigidity.

Main accessory


CNC control system

 OSAI (Italy brand) or Siemens(German brand)

Direct coupling spindle

Hiteco(Italy brand)

X,Y,Z axis motor

YASKAWA(Japan brand)

X,Y,Z axis rail

HIWIN (Taiwan brand)

Y,Z axis lead screw

PMI(Taiwan brand)

X axis rack/ reducer

YYC(Taiwan brand)

Electric elements

Schneider(France brand)

Connecting terminals

Weidmüller(German brand)

Air cylinder

AirTAC(Taiwan brand)





Parameter


Stroke


X-axis range

6500mm (customizable)

Y-axis range

1000mm

Z-axis range

655mm

B axis rotation range

±185°

C axis rotation range

±320°

Spindle


Spindle max.speed

24000r/m

Spindle power

12kw (optional)

Taper hole of spindle

HSK-63F

Distance from spindle to worktable

minimum 160mm, maximum 670mm

Tool magazine(Optional

disc type tool magazine 16, 20, 24 position)

Tool magazine type

 Carousel type

Tool magazine capacity

11

Lubrication cooling system


Lubrication system

Self-lubrication

Cooling system

Micro atomization cooling/ Water spray cooling

Moving speed


X-axis moving speed

0-60m/min

Y/Z axis moving speed

0-30m/min

B axis working speed

Max166.7°/’

C axis working speed

Max166.7°/’

Precision


X axis positioning accuracy

±0.05mm

Y/Z axis positioning accuracy

±0.02mm

X axis repeated positioning accuracy

±0.02mm

Y/Z axis repeated positioning accuracy

±0.01mm

Mechanical specifications


Voltage

380V/50HZ

Air pressure

0.5-0.8Mpa

Area

6500-14500*3000mm

Bed load-bearing

500kg/m

Weight

8500kg-24000kg
