LH-D4

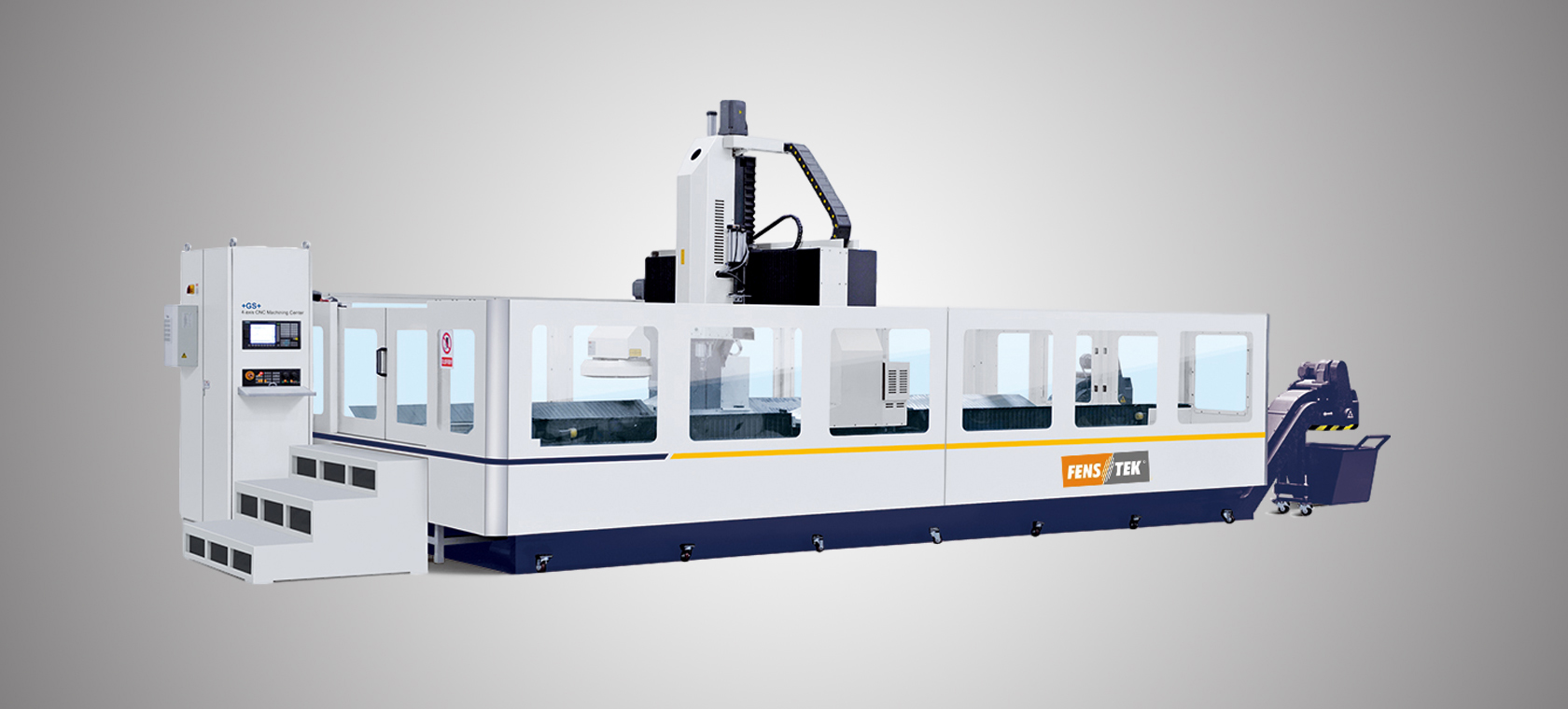

Four-axis Gantry Machining Center Series

Features:

1. Suitable for CNC machining of all kinds of aluminium, copper, PVC profiles, plates and other parts, it can achieve to once clamp the workpiece, automatically complete the milling, drilling and other multi-process processing.

2. Adopts imported well-known brands and easy to operate high-end CNC control system Japan’s Fanuc.

3. Adopts high-quality imported servo motor, ball screw, linear guide, bearings and other components, so as to ensure that the equipment has a high processing accuracy.

4. Additionally equipped with protective shield and automatic chip removal device, ensure the safety of the operator and the environmental hygiene.

5. High security and semi-closed structure effectively avoid the damage to operators caused by tool burst occurred during processing.

6. The bed is a steel structure welded bed, which is heat treated to prevent stress deformation, has high strength, high rigidity and good shock absorption.

Main accessory


CNC   control system

FANUC   (Japan brand) or PA(German brand)

Spindle

Royal(Taiwan brand) or Hiteco(Italy   brand)

Rack

YYC(Taiwan   brand)

Lead screw

PMI(Taiwan brand)

Lead   rail

REXRTOH(German   brand)

Electric elements

Schneider(France brand)

Pneumatic   component

AirTAC(Taiwan   brand)

Parameters


Stroke


X-axis   range

3000mm/4500mm/6500mm

Y-axis range

1500mm

Z-axis   range

600mm

Spindle rotation range(four-axis)

-90°~ +90°

Spindle


Spindle max.speed

12000r/m(three-axis)

Spindle   max.speed

24000r/m(four-axis)

Spindle power

7.5kw/11kw(three-axis)

Spindle   power

12kw(four-axis)

Taper hole of spindle

BT40(three-axis)

Taper   hole of spindle

HSK-63F(four-axis)

Tool magazine


Tool   magazine type

disc   type or carrousel type

Tool magazine capacity

16(three-axis)

Tool   magazine capacity

11(four-axis)

Lubrication cooling system


Lubrication   system

Self-lubrication

Cooling system

Oil mist cooling

Moving   speed


X-axis moving speed

0-40m/min

Y/Z   axis moving speed

0-20m/min

A axis working speed(four-axis)

Max7°/’

Precision


X axis positioning accuracy

±0.03mm

Y/Z   axis positioning accuracy

±0.02mm

Repeated positioning accuracy

±0.01mm/300

Mechanical   specifications


Voltage

380V/50HZ

Air   pressure

0.5-0.8Mpa

Area

9000-12500*3900mm

Bed   load-bearing

500kg/m

Weight

3000kg
