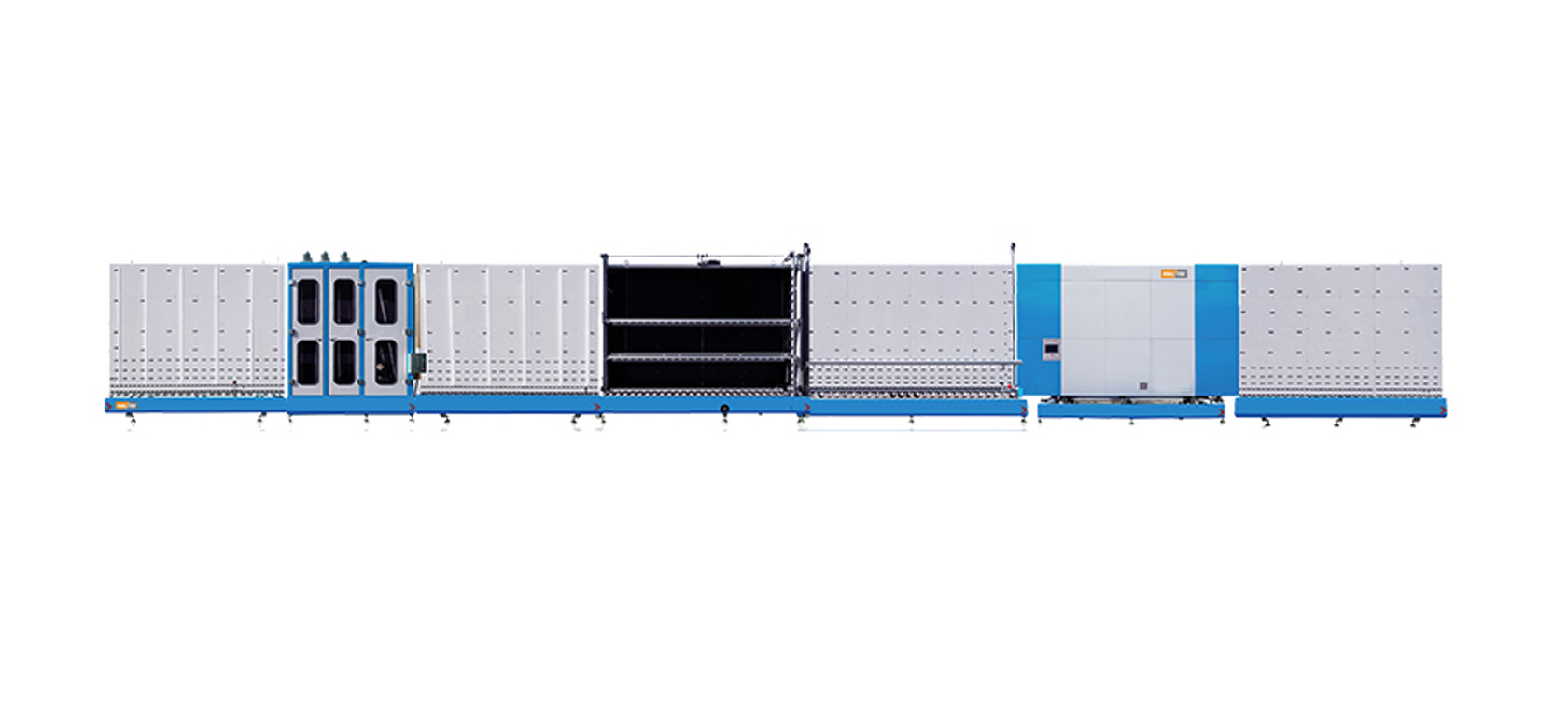

Features:
1.Automatically distinguish the coating side of coated glass and Low-E glass, indicated by alarm.
2. The washing machine adopts stainless steel and other corrosion resistant material, good waterproof, security, clean, and long service life. Equipped with sponge roller, which makes the washing and drying more efficiency.
3. Both inner-panel assembly and out-panel assembly function can process same edge double layers and triple layers insulating glass with high efficiency.
4. When adopts inner-panel assembly function, it can fill inert gas for IG unit.
5. Adopts the world famous brand low-voltage apparatus, sensor and PLC, etc. Make the line has longer service life.
6. PLC control system with touch screen interface, easy to operate, and self-diagnosis the fault of the line with high degree of automation.
7. The press machine can be opened in large journey to maximum 500mm, easy to maintenance. Drying section adopts the circulation of hot air to ensure the drying effect of the glass and reduce noise.
8. Glass position memory function, can easily and quickly deal with the inconvenience caused by errors, improve work efficiency.
Parameter | |
Power supply | 220V 60HZ or customer specification. |
Single glass thickness | 3 – 15 mm |
Washing speed | 3-15 m/min |
Drying speed | 3 – 9 m/min |
IG thickness | 12 – 50 mm |
Work speed | 15 – 45 m/min |
Min. IG unit size | 450 x 200 mm |
Max. IG unit size | 3600 x 2500 mm |
Standard height | 400mm |
Angle of inclination | 6 degree |
Air pressure | 0.6 – 0.8 Mpa |
Total power | 44 Kw (including heater of 10 Kw) |
Machine weight | 8500 kgs |
Contour dimension | 24000*2500*3680mm |
Main accessory | |
• PLC | Delta |
• Inverter | Delta |
• Solenoid valve | Airtac |
• Cylinder | Airtac |
• Air Filter Device | Airtac |
• Electrical Button and Switcher | Delixi |
• AC Contactor and Circuit Breaker | Delixi |
• Approach Switcher | Delixi |
