Features:
1. Only foot switch is needed to automatic clamping and automatic sawing. The hidden

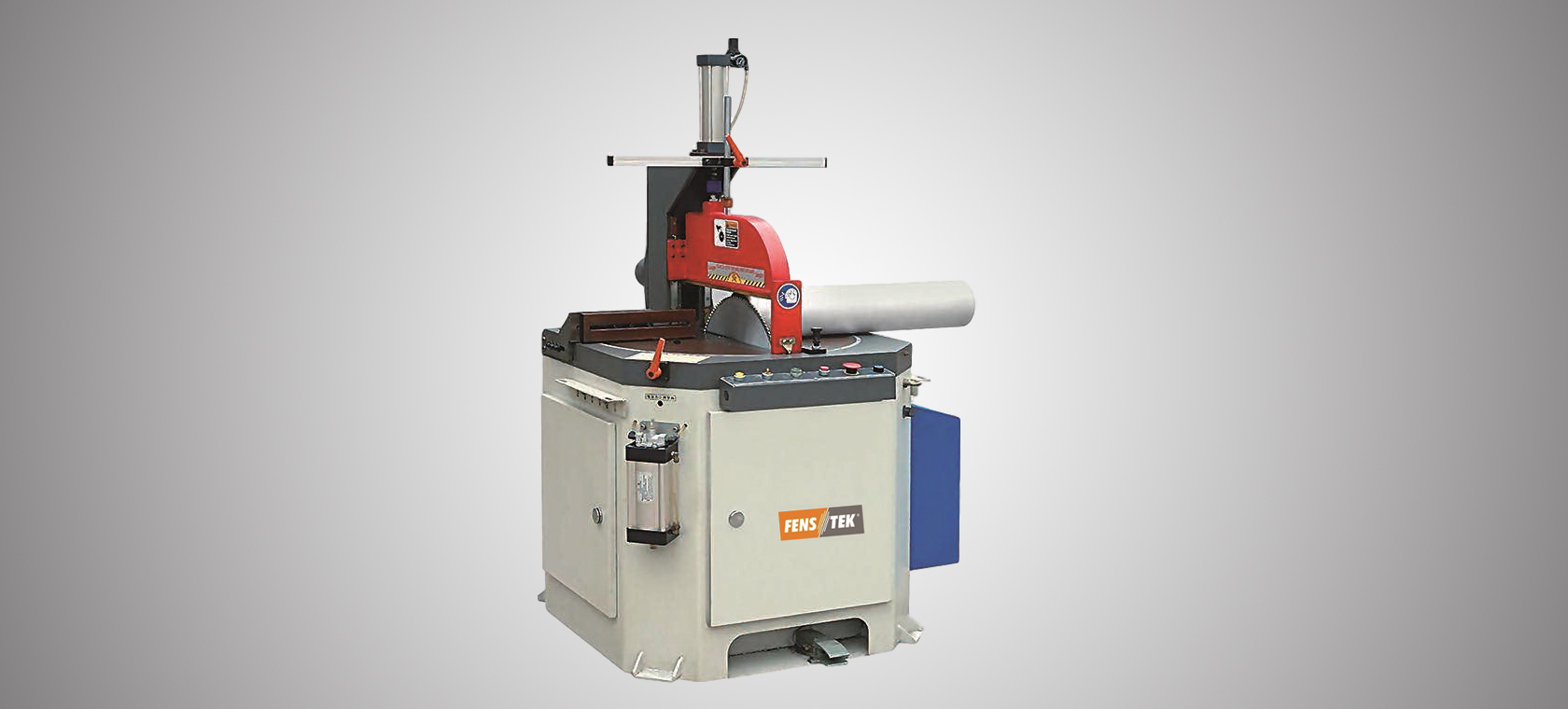

saw blade can be cut from bottom to top. Industry aluminum Angle sawing machine can cut single or multiple profiles at the same
time. It is safer without having hand to get close to the saw blade.
2. The profile clamping system and the sawing system are controlled by independent air
cylinders, respectively the material clamping speed and sawing speed can be adjusted
according to the material type, so as to achieve a more stable cutting effect (the material
can be cut quickly and stably) ; And the profile clamping system can completely and
tightly clamp the material.
3. The profile clamping pressure can be adjusted separately according to the profile type
to prevent profile broken caused by heavy pressing.
4. The automatic oil injection system is a mandatory fuel injection system, which
improves the lubrication and cooling effects and reduces the failure rate.
5. The height of the clamping and the height of the protective cover can be adjusted.
6. Suitable for oblique angle sawing, the processing angle is 0 ~ 45 degrees (or 45 ~ 0
degrees) and 90 degrees.
7. Hand-held handle, you can easily rotate the table to adjust the cutting angle.
Main accessory | |
Linear guide rail | HIWIN (Taiwan) |
Saw blade | Kanefusa(Japan) |
Clamping cylinder | AirTAC(Taiwan) |
Spindle Motor | CARLEO(Taiwan) |
Auxiliary relay | OMRON(Japan) |
AC heat overload | Fuji(Japan) |
Parameters | |
Cutting angle | +45o ~ 0o ~ -45o |
Saw blade size | φ1"X24"X120T |
Spindle speed | 1550R.P.M |
Motor | 7.5HP |
Air pressure | 4 - 6kgs / cm² |
Dimensions of worktable | 1140x615mm |
Machine dimensions | 1480x1350x2100MM |
Weight: 920kgs | 920kgs |
