Special End Milling Machine, China Factory Price, FENSTEK

MCTX-01

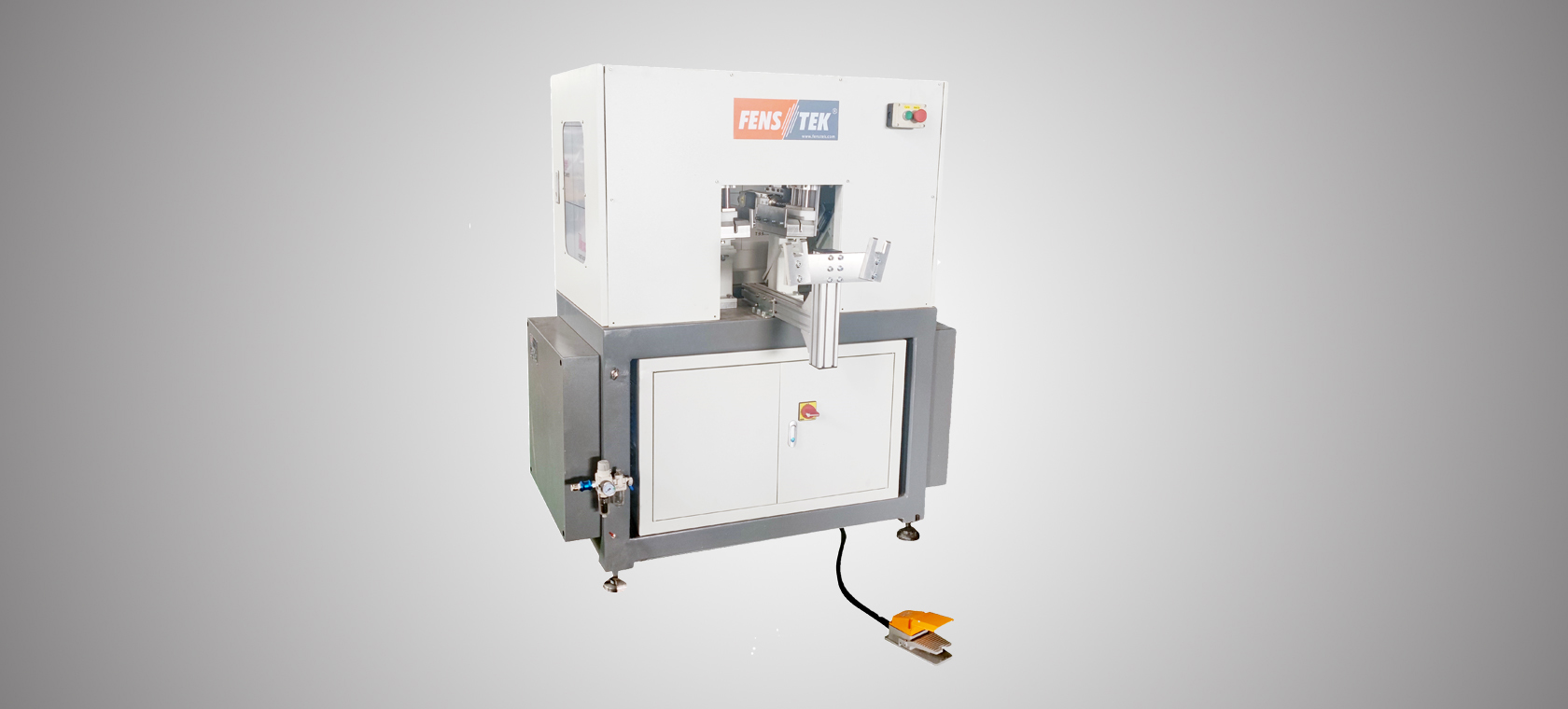

Special End Milling Machine

Features:

This machine is mainly used for an American system window side frame milling. It is customized for American system special window types. It can efficiently mill side frame that need to be processed in special positions

Parameter
Power supply	380V 50/60Hz
Motor Power	4kw
Motor Rotary Speed	12000r/min
Operation Air Pressure	0.5～08MPa
Spindle diameter	Customized tools as required
Milling blade diameter	Customized tools as required
Milling blade width	Customized tools as required
Milling blade feeding stroke	75mm
Working table diameter	160×80mm
Overall Dimension	1400×1000×1500mm
Weight	300kg
Max size	75mm

End Milling Machine, Vinyl Window Machine, UPVC Window Making Machine
