UPVC Window CNC Glazing Bead Saw, China Factory Price, FENSTEK

AGBS2500

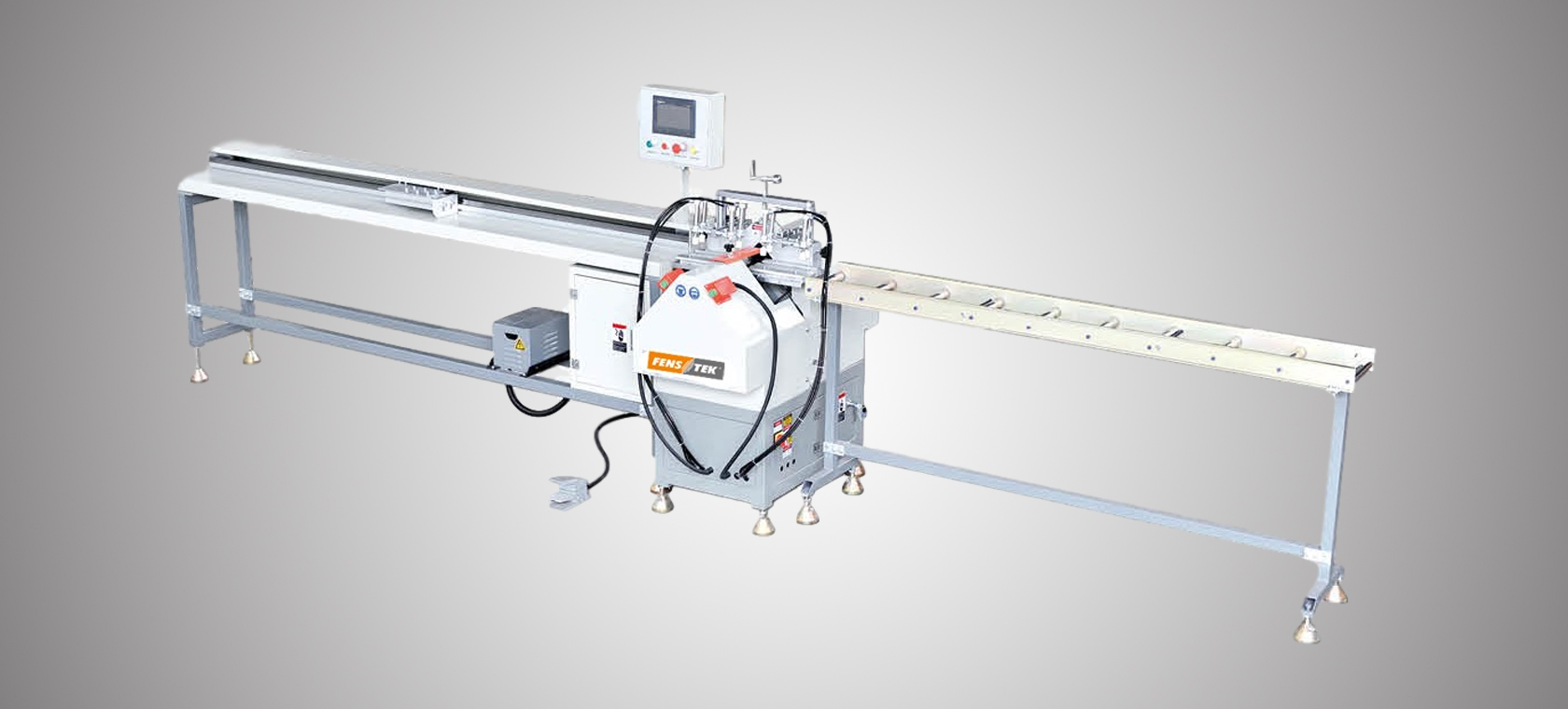

UPVC Window CNC Glazing Bead Saw

Features:

1.Automatic 45 degree cutting u-PVC glazing bead profile.

2.Two glazing bead cutting in one time.

3.Automatic saw blade feeding by pneumatic cylinder and moving on precise rod.

4.4 pieces saw blade ensure precise cutting, Double cutting one each end to mill the hook foot.

5.Vertical clamping device and special designed cutting jig ensure stable positioning.

6.Two hand safety operation

7.Friendly using measuring rod.

8.Precise & easy operated measuring table (Only for GBST1800)

Main Accessory
Saw blade	Japan UNIKEN
Solenoid valve	Airtac
Cylinder	Airtac
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device:	Airtac
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Swiss CONTRINEX or Japan Omron
Linear bearing system	Linear (South Korean brand)

Parameter
Air Pressure	0.5-0.8(MPa)
Air Consumption	20(L/min)
Input Voltage	380V 50HZ or as customer specification
Input Power	1.1(Kw)
Cutting Height	33(mm)
Cutting Width	100(mm)
Cutting Length	320-2500(mm)
Overall Dimension	15007501500 mm For GBS1800; 250013801300 mm For GBST1800
Weight	250(kg) for GBS1800; 400kg for GBST180
