DS500x4500

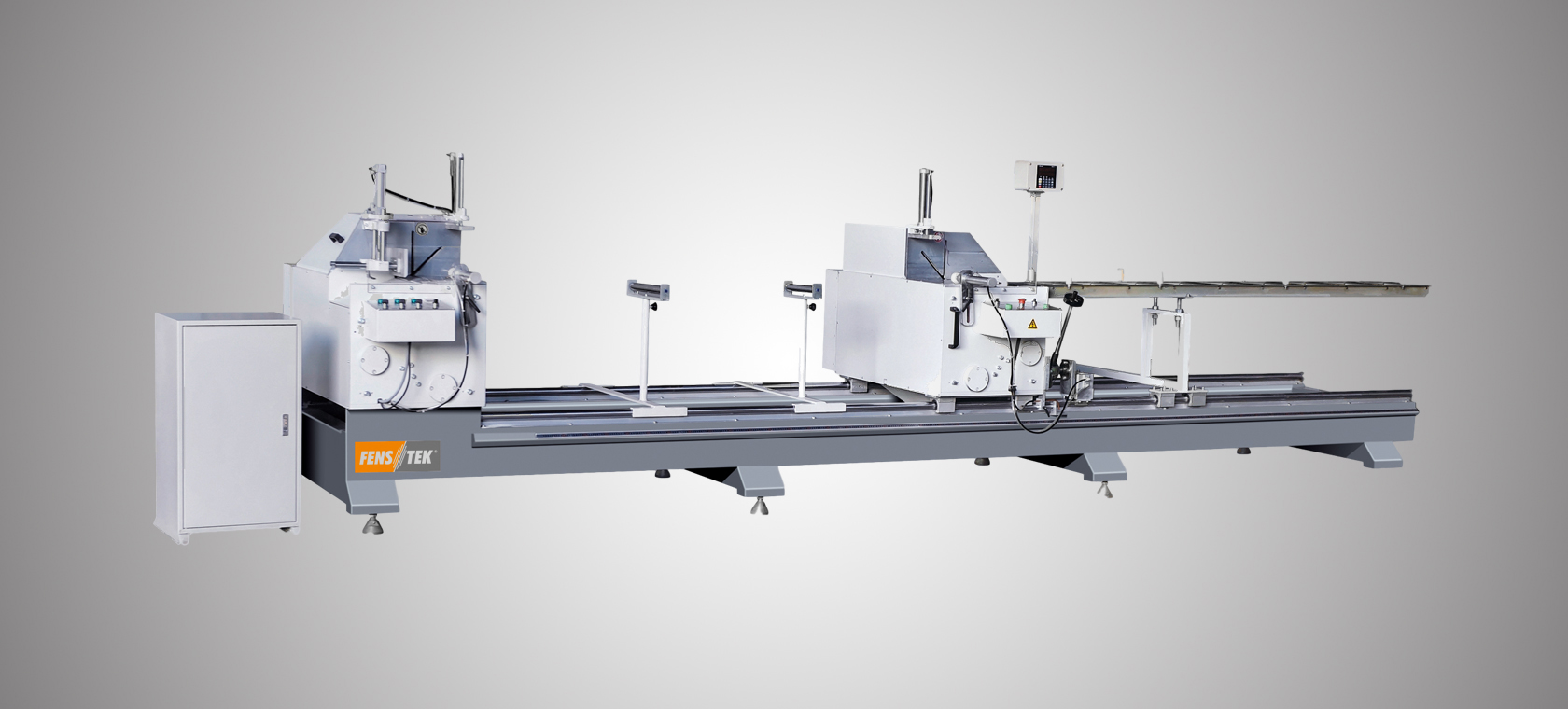

UPVC Window Double Head Cutting Saw

Features:

1. Automatic Double Head Cutting Saw Machine special designed for high volume PVC window profile cutting.

2. One time four or six pieces can be cut off, depending the profile width.

3. Auto change inside 45 and 90 degree. Various degrees is not available.

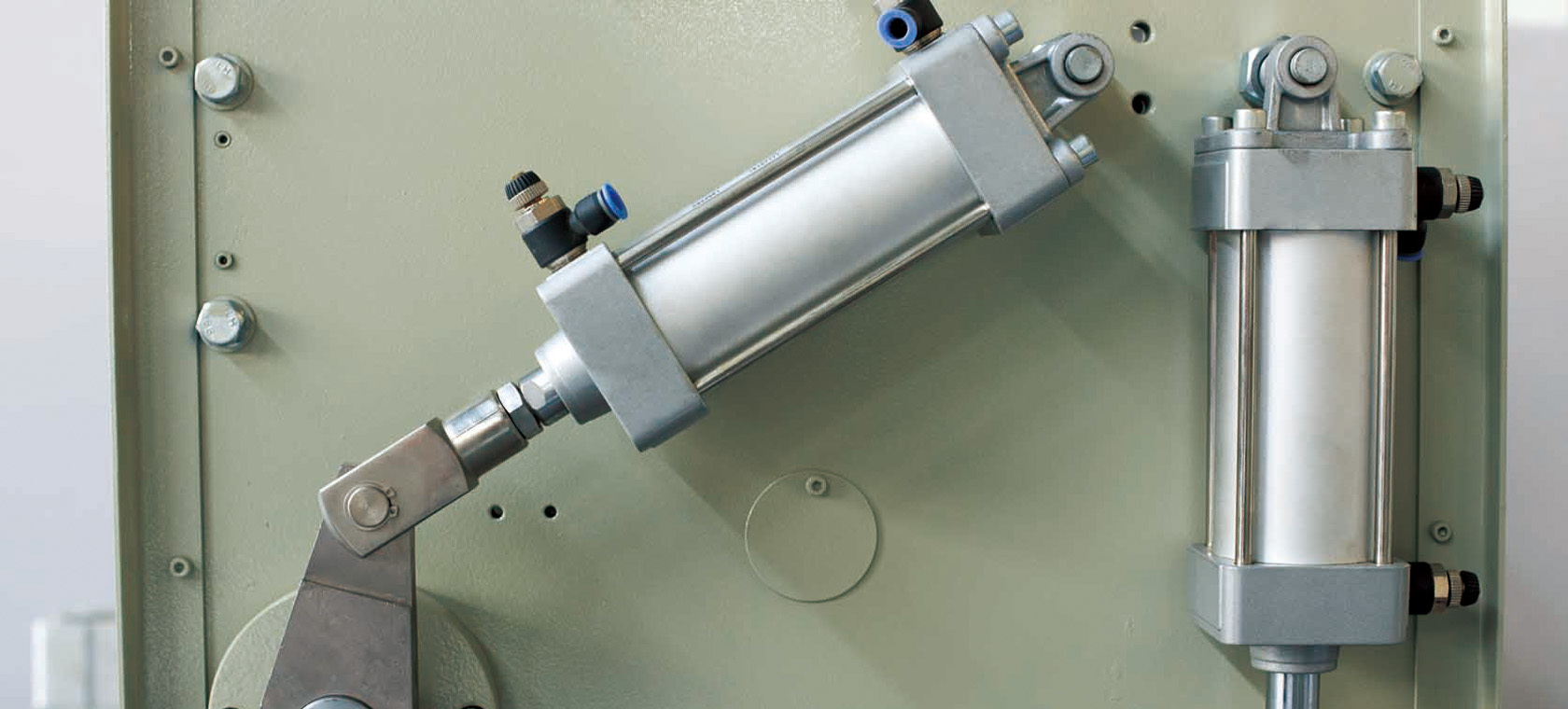

4. Saw blade straight feeding from inside to outside stably and precisely by pneumatic cylinder. Optional Hydro-pneumatic feeding cylinder is available.

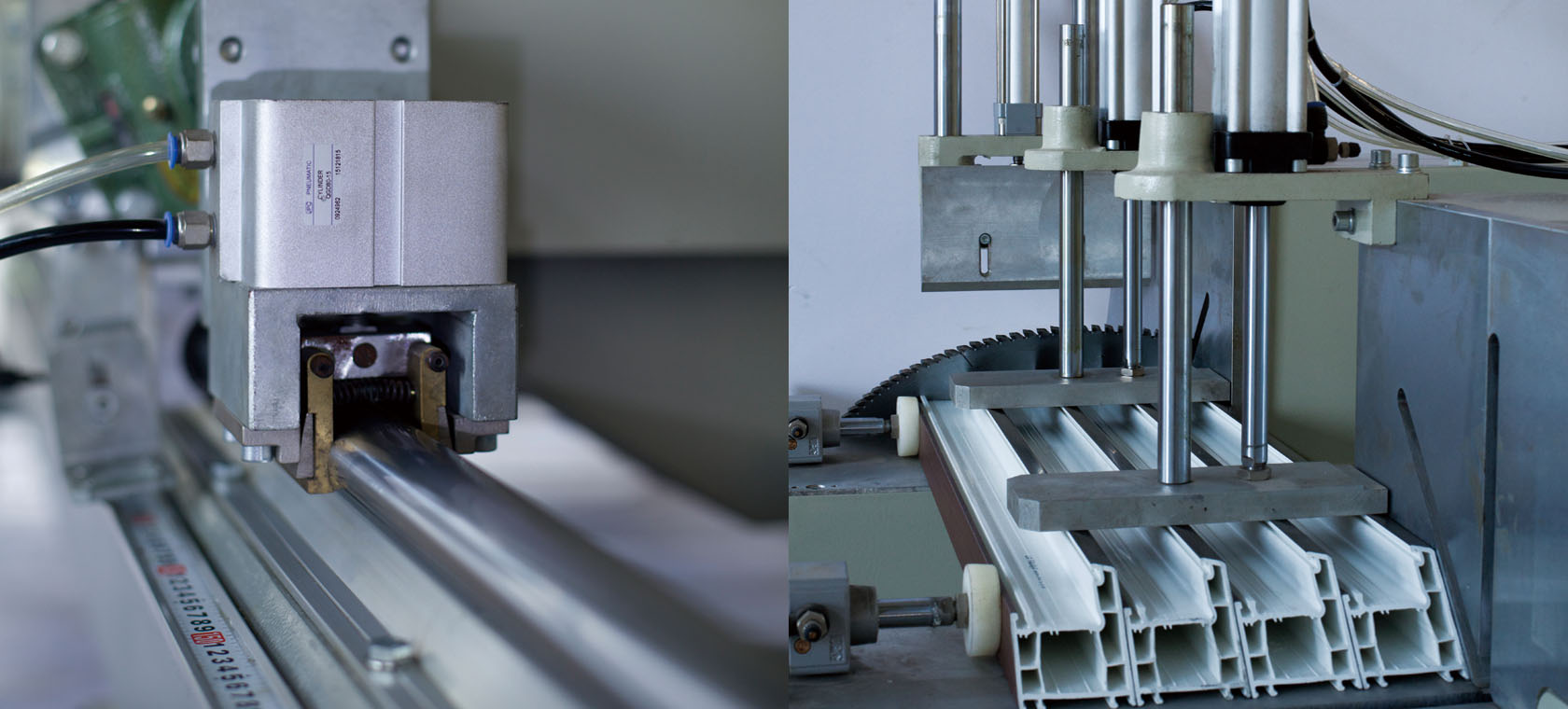

5. Linear bearing system ensure saw blade feeding precisely.

6. Carbide Saw blade ensure high cutting surface precision.

7. Right head moving is driven by motor automatically and easily. Auto brake device.

8. Micro cutting length adjustment device ensure precision and easy operation.

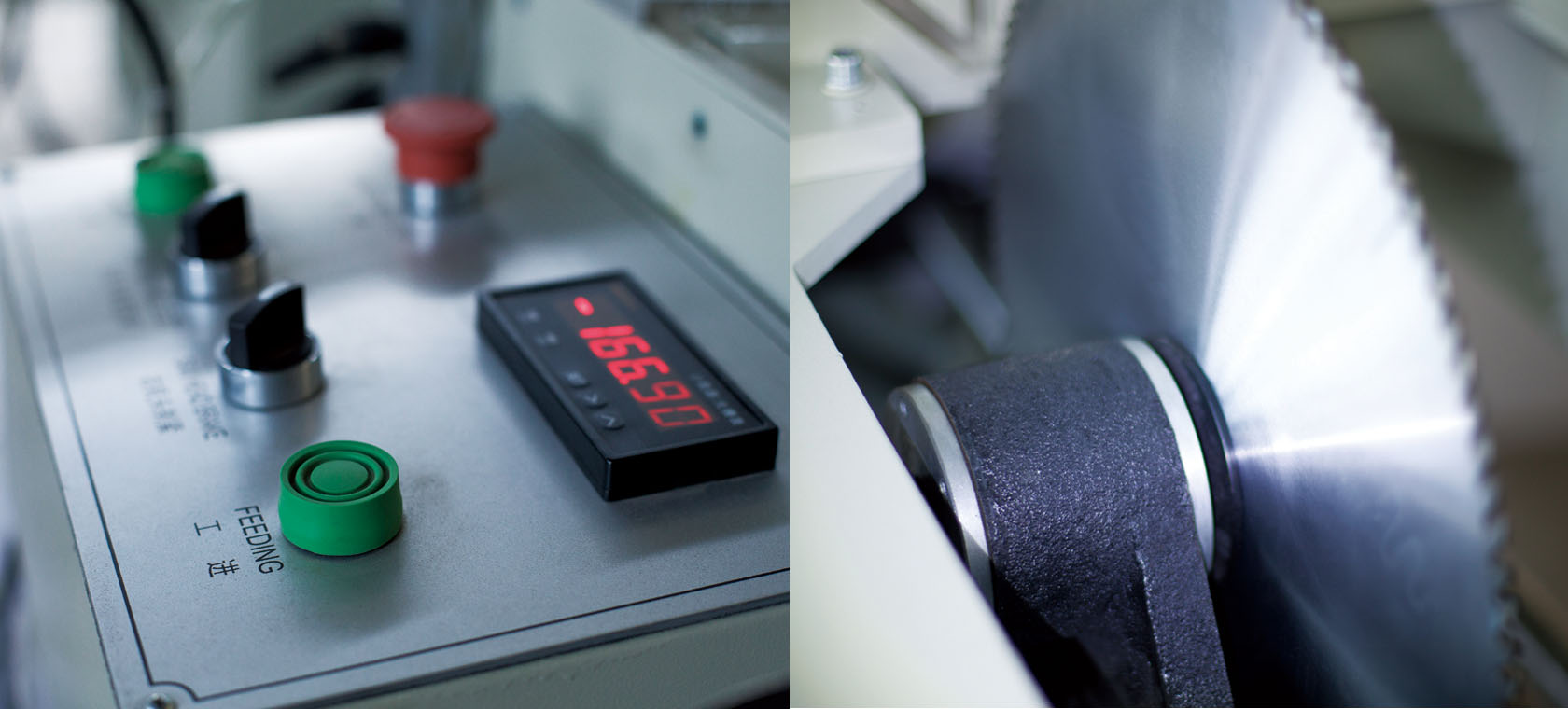

9. Auto-counting device for easy counting cutting quantity.

10. With the additional intermediate supporting mechanism of equivalent length, convenient feed and location.

11. The linear guiding pair ensures steady processing accuracy.

12. Complete covered designing ensure clean production

13. Solid machinery structure ensures stability and long life running.

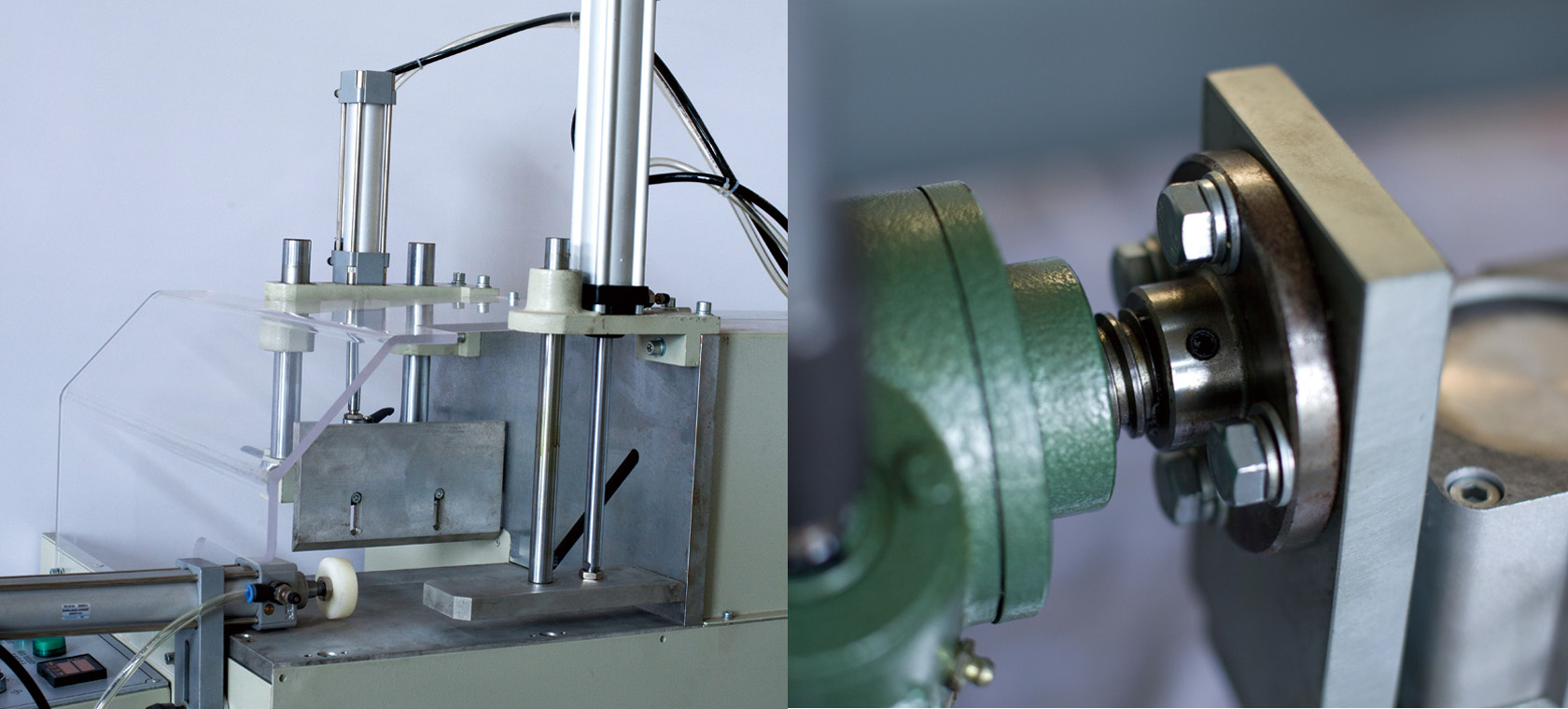

14. Platy horizontal and vertical clamping device ensure multi-profile high precision positioning

15. Standard 5 max cutting length suitable for over-size window production. Small size machinery base is optional.

16. Both foot pedal switcher and button control ensure friendly operation.

17. Industry computer controlled and moving automatically positing and brake( Optional Model: ADS500 x 5000)

18. SIEMENS system ensure high precision and stability for ADS500 x 5000

19. Ball screw shaft ensure auto moving precision for ADS500 x 5000

Main Accessory


Saw blade

Japan UNIKEN

Solenoid valve

Airtac

Cylinder

Airtac

Motor

Anhui Sanyang (Best Chinese Motor Brand)

Air Filter Device:

Airtac

Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider

Approach Switcher

Swiss   CONTRINEX or Japan Omron

Linear bearing system

Linear   (South Korean brand)

Countering Device

Japan Omron

Digital Display Device

Japan Omron

Parameter


Power Supply

380V 50Hz or As Customer Specification

Cutting Motor Power

5.9kW

Motor Rotatry Speed

2800 r/min

Saw Blade Diameter

Φ 500

Operation Air Pressure

0.5-0.8MPa

Air Consumption

30L/min

Max. Cutting Length

5000mm

Min. Cutting Length

450mm

Cutting Range

280*100mm (width   *height)

Cutting Angle

45°and 90°

Overall Dimension

5500mm * 1400mm *1400mm

Weight

1800Kg
