V Notch Cutting Saw for UPVC Window, China Factory Price, FENSTEK

NVS60

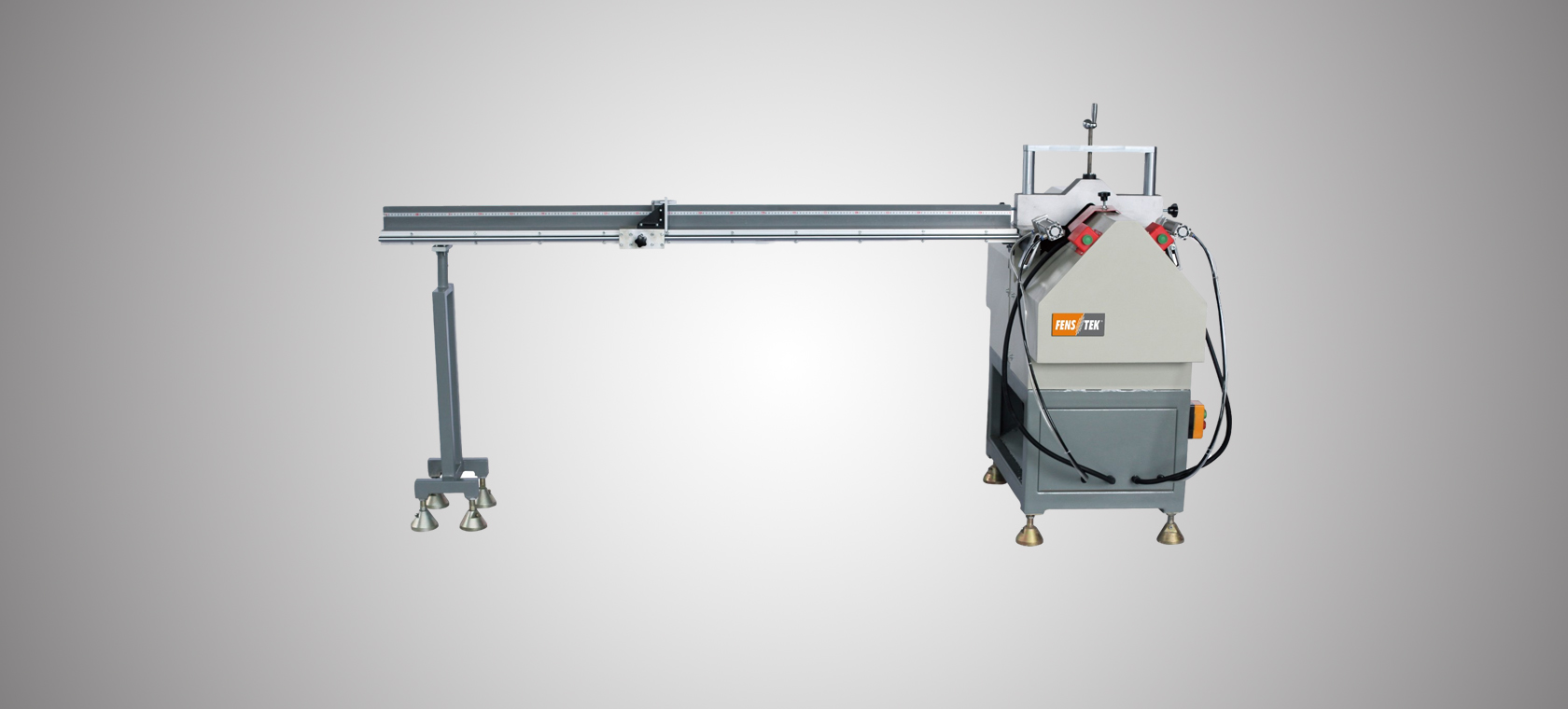

V Notch Cutting Saw for UPVC Window

Features:

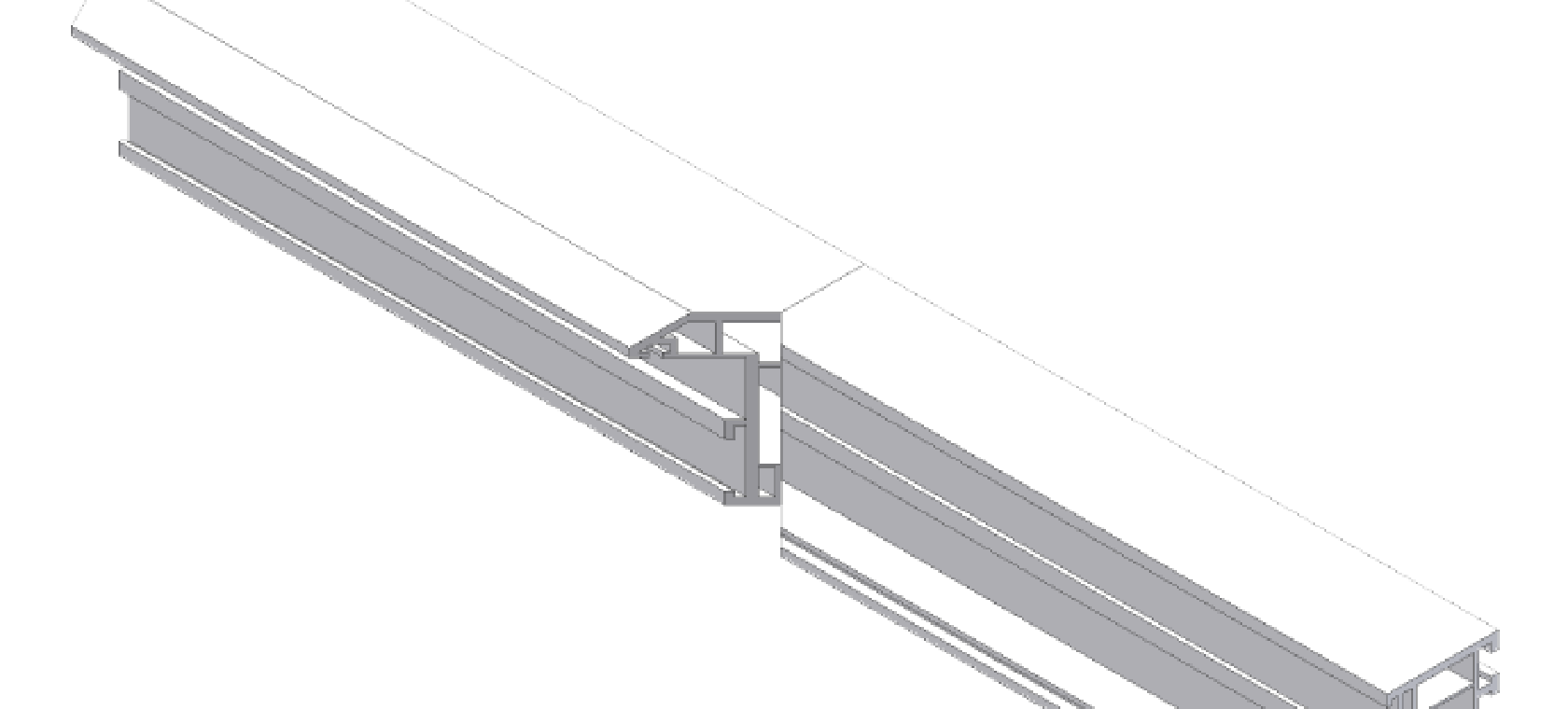

1. V Notch Cutting Machine is use for automatic V-cutting of UPVC Window profile

2. Two hand safety operation

3. Pneumatic clamping

4. Adjustable V-notch depth based on different profile.

5. Adjustable feeding speed.

6. Automatic shaping of one pair of saw is cut

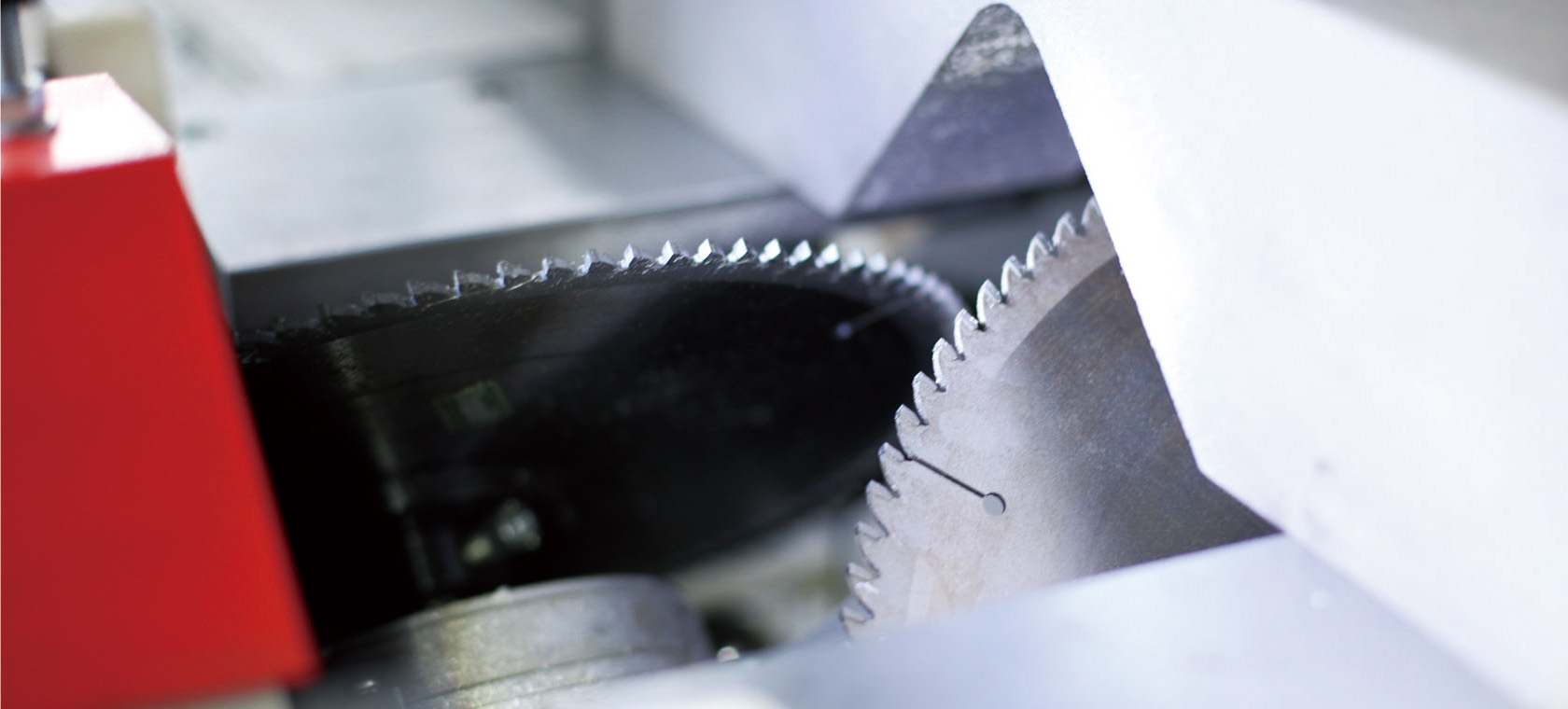

7. Two saw blade on two separate motor fixed at 45 degree without cross

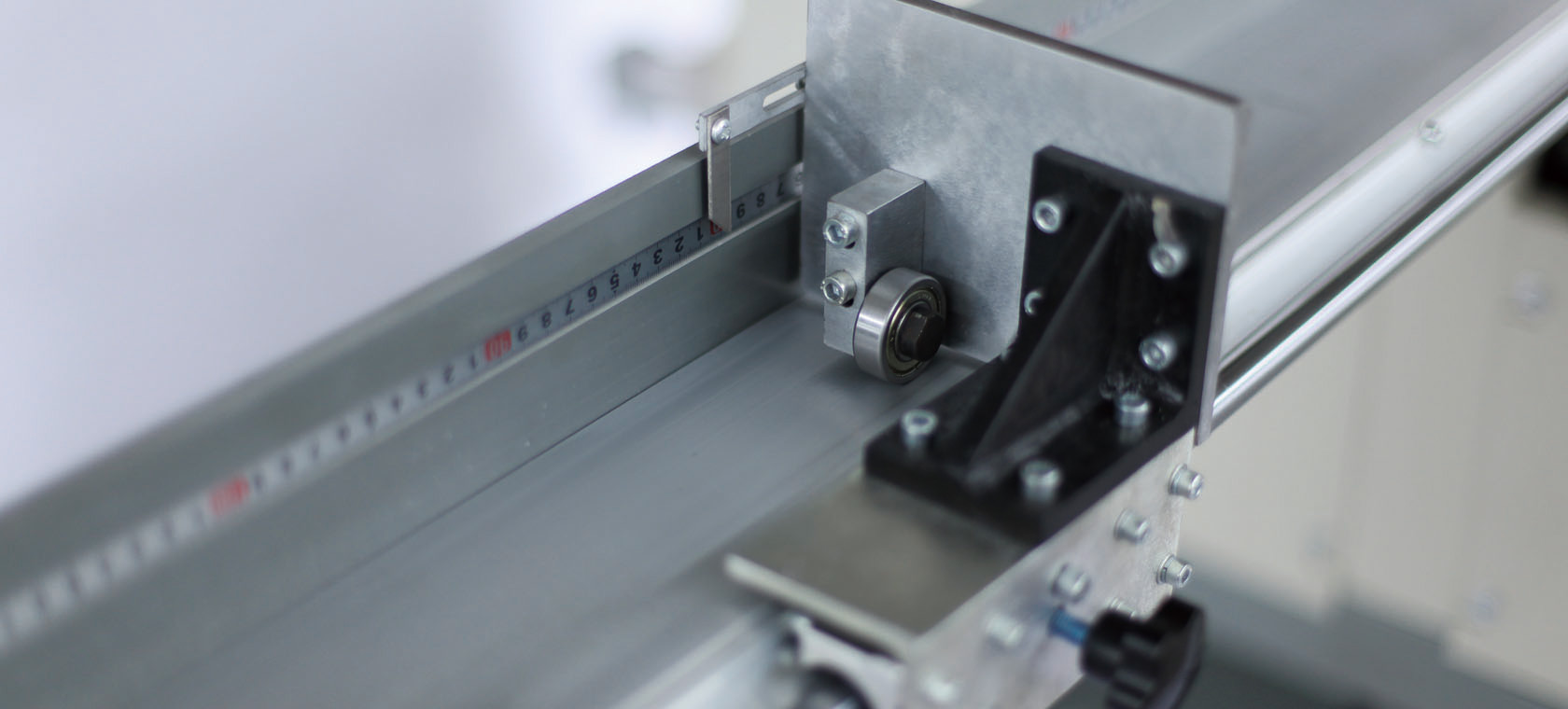

8. Guide rod assist positioning

Main Accessory
Saw blade	Japan UNIKEN
Solenoid valve	Airtac
Cylinder	Airtac
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device:	Airtac
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Swiss CONTRINEX or Japan Omron

Parameter:
Air Pressure	0.5-0.8(MPa)
Air Consumption	50(L/min)
Input Voltage	380V 50HZ or as customer specification
Input Power	1.5(Kw)
Spindle Rotary Speed	2800(r/min)
Saw Blade Specification	ø300x3.2x ø30
Cutting Height	20-60(mm)
Cutting Width	120(mm)
Cutting Length	300-1600(mm)
Overall Dimension	180013801300mm
Weight	220(kg)
