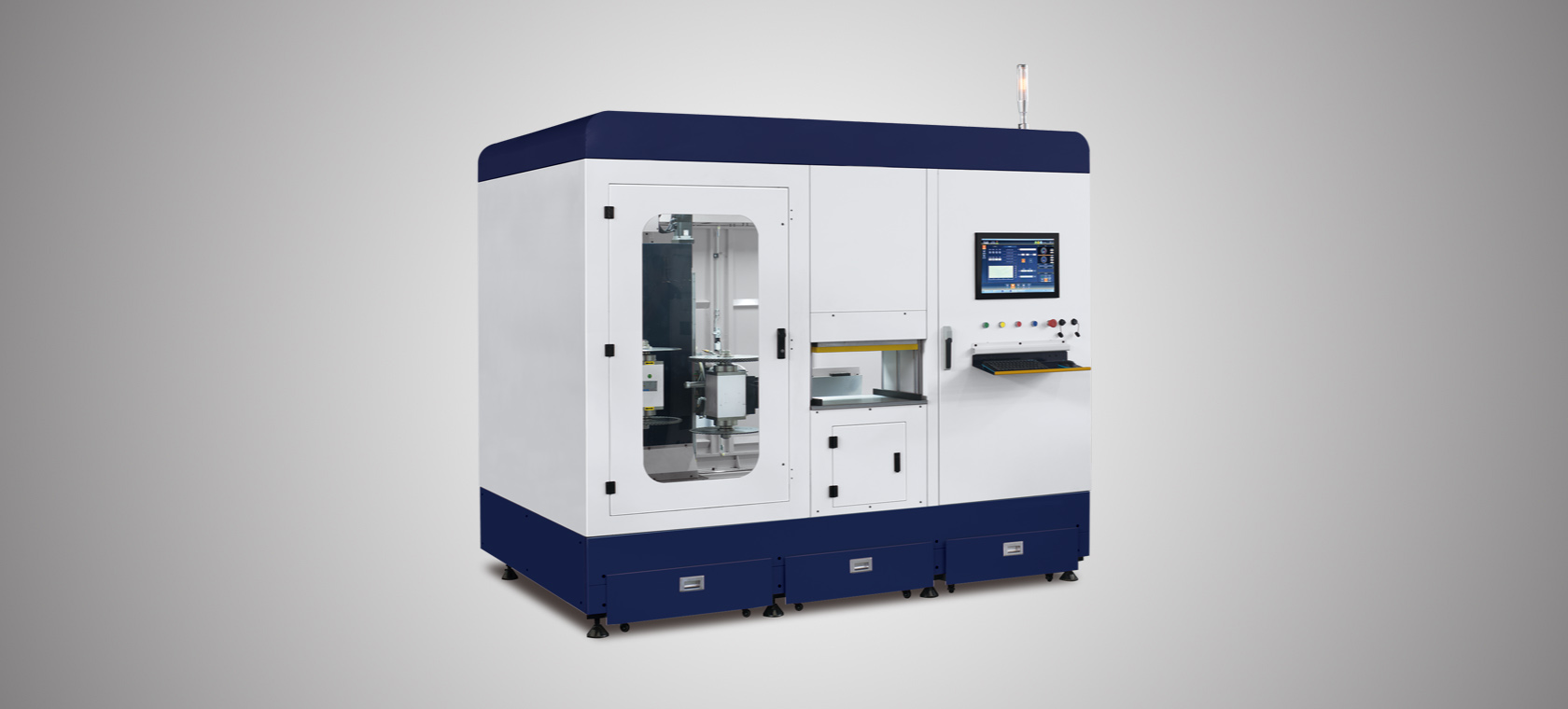

CEM350

Aluminium Window & Door CNC End Milling Machine

Features:

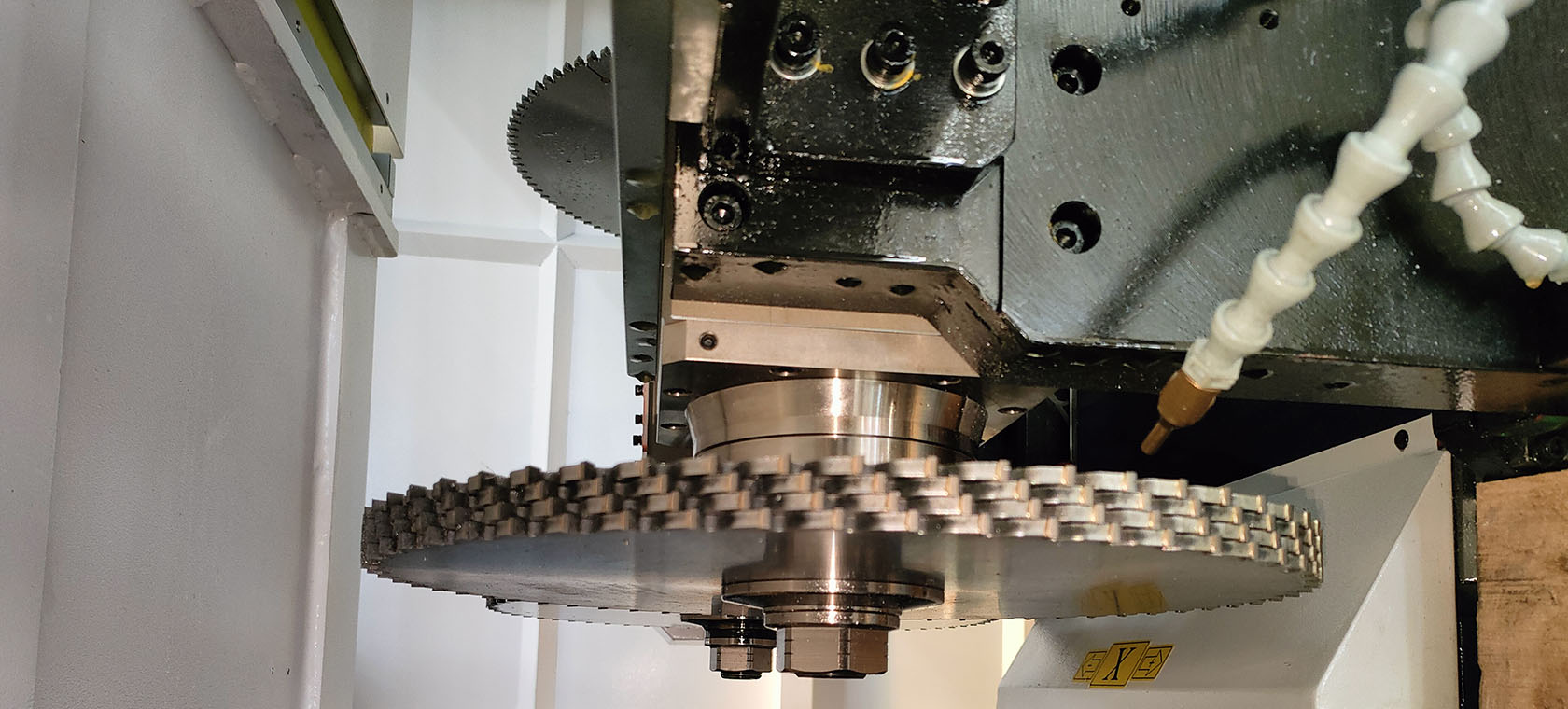

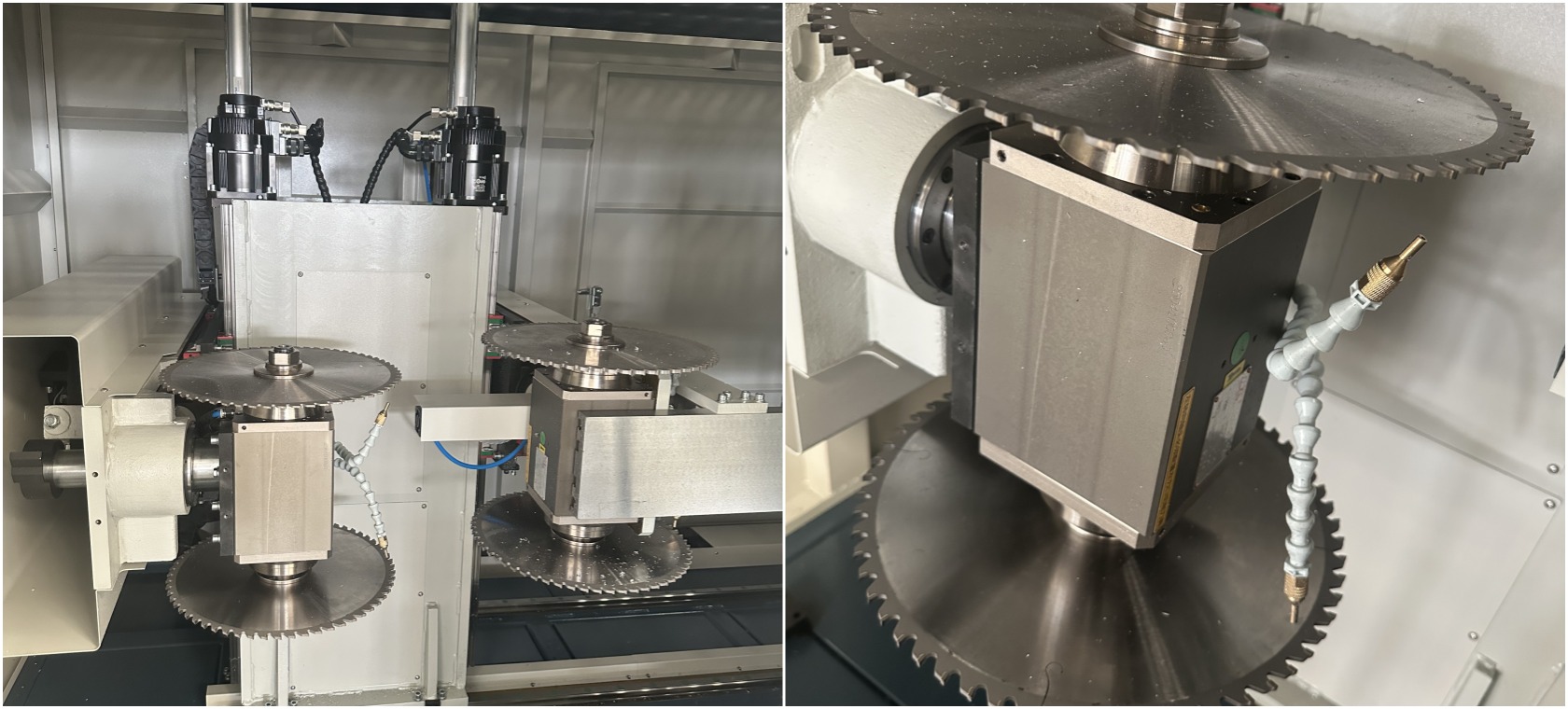

1. Cnc 5 Axis End Milling Machine CEM350 is suitable for forming processing of all kinds of profile end face and step surface.

2. Five-axis automatically end milling machine, no need change end milling cutters, no need additional end milling cutter cost.

3. High processing accuracy: high power Italian spindle motor with higher processing quality. No Burrs.

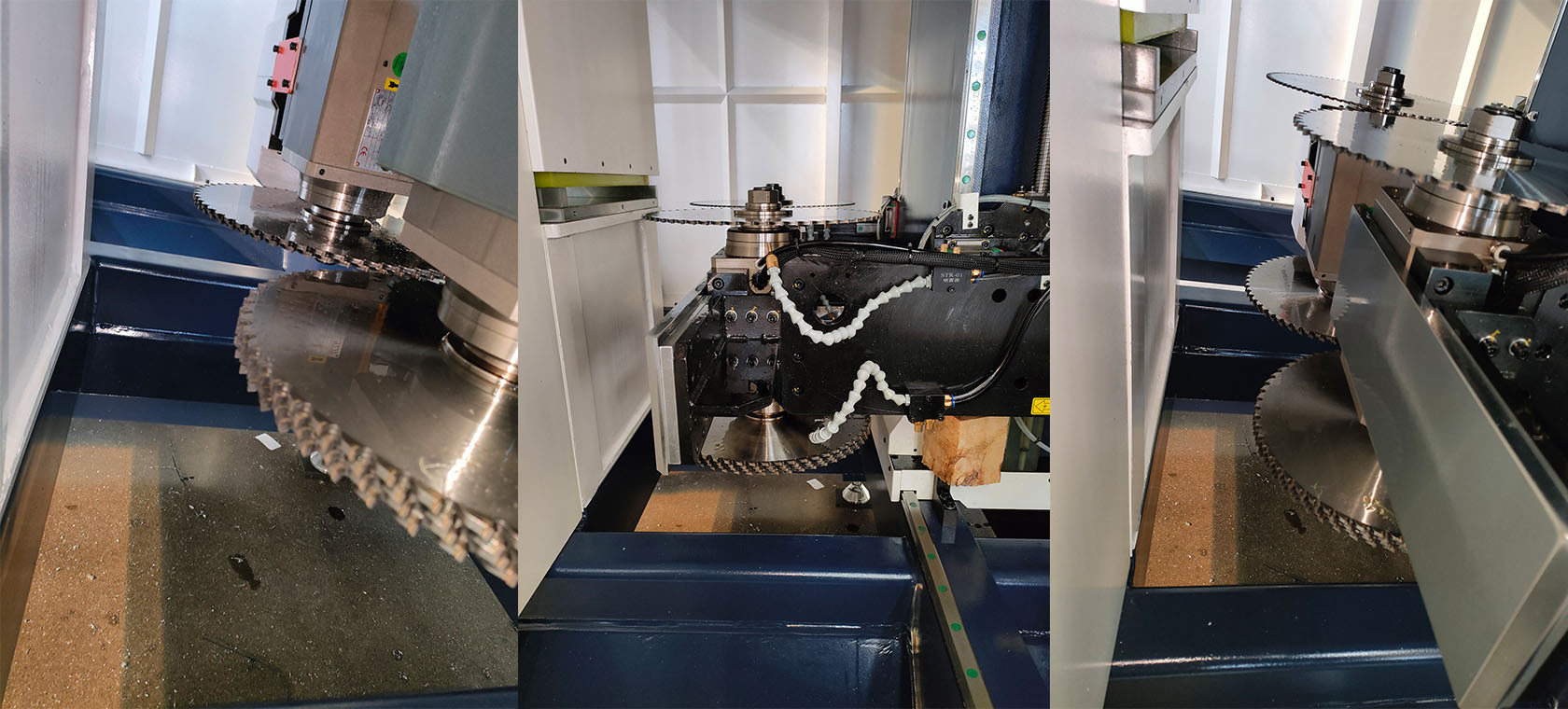

4. Two separate sets of 3.5 mm saw blade, one of which can be adjusted at 0 °and 90 °. Completely solving gap headache issue.

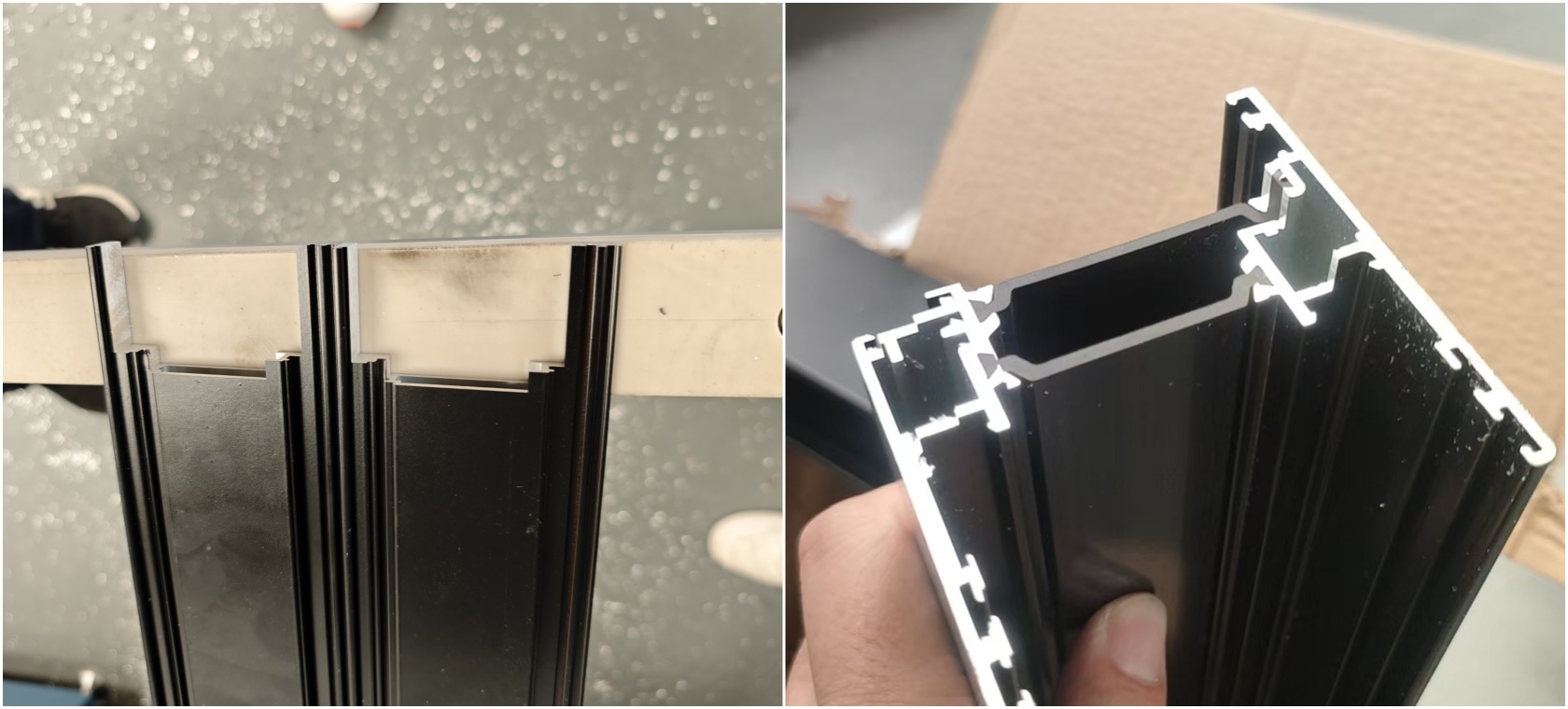

5. Same section with different length profile can be milled in one time. High volume production.

6. The feeding system is driven by servo motor, the speed and position are adjustable, , the cutting feed is stable and even, the machining precision is high, the surface quality is good.

7. Fully covered structure. Safer and less noisy for operator.

Main Accessory


linear guide

HIWIN

lead screw

PMI

Cylinder

 Air TAC(Taiwan)

Electrical Button and Switcher

Schneider(French)

Spindle motor

Schneider(French)

Servo motor

Schneider(French)

Touch screen

 Schneider(French)


Parameter:


Power Supply

3N~50HZ 380V or customized

Total Power

12KW

Sawing and milling motor power

3kw×2

Motor Rotatry Speed

3000 r/min

Milling cutter

φ350

Operation Air Pressure

0.5~0.8MPa

Air Consumption

250L/min

Motor main shaft diameter

φ30mm

Feeding space of workable

1200mm

Milling cutter number

4 sets

Workable measurement

480×420 mm

Cutter adjustment stroke

(horizontal direction)100 mm (longitudinal direction)600mm

Overall Dimension

2500×1700×2200 mm

Weight

2400kg
