GYJ-01

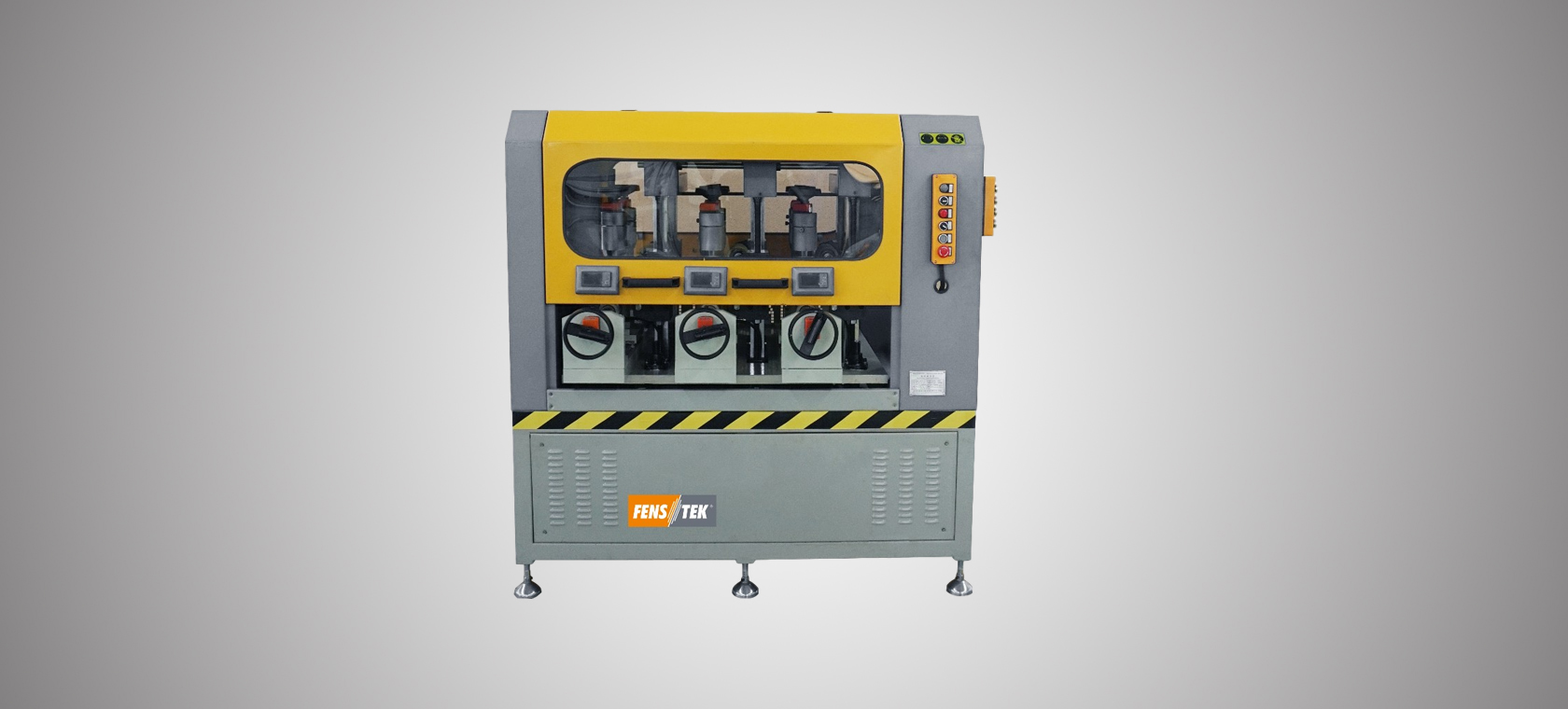

Rolling Machine(6WD) For Aluminium Processing

Feature:

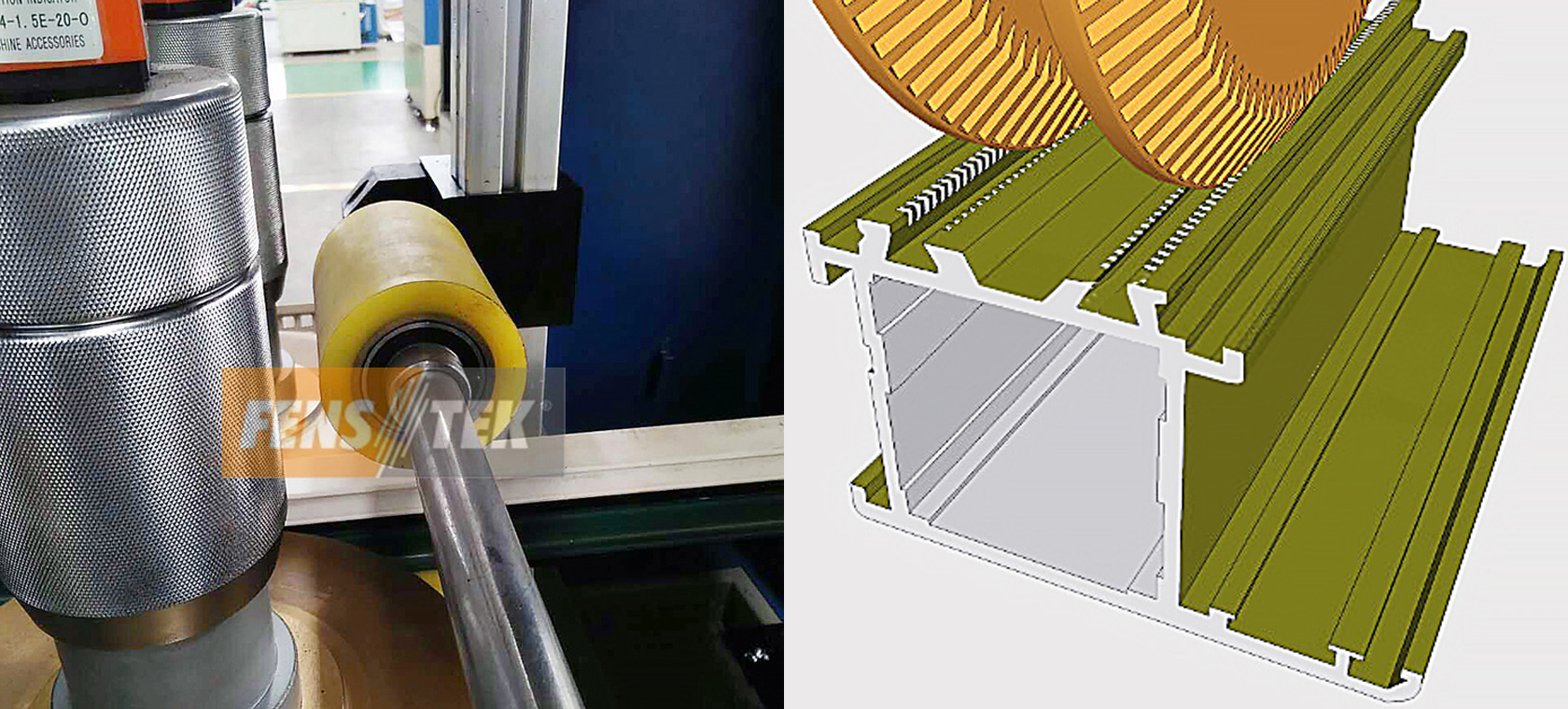

1. Six sets of hardened rolling discs and rubber roller are electrically controlled for fast change of profiles.

2. Six sets of rolling discs controlled by separate driving force guarantee stable rolling, high speed, and high efficiency.

3. Vertical and horizontal distance between each pair of rolling discs is adjustable for different sizes of profiles.

4. Step-less speed regulation. Taiwan linear rail, Schneider electrical appliance, and precision screws are adopted.

Parameter:


Power supply

380V/50Hz

Total power:

4.73Kw

Two-axis electric control:

Rolling discs and upper rubber rollers

Rolling disc diameter:

240mm

Two rolling discs(one pair) distance:

0-50mm

Rolling disc height regulating range:

0-90mm

Max rolled section:

180x280mm (WxH)

Rolling speed :

0-60m/min

Overall dimension:

1600x1200x1670mm

Weight:

1500Kg
