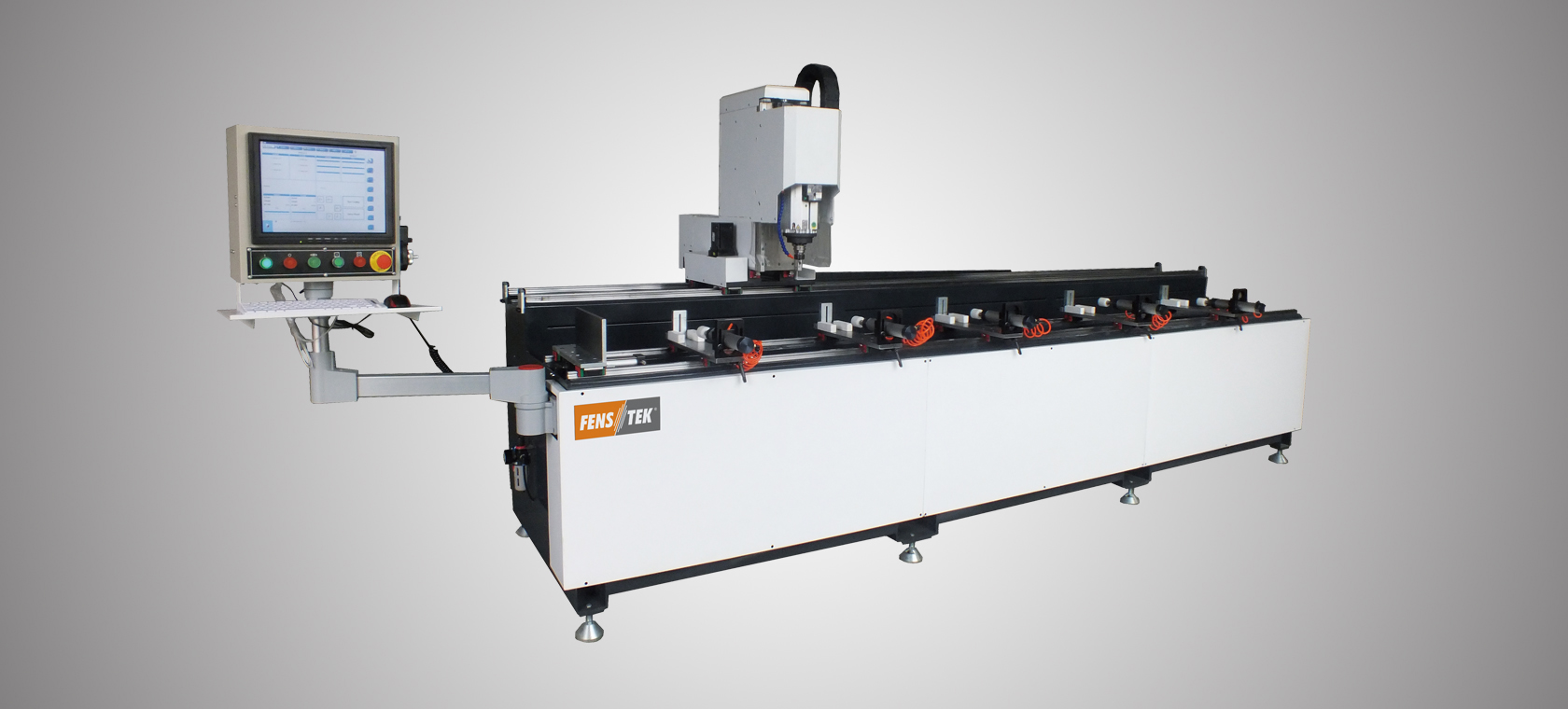

CMC-3500

Aluminium CNC Drilling and milling machine

Features:

1.Advanced industrial CNC 3-axis profile machining systems, friendly machine interface with use-friendly operation.

2.Suitable for aluminum, aluminum / wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing.

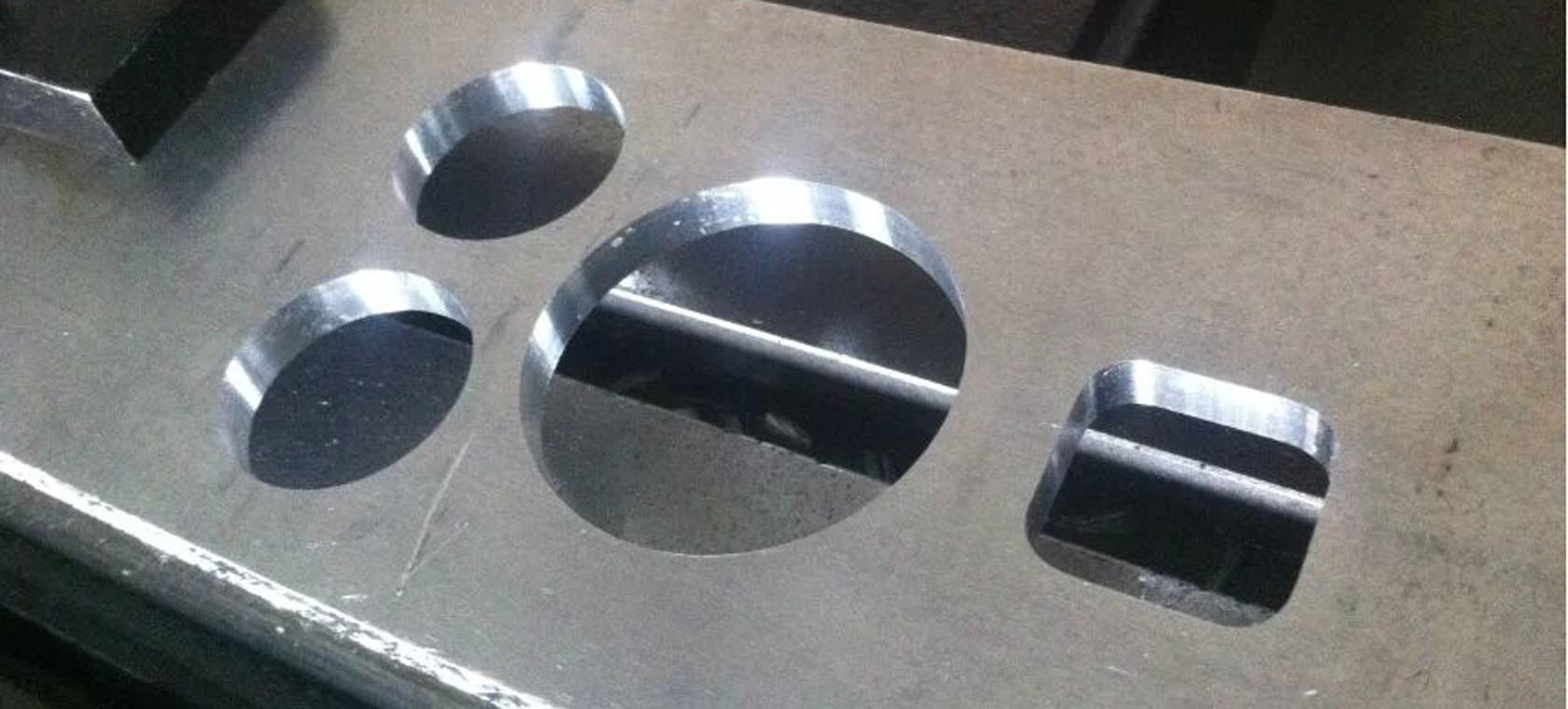

3.The machine completes milling, drilling, tapping, chamfering, grooving and other multi-functional precisely in one time, the profile was conveyed by the precise stationary avoid profile damage.

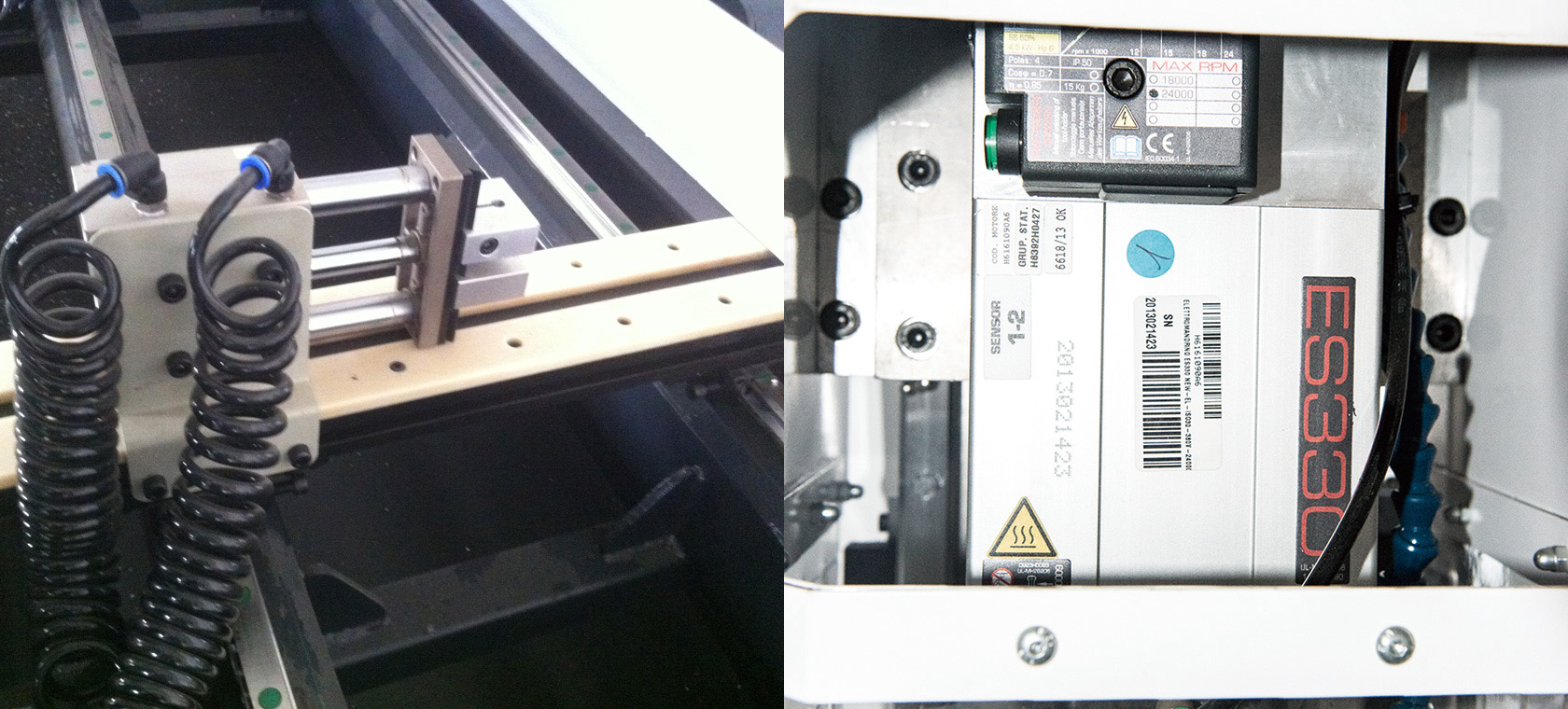

4.Adopts imported high precision linear guide ways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing in high precision.

5.High-quality imported automatic tool change based on automatic travel magazine, minimum the tool change time and rotation noise, maximum stability ,precision, and cutting ability.

6.Multiple safety protection structure to ensure operator safety, Industrial PC control 2.5 D operation with 19’’ color monitor.

7.RJ 45 10/100Mbit network as the standard.

8.USB Connection, CAD input data, or writing by hand on the computer.

9.High strength welding structure, heat aging and annealing processing, guarantee high rigidity and high stability.

10.UPS protection systems.

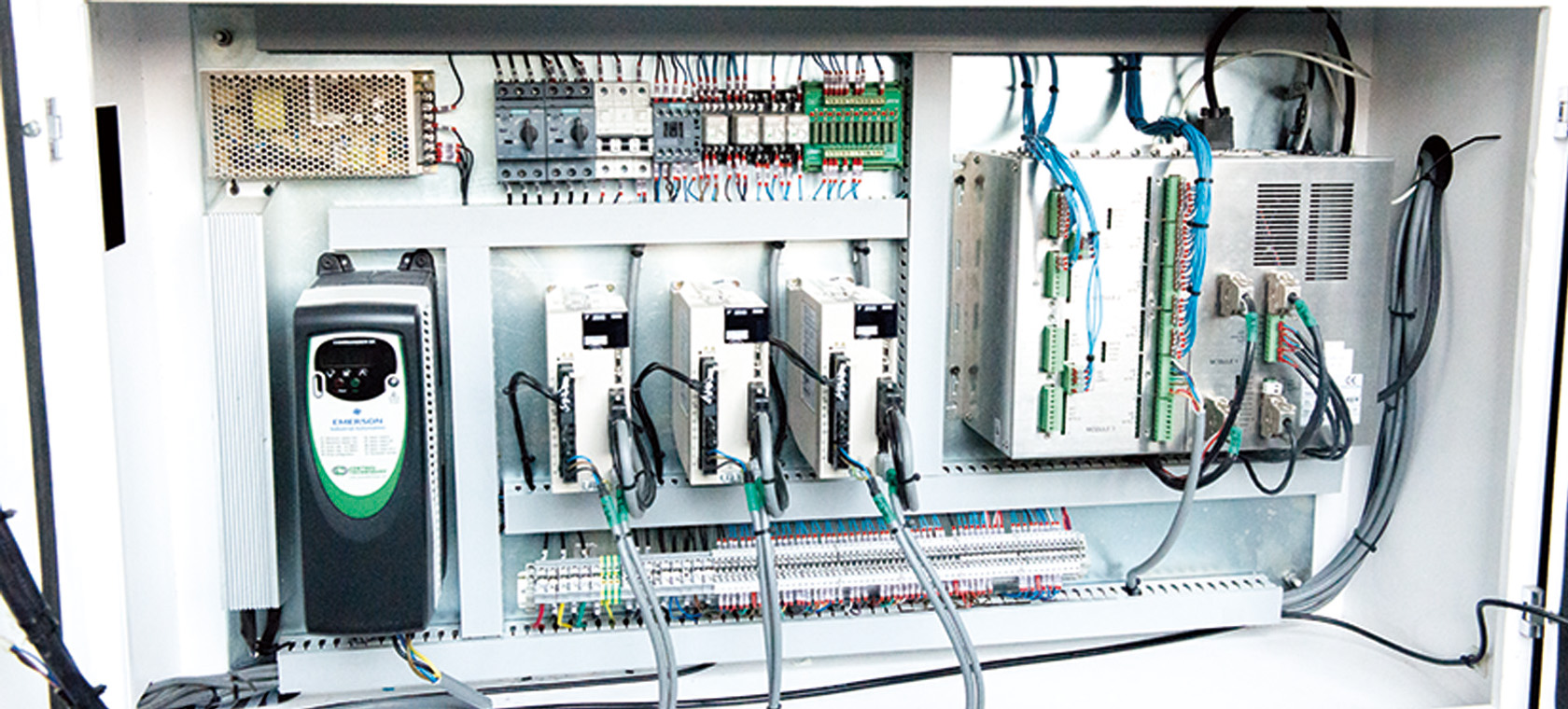

Main accessory:


• Servo system

Power Automation Germany

• Servo motor & Driver

YASIKAWA Japanese

• Reducer

Taiwan-APEX,Korean-SG

• Rack

Altanda Germany

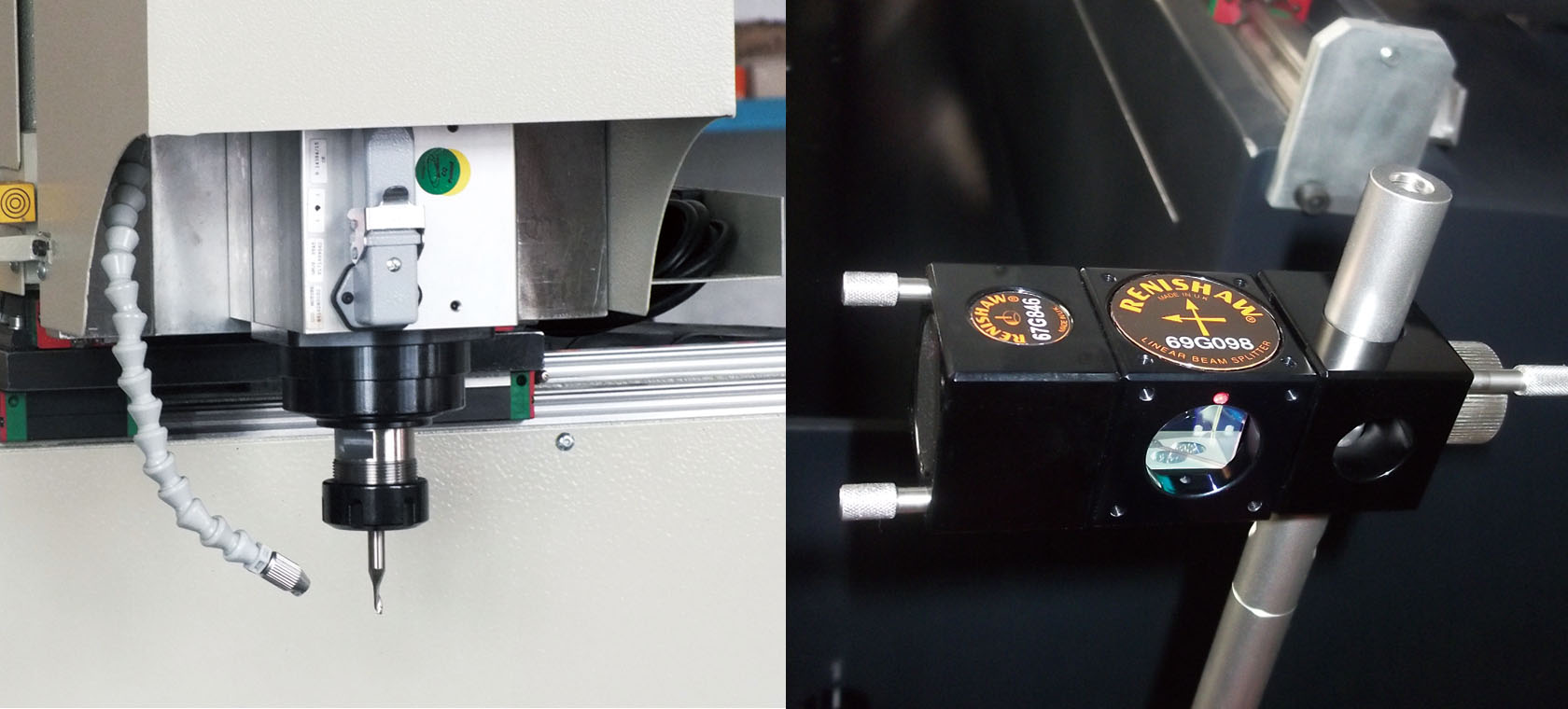

• Spindle

HSD Imported from Italy

• Guide、Ball screw

PMI /HIWIN / ABBA(TAIWAN)

• Electric apparatus

schneider、siemens.

• Pneumatics

SMC ,AirTAC

• Cutter holder、contracting chunk

imported from Italy

Parameter:


• X-axis Traveling

3500mm

• Y-axis traveling

350mm

• X-axis working stroke

3450mm

• Y-axis working stroke

300mm

• X-axis feed rate

0~80m/min

• Y-axis feed rate

0~20m/min

• X-axis positioning accuracy

±0.05mm

• Y-axis positioning accuracy

±0.02mm

• Z-axis traveling

250mm

• Repeat location accuracy

±0.02mm

• Z-axis feed rate

0~20m/min

• Roughness

Ra 6.3 um

• Z-axis positioning accuracy

±0.02mm

• Spindle Speed

0~18000rpm

• Z-axis working stroke

200mm

• Machinery Weight

1450kg

• Spindle Power

4.5kW

• Total Power of Machine

7.5kW

• Power Specification

380V/50Hz

• Machine Size

5200×1700×1700mm

• Working Pressure

0.6~0.8MPa
