UPVC Window CNC Horizontal 8 Point Welding Machine, China Factory Price, FENSTEK

AHW8

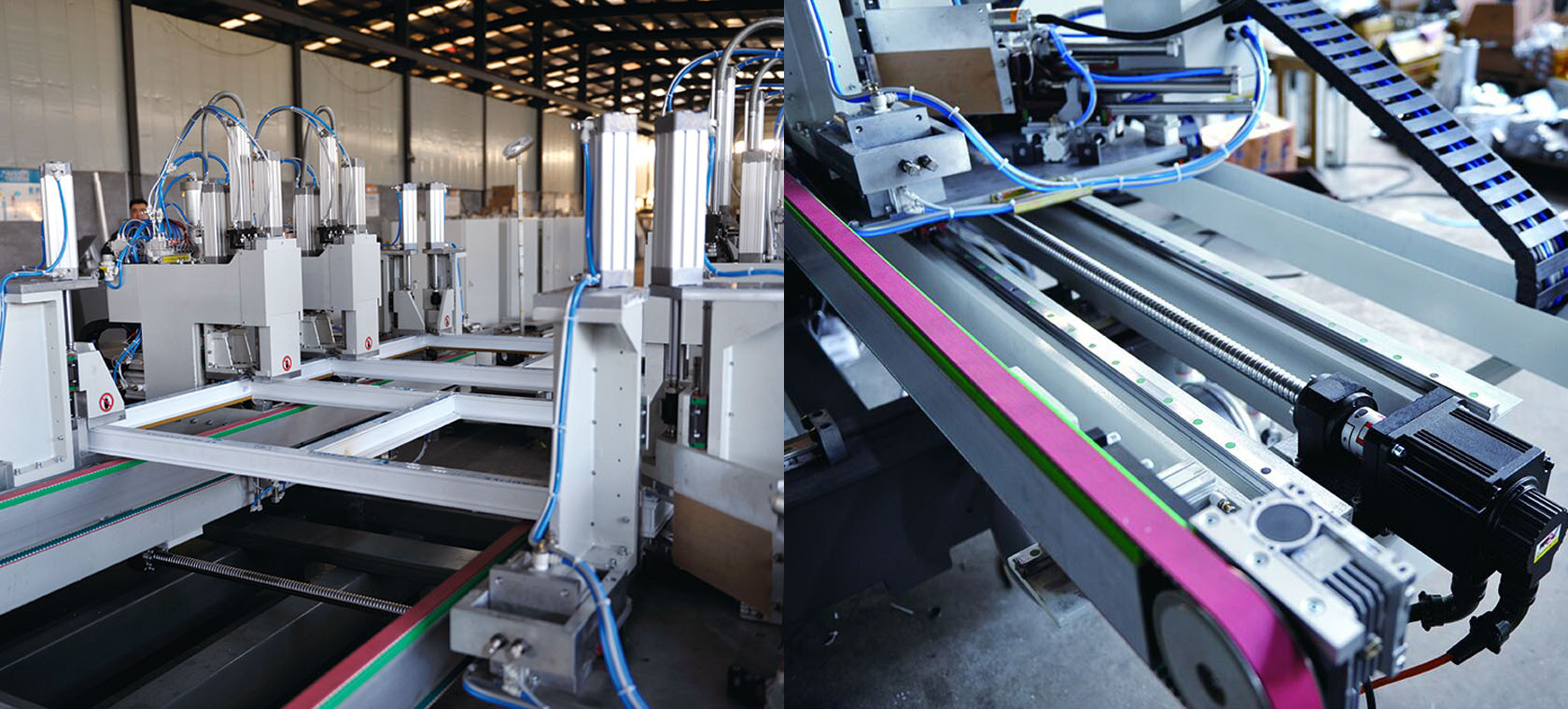

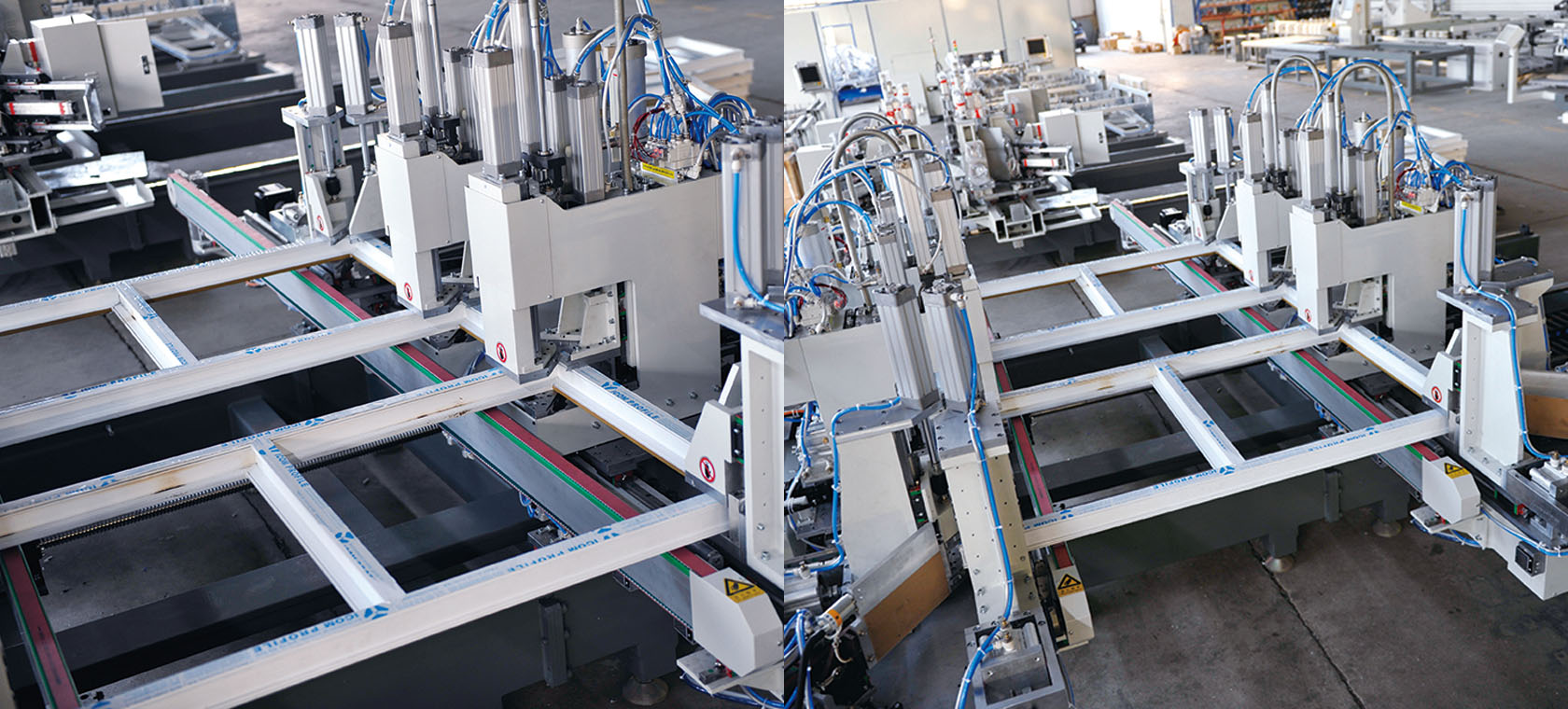

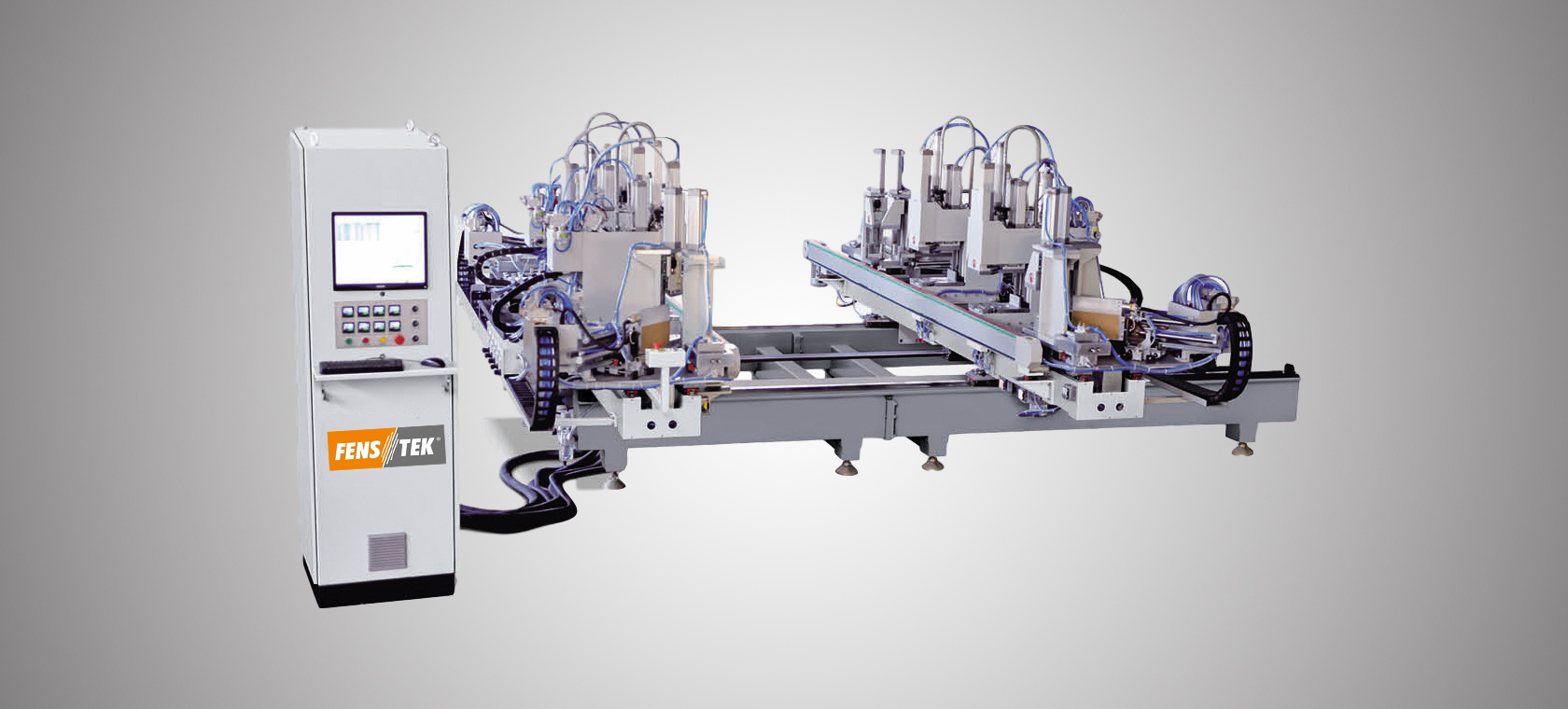

UPVC Window CNC Horizontal 8 Point Welding Machine

Features:

1.Top grade UPVC window welding machine for UPVC window mass production.

2.8 corners welding at the same time, including mullion welding.

3.7 servo axis drive ball screw to ensure moving precision

4.Square bearing system guarantee clamping, heating plate, locating plate moving precision& reliable performance.

5.The imported advanced IPC controlling system guarantee use-friendly operation, high precision, long Life span, and easy link to other machines or production units.

6.Auto positioning by worldwide famous brand AC servo motor. Auto compensate the size and further improve the welding precision.

7.Easy profile loading and automatic offloading.

8.Special “Know — How” technique keep the high corner strength

9.Detachable machine base gives unlimited max. welding size

Main accessory:
• Controlling system	Schneider or other word famous system.
• Servo Motor	Schneider or other word famous system.
• Solenoid valve	Airtac
• Cylinder	Airtac
• Air Filter Device	Airtac
• Electrical Button and Switcher	Schneider
• AC Contactor and Circuit Breaker	Schneider
• Approach Switcher	Swiss CONTRINEX or Japan Omron
• Linear bearing system	Linear (South Korean brand)
• Temperature Controller	Japan Omron

Parameter:
Input Voltage	3N～50Hz 380V/220V or Customer specification
Input Power	9(kw)
Operation Air Pressure	0.5～0.8(MPa)
Air Consumption	300(L/min)
Welding Height	25～120 (mm)
Welding Width	120(mm)
Welding Range	950×500～2800×3000 (mm)
Overall Dimension	4800×4500×2300（mm）
Machine Weight	4500(kg)
