Emerald F260

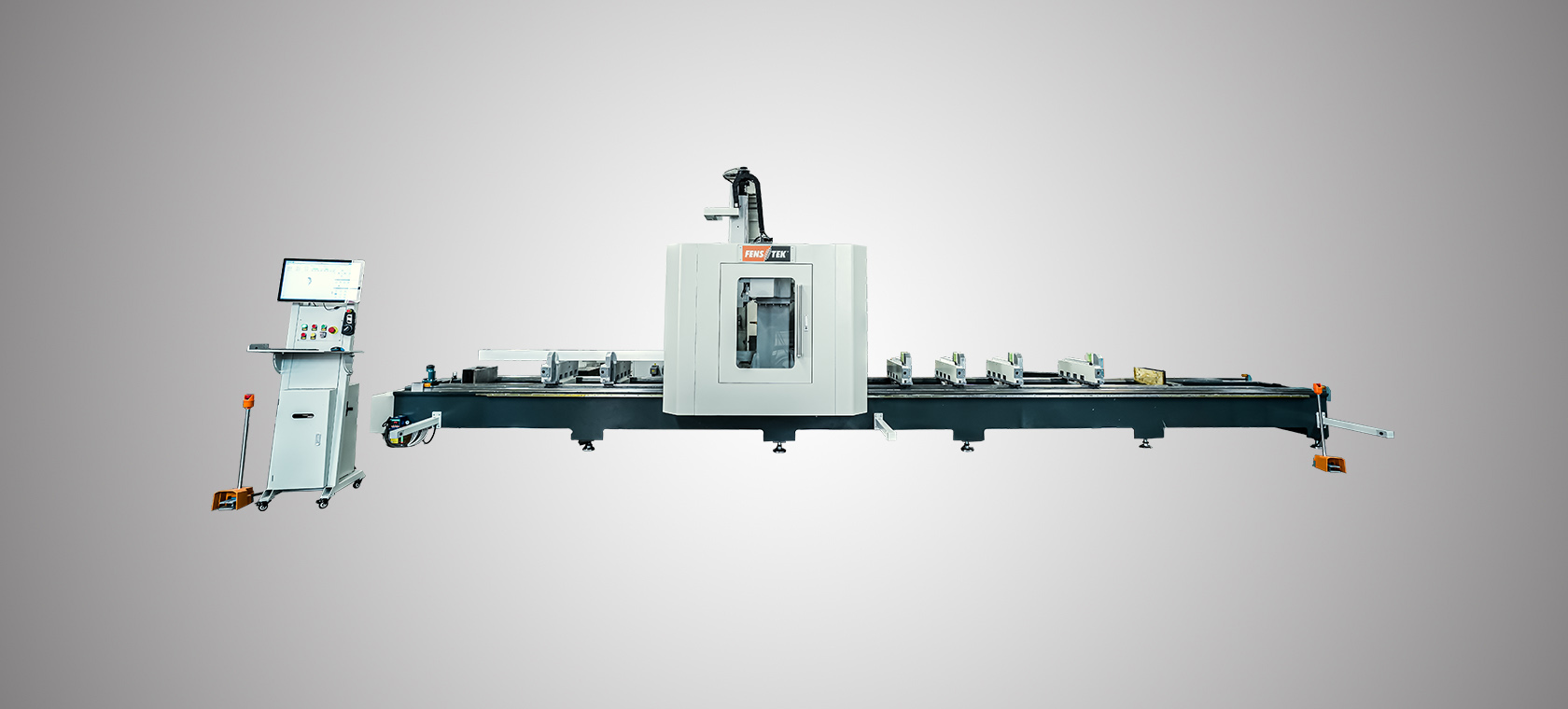

Aluminium Facade Four-axis Machining Center

Features:

1. Aluminum Facade Machining Center Emerald F260 is advanced industrial CNC 4-axis profile machining systems.

2. Suitable for aluminum profile and other light alloys, as well as UPVC profile processing.

3. The milling head can drill within a range of 90 ° ~0 ° ~-90 ° with according tools at any position.

4. The machine completes milling, drilling, flexible tapping, grooving, steel drilling(within 3 mm) and other multi-functional precisely in one time, the profile was conveyed by the precise stationary avoid profile damage.

5. Adopts imported high precision linear guide ways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing in high precision.

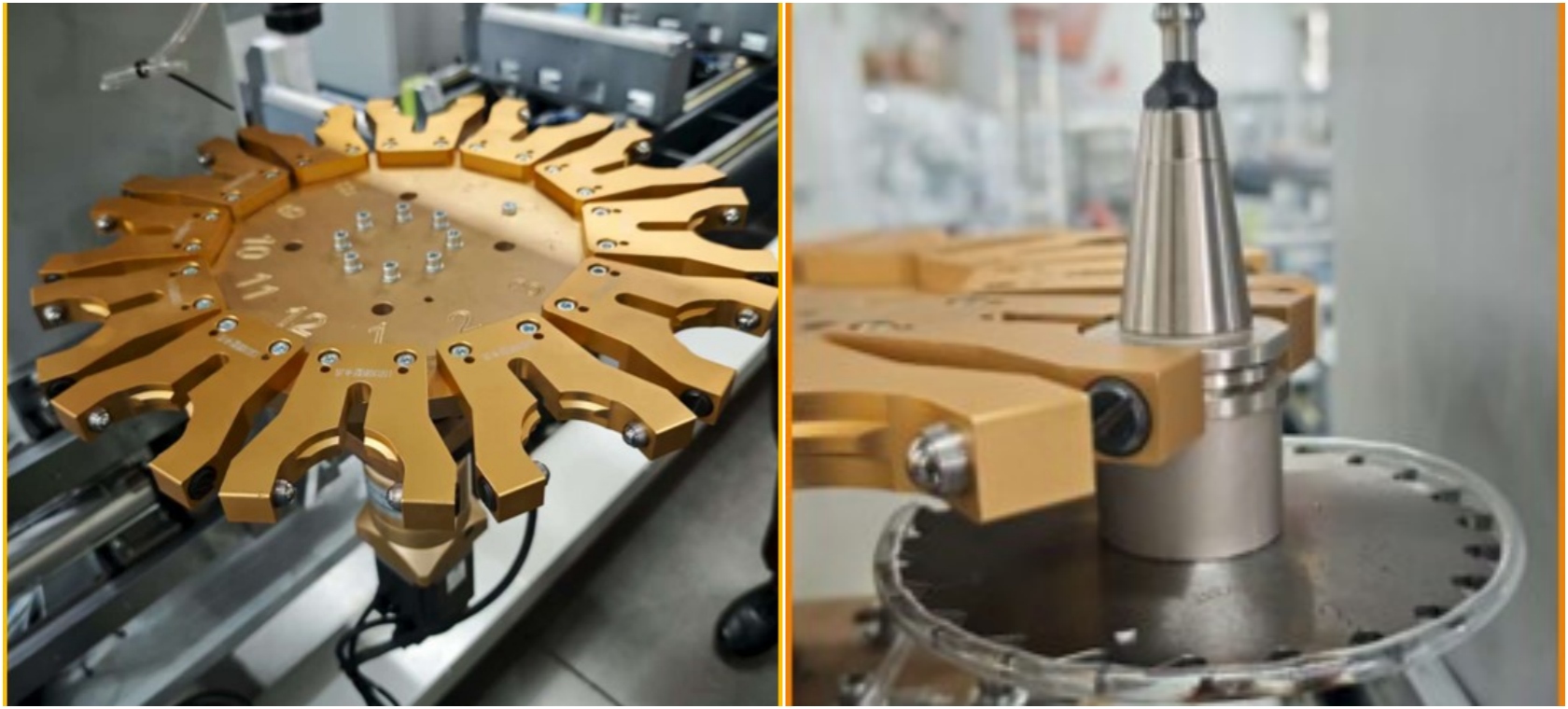

6. High-quality imported automatic tool change based on automatic travel magazine, minimum the tool change time and rotation noise, maximum stability, precision, and cutting ability.

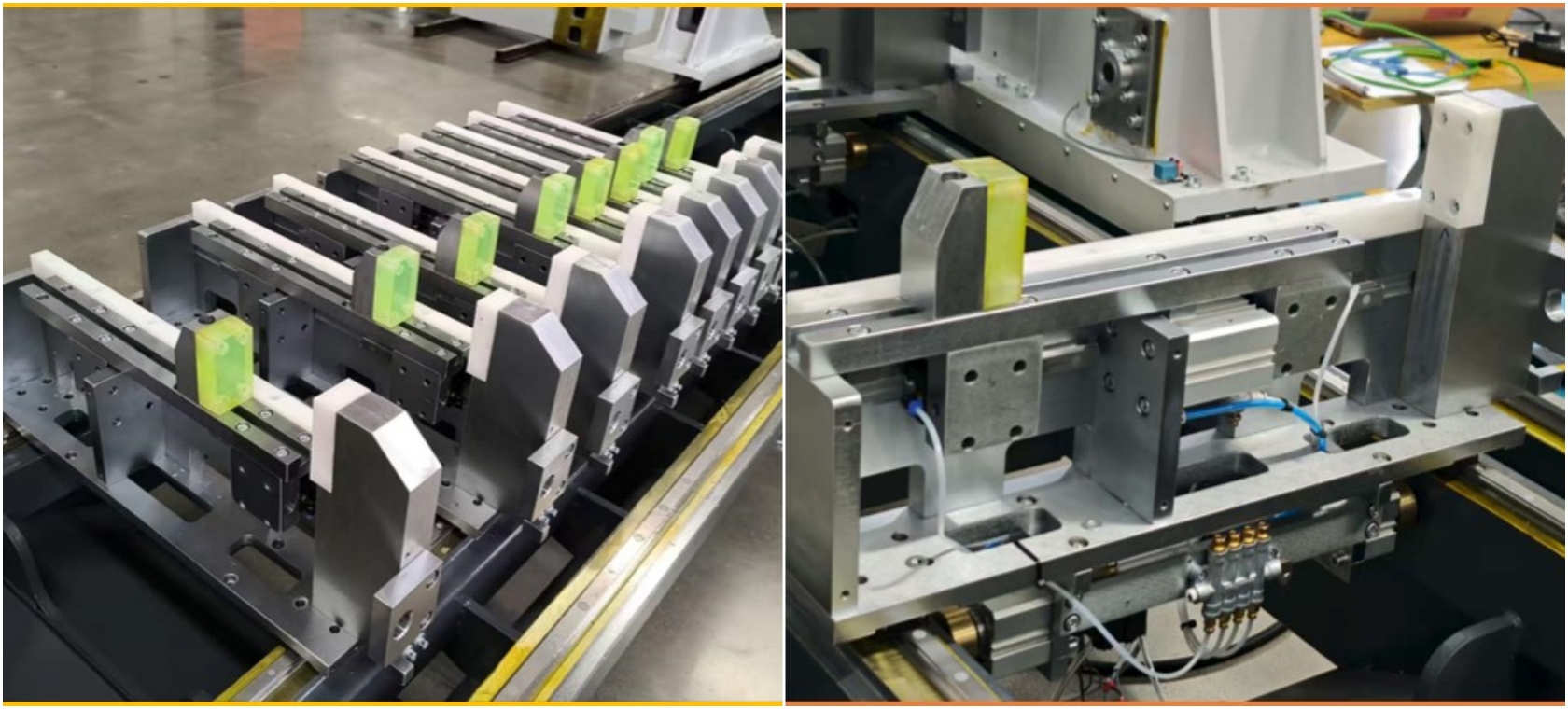

7. Magazine is equipped with 9 tool positions as standard, adjustable pneumatic special fixture to ensure efficient processing.

8. Double working areas for two kinds of profile loading, milling one after another, interactive feeding, non-interference.

9. Multiple safety protection structure to ensure operator safety.

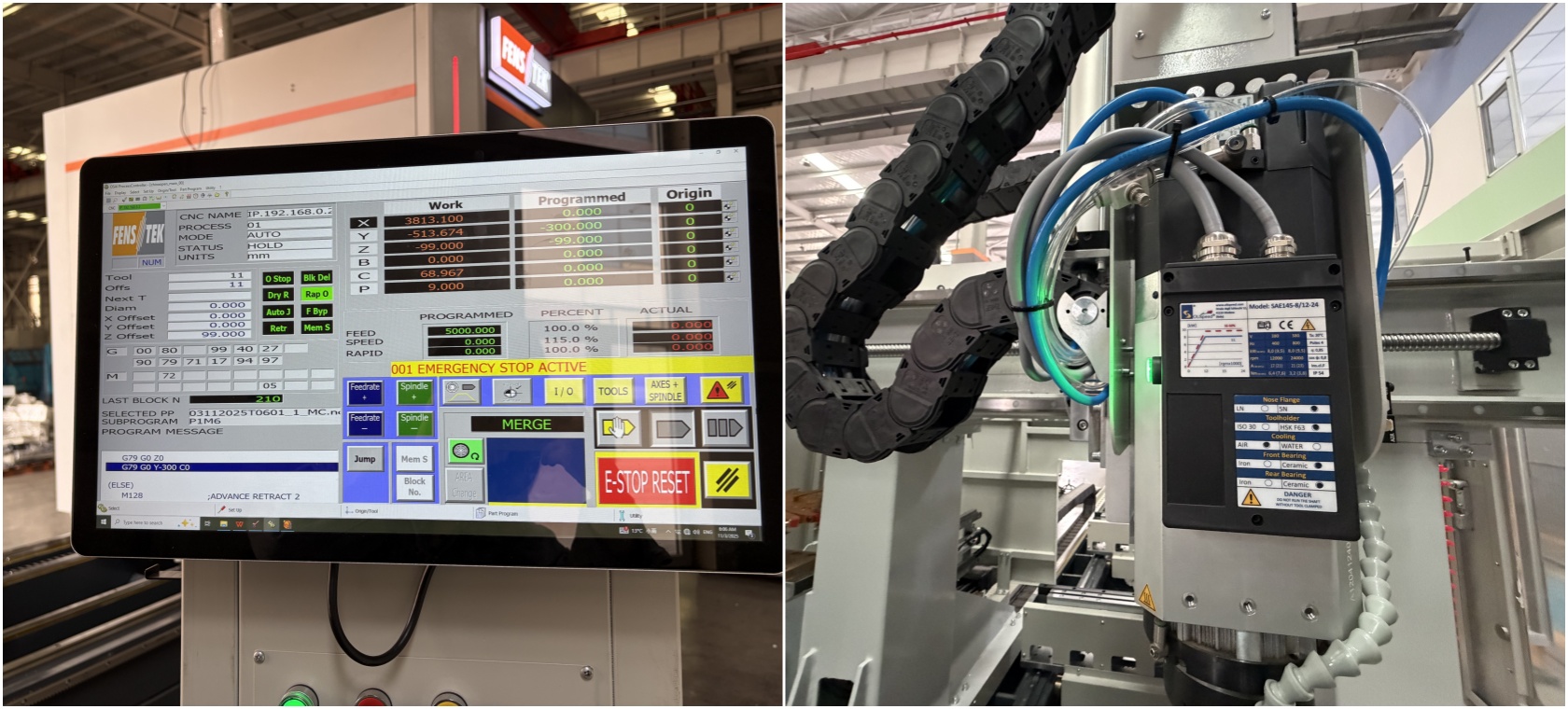

10. Operation system based on the window environment. Friendly interface and remote control for quick trouble shooting.

11. Automatic clamp position function.

12. Online with ERP software, can realize scanning code and automatic processing(optional).

13. Gantry Type structure. High strength welding structure, heat aging and annealing processing, guarantee high rigidity and high stability.

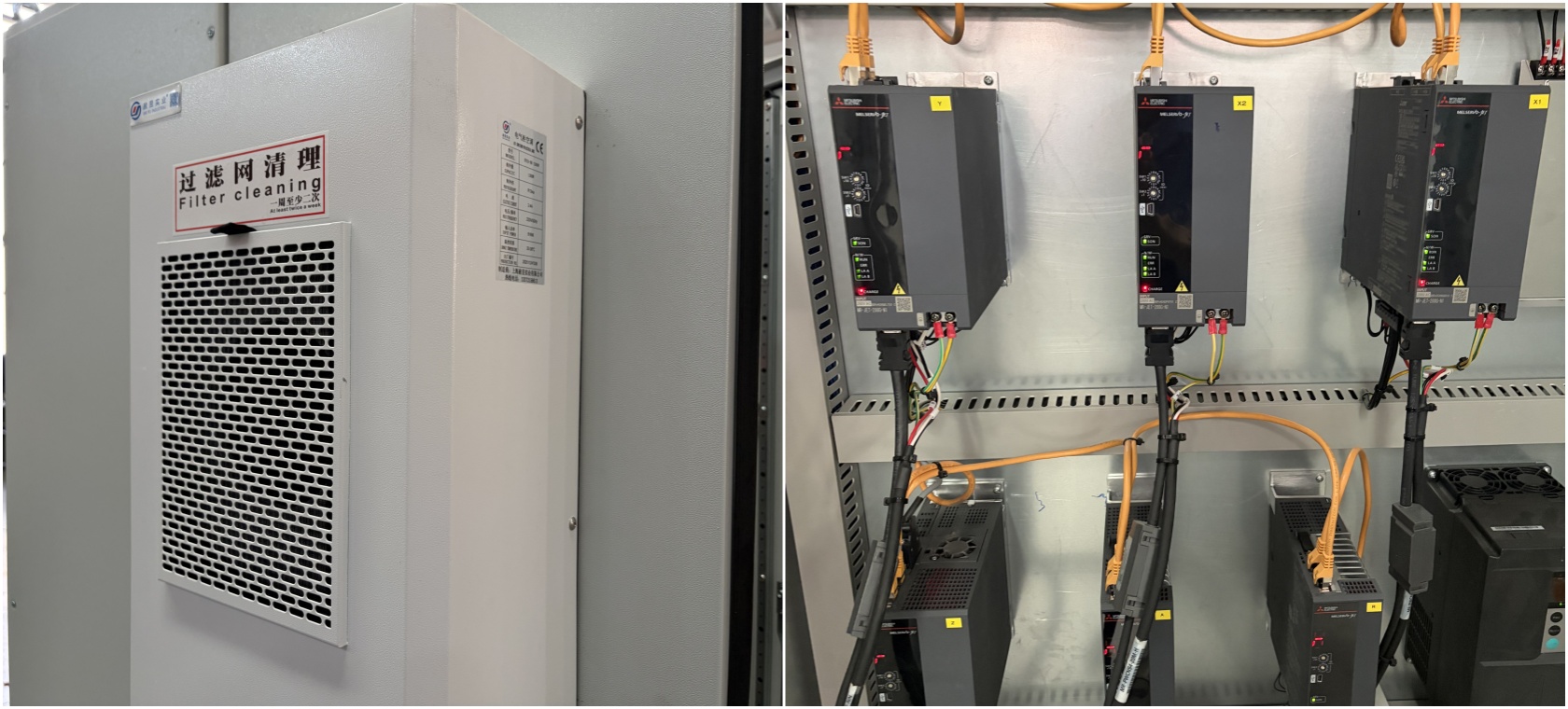

14. UPS & AC is included for protecting operation system.

 Main accessory


 CNC system

 PA (Germany)

 Servo motor

 YASIKAWA(Japanese)

 Spindle

 HSD(Italian)

 Square rail

 HIWIN(Taiwan)

 Ball screw

 PMI(Taiwan)

 Rack

 APEX(Taiwan)

 Electric button and switcher

 Schneider(French)

 Air cylinder

 AirTAC(Taiwan)

 Reducer A-axis

 SPINEA(Slovak)

 Reducer X-axis

 APEX(Taiwan)


 Parameter


 Air consumption

 60L/min

 Input power

 16.5KW

 X-axis feed rate

 0~60m/min

 Z-axis feed rate

 0~30m/min

 Main shaft rotation range

 -90°~ +90°

 Processing range (top surface,special clamp device)

 7000X900X260mm

 Tool magazine

 9 tool positions

 Dia of blade

 Ø80~Ø150mm

 Positioning accuracy

 ±0.03mm

 Machine Size

 9000x2200x2250mm

 Air pressure

 0.5-0.8Mpa

 Power Specification

 3N~50HZ 380V or customized

 Y-axis feed rate

 0~30m/min

 Spindle speed/power

 0-24000r/9kw

 Processing range(top surface,standard clamp device)

 7000X600X260mm

 Processing range(top&side surface,standard clamp device)

 7000X400X260mm

 Cutting tool installation length

 150mm

 Clamp station

 8

 Repeat positioning accuracy

 ±0.02mm

 Weight

 4300kg
