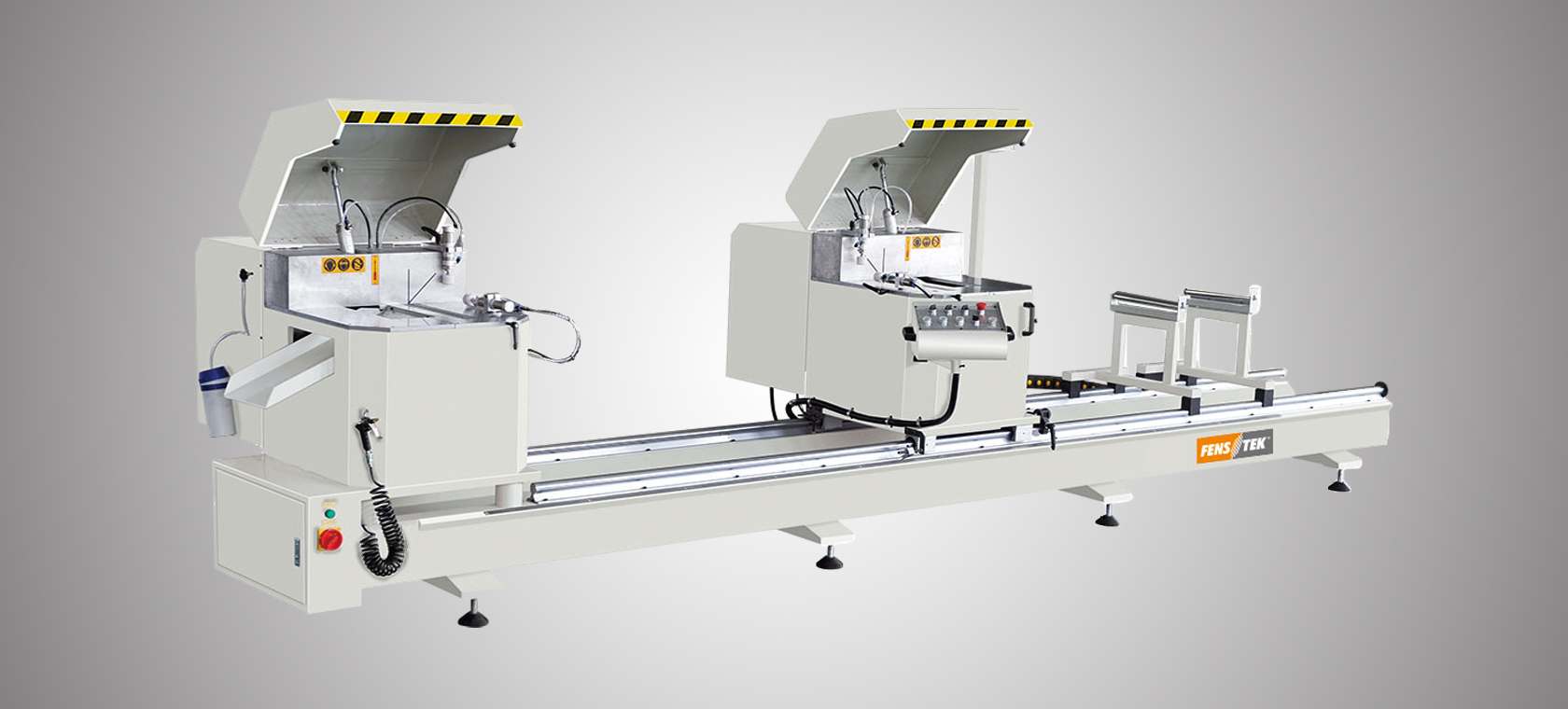

DSD500X4300

Aluminum Window Double Head Cutting Saw

Features:

1. Aluminum Double Head Cutting Machine main material for aluminium alloy curtain wall, window material cutting and can

also be used for plastic profile cutting.

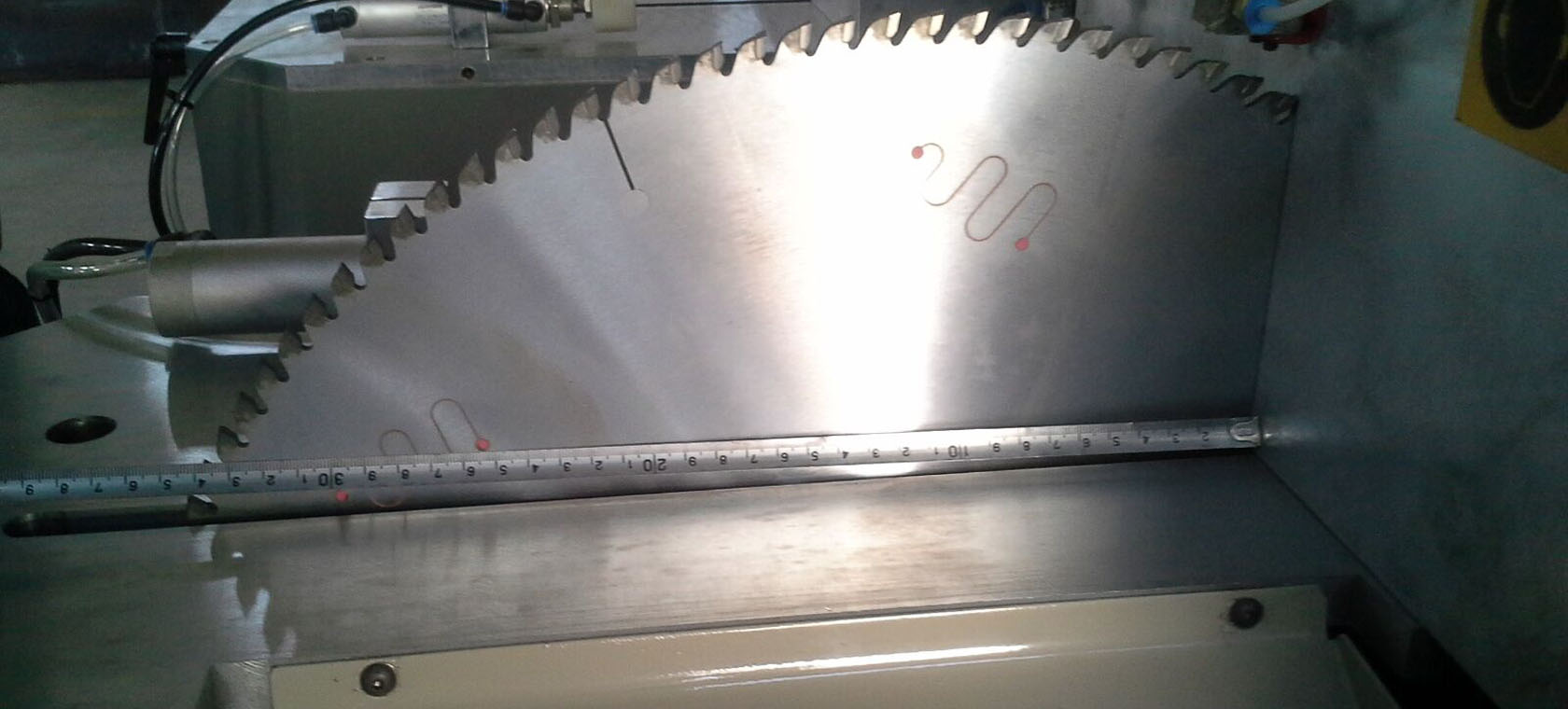

2. The use of carbide saw blades, diameter up to 500 dia, line of high speed high

precision machining.

3. Right heads feeding adopts pitch ball screw-lead motion, with high accurate driving,

locating and smooth working.

4. This machine uses the numerical control technology, profiles of different specifications

can completed automatically under the expected size.

5. Machine during operation, two saw blade can separate cutting.

6. The blade from the bottom to the top, sawing profile is more safe and reliable, and the

cutting height and cutting width are large.

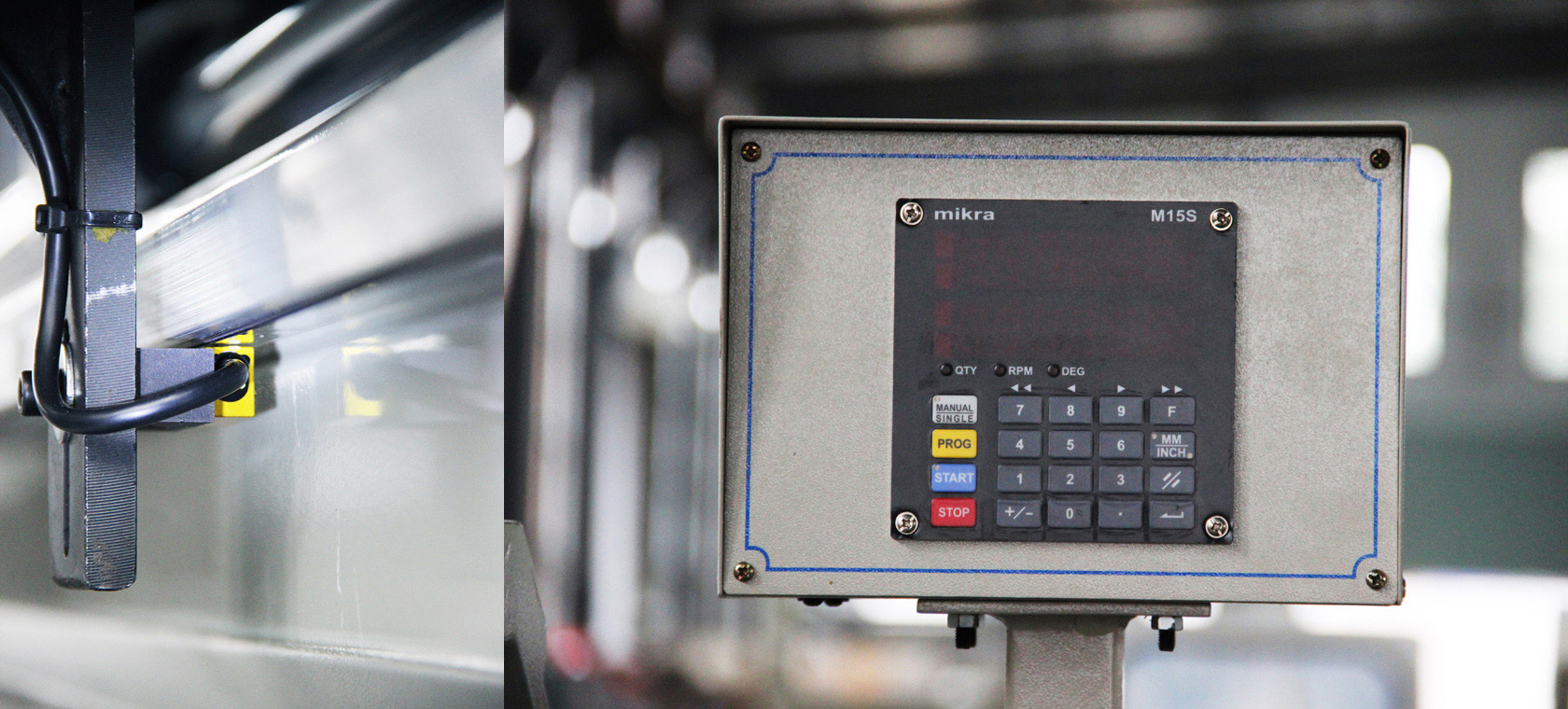

7. With digital display for showing exacting cutting position. Friendly using.

Main accessory


Saw blade

Wagen

Solenoid valve

AirTAC(Taiwan)

Cylinder

AirTAC(Taiwan)

Motor

Anhui Sanyang   (Best Chinese Motor Brand)

Air Filter Device

AirTAC(Taiwan)

Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider

Linear Bearing System

South Korean   Brand

Specification


Power supply

380V, 50HZ

Cutting motor power

5.9kw

Angle  accuracy

+±0.5 degree

Dimensional accuracy

±0.1mm

Cutting motor rotary speed

2800r/min

Operation air pressure

0.6-0.8MPa

Air consumption

60L/min

Blade specification

500*25.4

Cutting length

450mm-4500mm

Cutting width

300mm

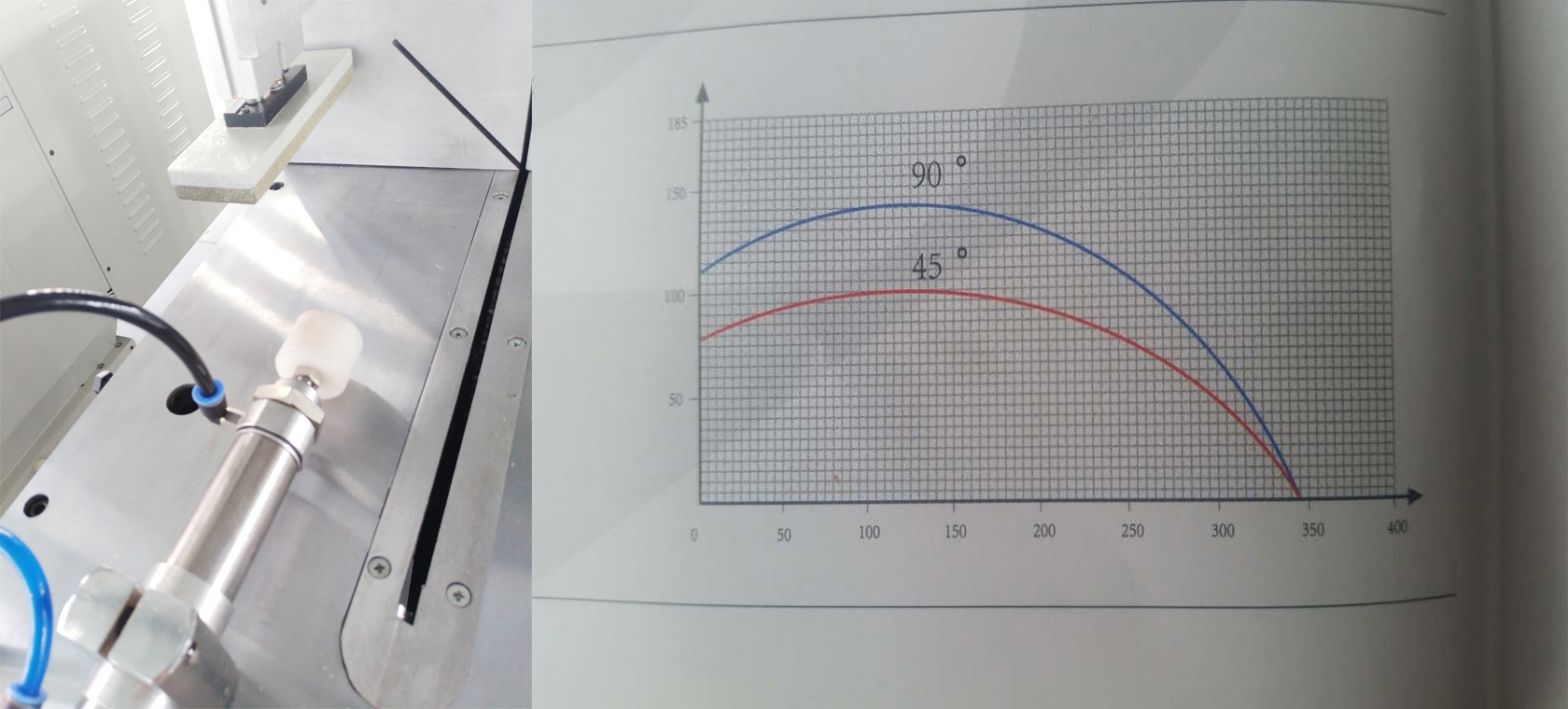

Max cutting section

135*200mm.

Cutting angle

45, 90 degree

Contour dimension

 5750*1300*1500mm

Weight

2500kg
