Aluminium Window & Door Heavy Duty Copy Router, China Factory Price, FENSTEK

CR-370

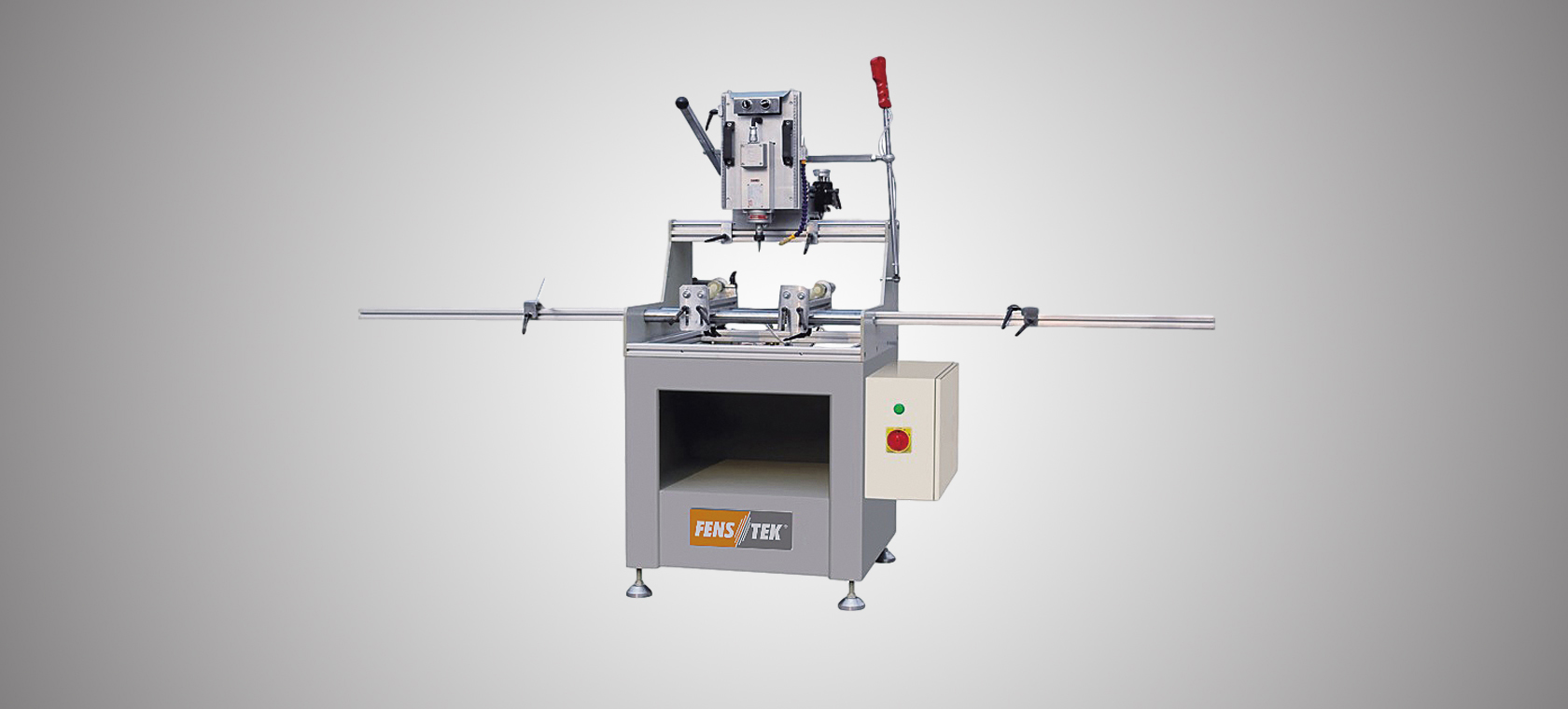

Aluminium Window & Door Heavy Duty Copy Router

Features:

1 Aluminium Copy Router CR-370 is used for processing several types of hole, grooves and water slots on aluminium and pvc window and doors or curtain wall.

2. This machine has characteristics of compact structure, smart volume, nice design and the air pressure controls the starting up of the motor. .

3 Easy replacement of the copy-routing plate, large useful scope, high efficiency and convenient operation achieve the continuous processing and safety operation.

Main accessory
Solenoid valve	AirTAC(Taiwan)
Cylinder	AirTAC(Taiwan)
Motor	Anhui Sanyang
Air Filter Device	AirTAC(Taiwan)
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Swiss CONTRINEX or Japan Omrons
Linear Bearing System	HIWIN
Magnetic Grid	SIKO

Parameter
Air Pressure	0.5～0.8(MPa)
Air Consumption	10(L/min)
Input Voltage	380V/50Hz
Main-shaft Revolution	11200(r/min)
Input Power	2.2(kW)
Cutter Diameter	Ø5 Ø8 (mm)
Copy-routing range	370*125(mm)
Overall Dimension	218010001700(mm)
Weight:	230(kg)
