ACC120A

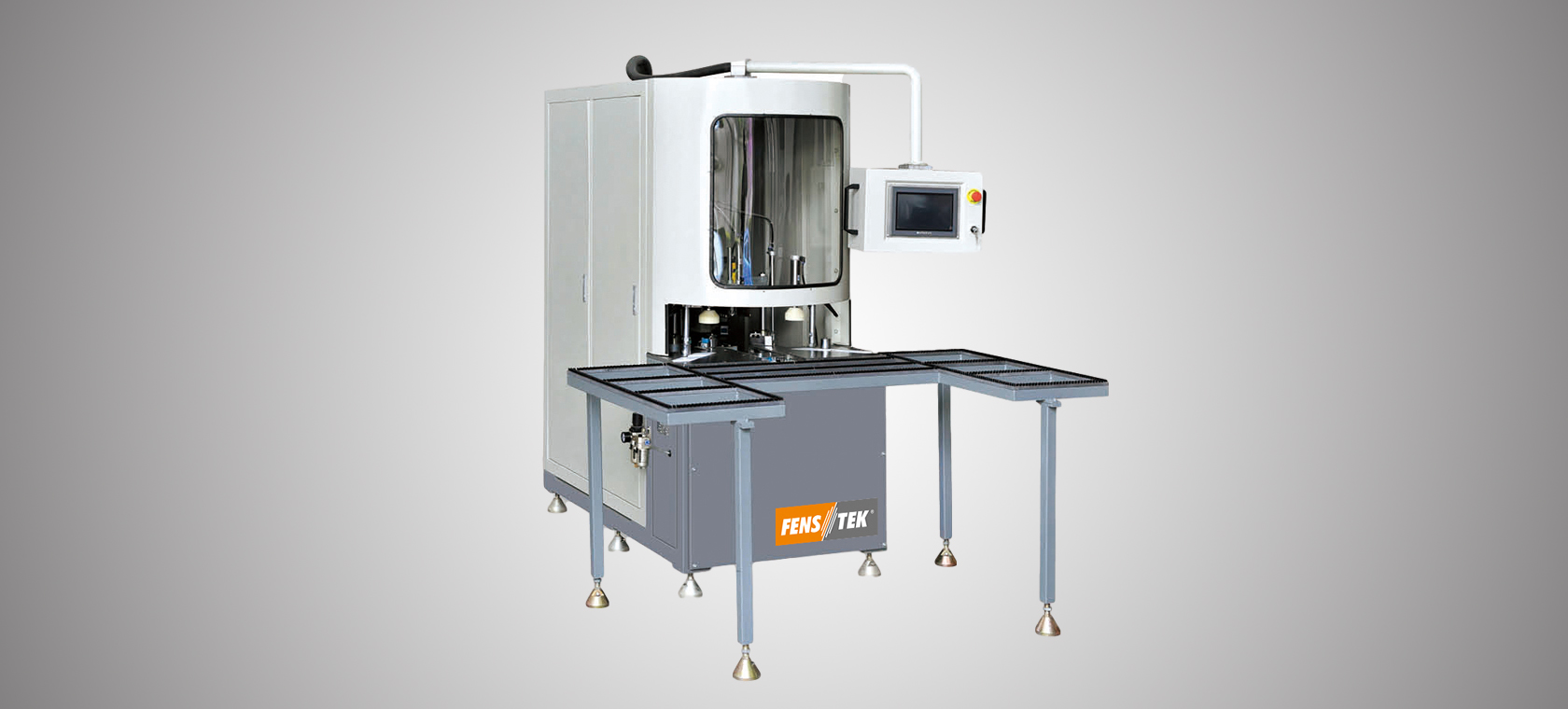

CNC Corner Cleaner For PVC Window Processing

Feature:

1. Most stable welcomed mature CNC corner cleaning machine for pvc window processing.

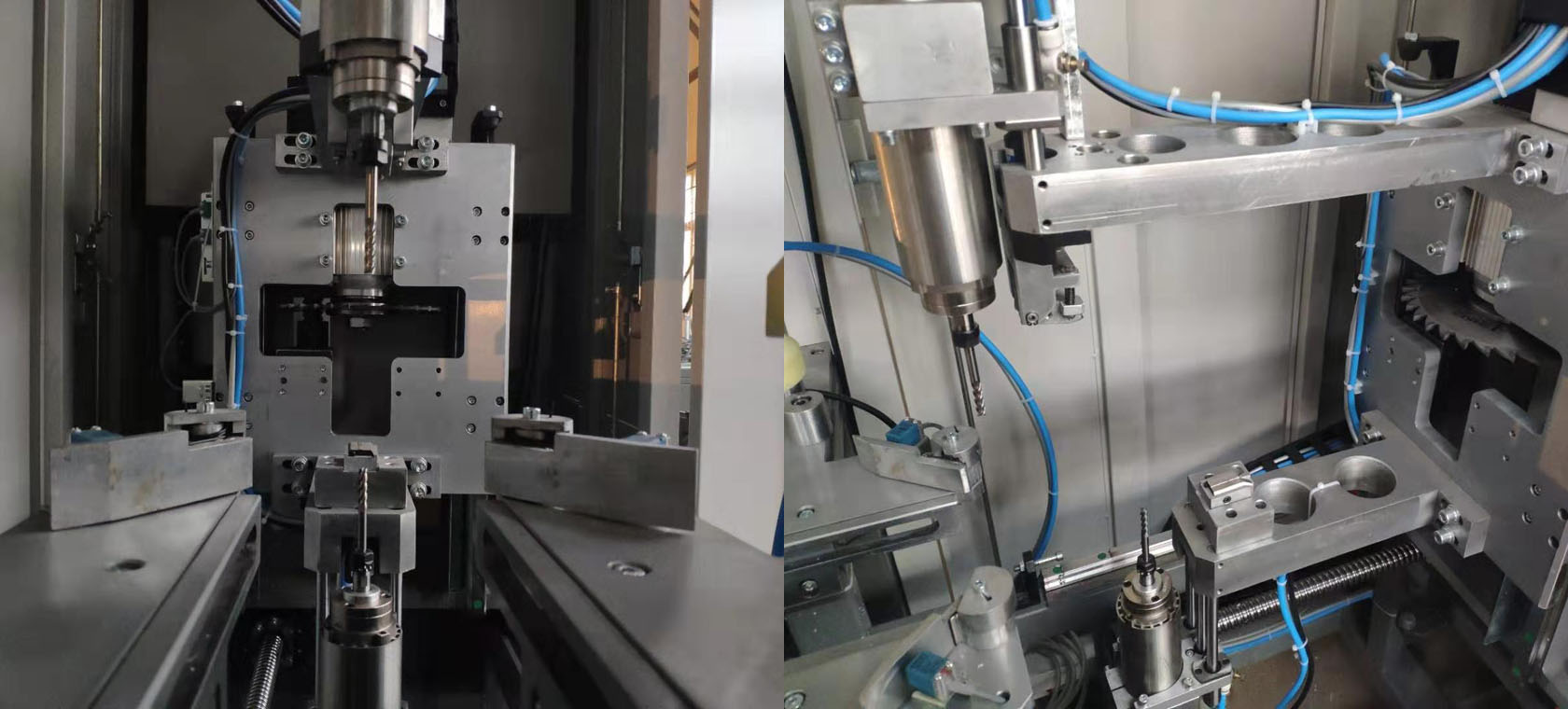

2. Totally 5 cutters(two pieces of vertical milling cutters, two pieces of pulling cutters, one piece of saw blade) will be automatically cleaning surface, vertical and inside rubber gasket groove. No need tool change.

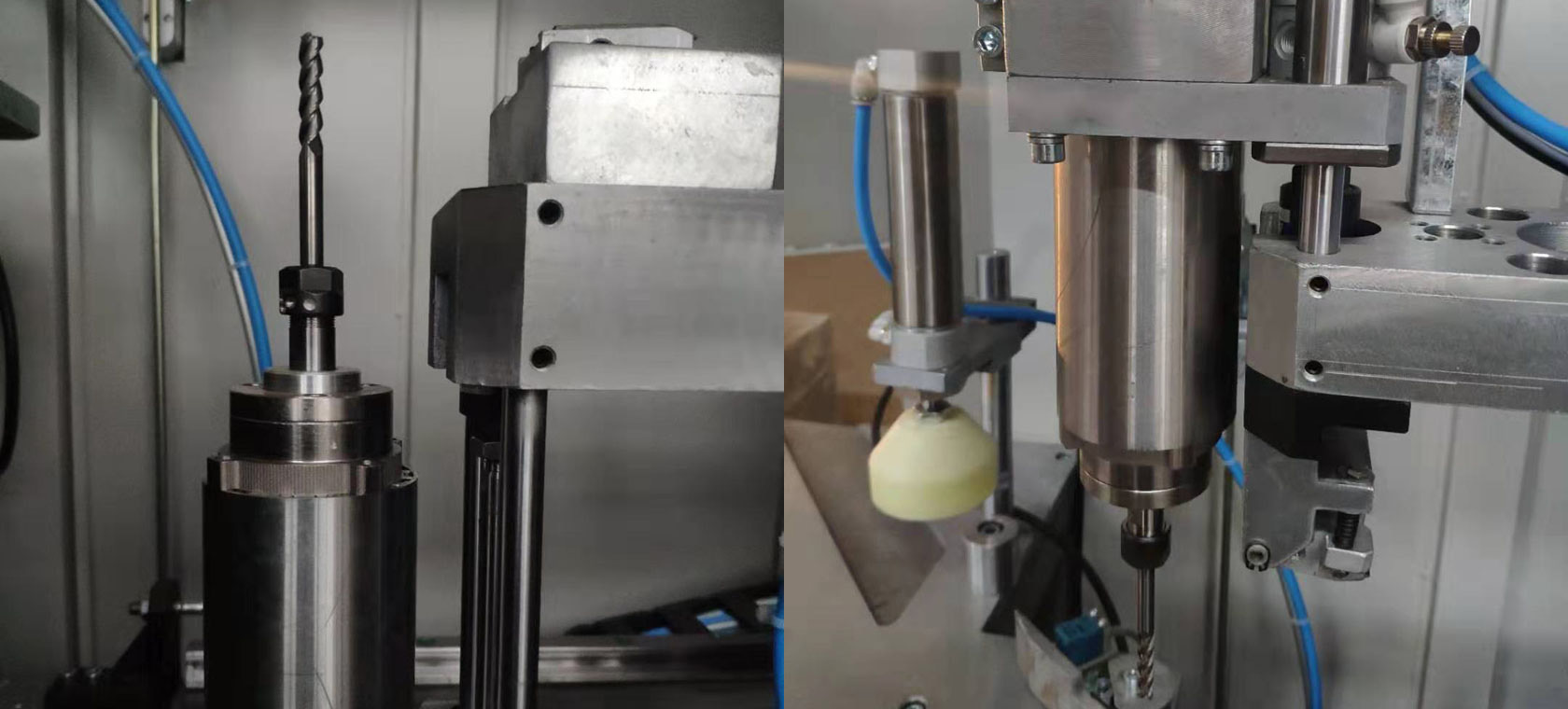

3. The milling cutters are controlled by spindle motor, much more stable, they are in the CNC axis, very easy to adjust.

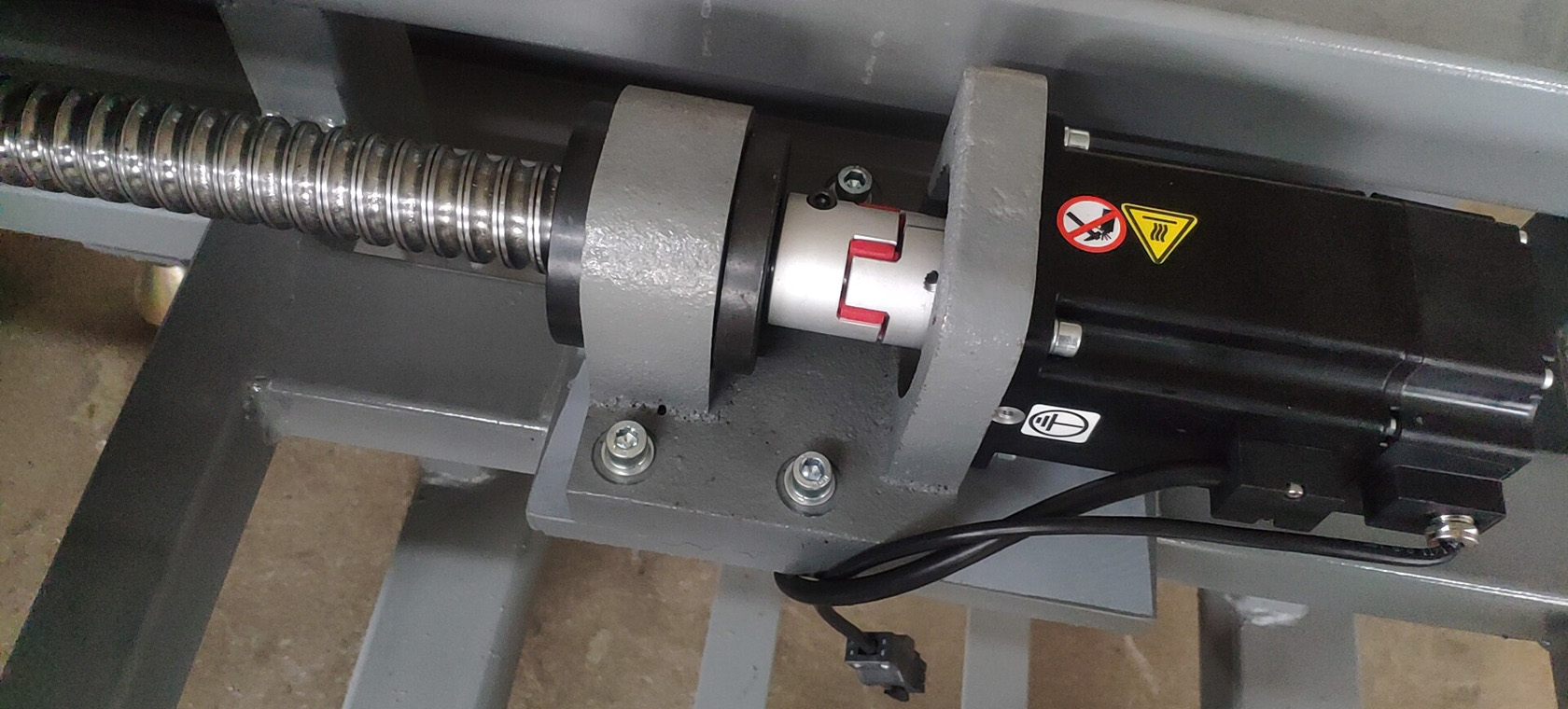

4. Two axis moved by ball screw shaft.

5. Within 25 seconds finish one corner complete cleaning.

6. Can be linked with horizontal welding machine to become welding & corner cleaning production line for grand imagine and high efficiency.

7. Friendly operation. Quick learning.

98 Optional: one piece of horizontal milling cutter, used for sliding window.

 Main accessory


Saw blade

Japan UNIKEN

Solenoid valve

Airtac

Cylinder

Airtac

Motor

Anhui Sanyang (Best Chinese Motor Brand)

Air Filter Device

Airtac

Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider

Approach Switcher

Swiss CONTRINEX or Japan Omron

Controlling System

Schneider

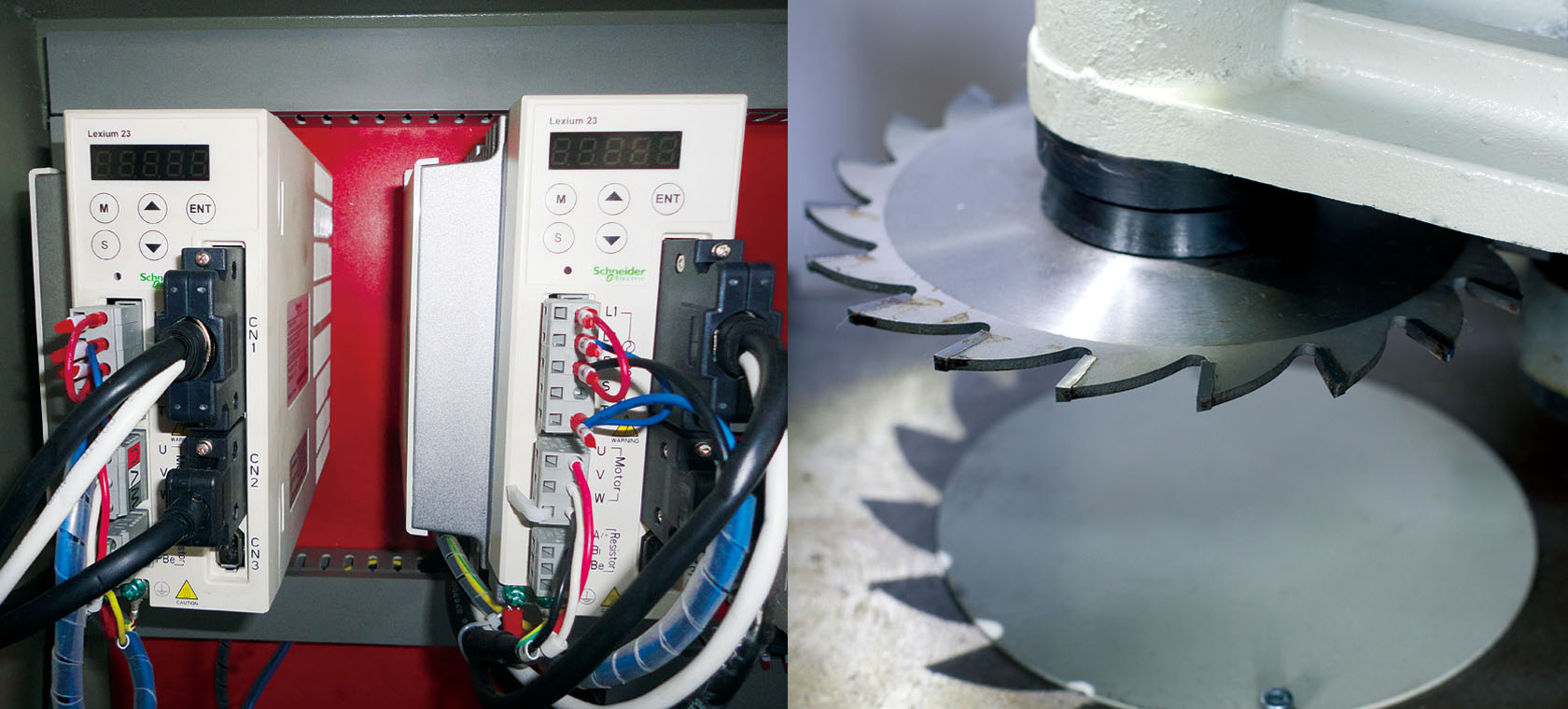

Servo Driver

Schneider

Operation panel

Taiwan ANC



 Parameters


Air Pressure:

0.5~0.8MPa

Air Consumption

60L/min

Input Voltage

380V 50Hz or As Customer Specification

Input Power

2.8Kw

Milling Cutter Revolution

2800r/min

Profile Height

30~120mm

Profile Width

20~120mm

Overall Dimension

2000*1820*1550mm

Weight

700kg
