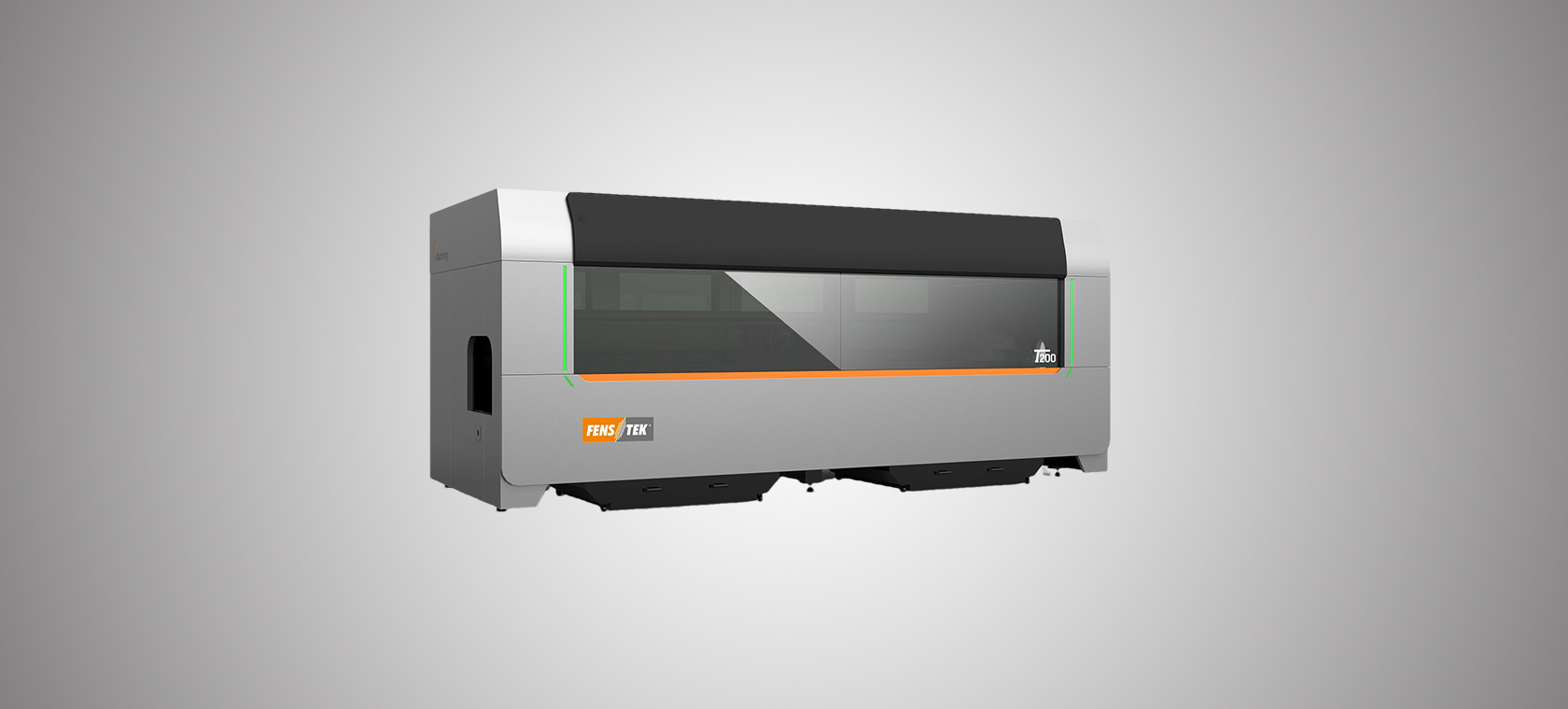

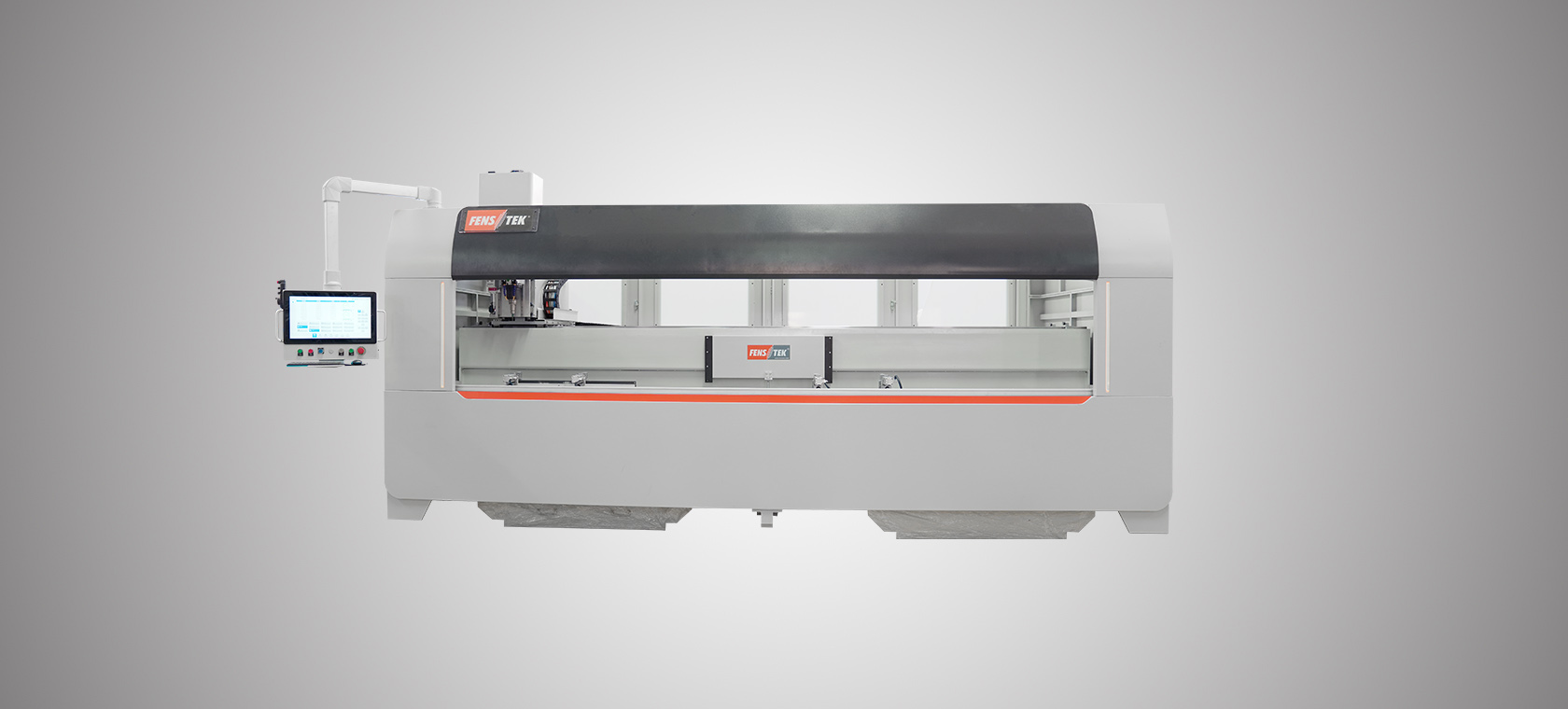

Emerald T140

Aluminium Window & Door Three Axis Machining Center

Features:

1. Aluminum Curtain Wall Machine Emerald T140 is advanced 3-axis machining center.

2. Suitable for aluminium profile and upvc window profile processing.

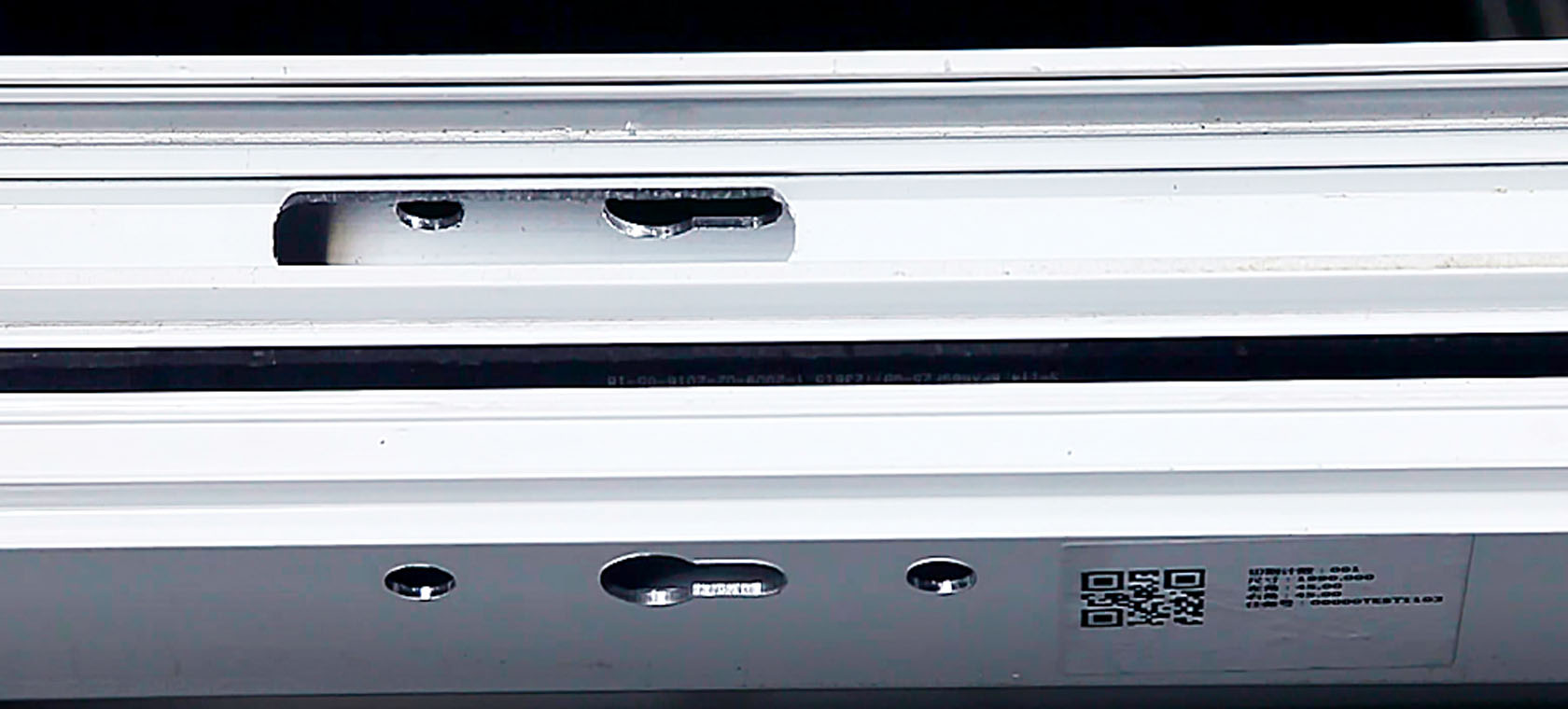

3. The machine completes milling, drilling, tapping, chamfering, grooving, steel drilling and other multi-functional precisely in one time.

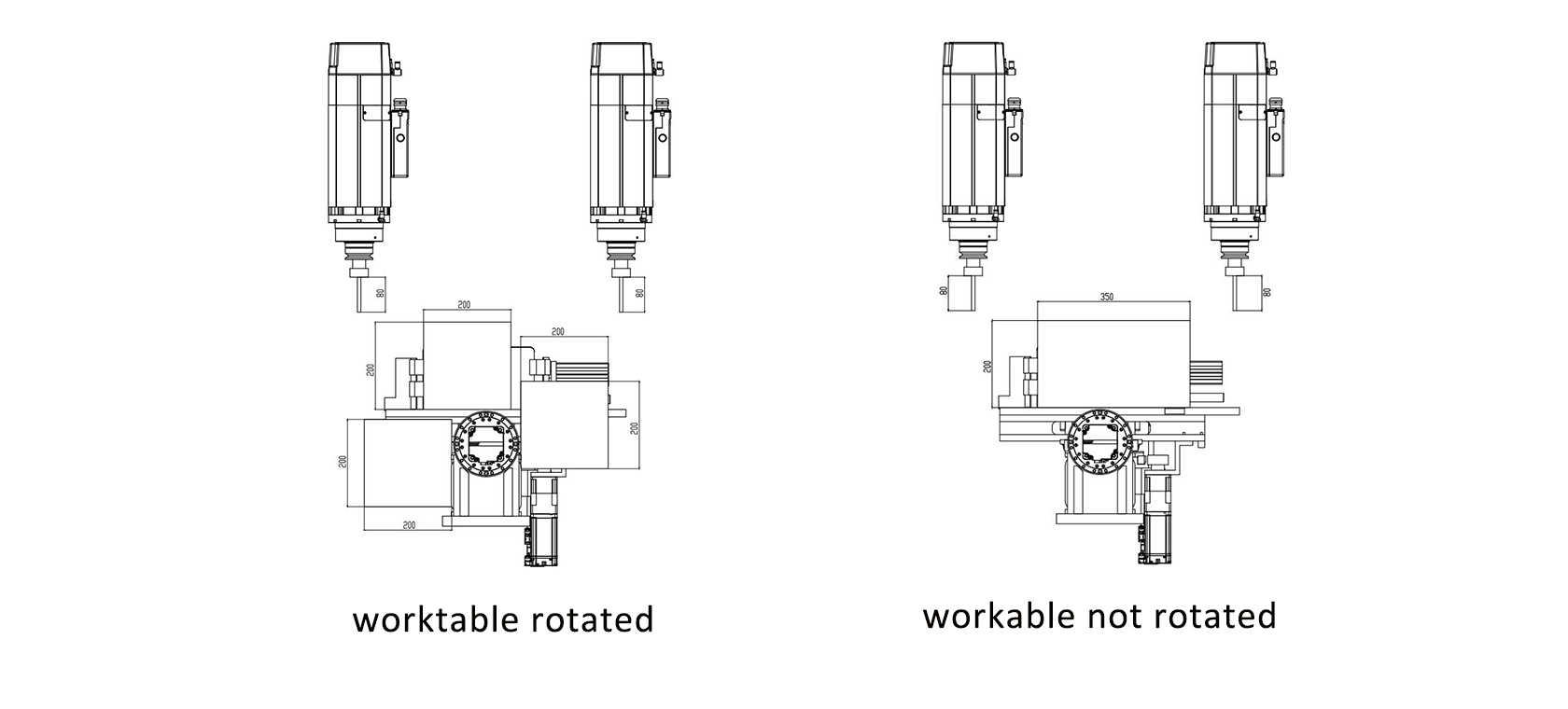

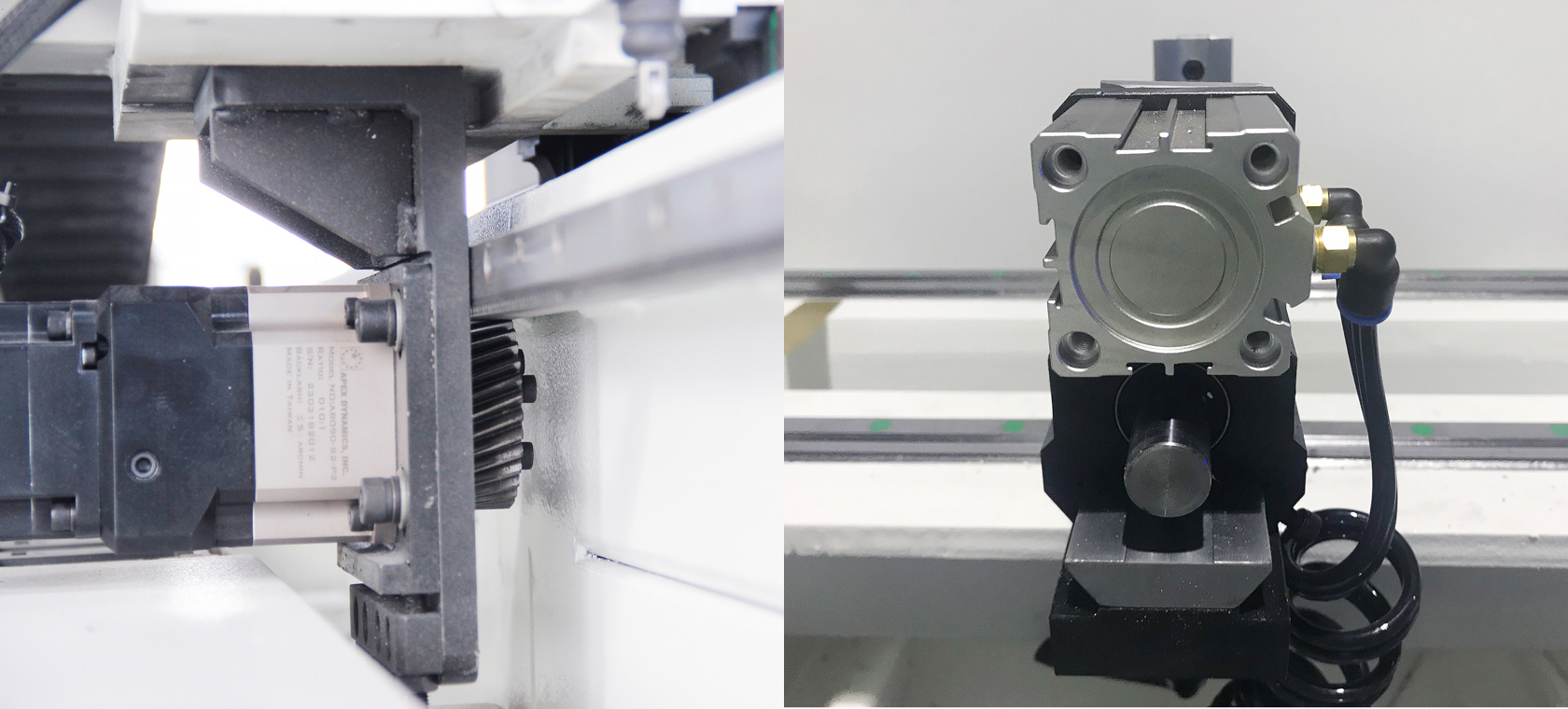

4. Worktable will be positioned at 0°, +90°and -90°drove by pneumatic cylinder

5. Auto lift up safety cover assure operator safety.

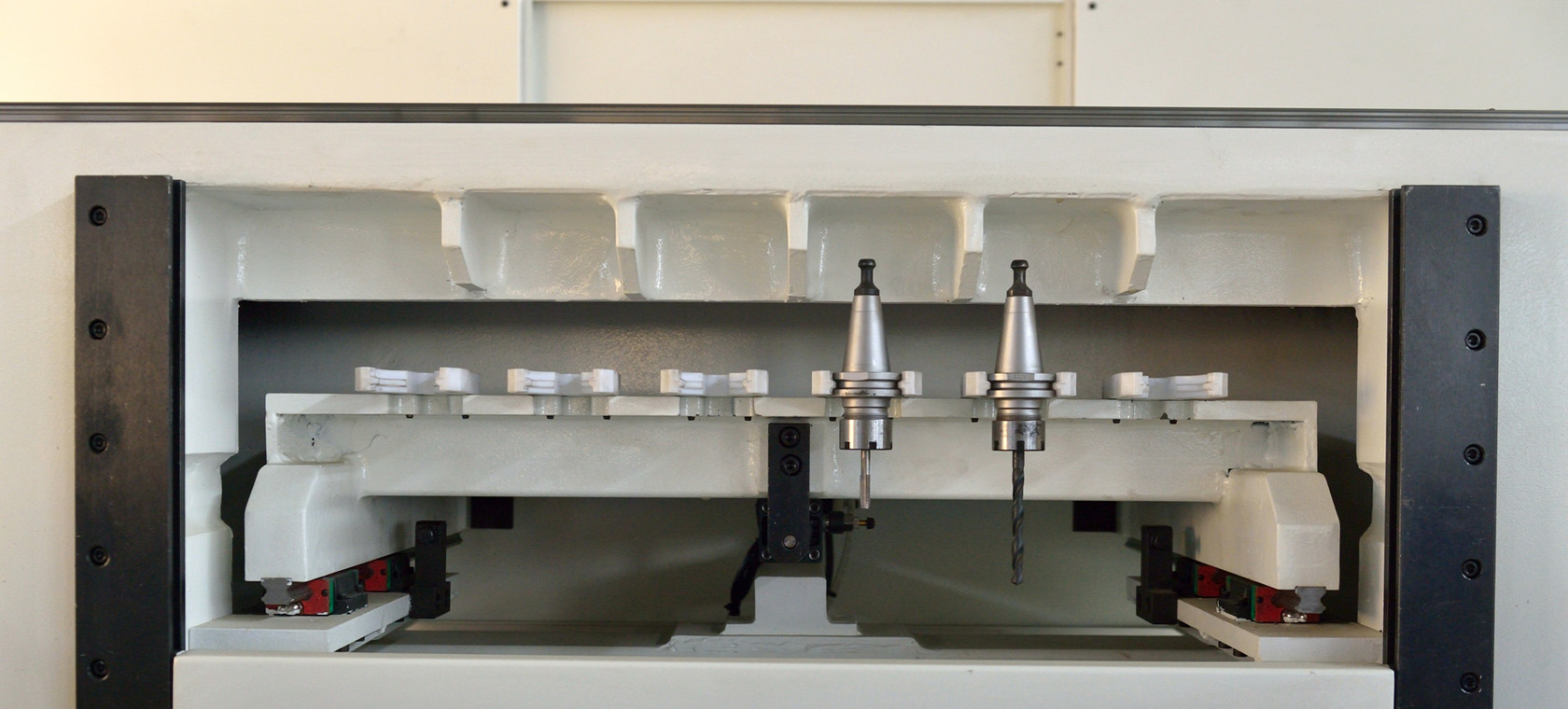

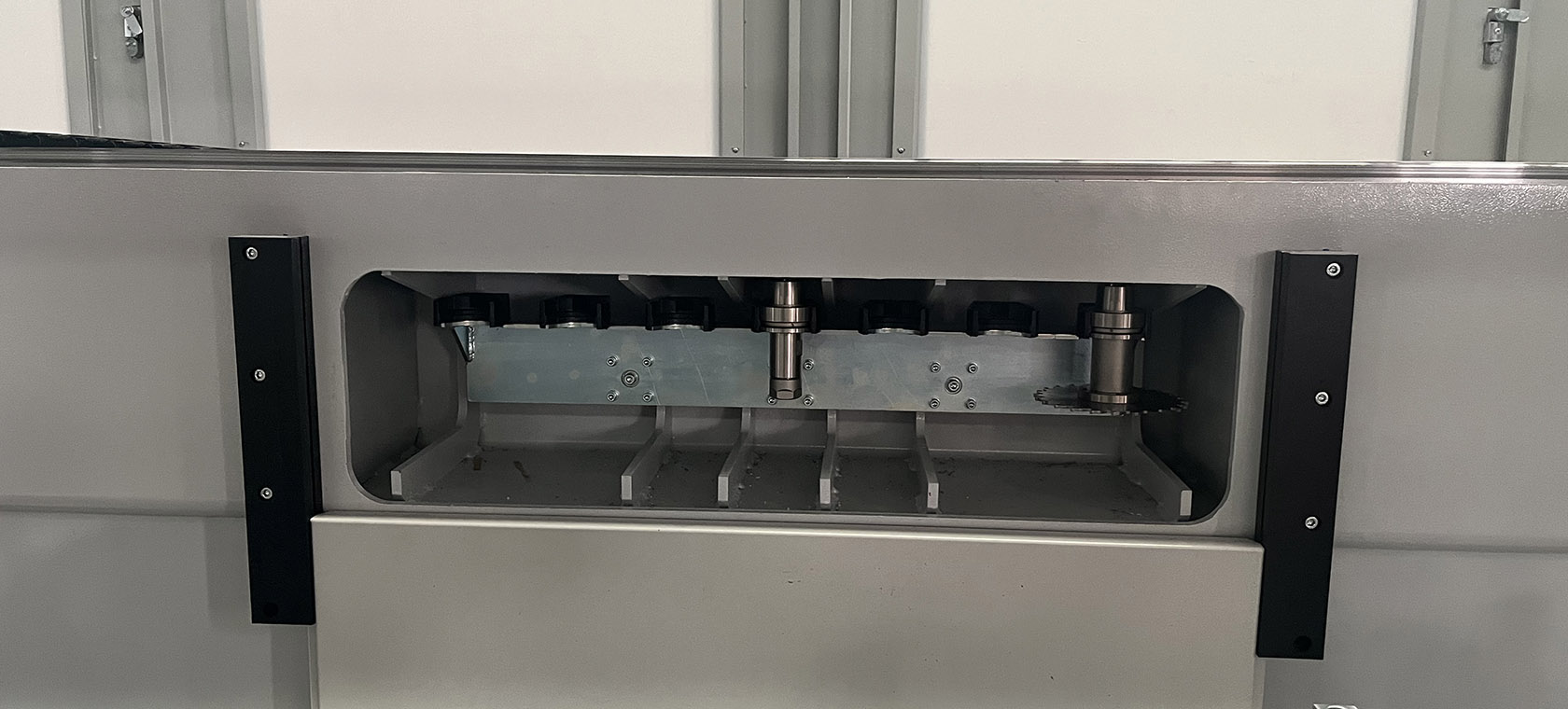

6. Automatic tool change: standard equipped with hidden 6-position tool magazine, standard equipped with 3 tool holders.

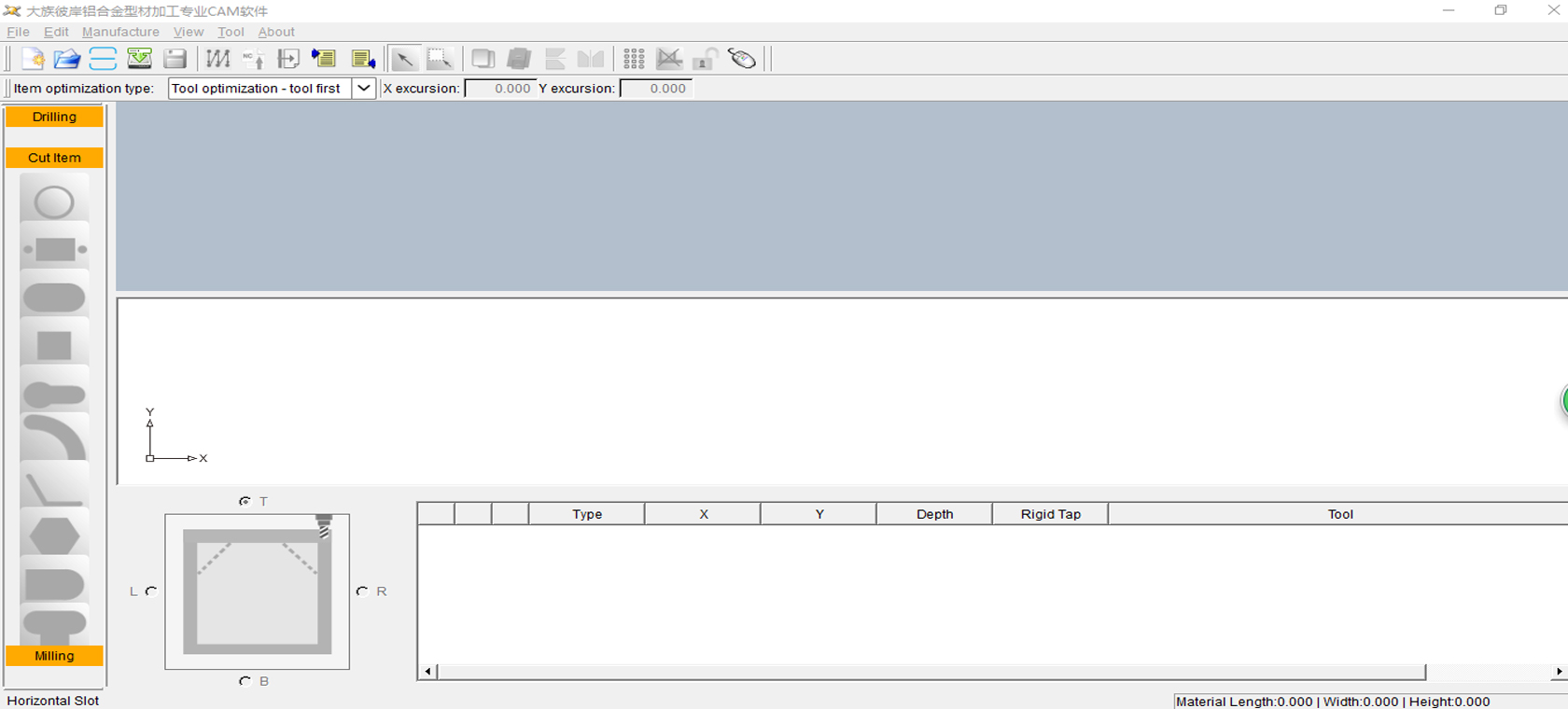

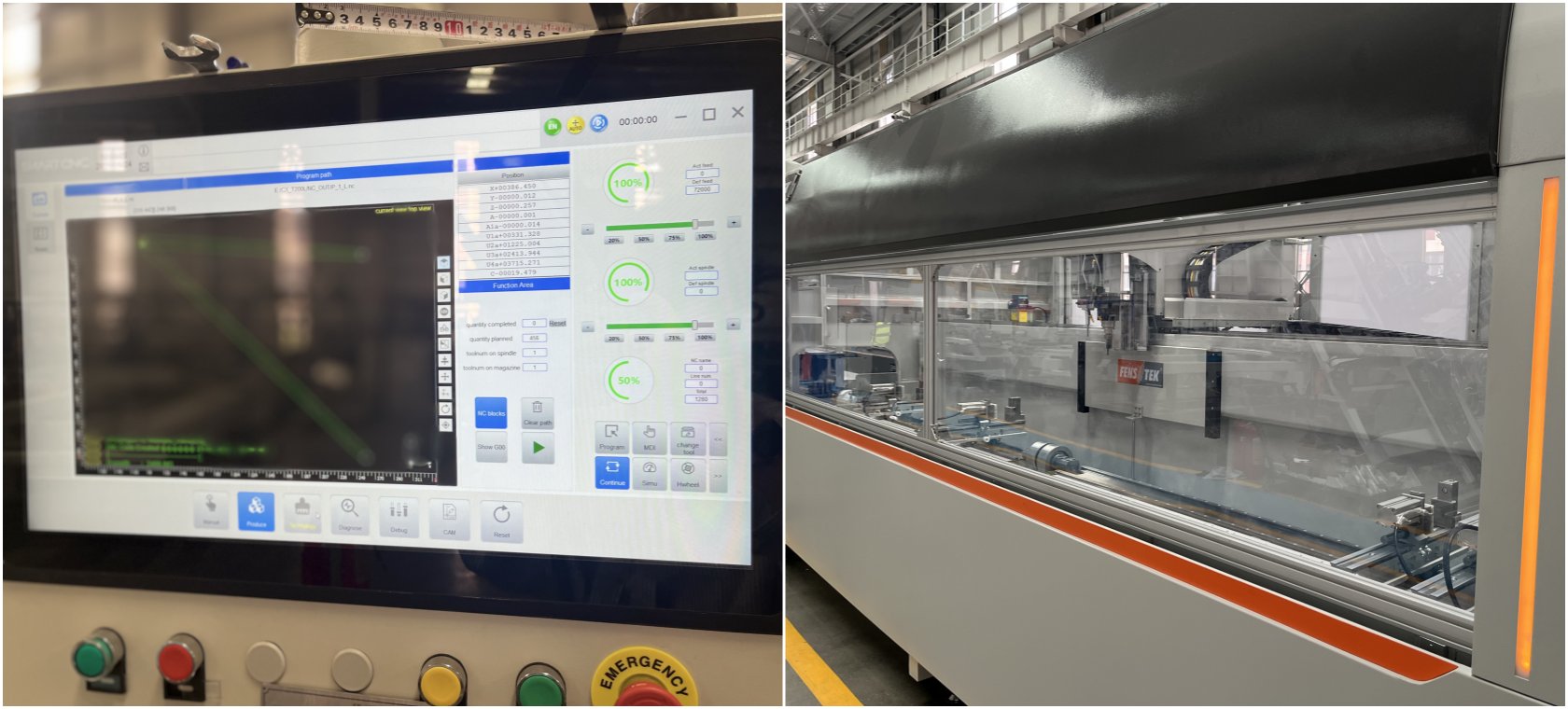

7. Operation in Window environment Industrial PC with 19’’ colormonitor. Friendly machine interface with user-friendly operation.

8. Online with ERP software, can realize scanning code and automatic processing.

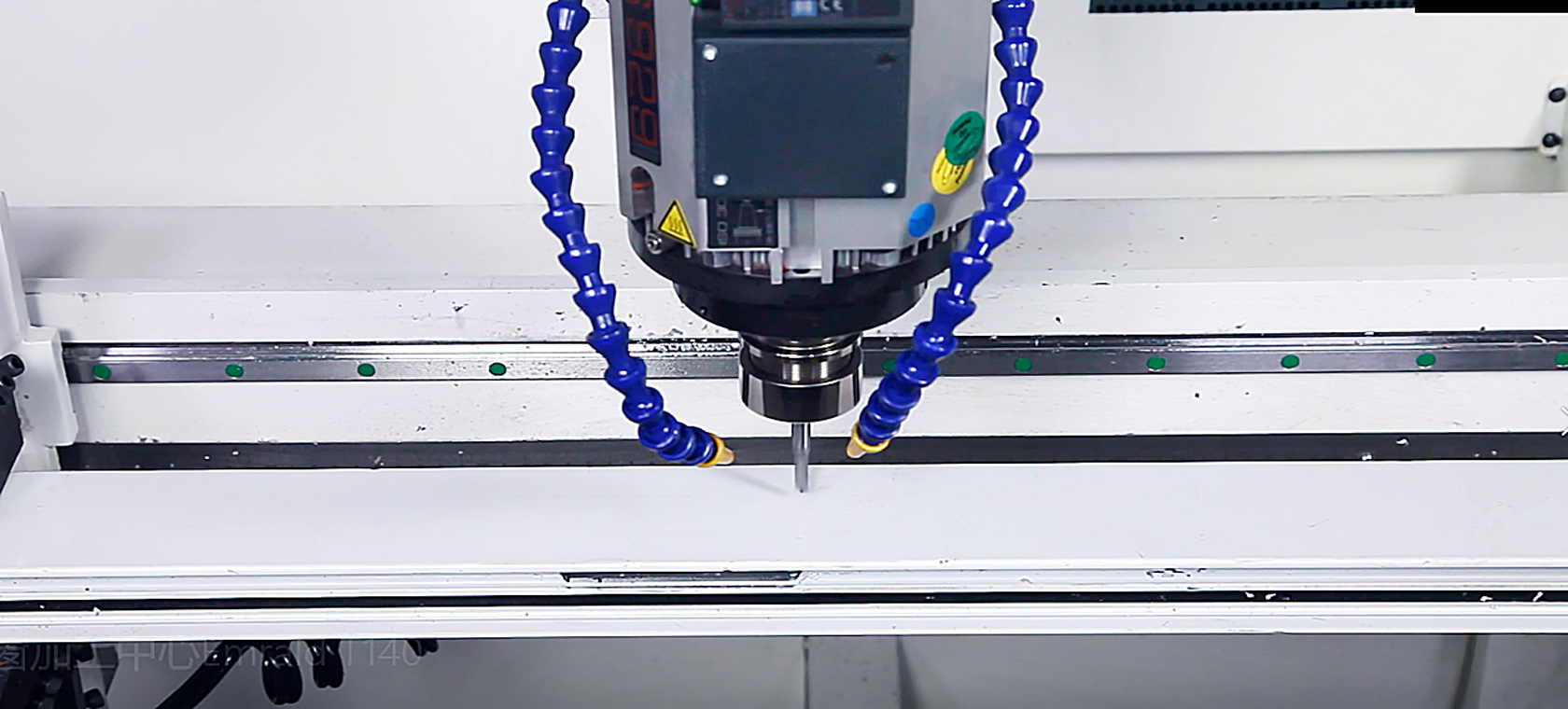

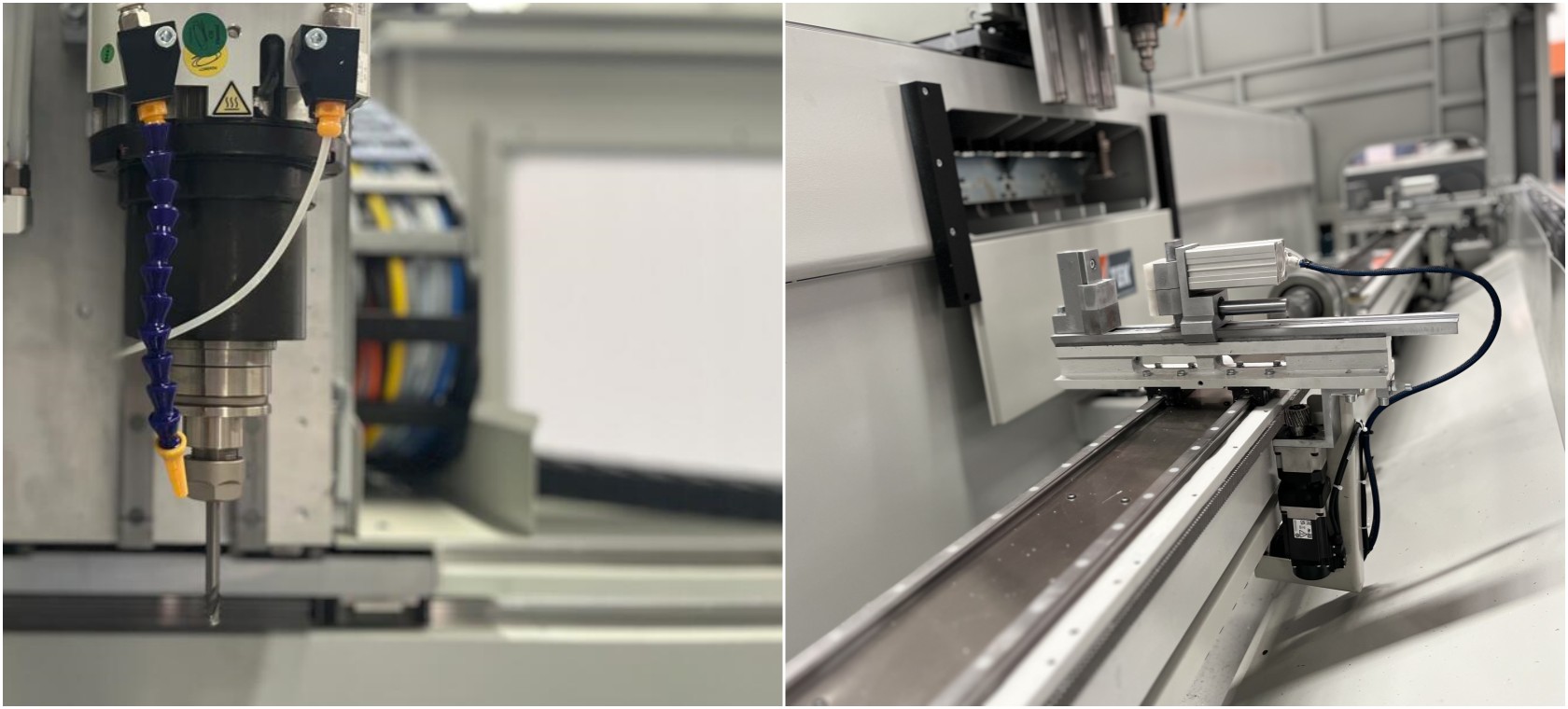

9. Adopting Italian HSD 7. 5kw electrical spindle, high torque assures high processing quality.

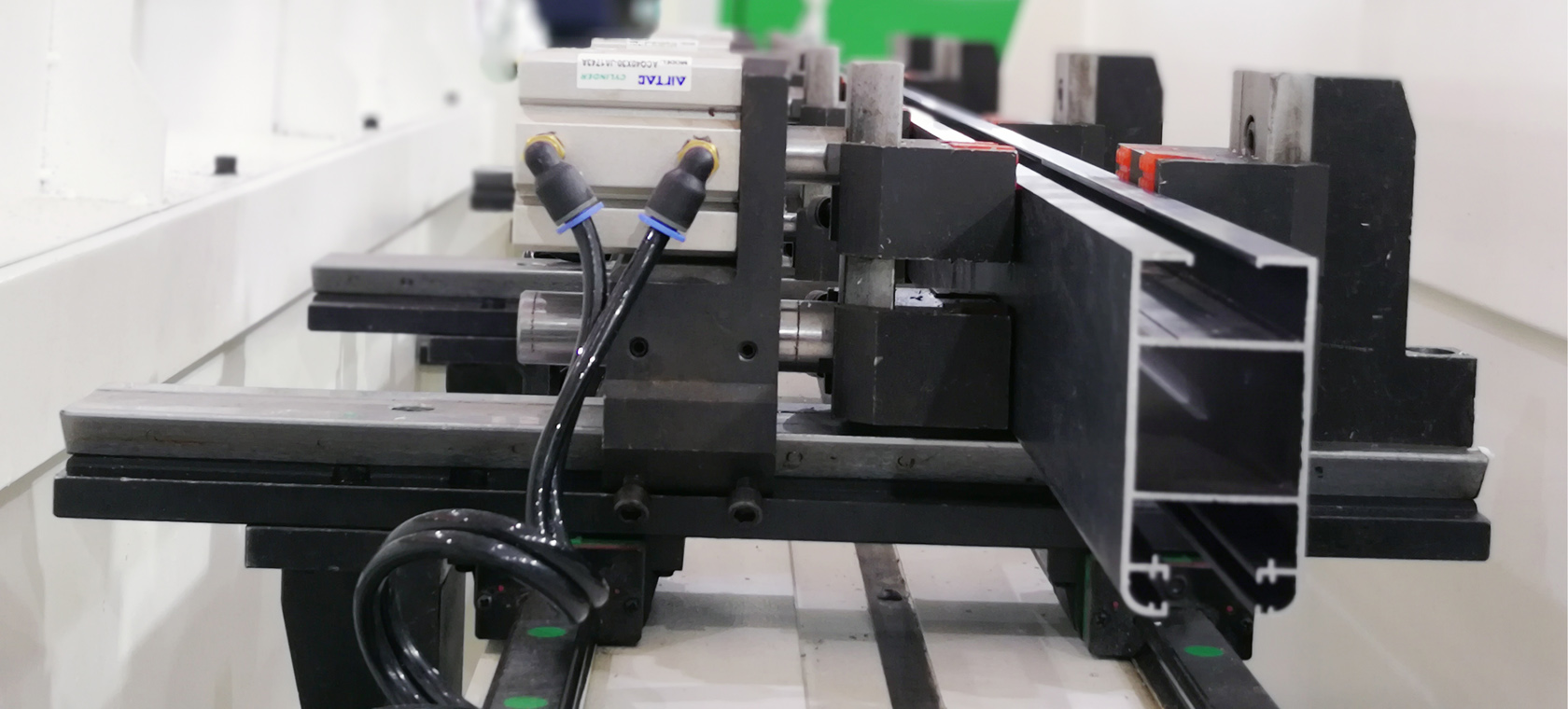

10. Double-layer shock absorber fixture: It is convenient for processing of heterotypic profile and reduces vibration and noise.

11. Standard equipped with guide rail and ball screw automatic lubrication device to extend the service life of the whole machine.

12. Chip bin is standardly included.

13. Extension for longer profile is workable.

Main Accessory


CNC system

PA (German brand)

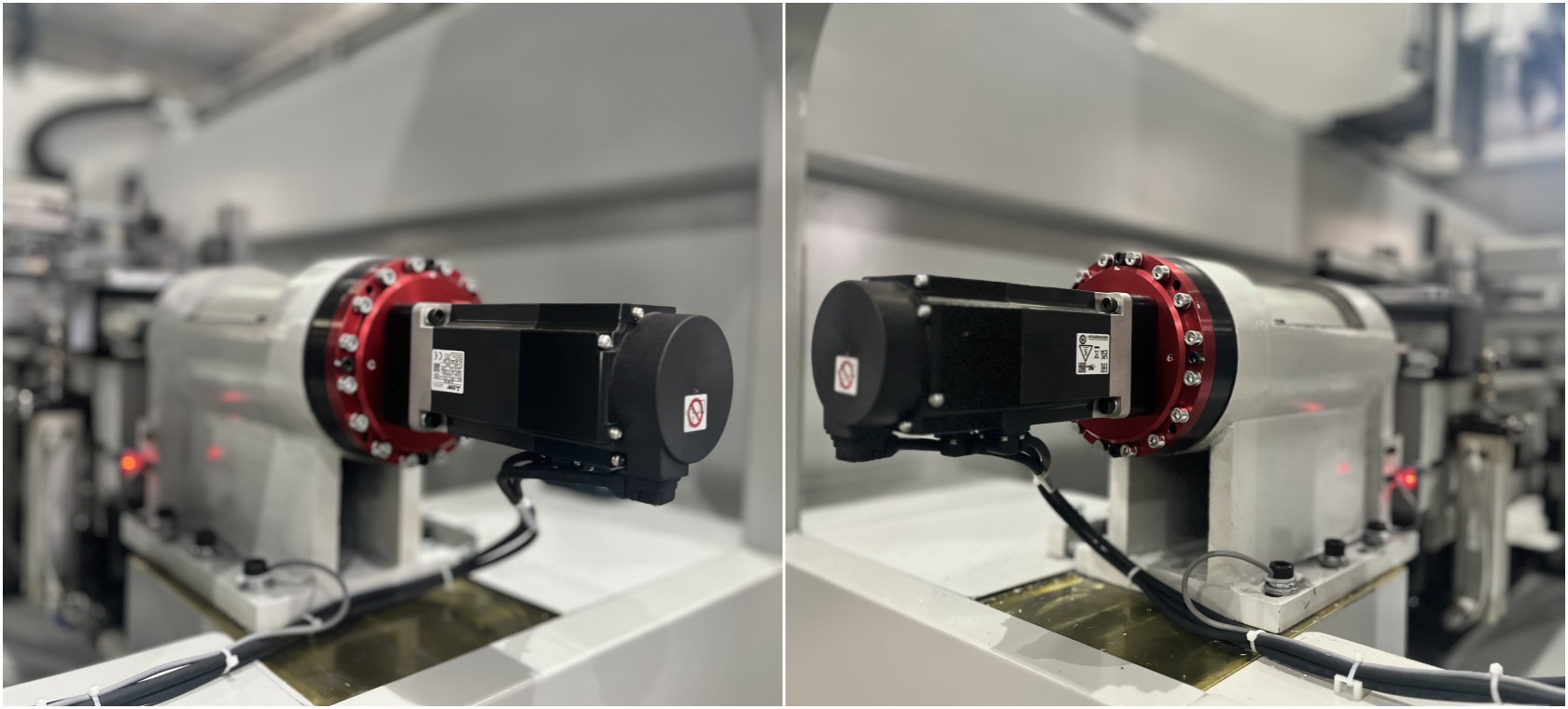

Servo motor

YASKAWA (Japanese brand)

Reducer

APEX(Taiwan brand)

Spindle

HSD (Italian brand)

Square rail

HIWIN (Taiwan brand)

Ball screw

PMI (Taiwan brand)

Rack

APEX (Taiwan brand)

Electrical button and switcher

Schneider (French brand)

Air cylinder

AirTAC (Taiwan brand)


Parameter:




Power supply

3N~50HZ 380V or customized

Z-axis speed

Max 30m/min

Power

13KW

Processing profile height

140mm

Air pressure

0.5-0.8Mpa

Processing profile width

140mm

Air consumption

50L/min

Processing profile length

3000mm

Spindle power

9.0kw

Tool number

6 pieces(optional)

X-axis speed

Max 97.5m/min

Dimension (length×width×height)

4300×2200×2000mm

Y-axis speed

Max 30m/min

Weight

3000kg
