HTW3-120

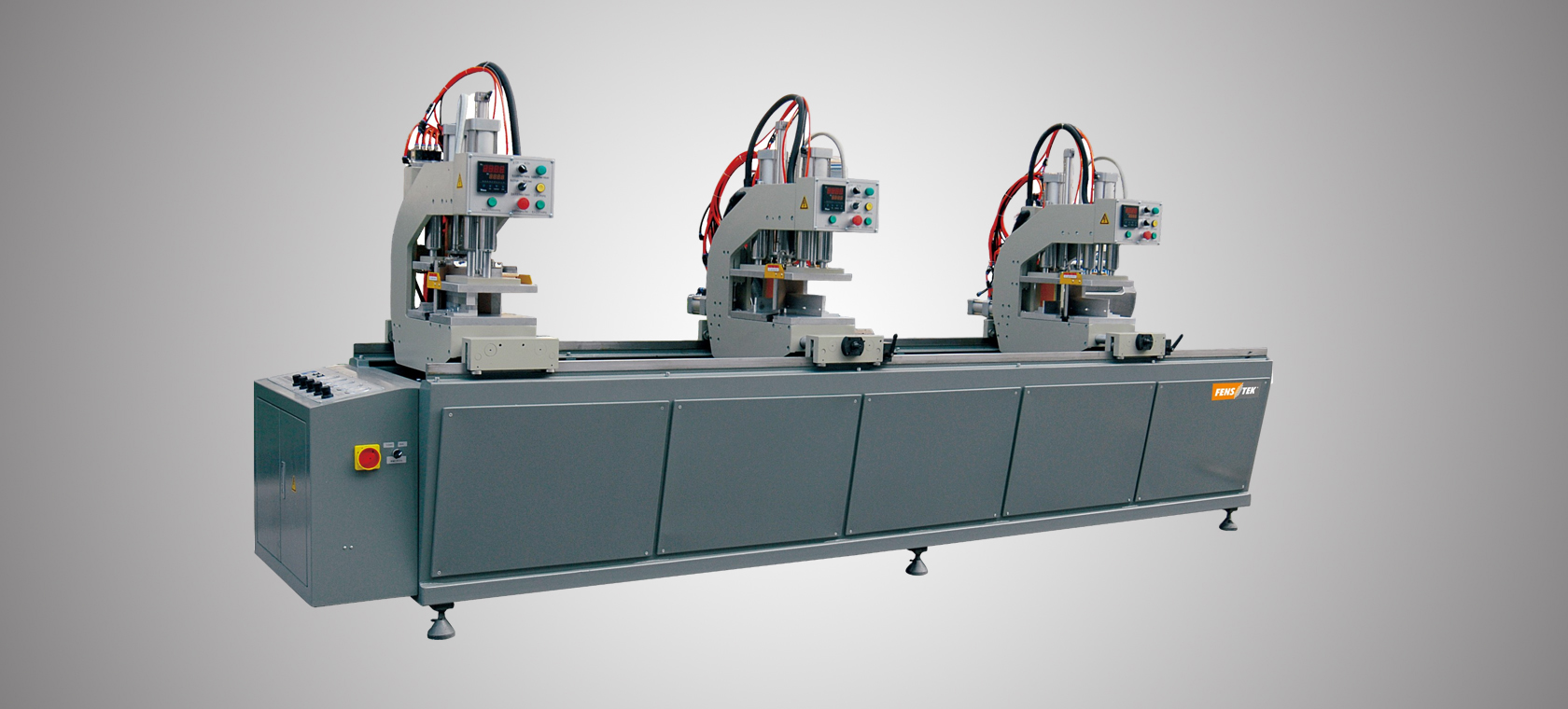

UPVC Window Three Head Welding Machine

Features:

1. UPVC Window Three Head Welding Machine is most popular machinery type with 2mm welding.

2. It is used liner bearing rail.

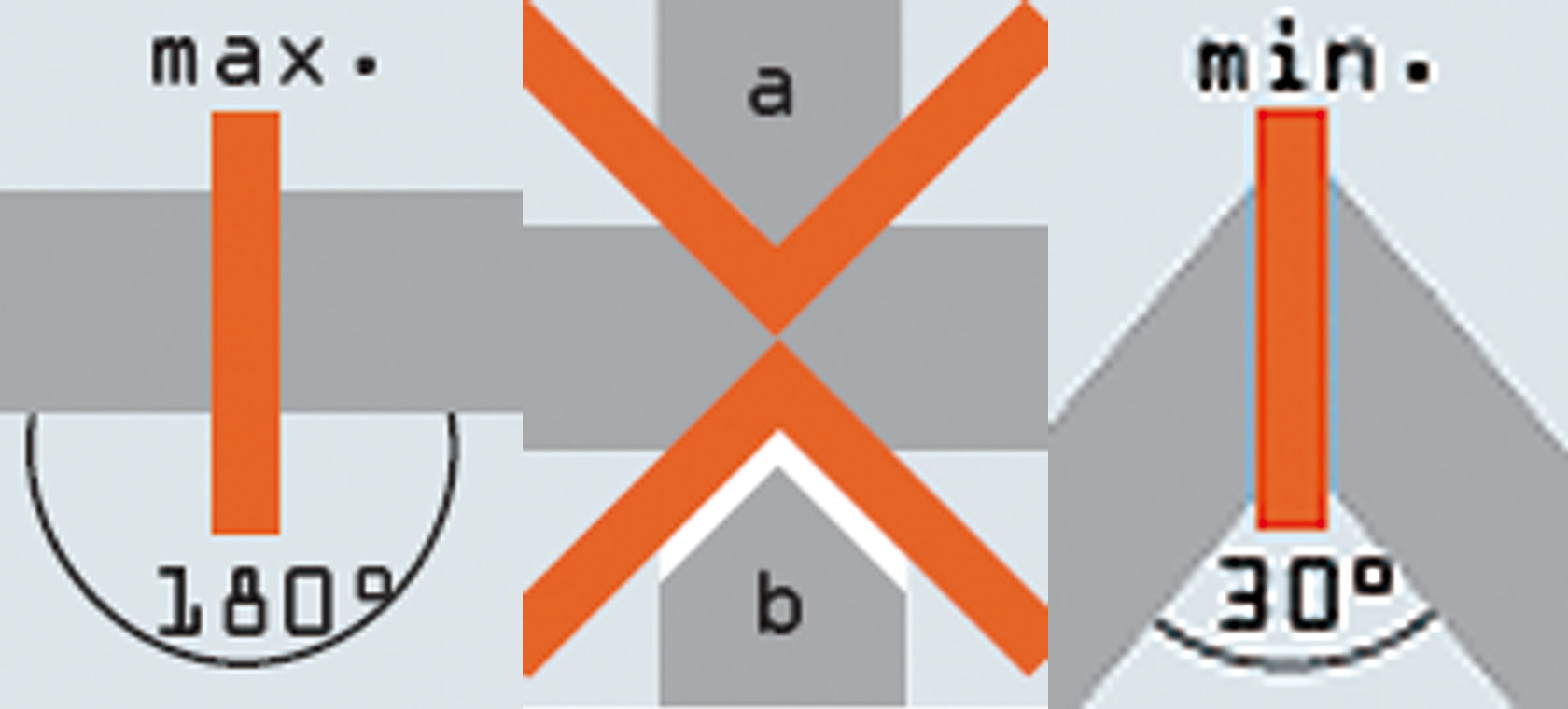

3. Various angles welding between 30 to 180 degree is available on last machine head.

4. Square bearing system guarantee clamping, heating plate, locating plate moving precision
& reliable performance.

5. Solid machinery base and structure ensure long life service with high dimension accuracy.

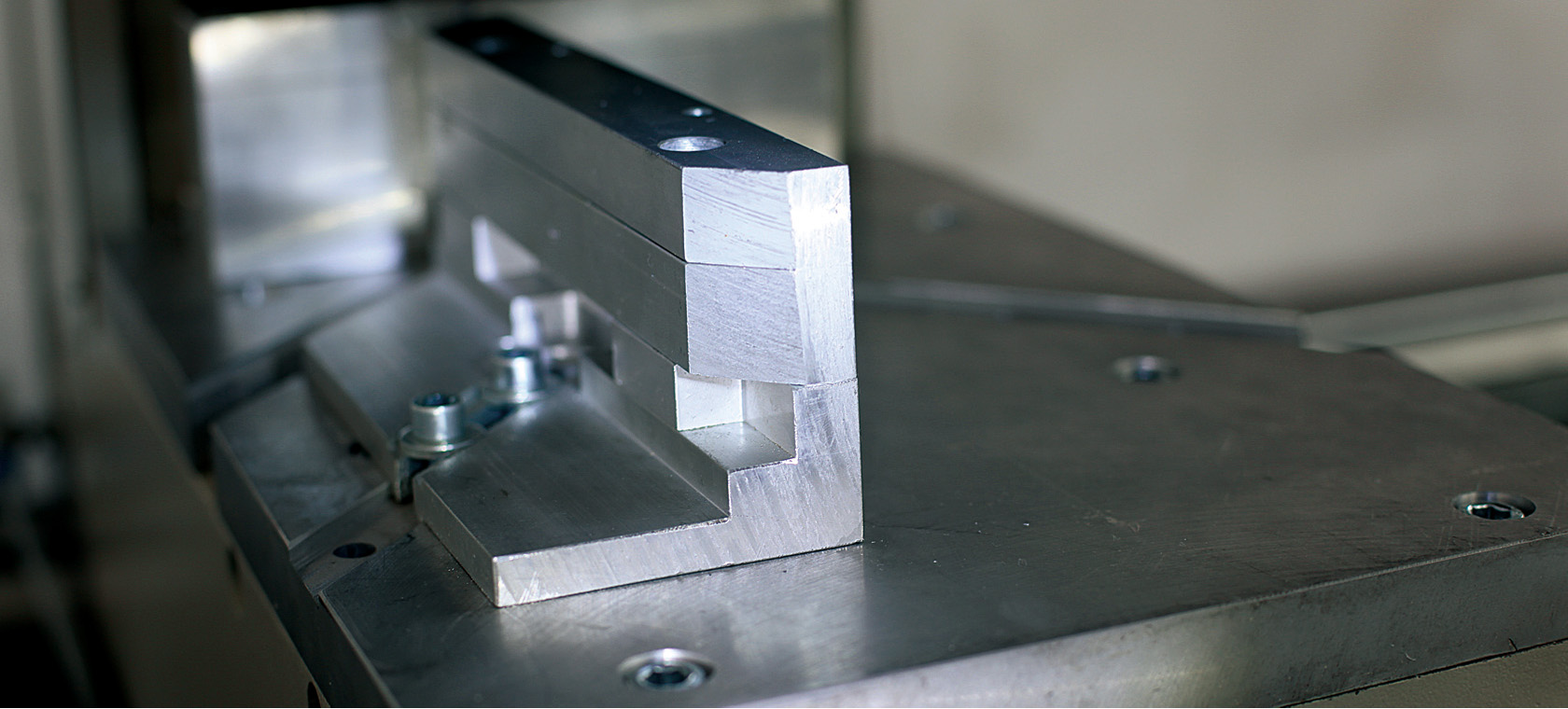

6. profile fixture ordered separately can meet various height profiles' processing requirement

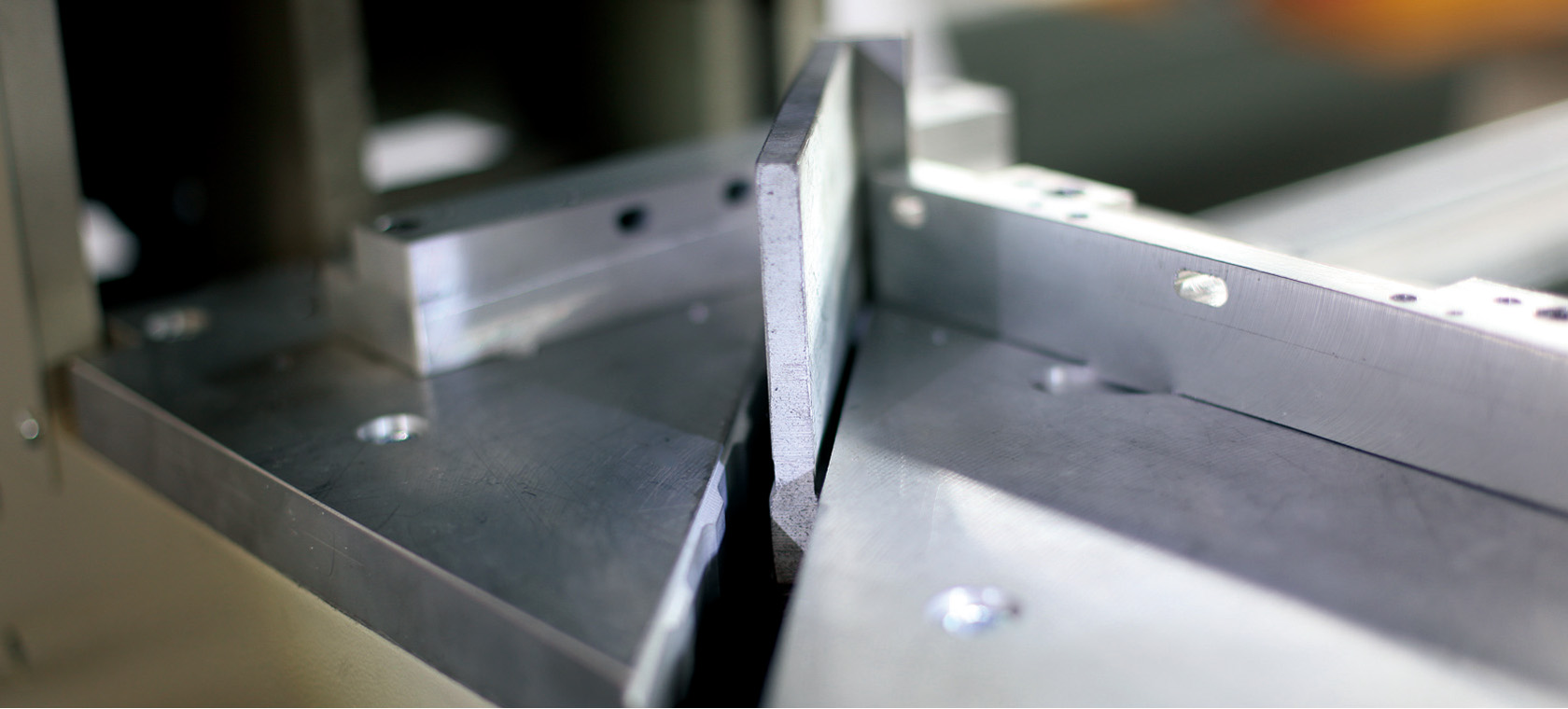

7. Special profile fixture is easy to change, for high corner strength and later good  cleaning

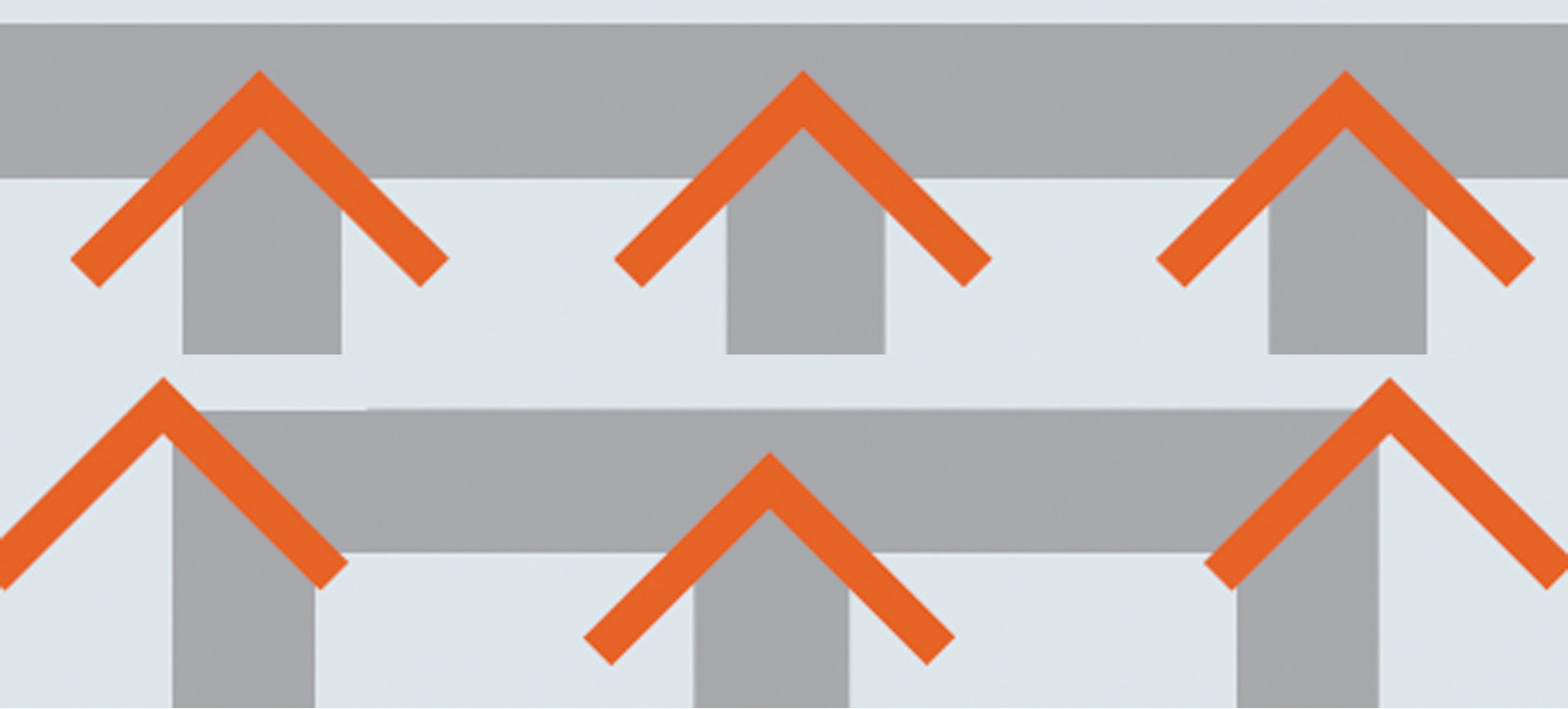

8. Each machine head can be working separately or combination.

Main accessory:


PLC

Omron

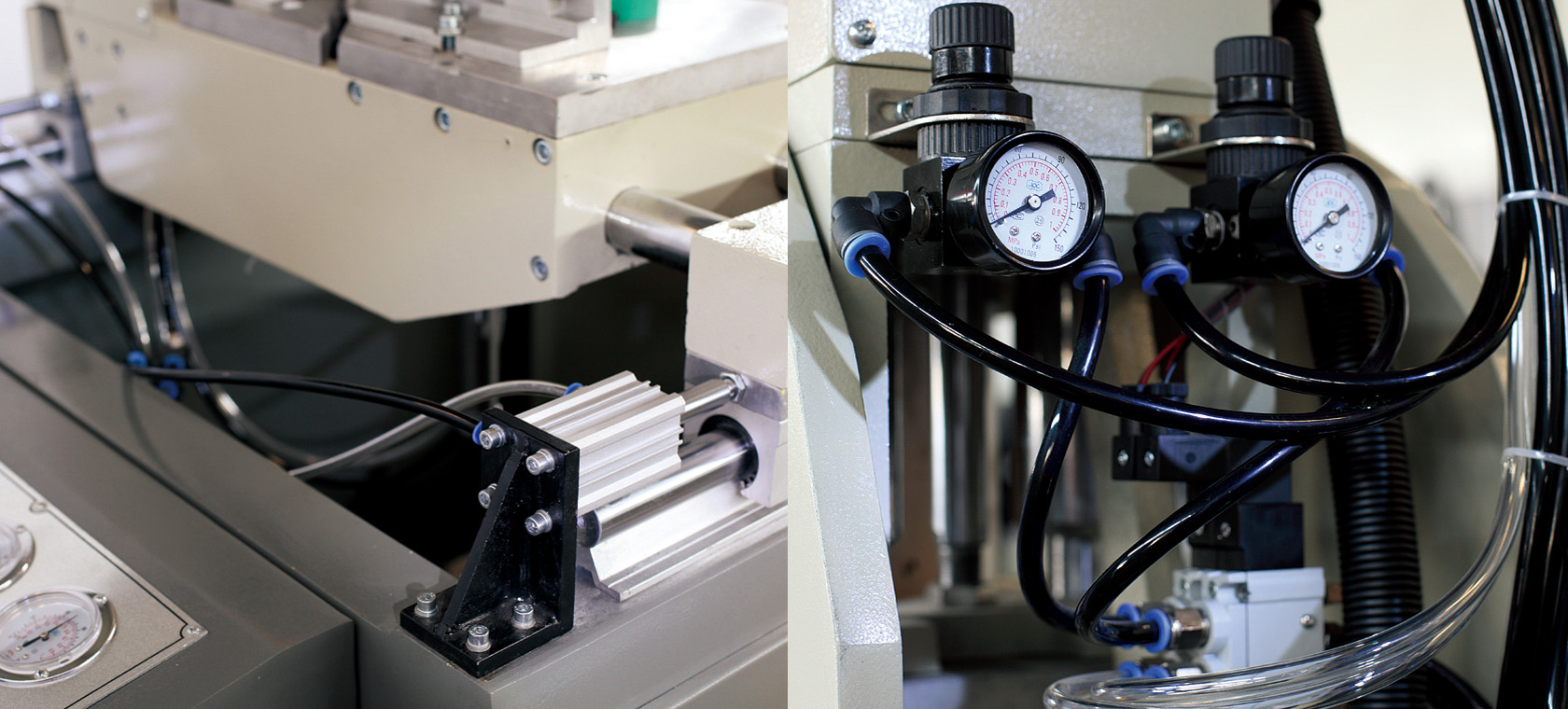

• Solenoid valve

Airtac

• Cylinder

Airtac

• Air Filter Device

Airtac

• Electrical Button and Switcher

Schneider

• AC Contactor and Circuit Breaker

Schneider

 Temperature Controller

Japan Omron

Parameter:


Input Voltage

1N~50Hz   220V  or Customer specification

Input Power

3.5(kw)

Operation Air Pressure

0.5~0.8(MPa)

Air Consumption

150(L/min)

Welding Height

20---120 (mm)

Max Welding Width

120 (mm)

Welding range

400----3500mm

Overall Dimension

4600×1100×1200(mm)

Machine Weight

1300(kg)
