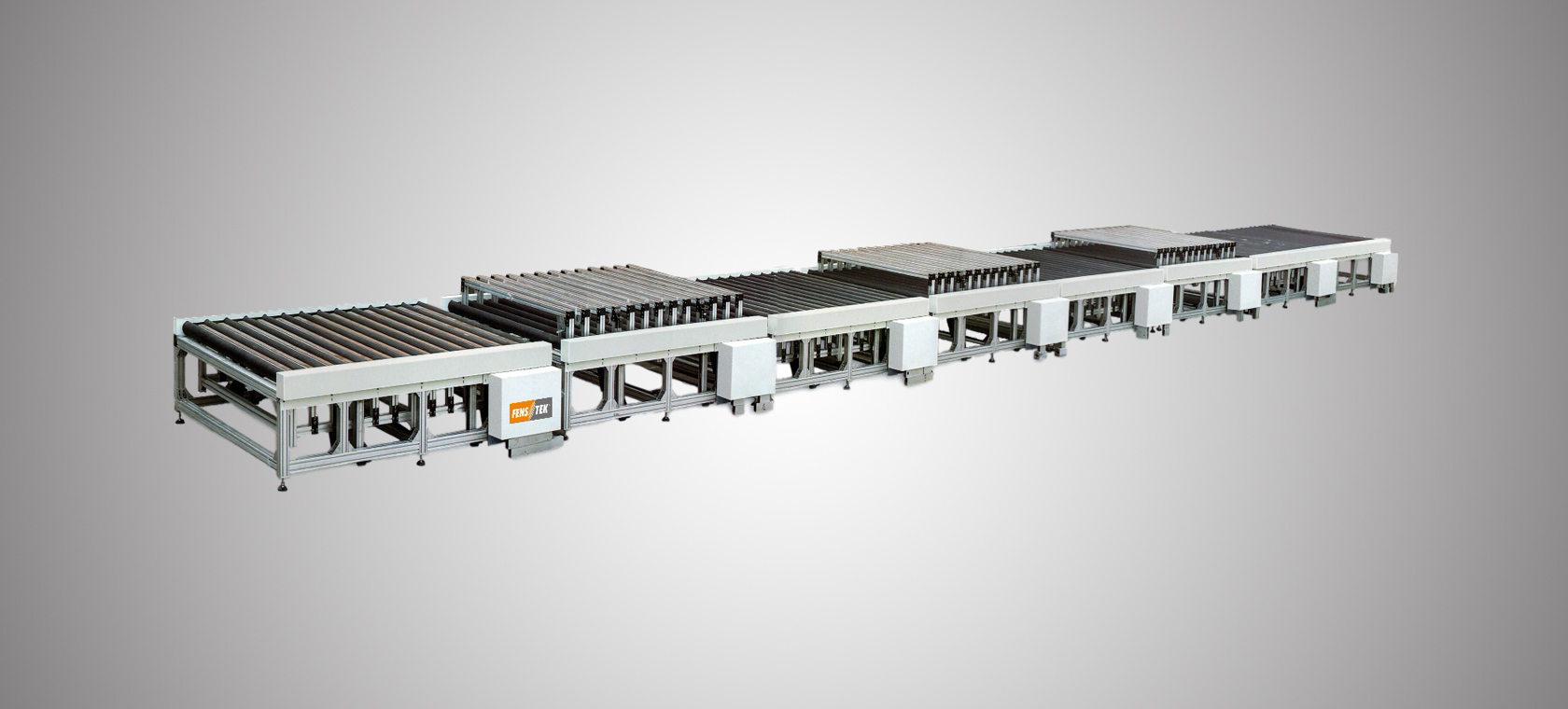

WDAL2800×2500

Aluminium Windows & Doors Assembling Line

Features:

1. Aluminium Window Assembling Machine WDAL2800×2500 is suitable for the assembly of aluminium alloy window & doors after machining.

2. Use four cylinders to synchronously control the lifting and lowering of the operation platform, so as to meet the requirements of multi-station processing in the same working procedure.

3. The processing area has a cache function, which effectively alleviates the problems of different speeds of each working procedure; The operation unit adopts the integrated structure of roller wheel and lifting operation table. The operation on the lifting & lowering operation platform does not affect the transmission of the window and door by the lower roller wheel.

4. Synchronous belt transport, the assembly area has the function of roller drive, can achieve stepless speed regulation, smoother operation.

5. Using aluminium alloy profile assembled to reduce the equipment weight, modular assembly, can be freely joined together; It is beneficial to standardization, generalization and serialization of production, its appearance is simple and beautiful.

 Parameters


 Power supply

 380V 50Hz

 Power

 0.75KW

 Air pressure

 0.5~0.8Mpa

 Air consumption

 200L/min

 Running speed

 adjustable within 5m and 20m

 Single unit motor power

 0.75kw

 Transportable window width

 2000mm

 Transportable window height

 180mm

 Single unit (length×width)

 2800×2500 (or customized)

 Single unit dimension

 2900×2900×1000 mm

 Weight

 about 600kg
