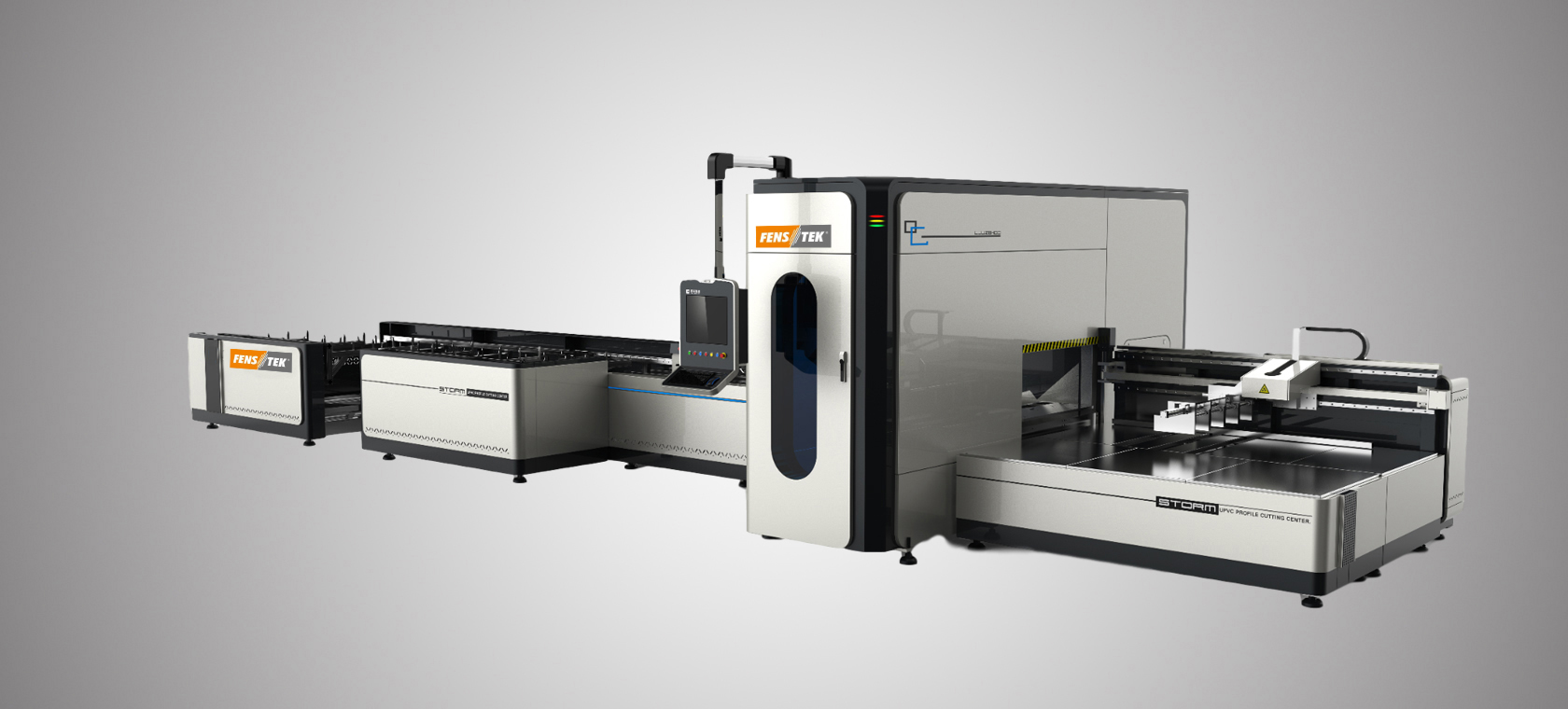

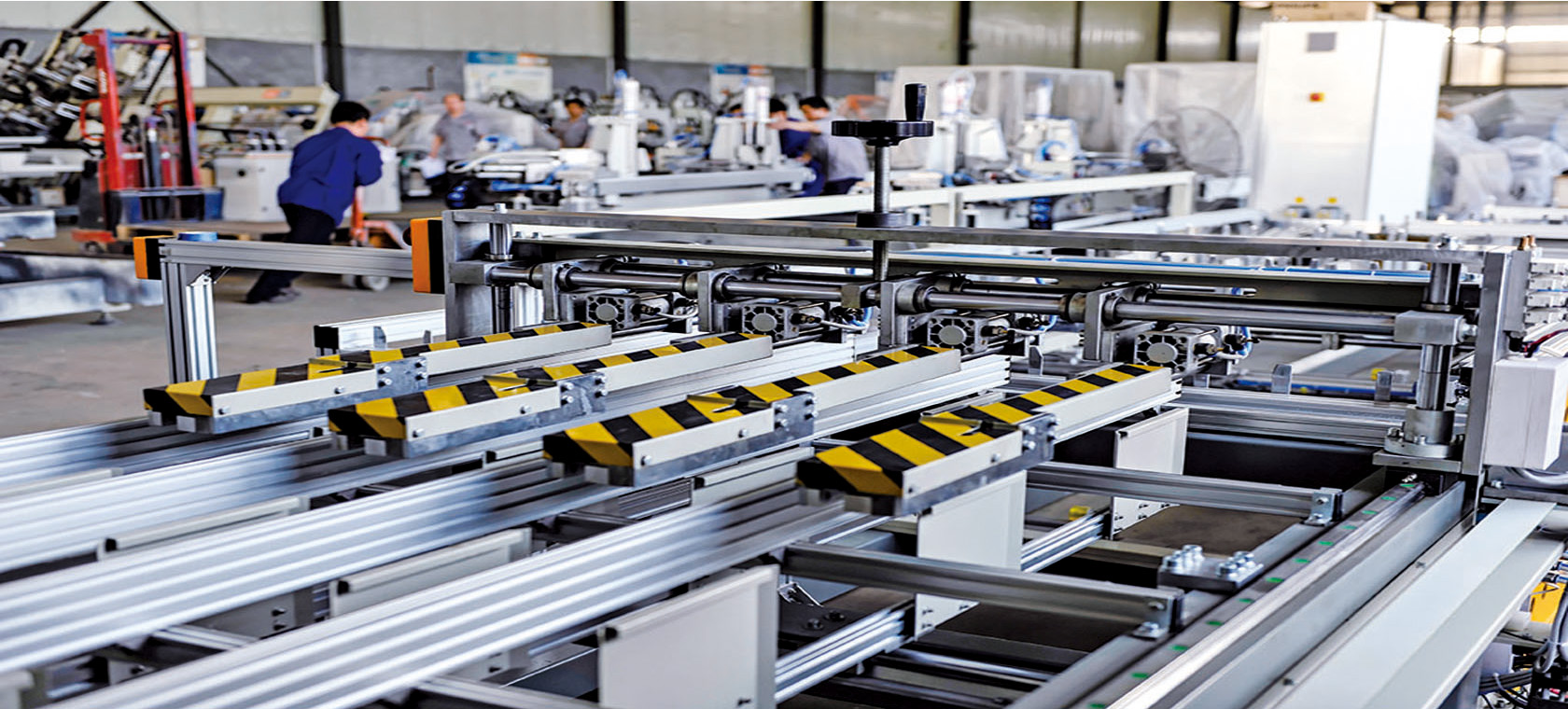

UPVC Window Profile Cutting Center

Features:

1. UPVC Window Profile Cutting Center is used for auto cutting of the 45°, V-notch and mullion cutting of upvc profile. Suitable for massive production.

2. Download the profile cutting data automatically, without manual input or adjustment.

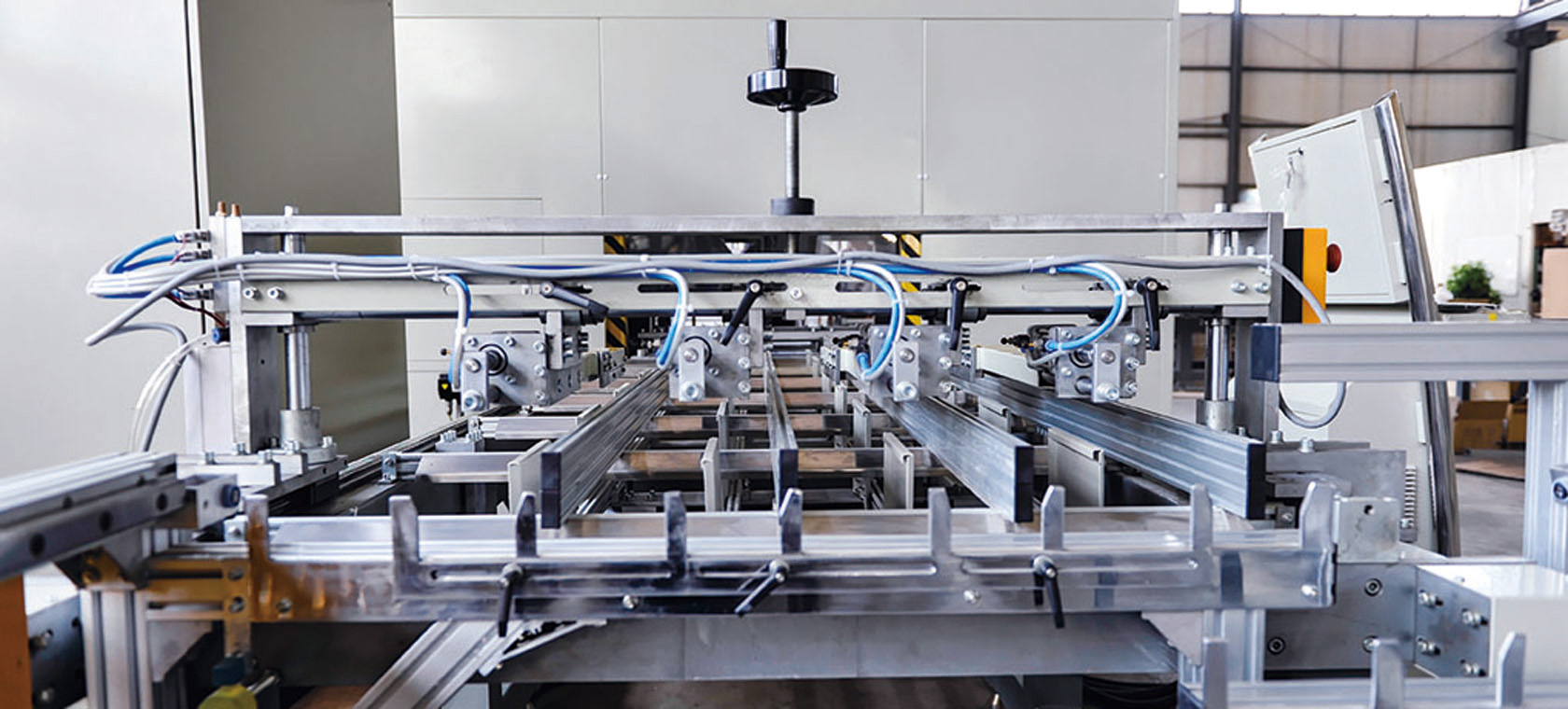

3. Complete the profile clamping, feeding, cutting automatically. High degree of automation.

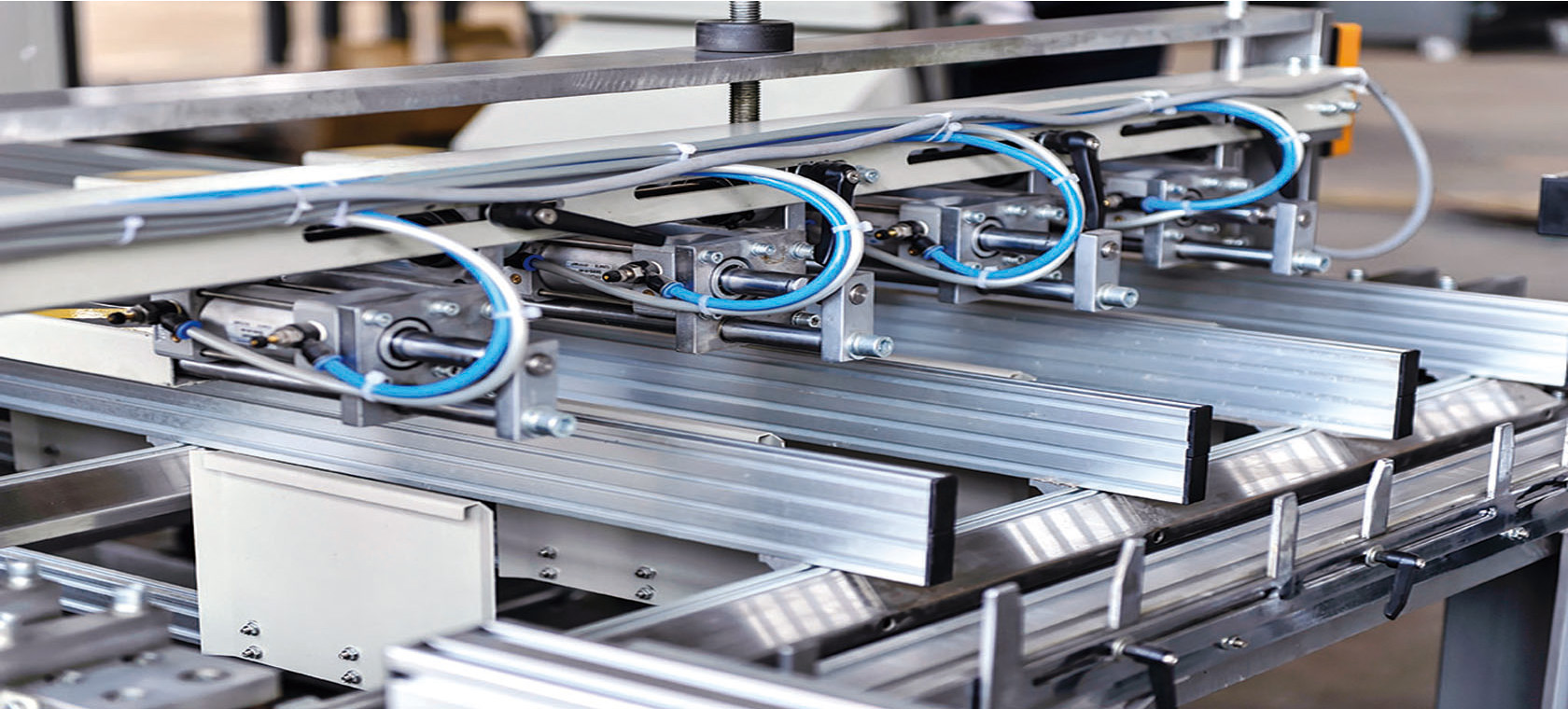

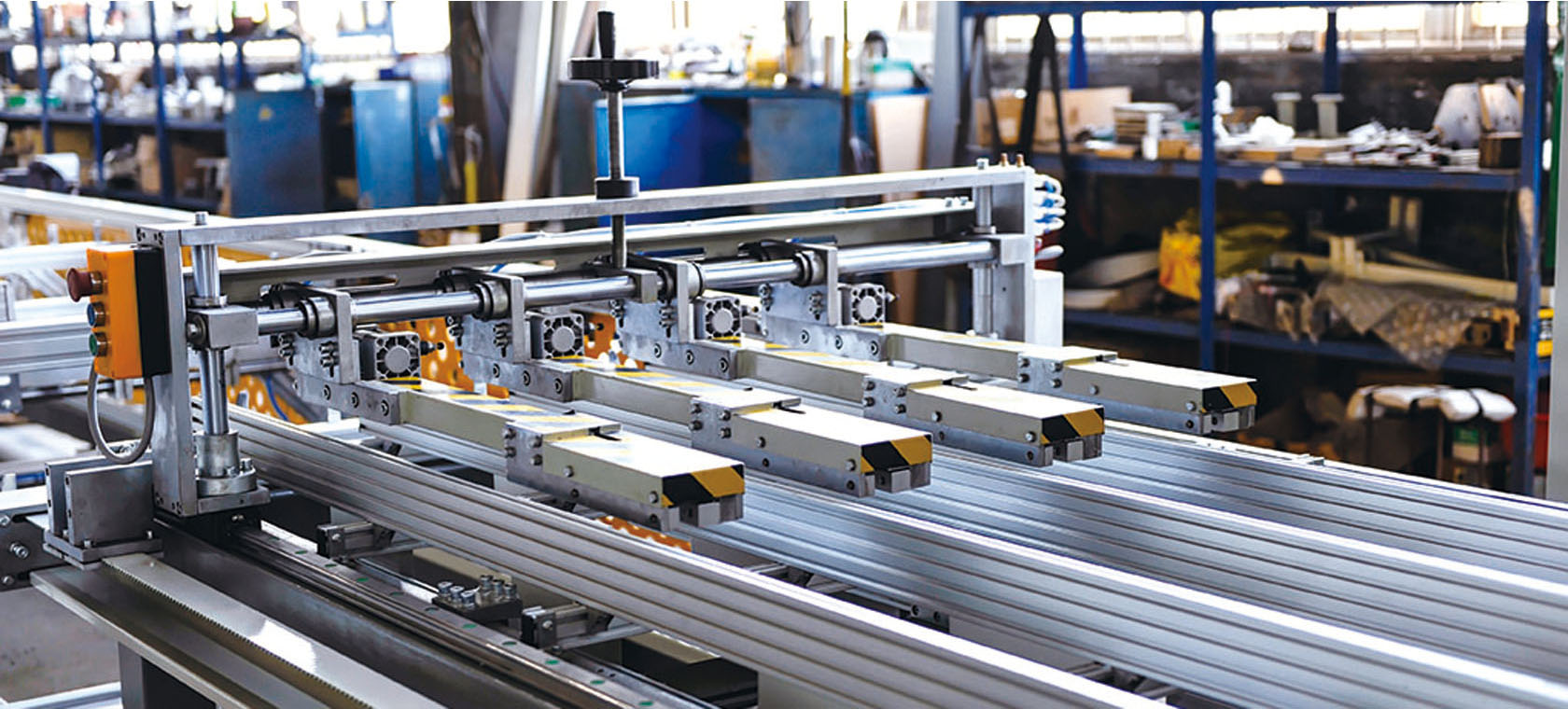

4. The machine hand can clamp 8 profiles at one time and finish the cutting of them. High production efficiency.

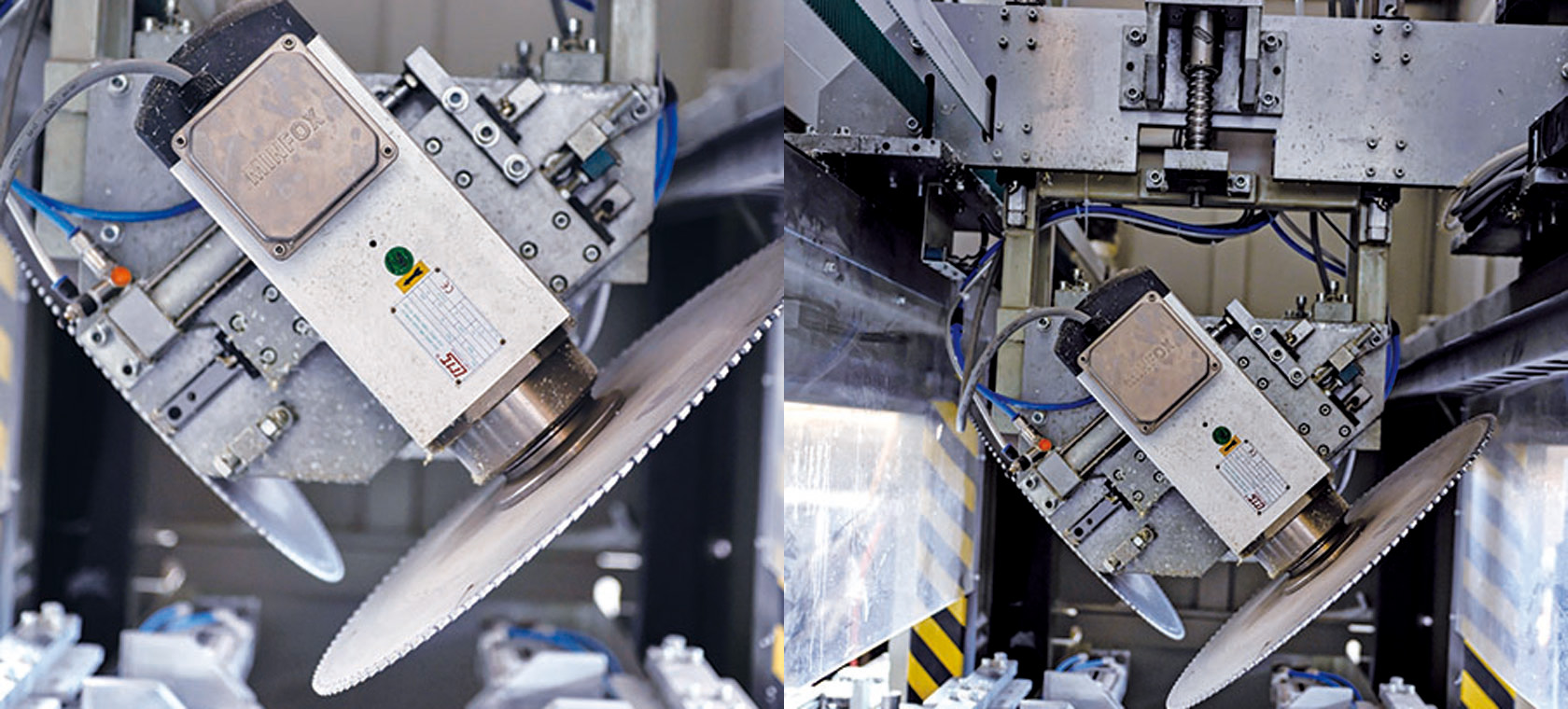

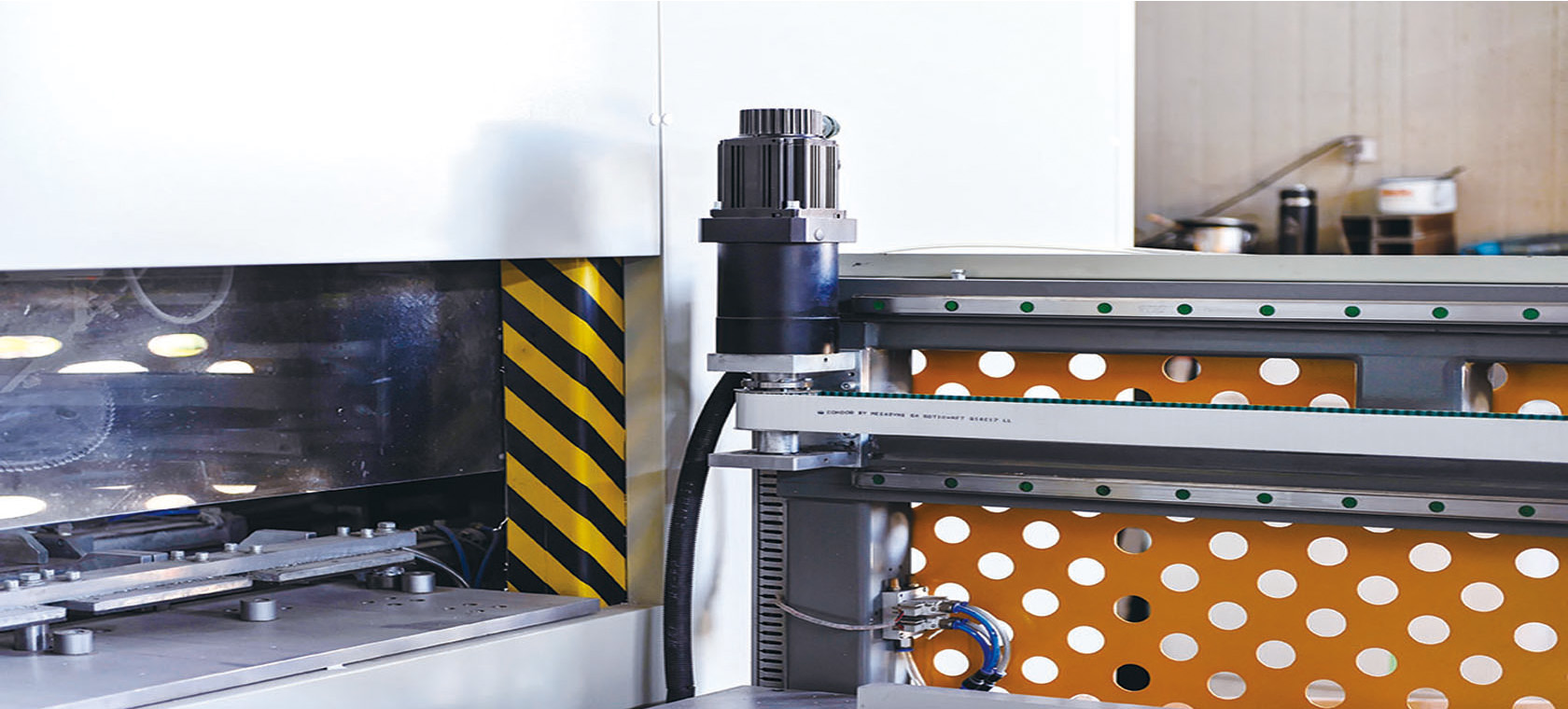

5. High-speed main shaft cutting. High quality cutting.

6. Linear motion guide. High precision cutting.

7. Three-axis CNC controlling. High degree automation.

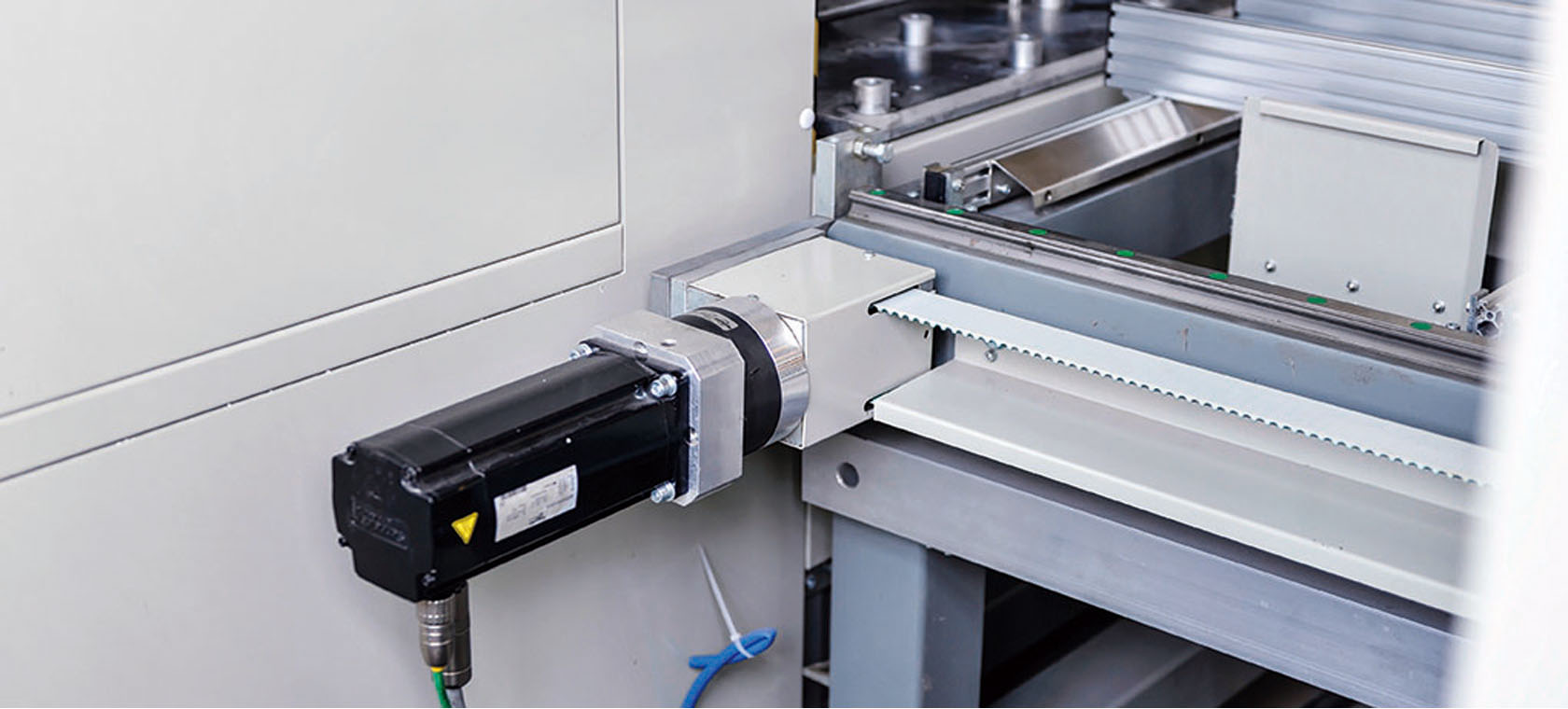

8. Imported driving system, close-loop control, high machining precision.

9. Imported electrical and pneumatic components to assure the high stability.

10. UPVC Window CNC Cutting Center Can be connected with the computer and start and choose the cutting through computer to realize the CAD/CAM.

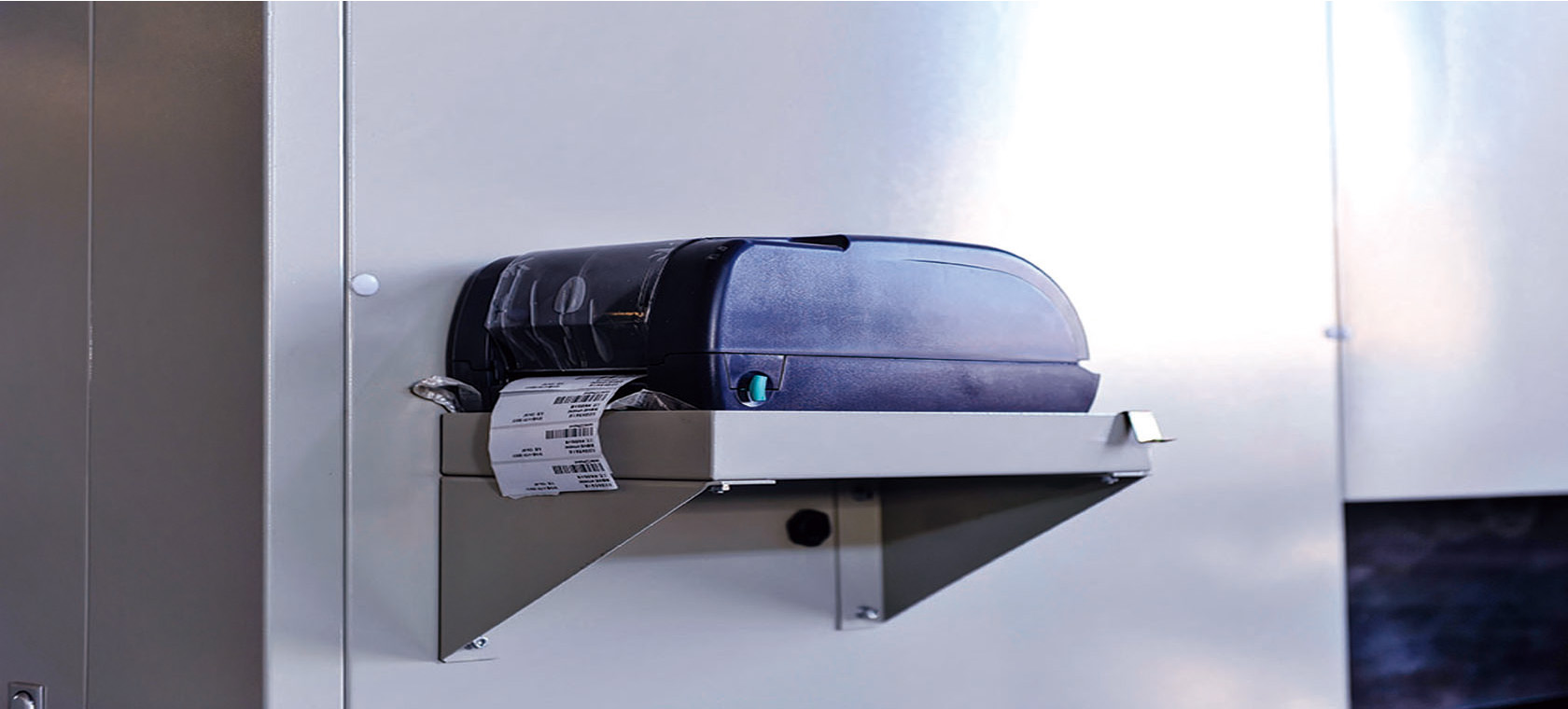

11. Can be connected with the bar code printer to print the bar code on production. Easy for cutting profile management.

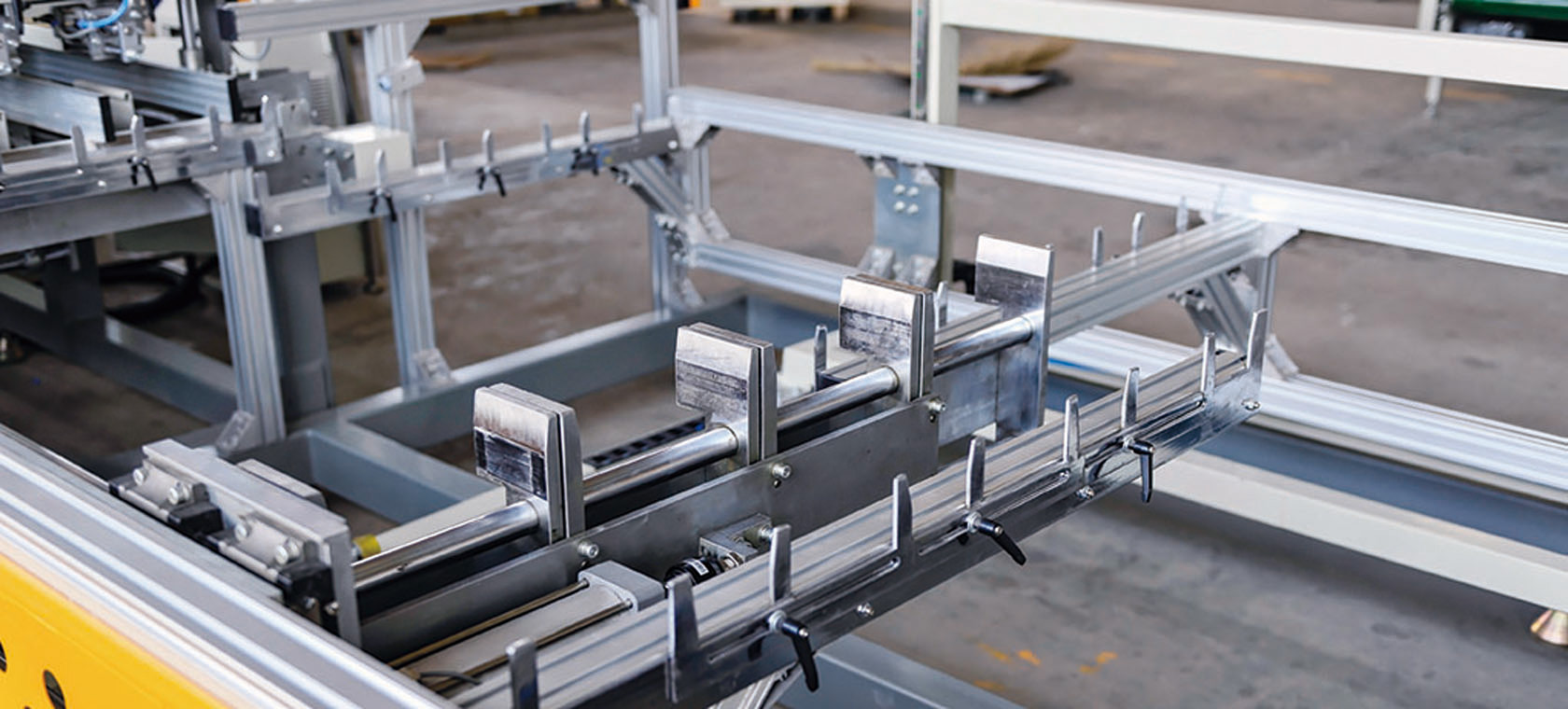

12. Equipped with the auto cut profile outputting system to assure the easy operation.

13. Equipment with the left residue collecting system to assure the cleanliness of the workshop.

14. The heights of the operating table and the machine are suitable for worker’s operation and decrease the labor intensity.

15. After cutting, the saw will be left up to return back. Thus the profile and be delivered immediately to save the time.

Main Accessory


Controlling System

Schneider   or other world famous system

Solenoid   Valve

Japan   SMC

Cylinder

Airtac

Air   Filter Device

Japan   SMC

Electrical Button and Switcher

Schneider

AC   Contactor and Circuit Breaker

Schneider

Approach Switcher

Swiss CONTRINEX or Japan Omron

Linear   Bearing System

Linear   (South Korean brand)

Temperature Controller

Japan Omron

Saw   Blade

Japan   UNIKEN

Motor

Anhui Sanyang (Best Chinese Motor   Brand)

Controlling   System

Schneider

Servo Driver

Schneider

Operation   Panel

Schneider   or other world famous brand


Parameter


Input Voltage

380V/50HZ

Input Power

18(kw)

Operation Air Pressure

0.5~0.8(MPa)

Air Consumption

100(L/min)

Motor Rotary Speed

3000r/min

Saw Blade Diameter

Φ500×4.3×Φ30mm

Cutting Height

frame & sash ≤120mm

Mullion

54~120mm

Depth for

V ≤60mm

Cutting Width

Max140(mm)

Cutting Length

Frame Min 350mm

Mullion

Min 450mm

Overall Dimension

12900×4300mm×2000(mm)

Machine Weight

3300(kg)
