Aluminum Window CNC Copy Routing Machine, China Factory Price, FENSTEK

CMC3-1200

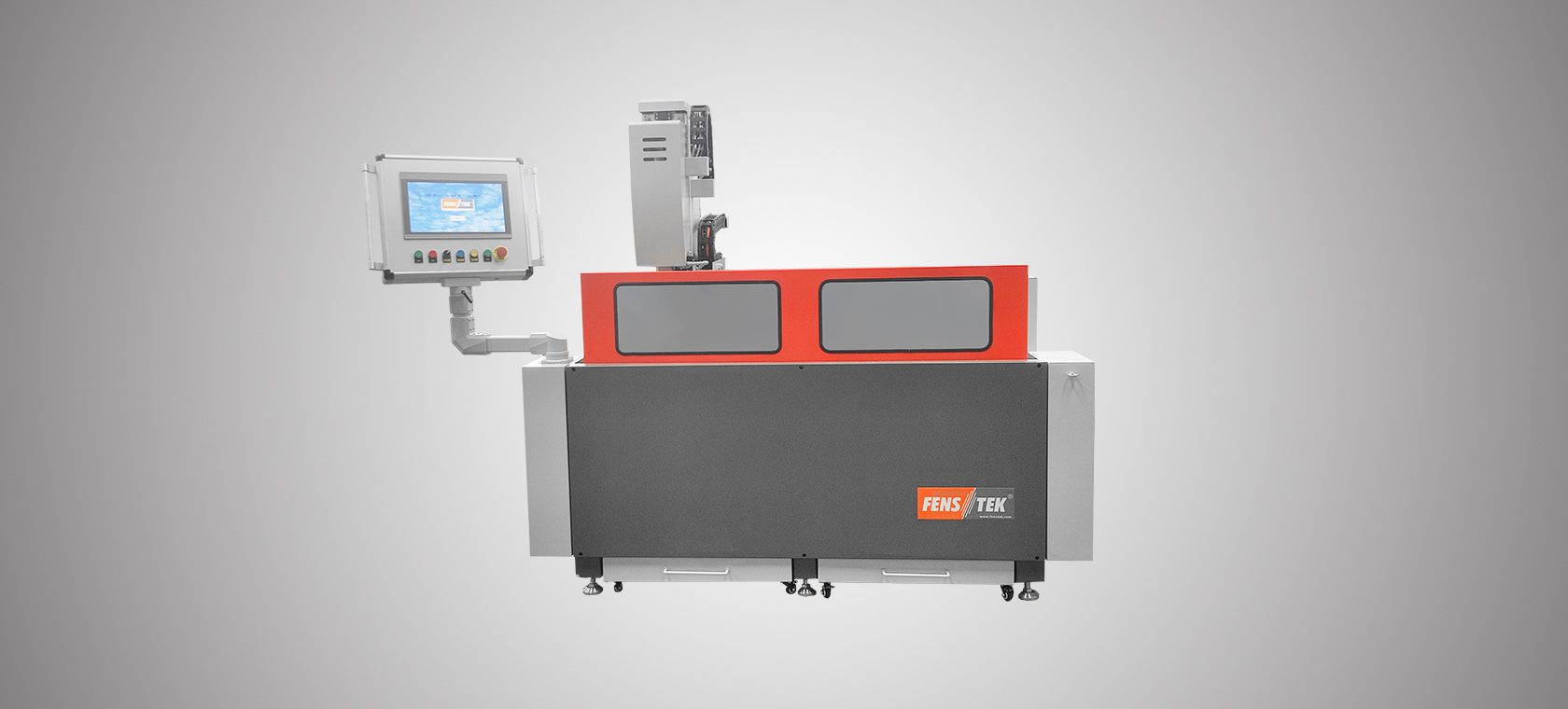

Aluminum Window CNC Copy Routing Machine

Features:

1. Advanced industrial CNC 3-axis profile machining systems.

2. Suitable for Aluminum, PVC, and other light metal material processing;

3.The machine completes milling, drilling, grooving and other multi-functional precisely in one time.

4. Worktable with pneumatic positioning -90°/0°/+90° .Optional 45 degree milling function is available.

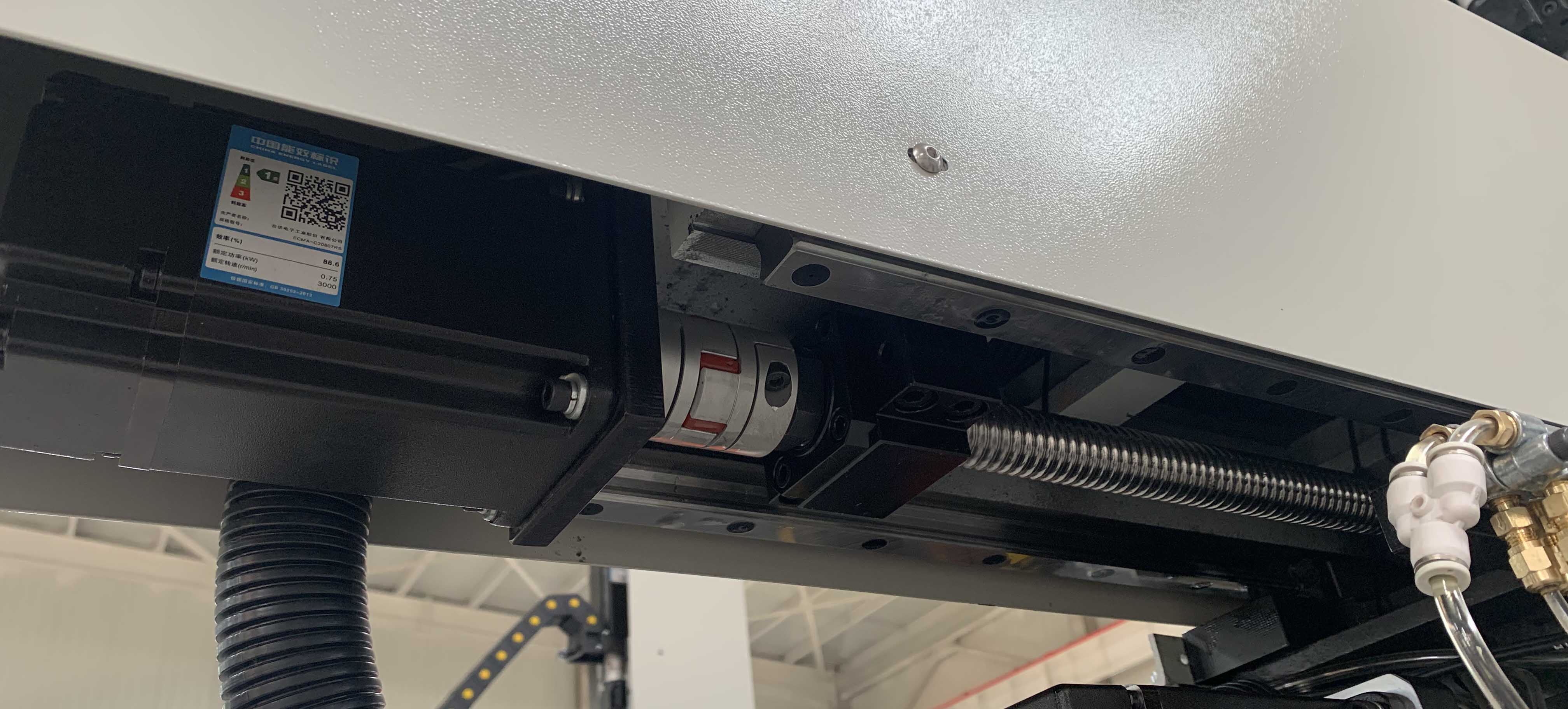

5. Adopts high precision ball screws to ensure smooth motion, positioning and processing in high precision.

6. The operating platform of the system: Linux platform.English, Chinese, Thai, Korean and Vietnamese language are available.

7. The latest version of the system: 4-core 4G memory, fast & smooth operation.

8. Additional one meter Support table for special long profile processing.

9.400mm height safety cover for safety operation.

Main accessory

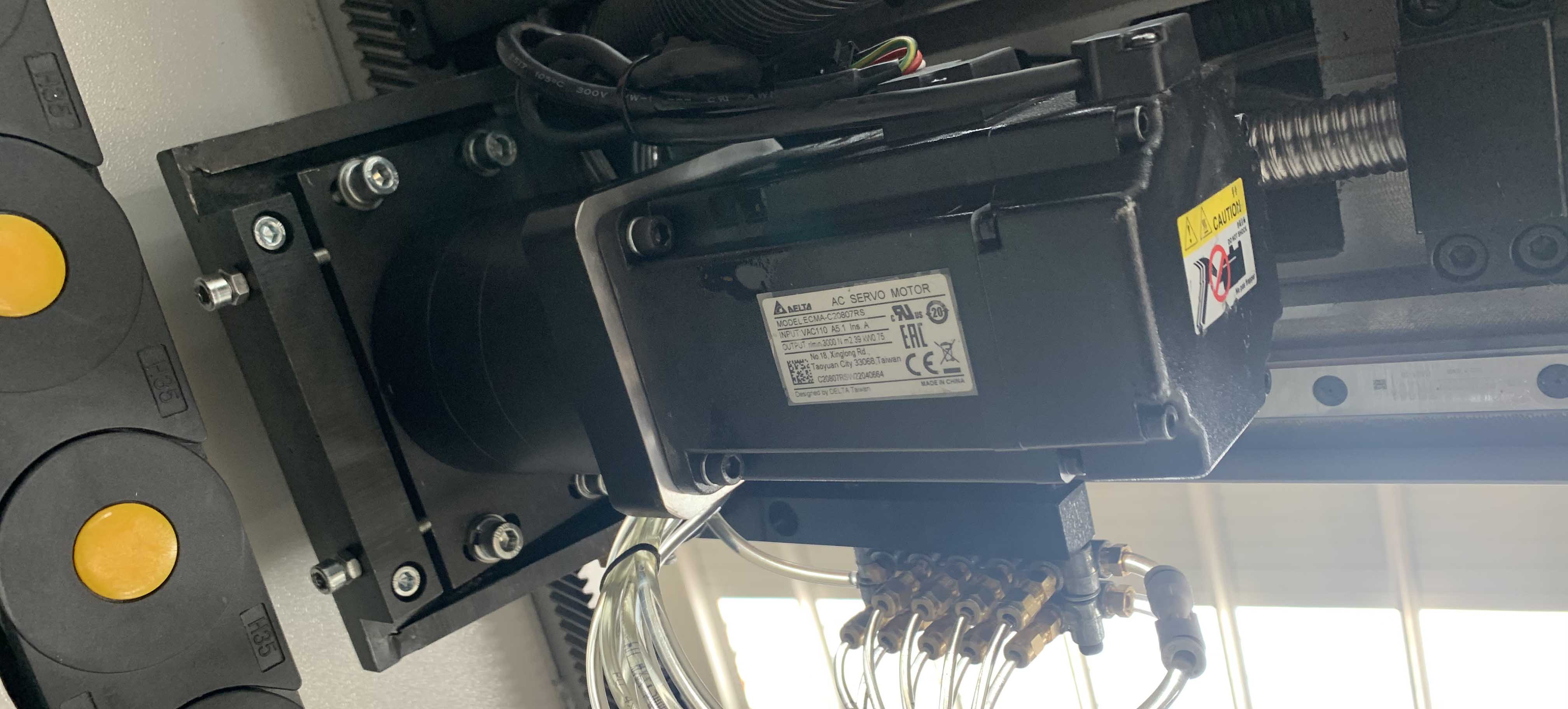

Servo Motor:	Delta (Taiwan)

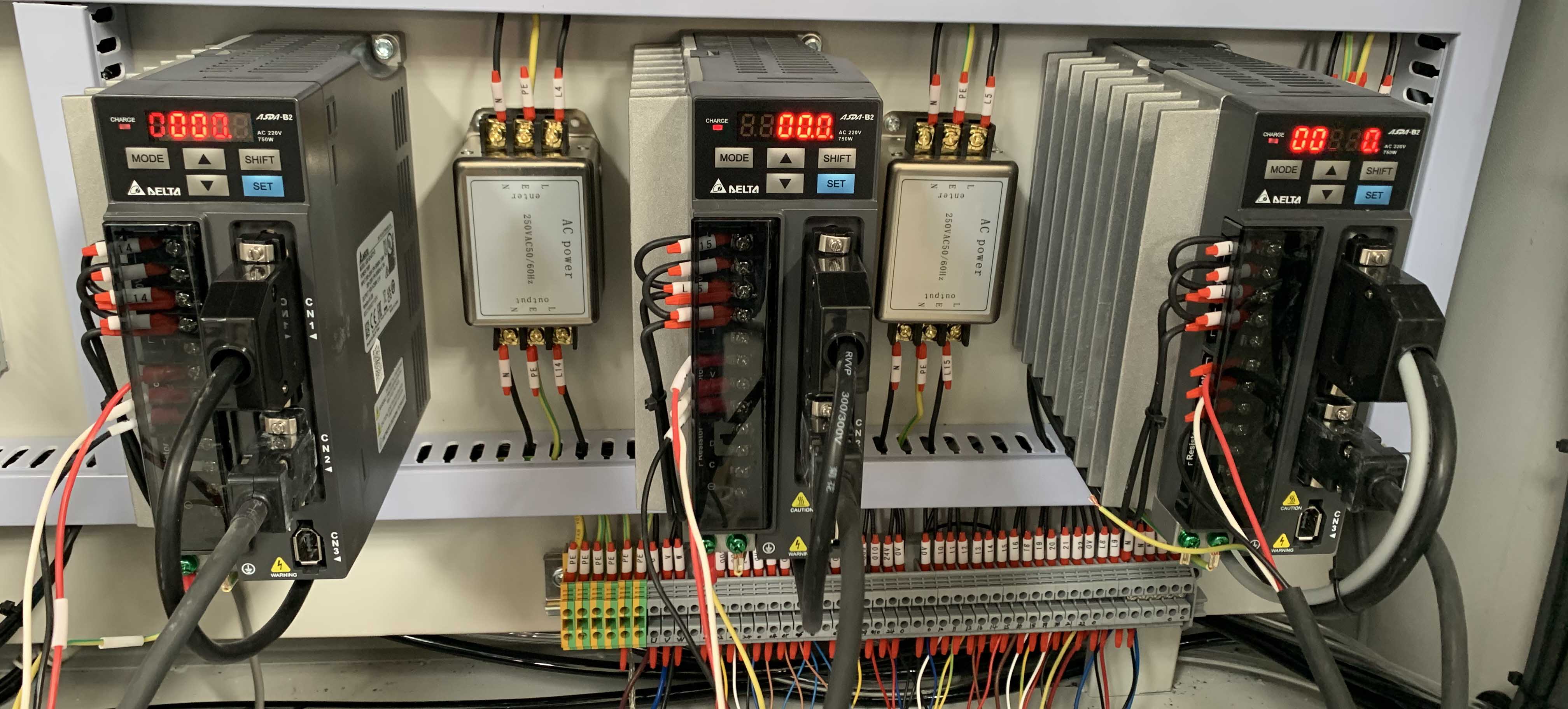

Servo Driver:	Delta (Taiwan)
Switching Mode Power Supply :	Delta / Schneider

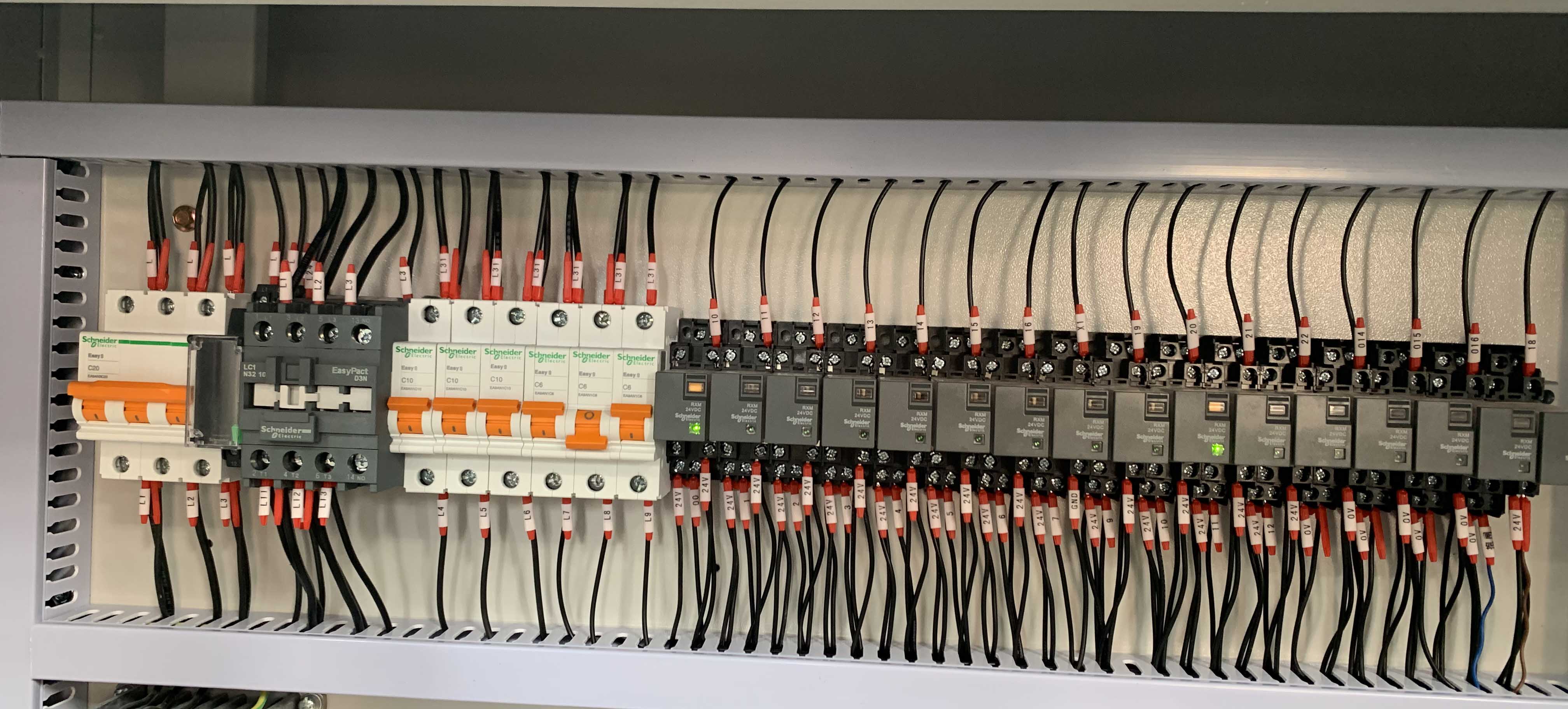

Low voltage electrical apparatus	Schneider
Cable	Shielding / high flexibility
Spindle motor:	JST ER32Collet
Frequency converter:	Delta)
Cylinder:	AirTAC(Taiwan )
Screw:	2010-2015-2510-2505
Bearing :	Humanistic / Shanghai
Protective curtain :	Spindle motor milling protection
Lifting shield :	Equipment front / second protection

Parameters
X-axis Traveling	1200mm
X-axis feed rate	0~30/min
Y-axis traveling	390mm
Y-axis feed rate	0~30m/min
Z-axis traveling	290mm
Z-axis feed rate	0~30m/min
Processing range(+90)	110*110mm
Processing range(-90)	110*110mm
Processing range(0 degree )	170*120mm
Rotated angle	Inside and outside 90°
Spindle Power	3.5kW
Power Specification	380V50HZ or customized
Working Pressure	0.6～0.8MPa
Spindle Speed	8000~18000rpm
Air consumption	100L/min
Machinery Weight	453kg
Total Power of Machine	5kW

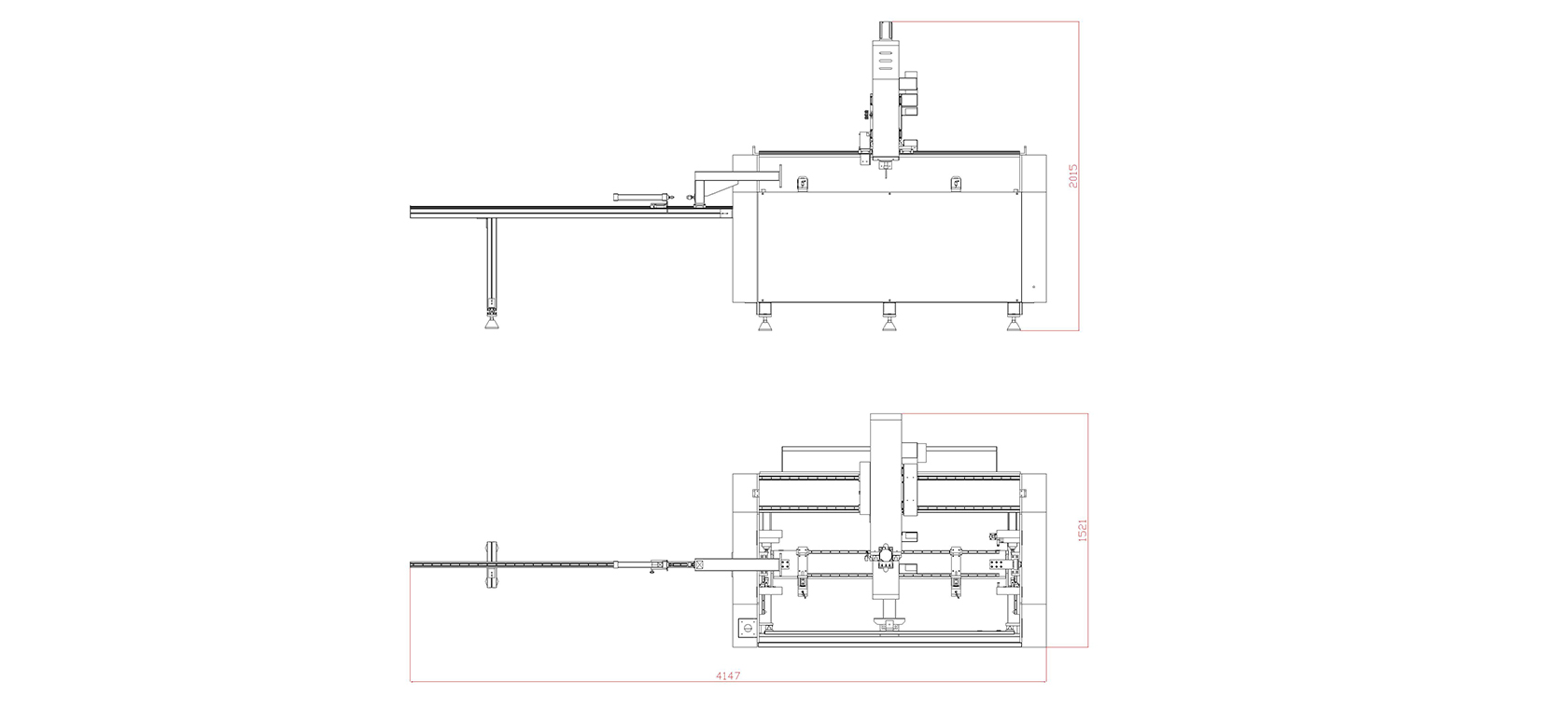

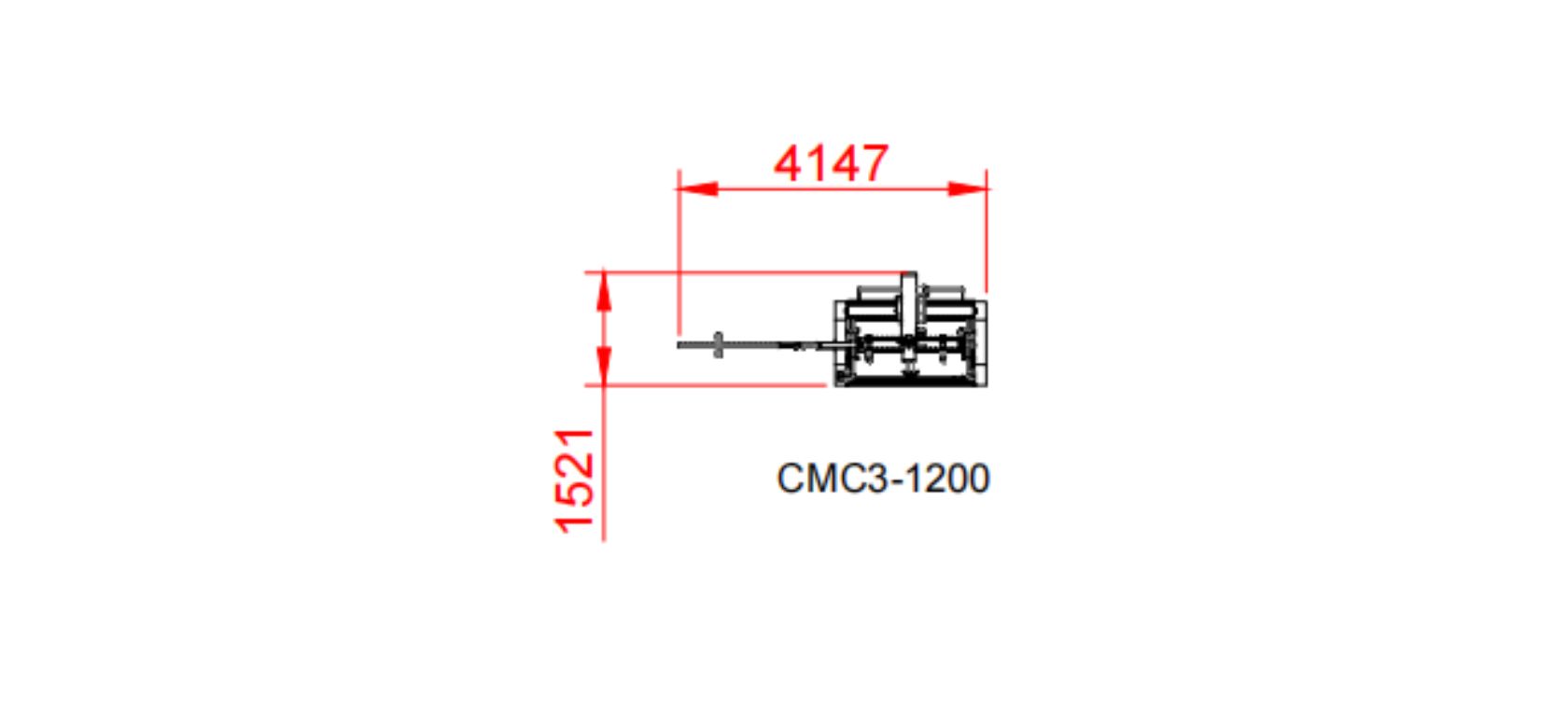

Machine Size	174015501700mm
