DSD-500*4500

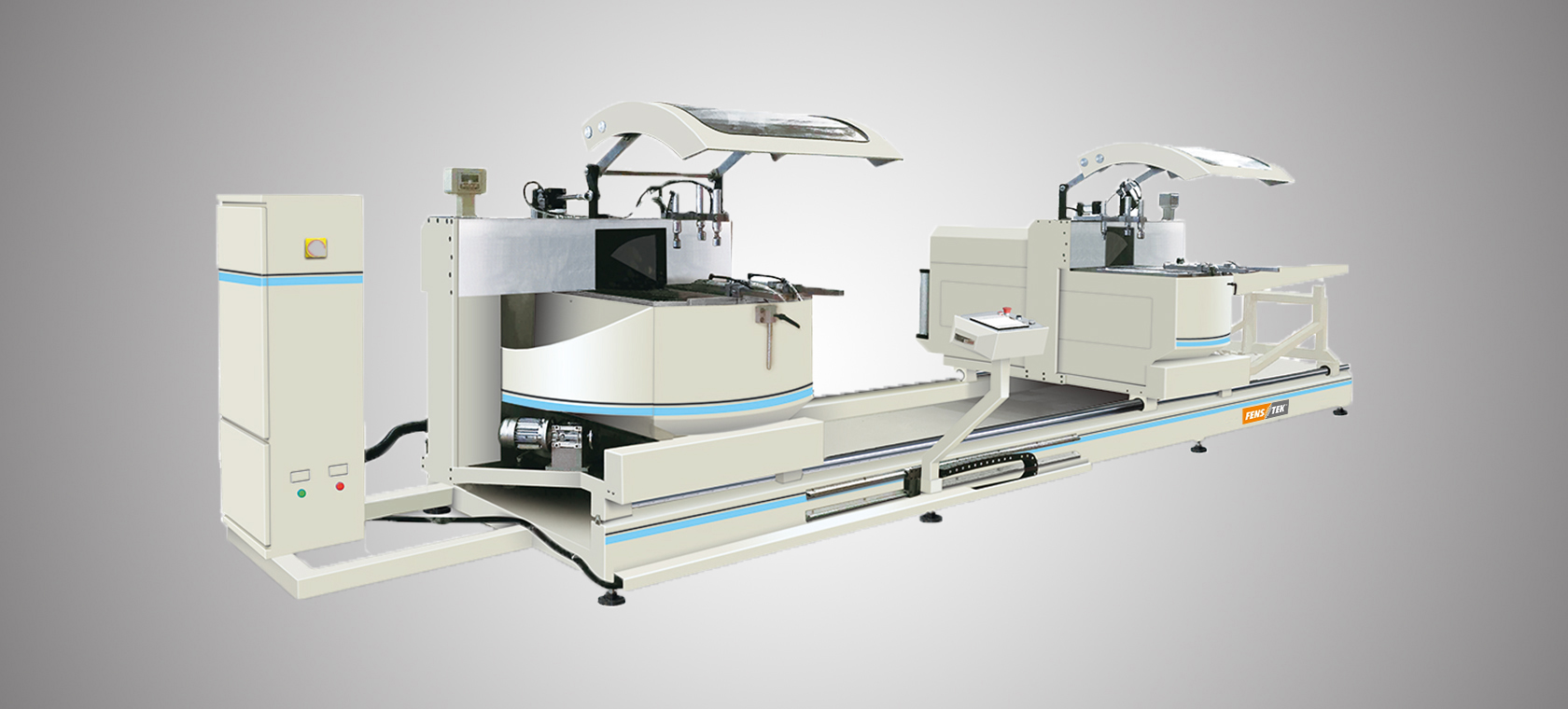

Aluminum Window Double Head Cutting Saw

Features:

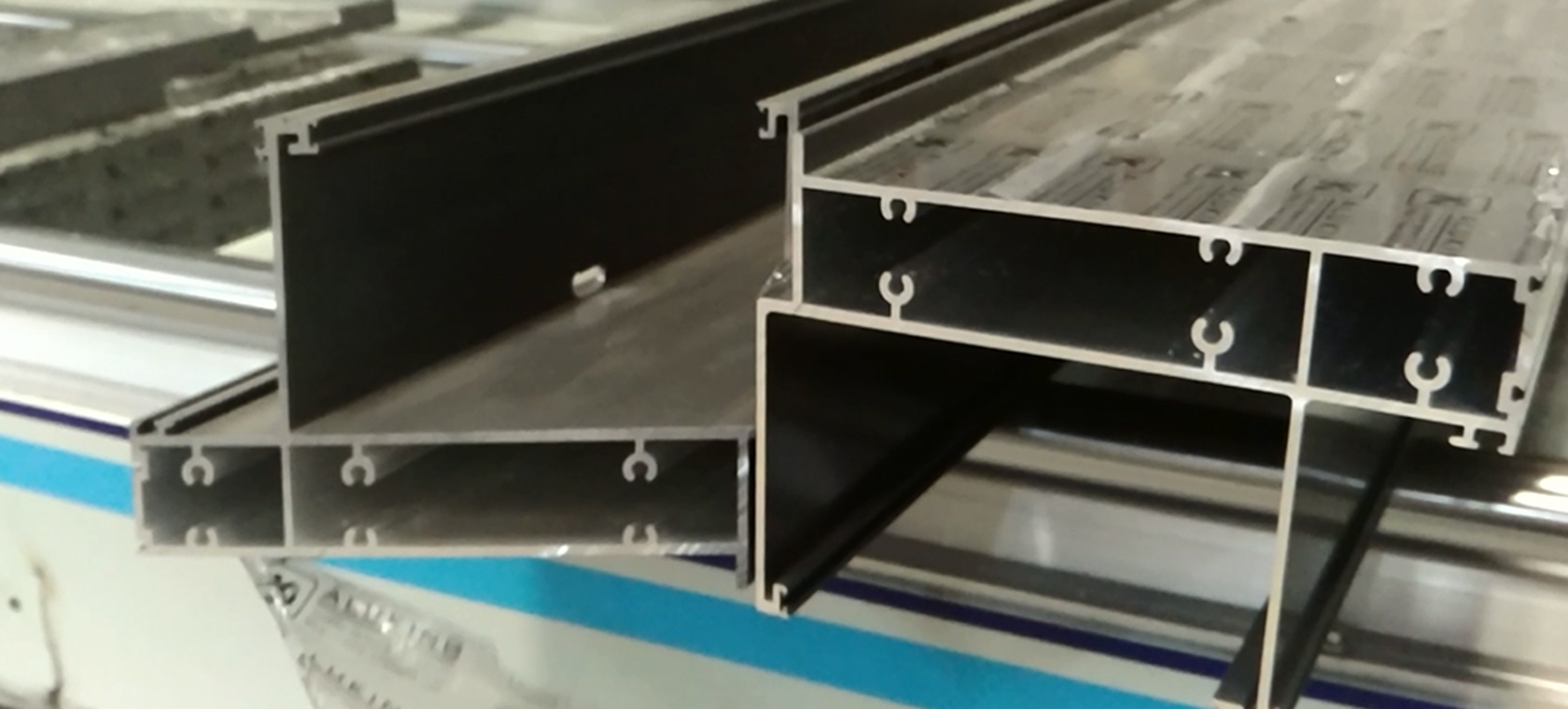

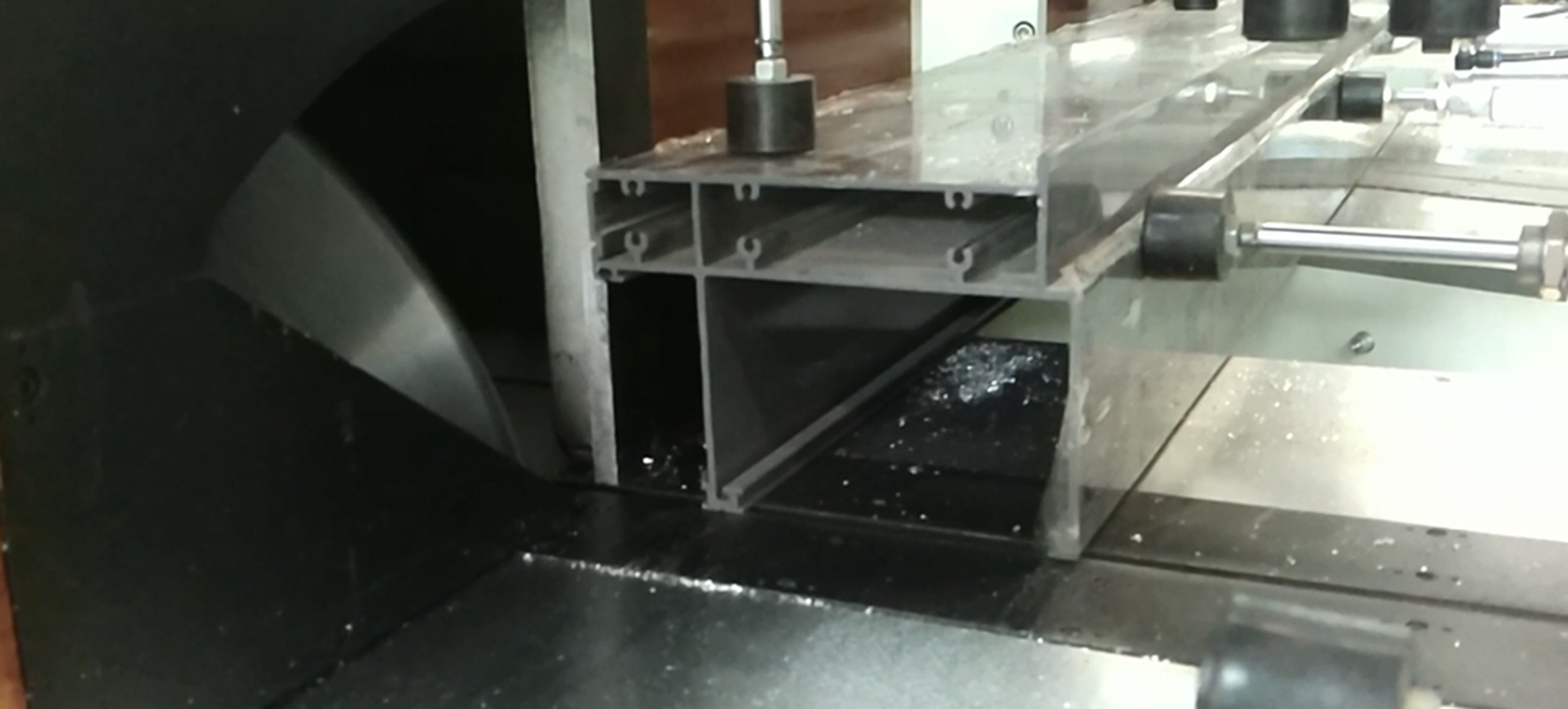

1. Mainly used for cutting aluminum curtain wall profile.

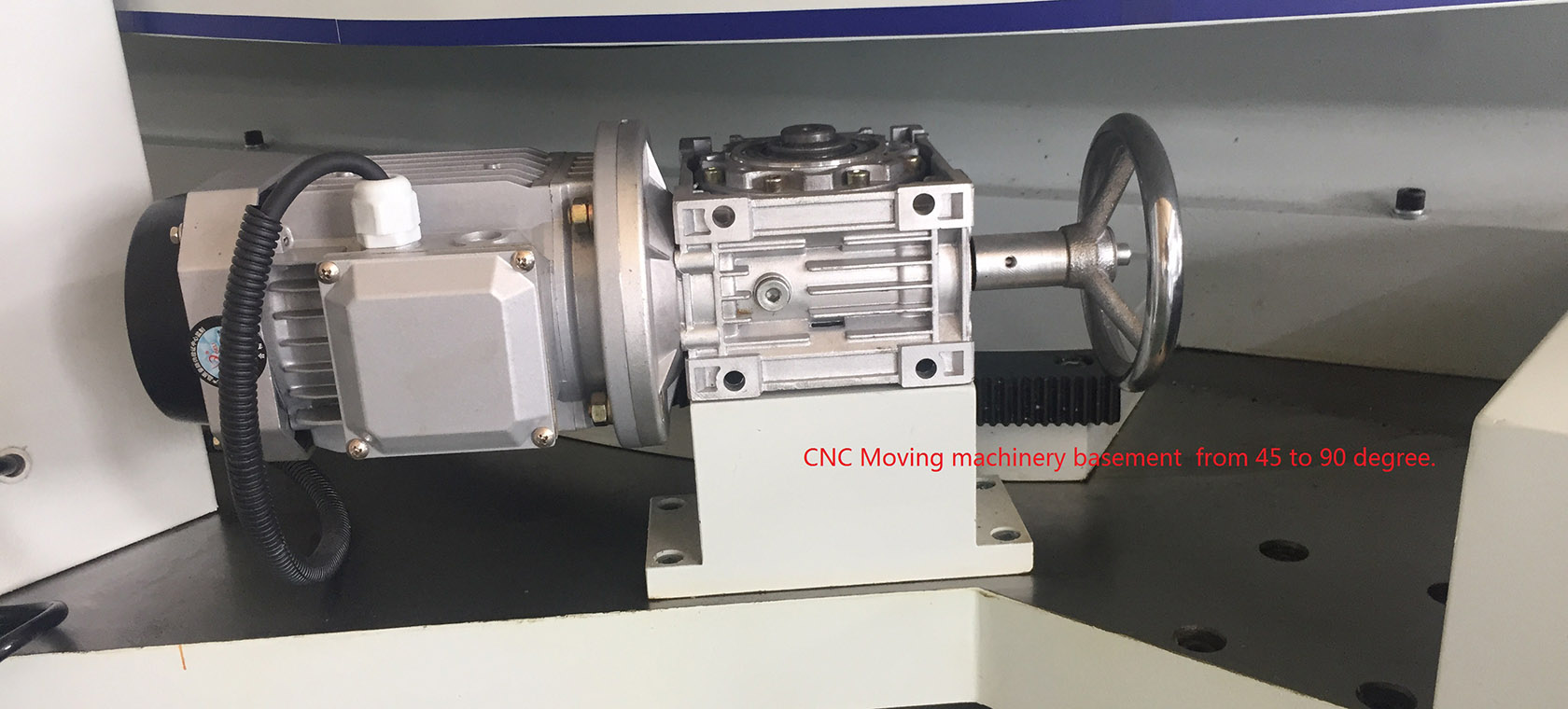

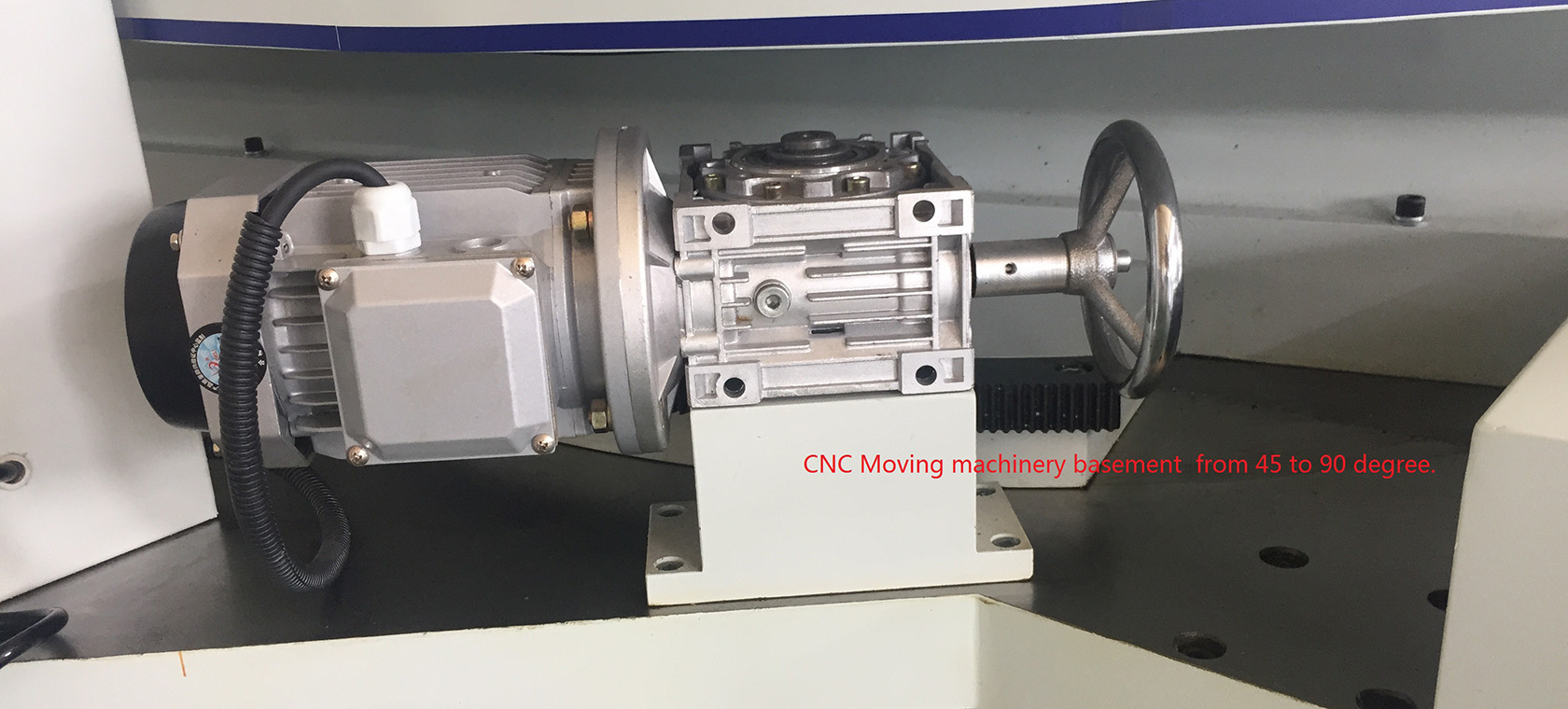

2. Sawing units can be adjusted to the needed angle between 90°-45°.

3. Machine table can rotate in the range of 0°-45°.

Parameter

Saw cutting length

450-4500mm

Saw cutting (W×H)

215×150mm
  240×135mm

Main motor power

5.9kw

Main motor rotation speed

2840r/min

Saw blade dimension

Φ500×Φ30×4.4

Saw blade swing angle range

90°-45°

Worktable swing angle range

0°-45°

Saw blade feeding speed

0-3m/min

Saw blade returning speed

2-3m/min

Working air pressure

0.6-0.8Mpa

Working voltage

380V

Overall dimension (L×W×H)

5850X1380X1360mm

Weight

1800Kg
