AGBS350

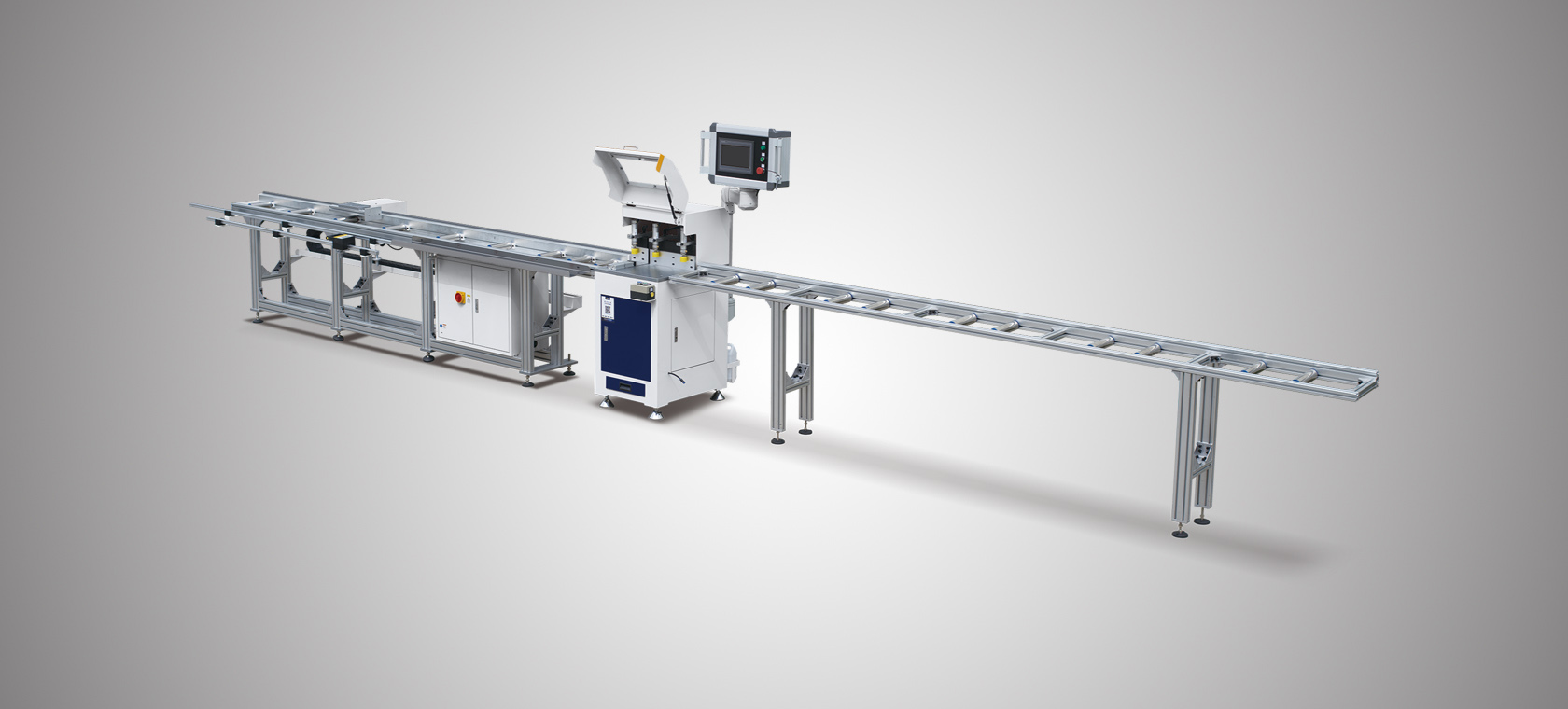

Aluminum Window CNC Glazing Bead Cutting Saw

Features:

1. This glazing bead saw is suitable for cutting aluminium glazing bead at 90 degree.

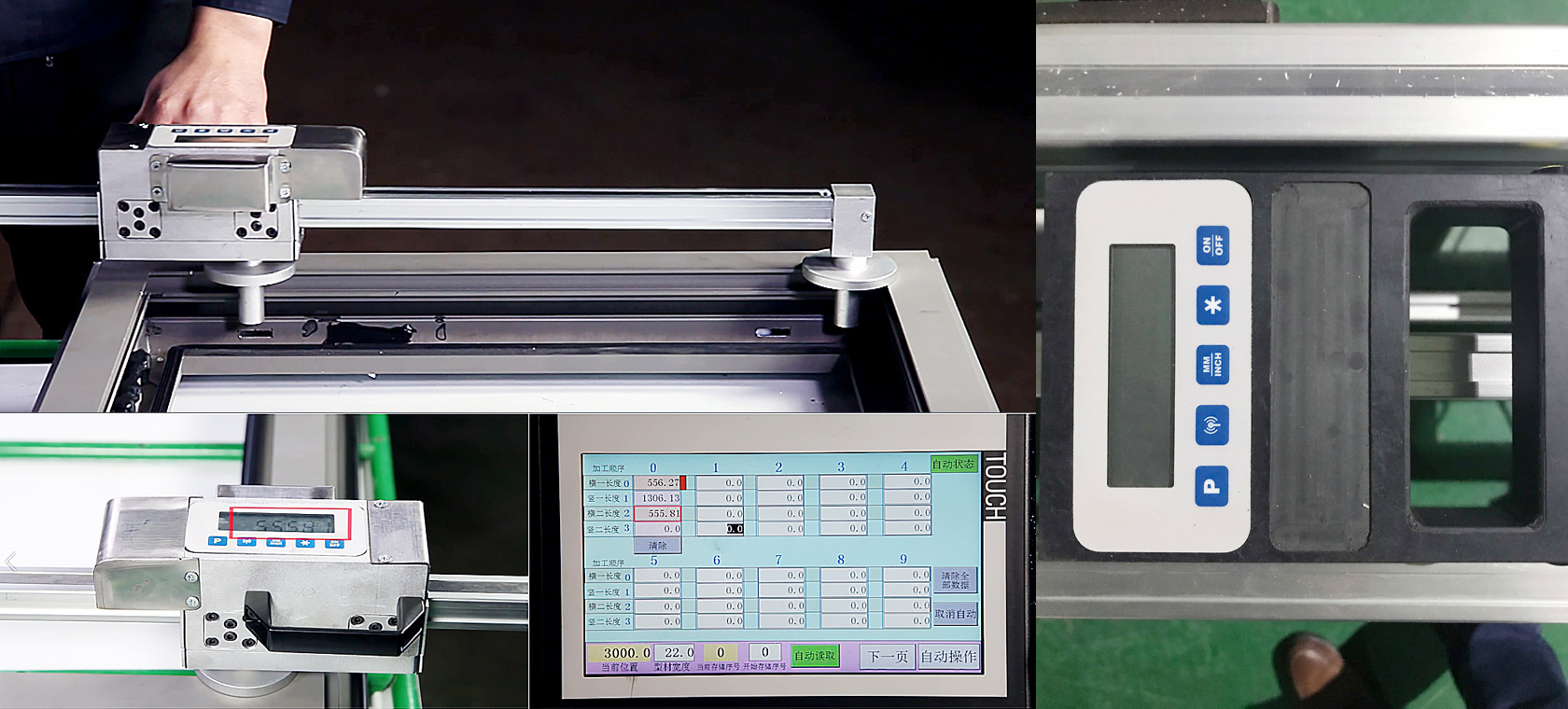

2. Equipped with portable wireless measuring system. Precise and easy measuring.

3. High precision spindle saw blade motor, stable performance.

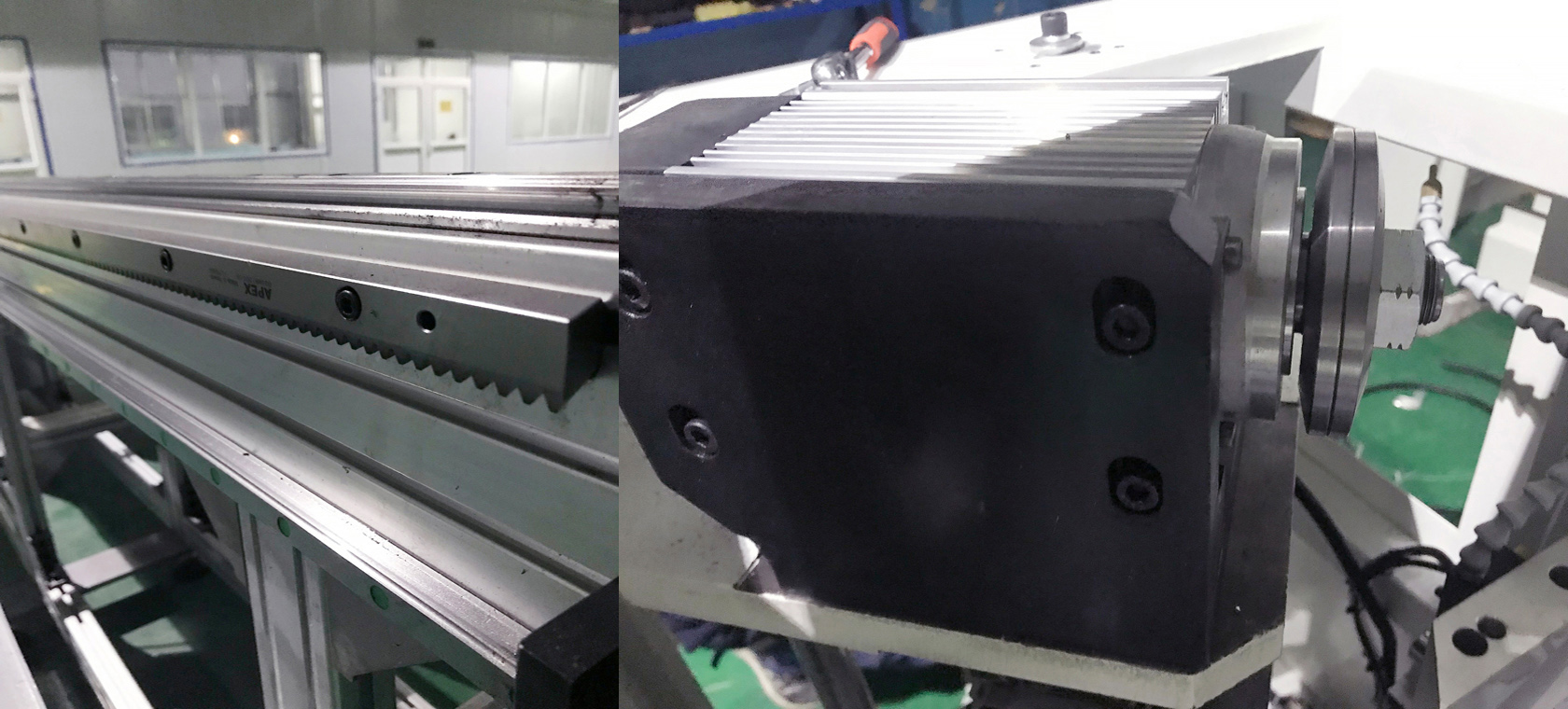

4. The machine adopts square rail, imported gear rack drive, speedy and high repeat

positioning accuracy.

5. Schneider PLC, Servo motor and Schneider servo driver assure long time & stable

running.

6. Excellent processing accuracy 0. 1mm

Main Accessory


Saw blade

WAGAN(Japan)

Phneumatic Compoments

AirTAC(Taiwan)

Touch Screen

Schneider

Spindle Motor

SEEIMEC(Italian)

Electrical Button and Switcher

Schneider(French)

Reducer

Apex(Taiwan)

Servo Motor

Schneider(French)

Measurement Ruler

SEIQ

Parameter:


Power Supply

3N~50HZ 380V or customized

Power

3.5KW

Cutting Motor Power

2.0KW

Motor Rotatry Speed

2800 r/min

Saw Blade Diameter

φ350×3.2×φ30,Z=120

Operation Air Pressure

0.5~0.8MPa

Air Consumption

8L/min

Cutting Accuracy

±0.1mm

Cutting Capacity

70X70mm

Overall Dimension

8200X900X1700mm  Including   two side support frames

Weight

710kg
