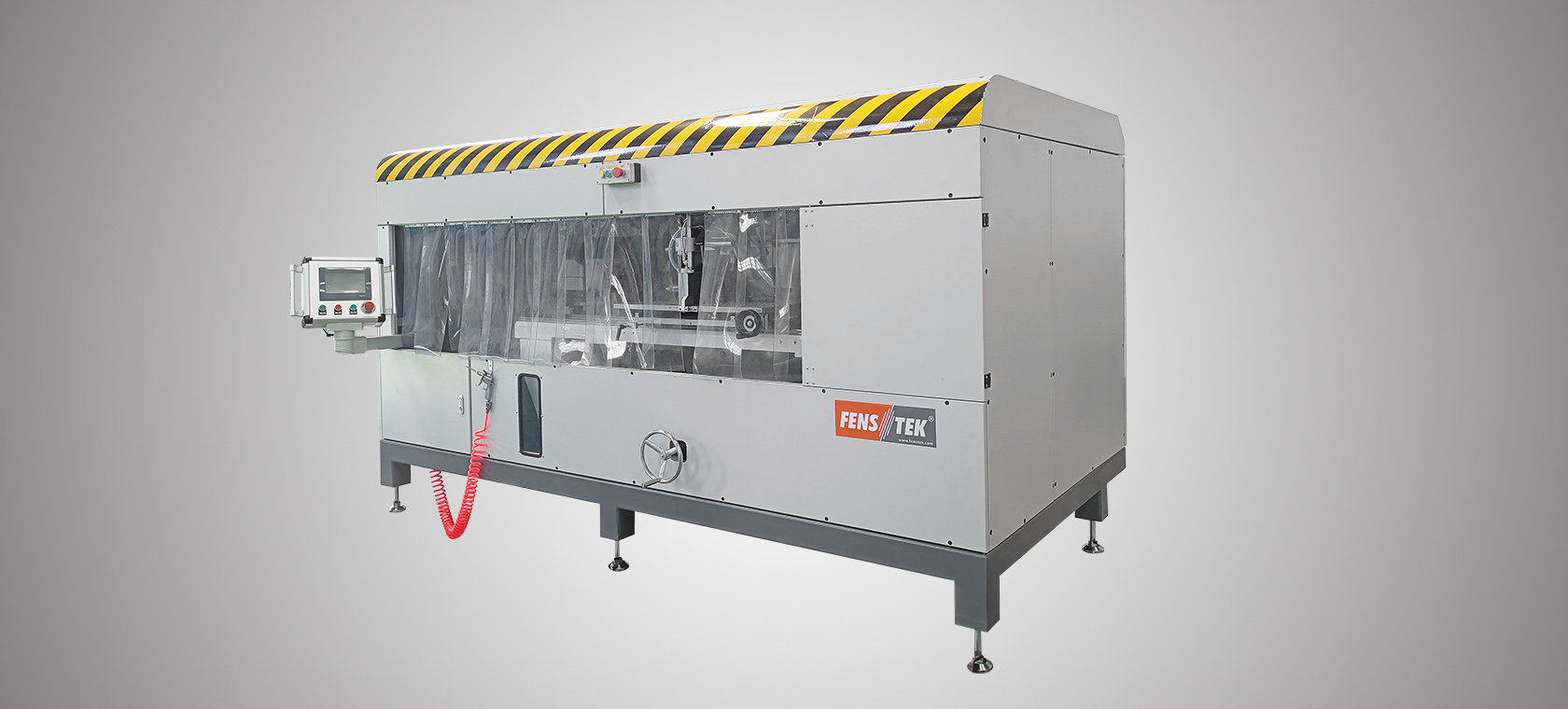

LJK-600

Aluminum Window Notching Saw

Features:

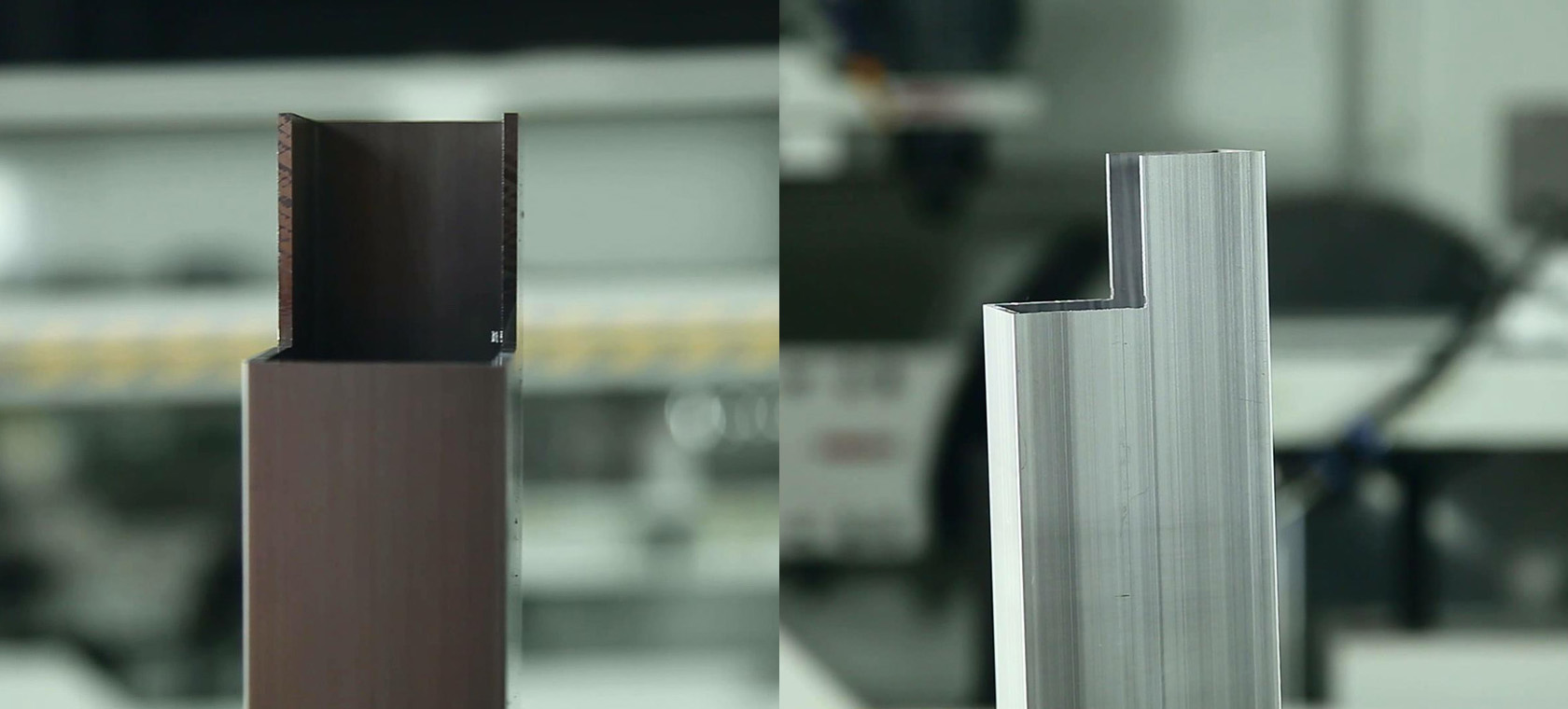

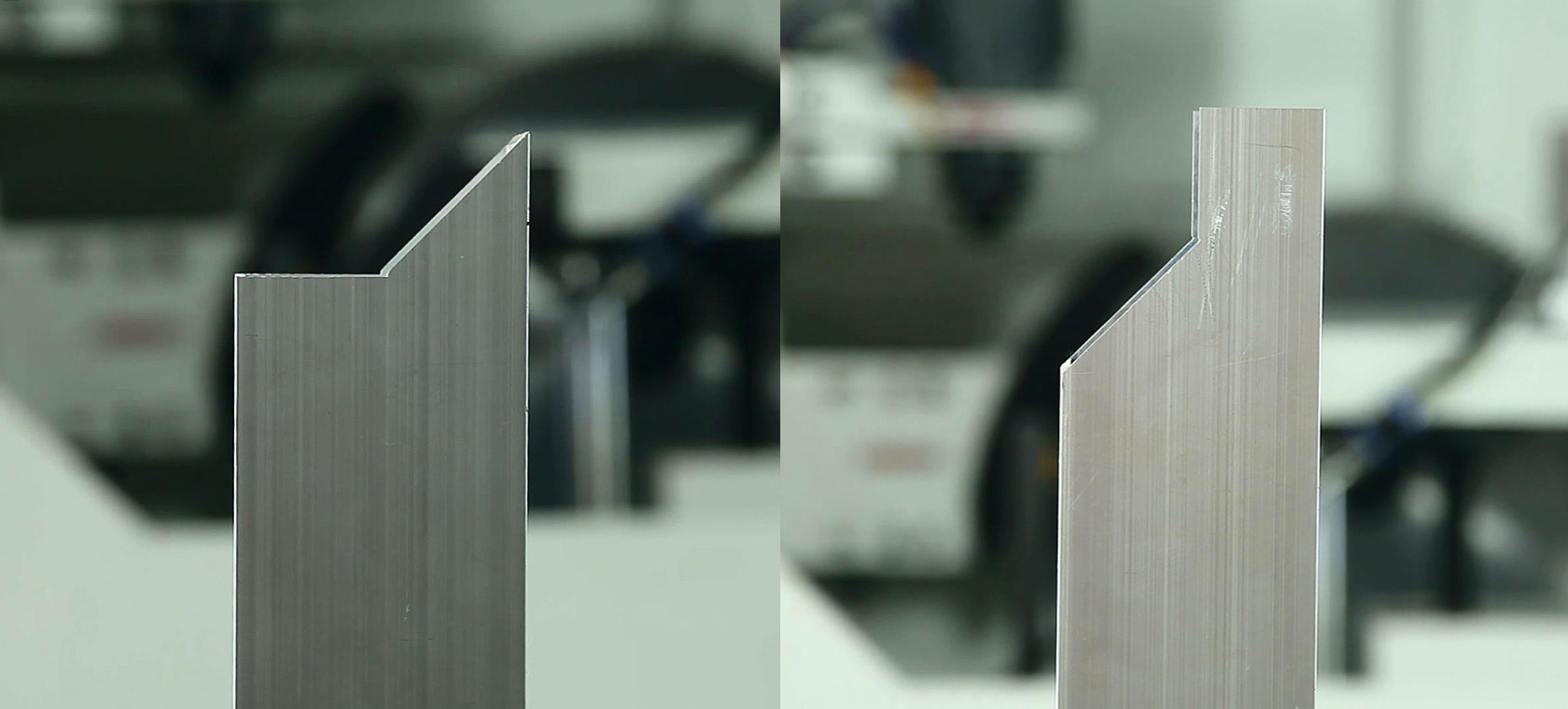

1. This aluminum notch cutting saw specially for aluminium curtain-wall and lighting skylight

processing with the special angle at the profile end surface.

2. Feeding by servo motor,realize high-speed and high efficiency machining.

3. Two saw glade freely change at +45º~-45º

Main Accessory


 Saw blade

Wagen

 Solenoid valve

AirTAC(Taiwan)

 Cylinder

AirTAC(Taiwan)

 Motor

Anhui Sanyang (Best Chinese Motor   Brand)

 Air Filter Device:

AirTAC(Taiwan)

 Electrical Button and   Switcher

Schneider

 AC Contactor and Circuit Breaker

Schneider

 Linear Bearing System

HIWIN

 Magnetic Grid

SIKO

Parameters


Power supply

three-phase and four-line  380V 50Hz or Customer specification

Cutting motor power

2×2.3Kw

Motor rotary speed

2840r/min

Operation air pressure

0.5Mpa-0.8Mpa

Air consumption

60L/min

Saw blade swinging range

+/-45°

Workbench rotation angle+/-45°

Saw cut(width&height)

260*235mm(90 °)

260*165mm(45°)

Saw Blade specification

φ600mm×φ30mm  T=120*2

Weight

About 1500kg
