Aluminum Window Corner Crimping Machine, China Factory Price, FENSTEK

CCM120

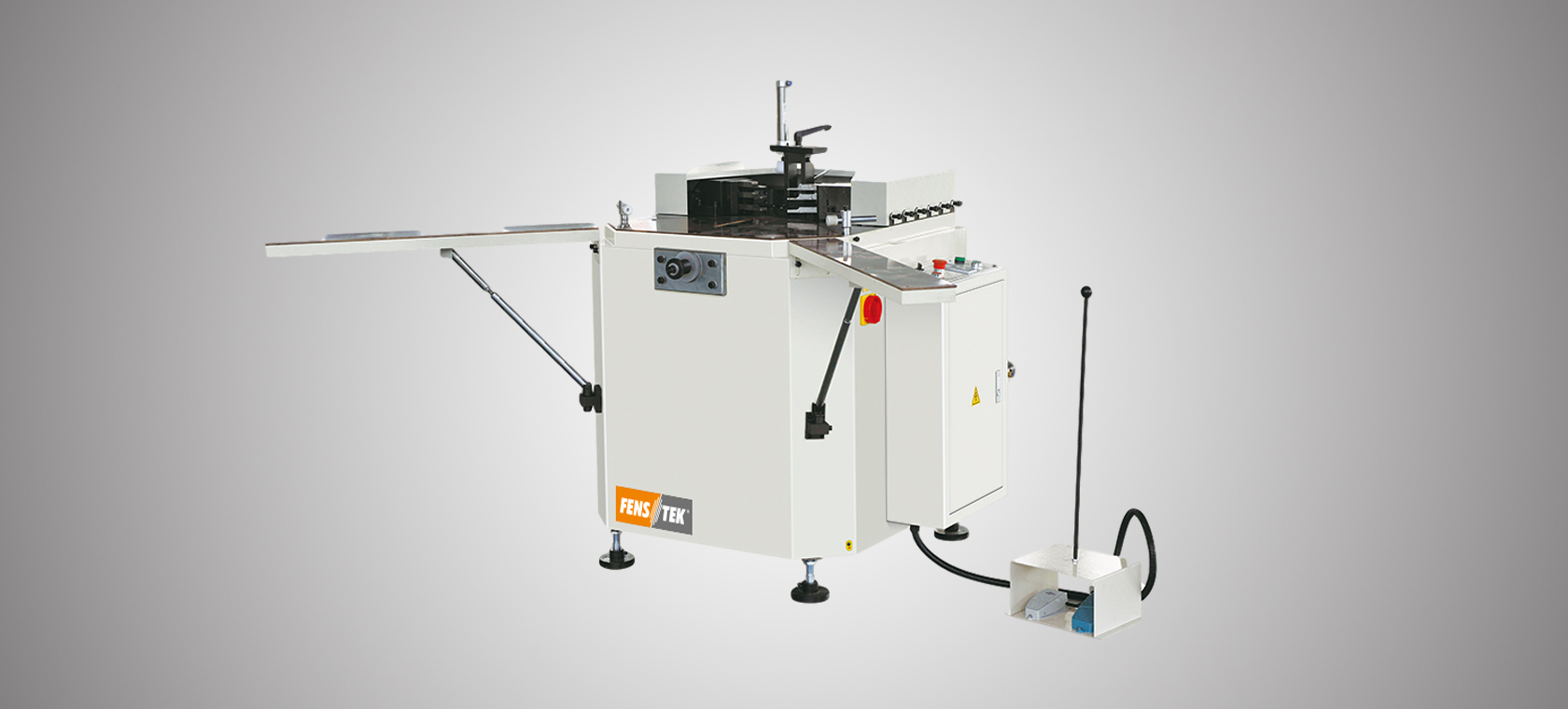

Aluminum Window Corner Crimping Machine

Features:

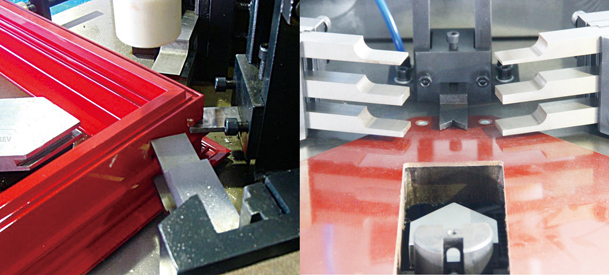

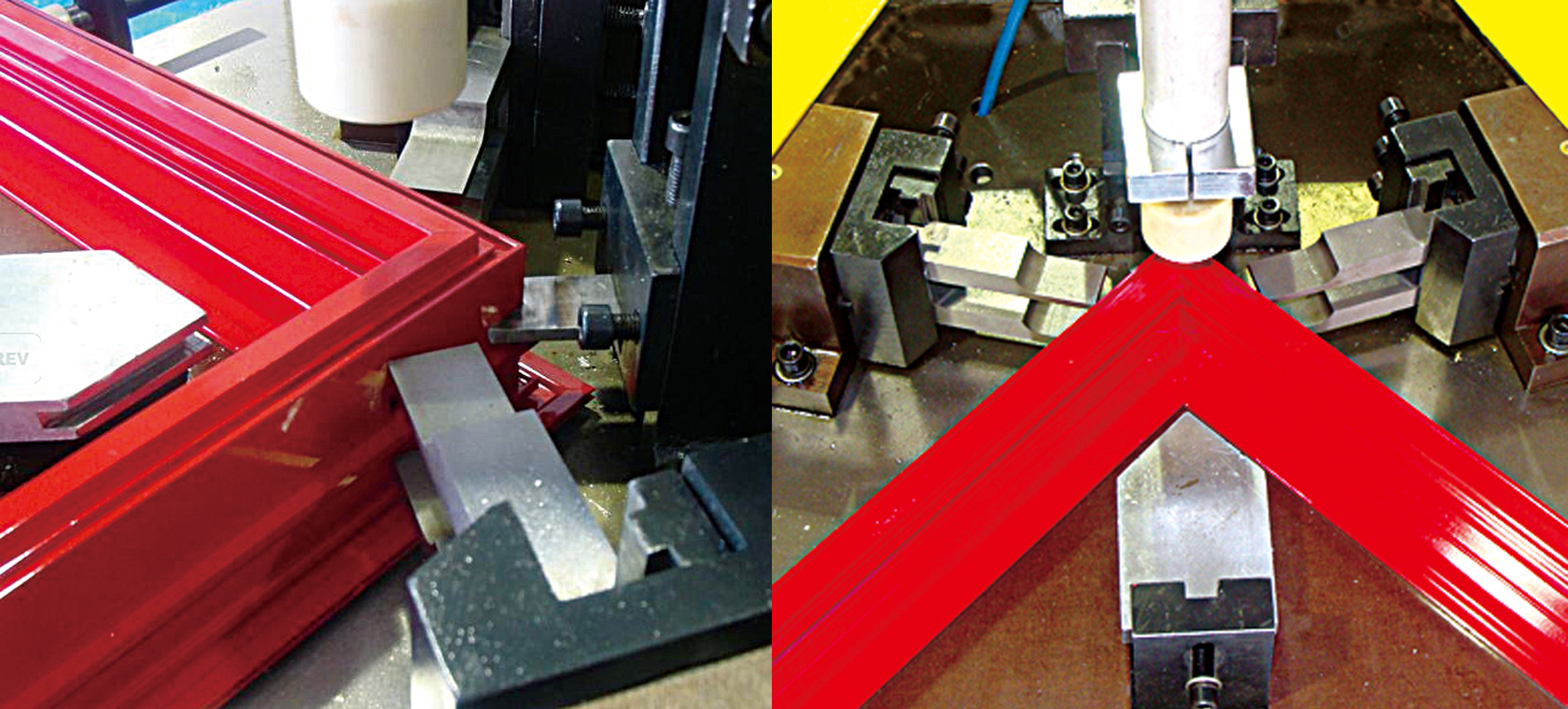

1. Aluminum corner crimper mainly used for crimping the 90 corner of aluminum window and door

2. Adopt new mechanical linkage device ,realized complete synchronous corner combining

3. Adjustable locating device suitable for various sections and sizes processing

4. Left and right punching heads adopt hard synchronous feeding device ,thus avoided

useless deformation and made the connection more firmly.

5. Easy machine setting due to the synchronous feeding device.

Parameter
Power Supply	380V 50Hz or Customers specification
Motor Power	1.5KW
Rated Oil Pump Pressure	16Mpa
Motor Rotational Speed	1400r/min
Model of the Oil Pump	2.5MCY
Profile Processing Height	Max)120mm
Profile Processing Width	90mm
Total Combining Pressure	0.5-0.8Mpa
Air Consumption	2L/min
General Pressure of Corner Combining	48KN
Corner Combining Casing Movement Journey	85mm
Weight	300kg

Main accessory
Hydraulic Station	Taiwan brand
Electrical Button and Switcher	Schneider
