HTWA4

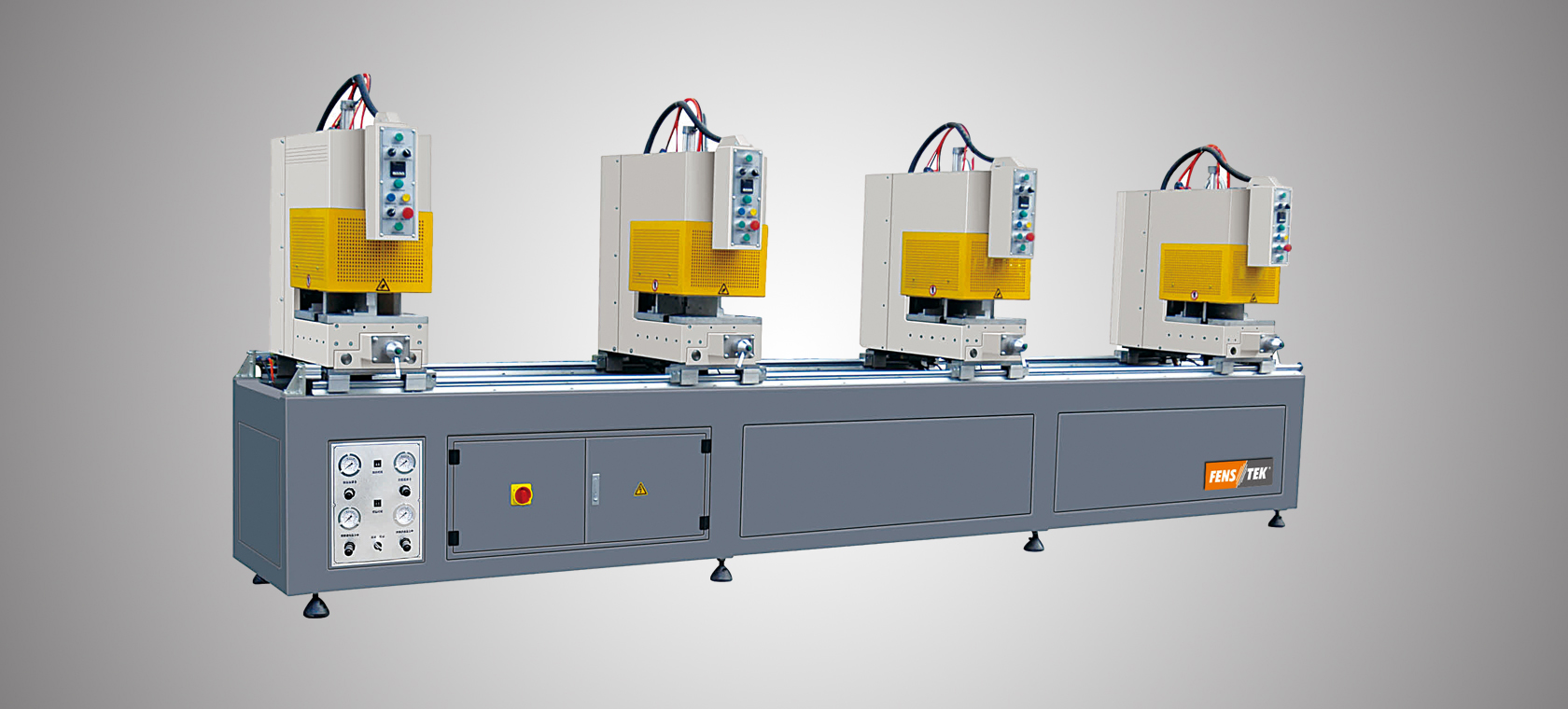

UPVC Window Four Head Welding Machine

Features:

1. UPVC Window Four-Head Welding Machine is Advanced European style for high end market.

2. 0. 2mm and 2 mm welding auto change by switch.

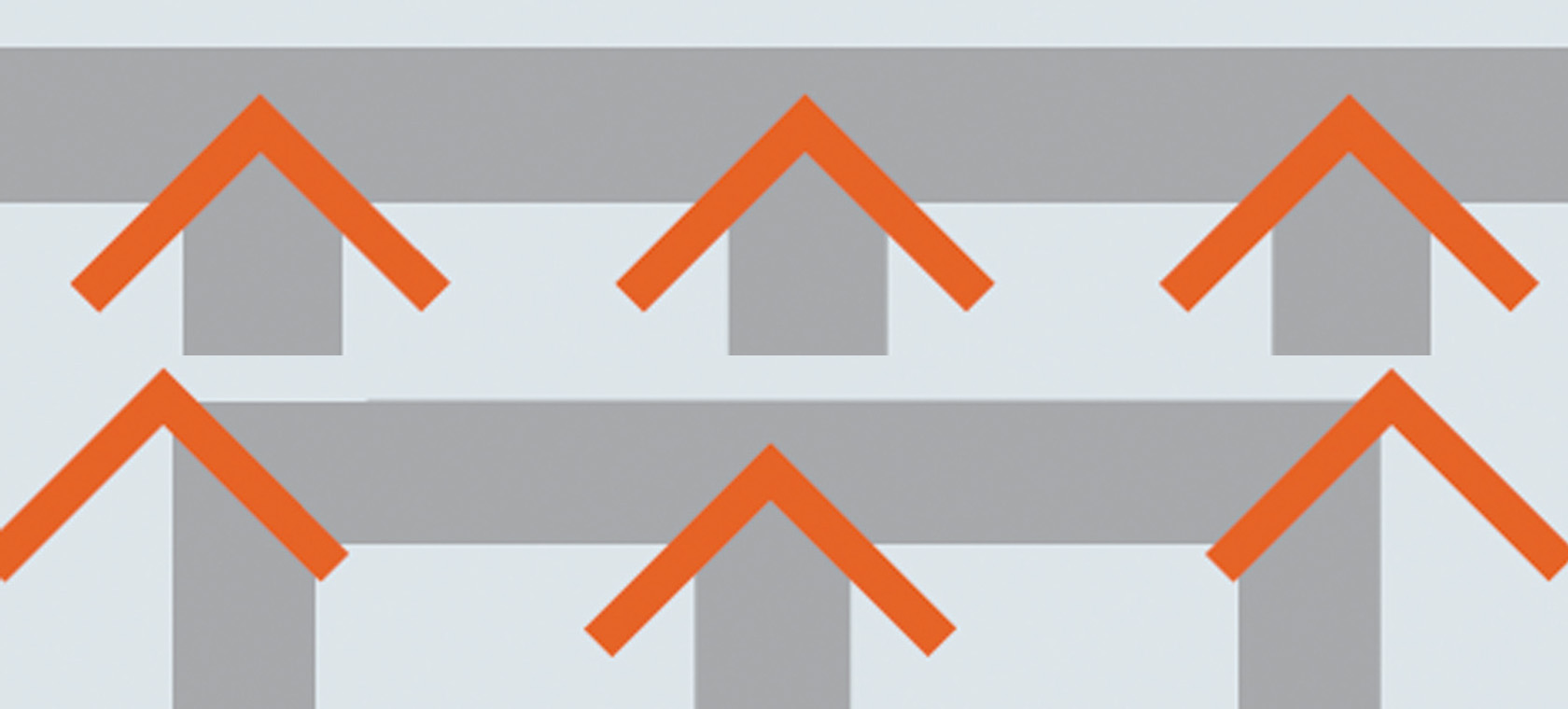

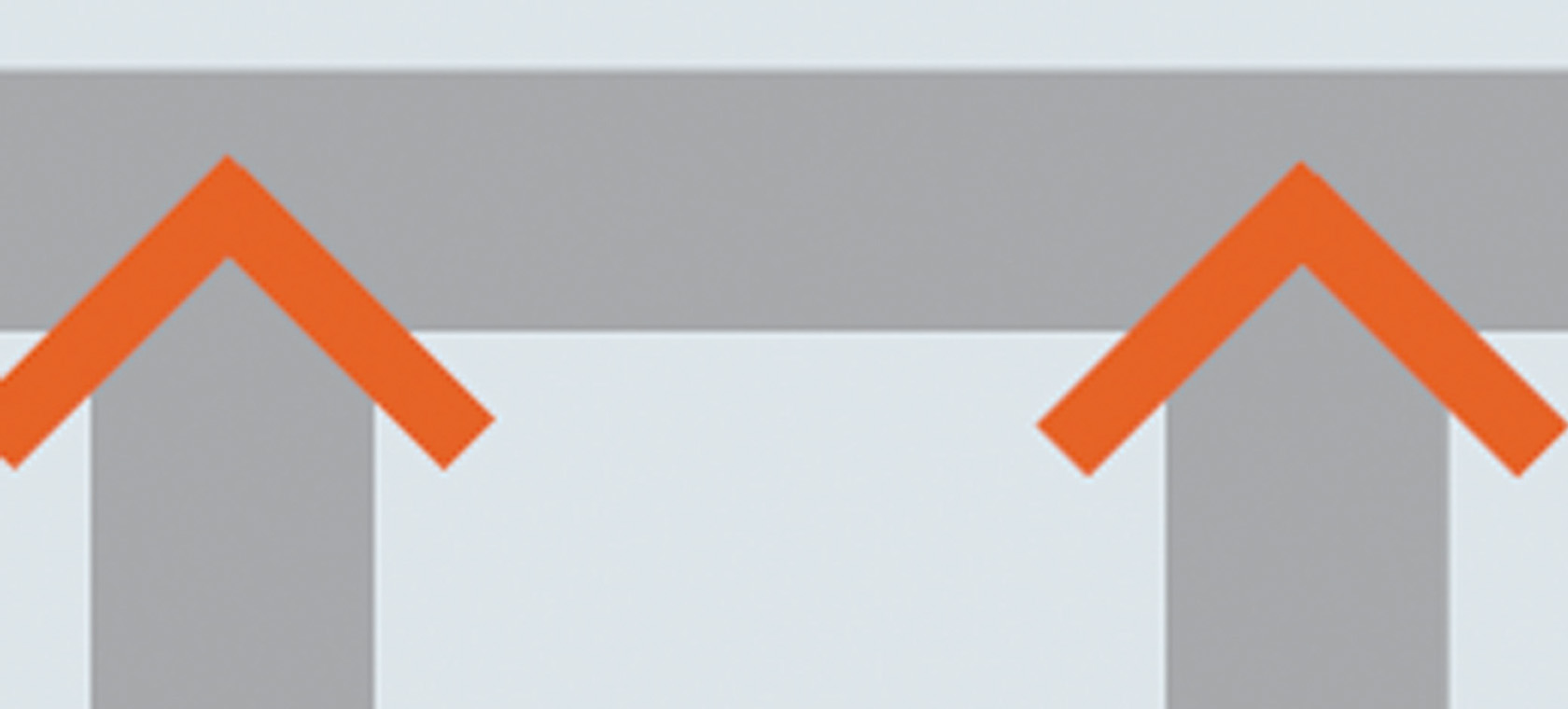

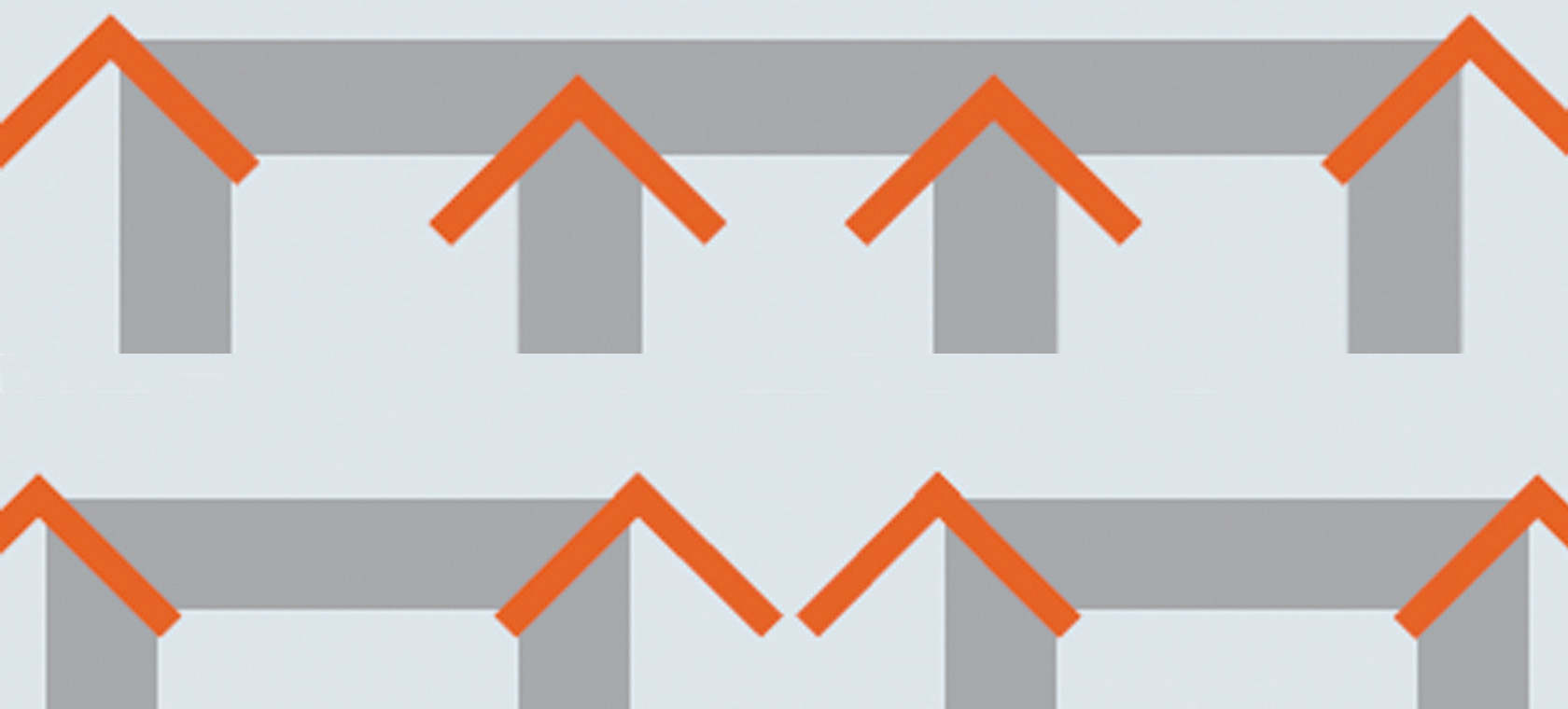

3. Specialized for V-welding, cross welding easily, avoid complicated adjustment.

4. Turrets realize auto change V-welding position for different mullions.

5. Variable angle welding between 30 to 180 degree on last head as optional

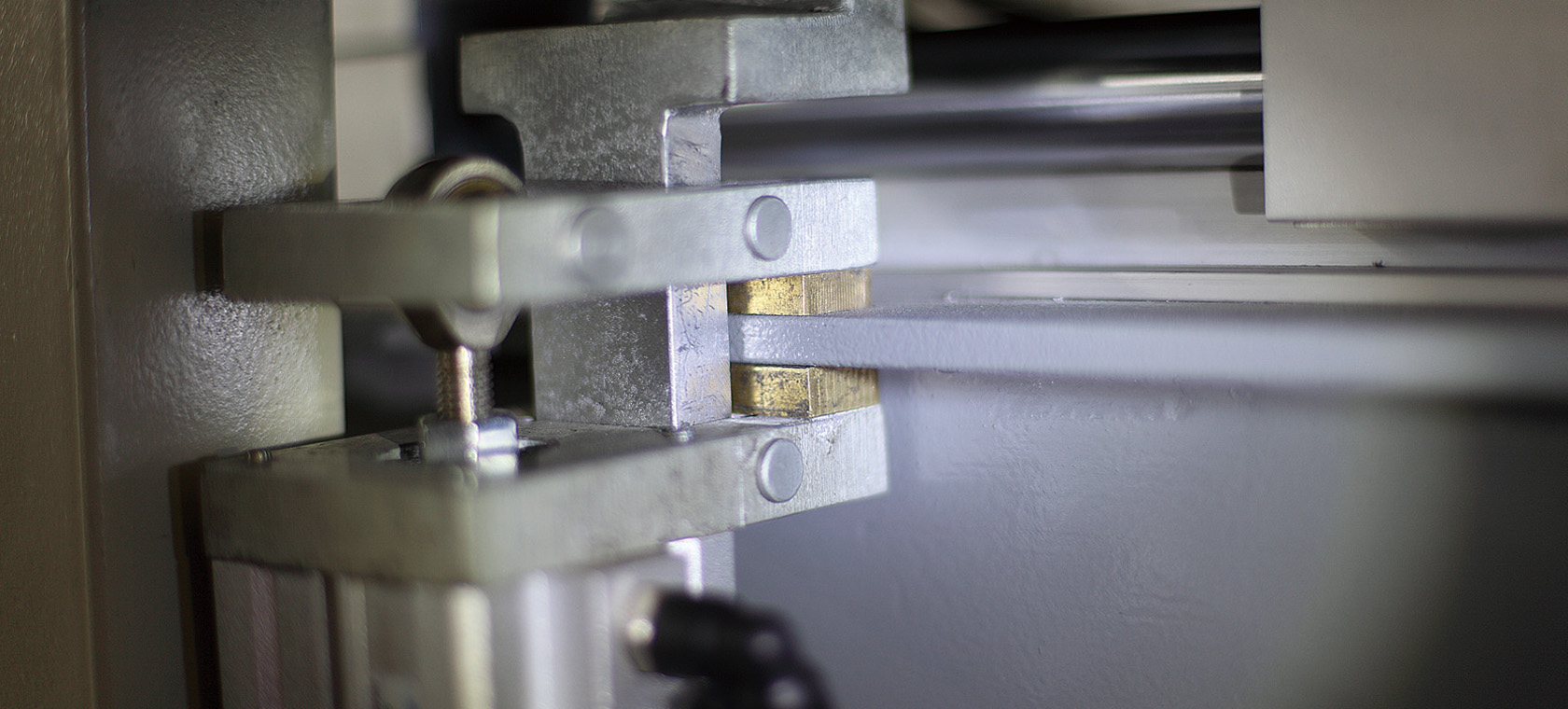

6. Rigid grasp structure adopted to the profile positioning system, which strictly guarantee welding loss and high welding accuracy.

7. V-shape heating plate ensure high welding corner strength and small tolerance.

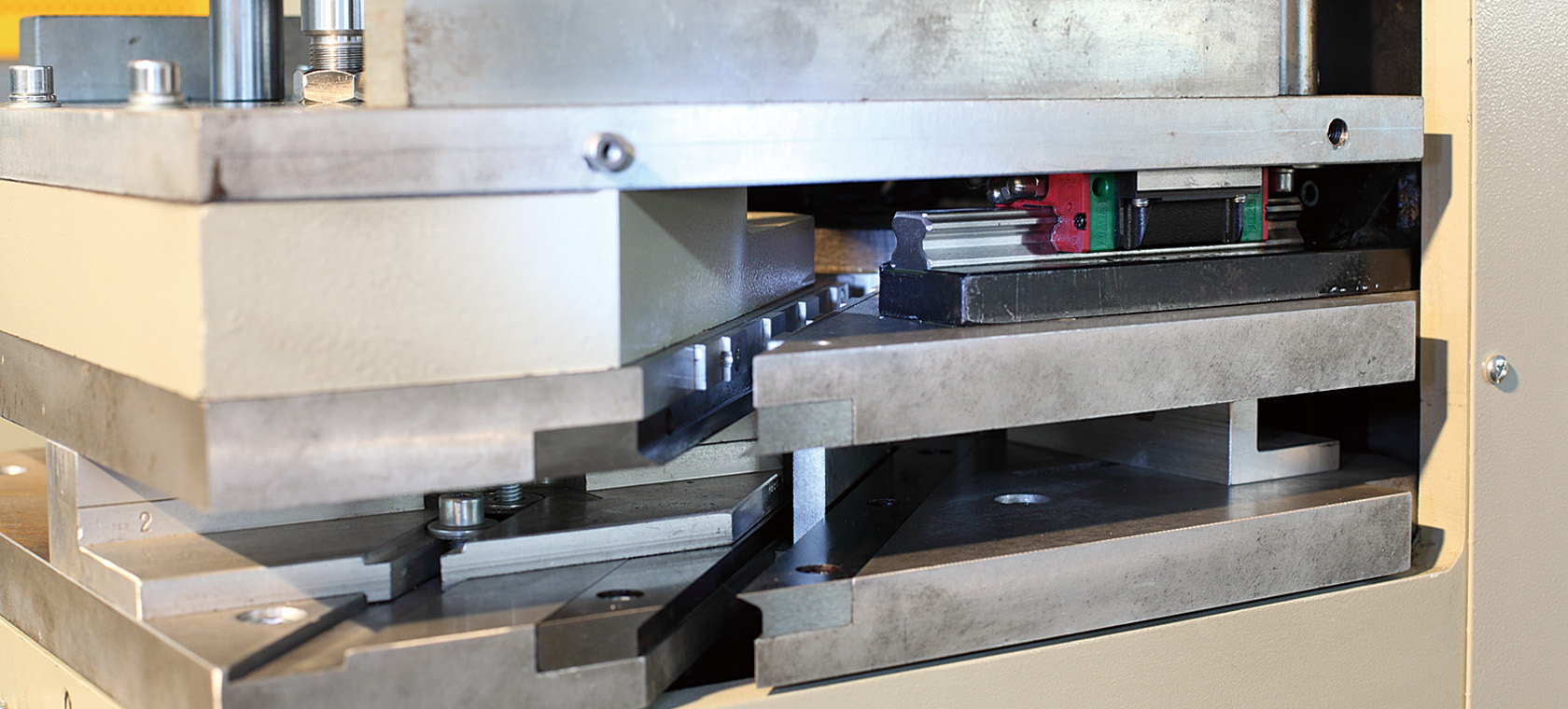

8. Imported square bearing system guarantee clamping, heating plate, locating plate moving precision & reliable performance.

9. Solid machinery base and structure ensure long life service with high dimension accuracy.

10. Profile fixture ordered separately can meet various profiles' processing requirement.

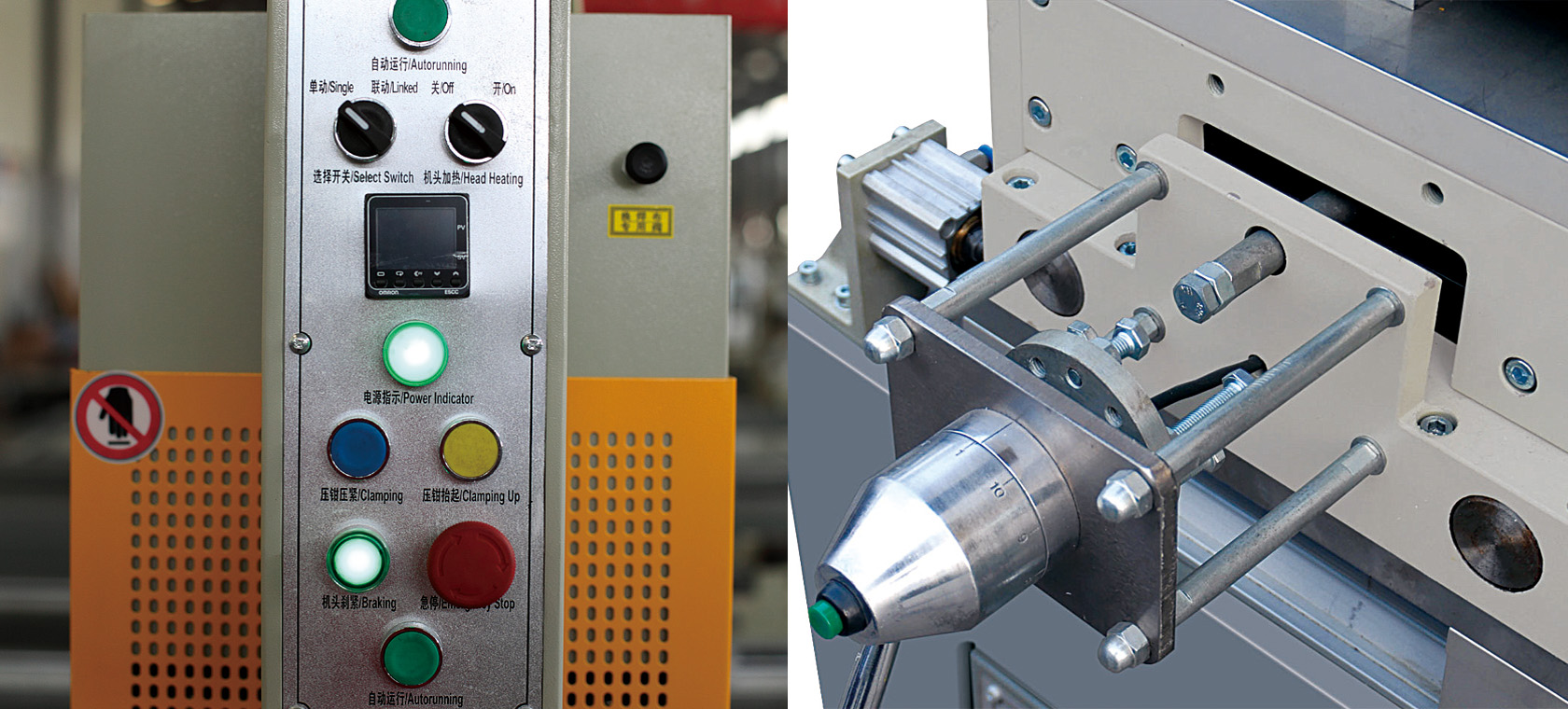

11. Two hand safety operation.

12. Pneumatic brake device.

Main accessory:


• PLC

Omron

• Solenoid valve

Airtac

• Cylinder

Airtac

• Air Filter Device

Airtac

• Electrical Button and Switcher

Schneider

• AC Contactor and Circuit Breaker

Schneider

• Approach Switcher

Swiss CONTRINEX or Japan Omron

• Linear bearing system

Linear (South Korean brand)

• Square bearing system

Linear (South Korean brand)

• Temperature Controller

Japan Omron

Parameter:


Input Voltage:

1N~50Hz   220V  or Customer specification

Input Power

7(kw)

Operation Air Pressure

0.5~0.8(MPa)

Air Consumption

270(L/min)

Welding Height

20~130(mm)

Welding Width

120(mm)

Welding Range370~4500 (mm)

Overall Dimension

5600×2000×1200(mm)

Machine Weight

1900(kg)
