TEM200

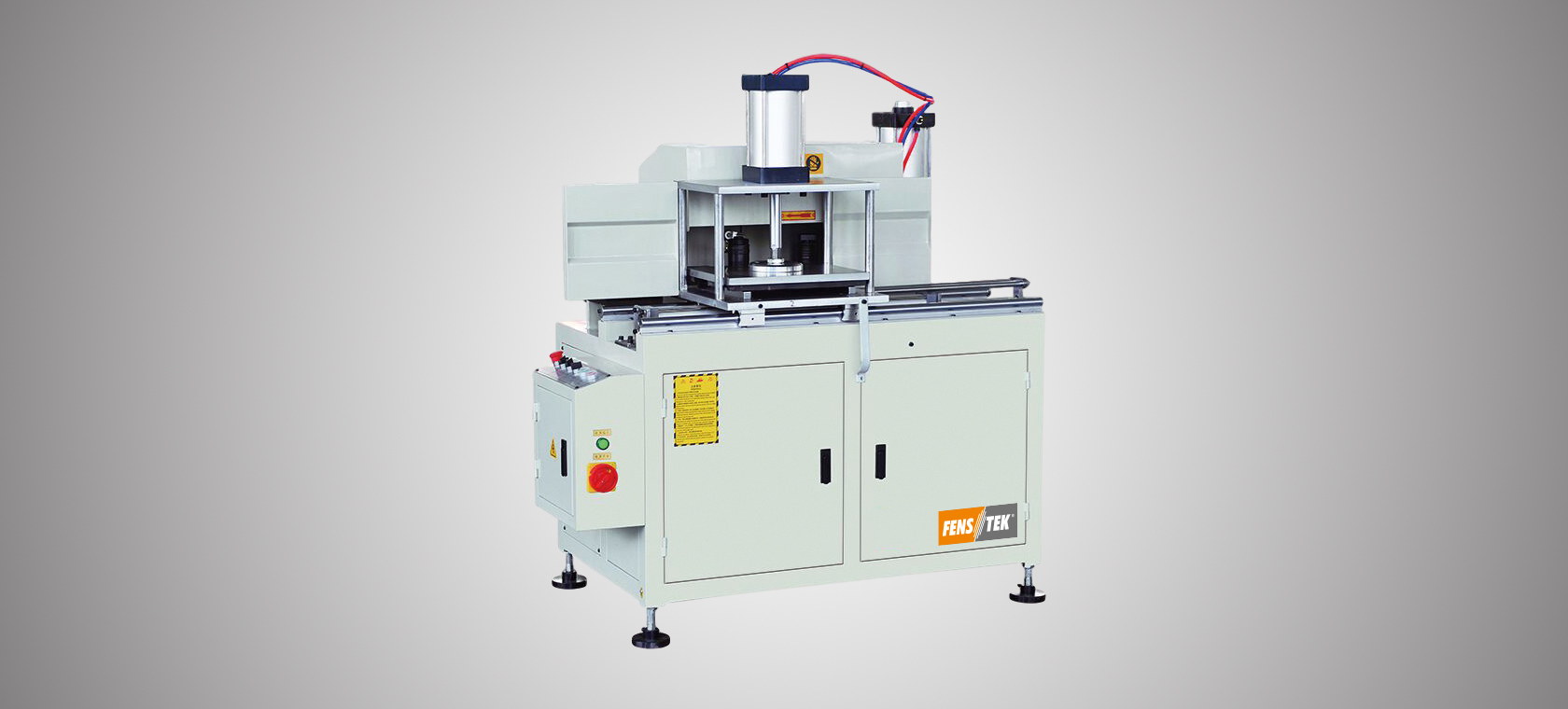

Aluminum Window Twin Head End Milling Machine

Feature:

1. End milling machine TEM200 is used for milling the transom and door frames in UPVC and aluminum profile.

2. Two motors are connected with two shafts directly.

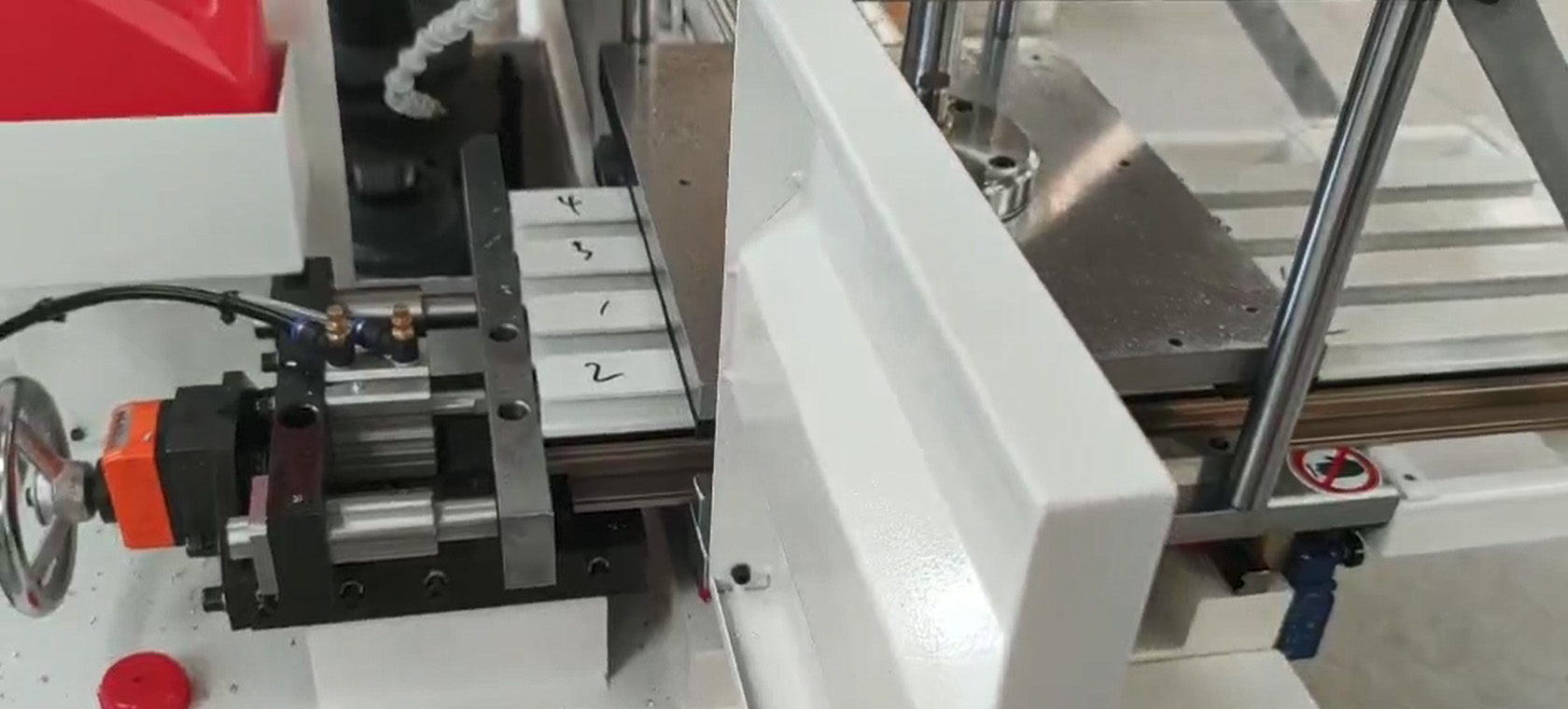

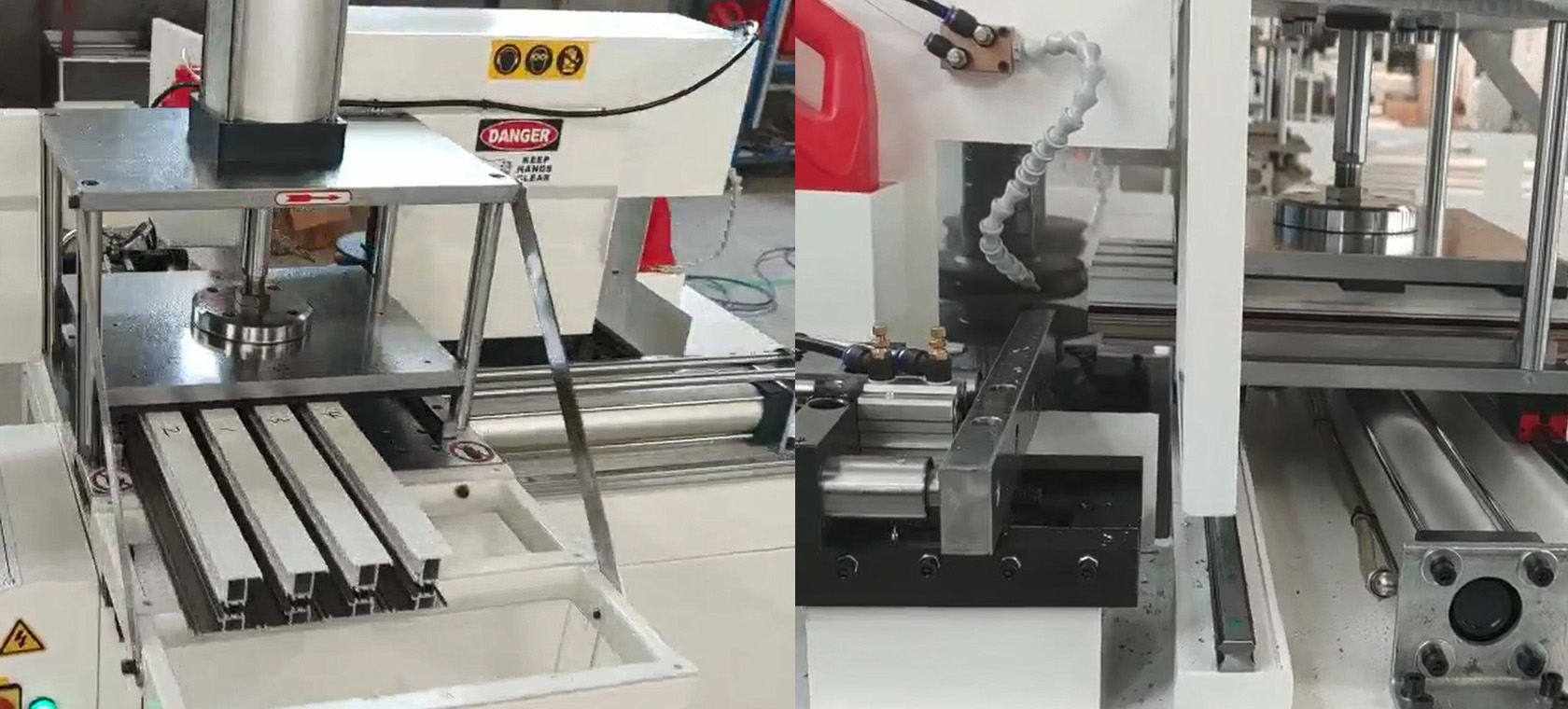

3. Milling several pcs profile in one cycle.

4. Milling cutter up and down adjustment as well as left and right adjustment for various section of profile .

5. Big diameter for milling cutter, high cutting speed.

6. Cutter spindle connected by shaft coupling, cutter working precision does not effect motor spindle running precision .

Main accessory


Solenoid Valve

Airtac

Cylinder

Airtac

 Motor

Anhui Sanyang

 Air Filter Device

Airtac

 Electrical Button and Switcher

Schneider

 AC Contactor and Circuit Breaker

Schneider

 Approach Switcher

Swiss CONTRINEX or Japan Omron





Parameter


Operation Air Pressure

0.5~0.8(MPa)

Air Consumption

10L/min

Input Voltage

380V/50Hz or Customer specification

Main-Shaft Revolution

2800(r/min)

Input Power

4.4kw

Spindle diameter

32mm

Milling cutter diameter

160-220mm

Working table feeding travel

0 - 1050mm

Working table size530×320mm
Motor adjustment travel0 - 85mm
Tenoning maximum size 40mm

Overall Dimension

1250 *920 * 1650 mm)

Machine Weight

450kg
