Aluminum Window CNC Double Head Cutting Saw, China Factory Price, FENSTEK

ADS550*4200

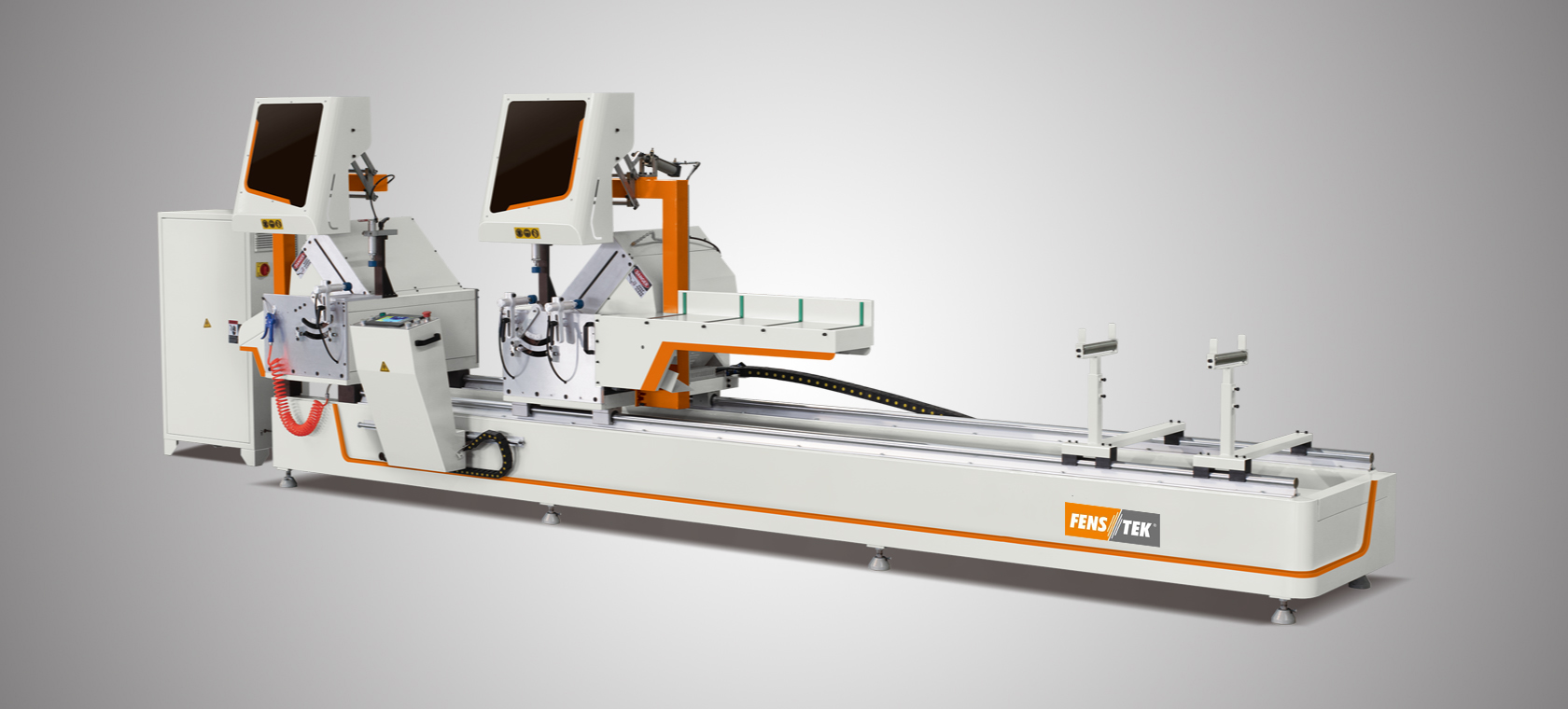

Aluminum Window CNC Double Head Cutting Saw

Features:

1.Automatic cutting Aluminum&UPVC profile.

2.Adopting the most advanced numerical controlling system driving machine moving and position automatically. High precision and easy operation.

3.Unique swing arm feeding system assure high quality cutting result.

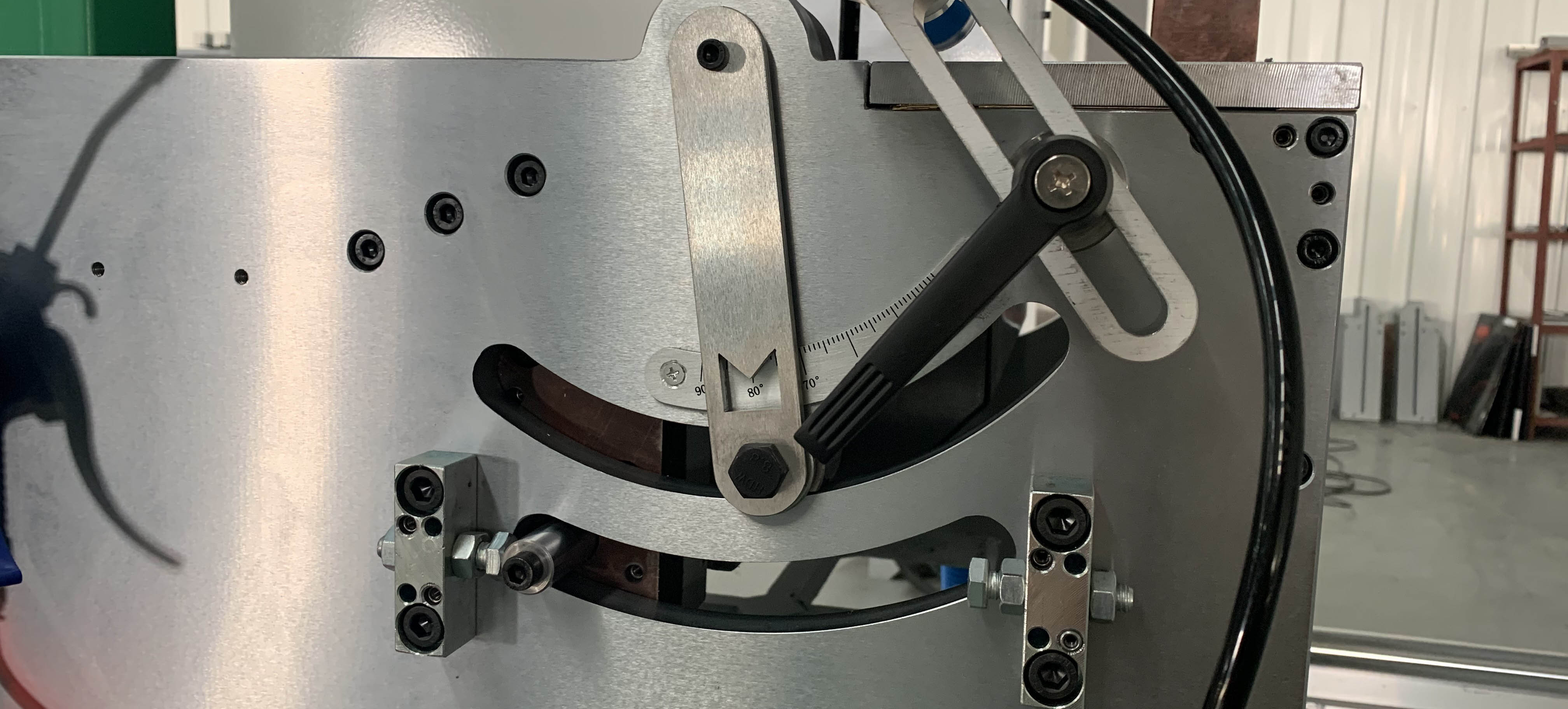

4.Auto -45°~ 90°cutting change

5.Auto safety cover for safety operation.

6.Imported linear guiding pair ensured steady processing accuracy.

7.Saw blade rotates smoothly due to high accuracy spindle.

8.Hydraulic feeding systems ensure precise and stable feeding.

9.Carbide saw blade is of accurate processing and high efficiency.

10.Two heads can work together or single, when together work, one time can cut off the required length and angle cut can be cut at one time

Main accessory
Saw blade	Wagen
Solenoid valve	AirTAC(Taiwan)
Cylinder	AirTAC(Taiwan)

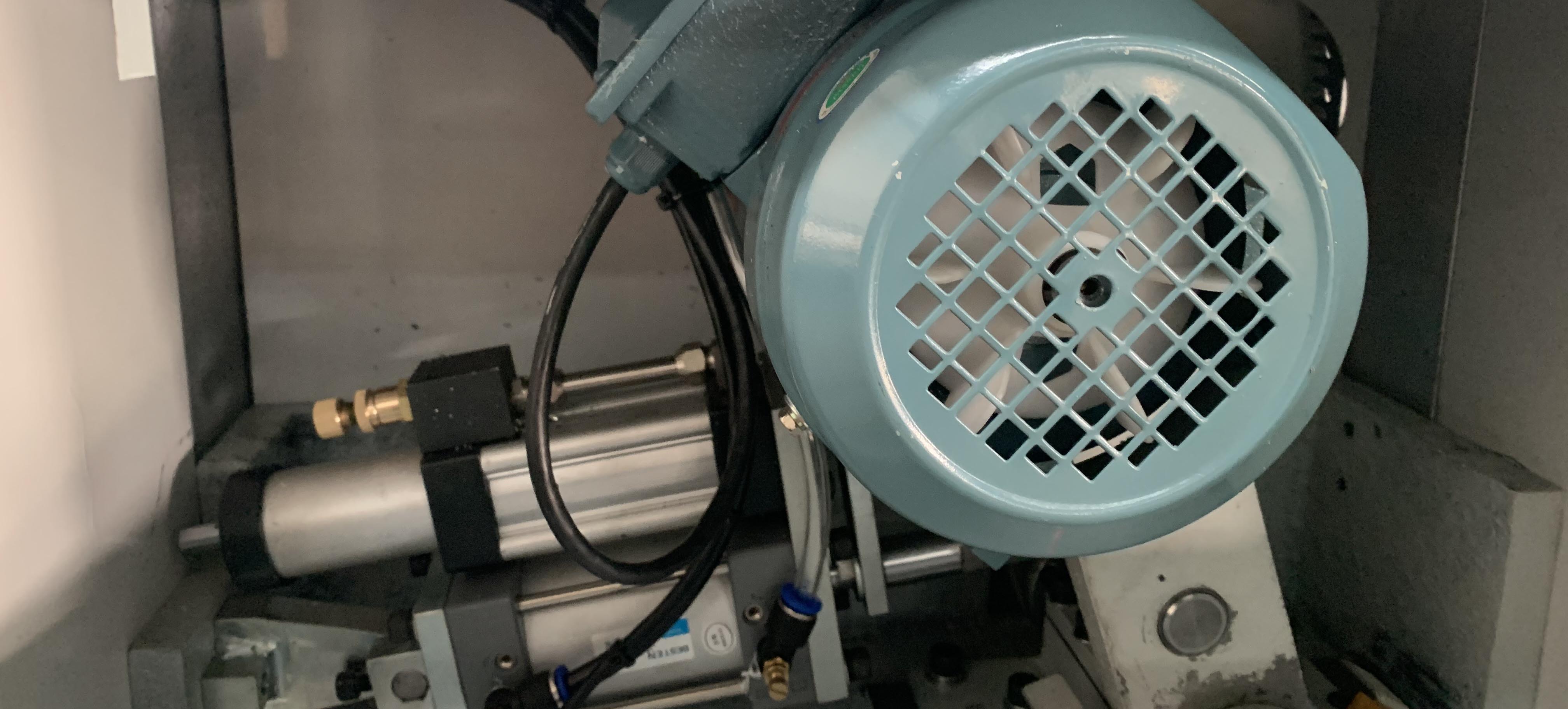

Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	AirTAC(Taiwan)
Electrical Button and Switcher	Schneider

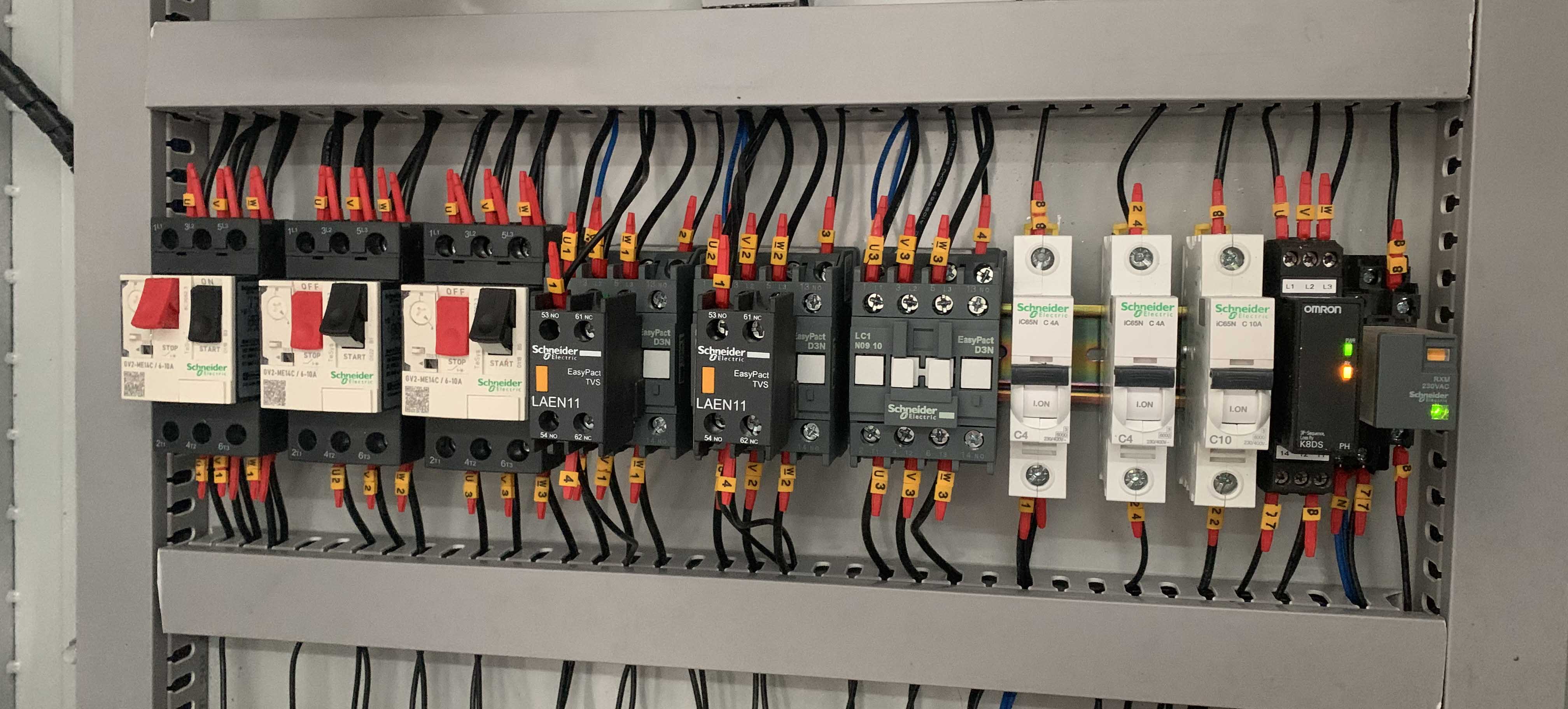

AC Contactor and Circuit Breaker	Schneider

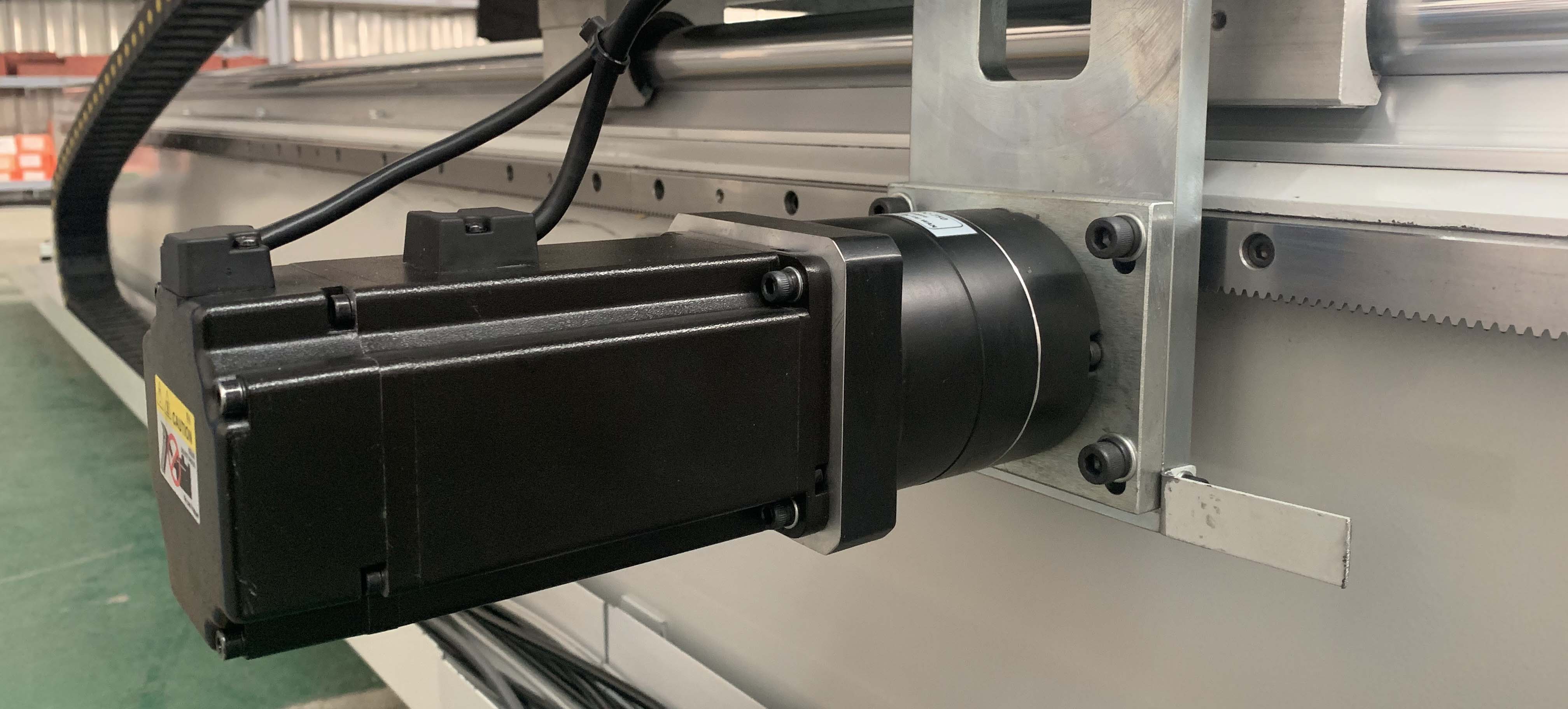

Servo Motor	Schneider
Approach Switcher	Turck

Parameter
Power supply	3N~50Hz 380/220V or As Customer Specification
Saw-head motor	2×2.2KW
Operation air pressure	0.5～0.8MPa
Cutting motor rotary speed	2800r/min
Blade specification	ø550×ø30×4.4×120T
Cutting Range	170170mm at 90° 150150mm at 45°
Cutting length	450-4200mm 90°
Cutting angle	-45°~90°
Repeat locating length tolerance	±0.2mm

Standard accessory
Saw blade	2pcs
Mobile work piece supports	2set
Air Gun	1pc
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
Coolant Spray Device	2pcs
